Description

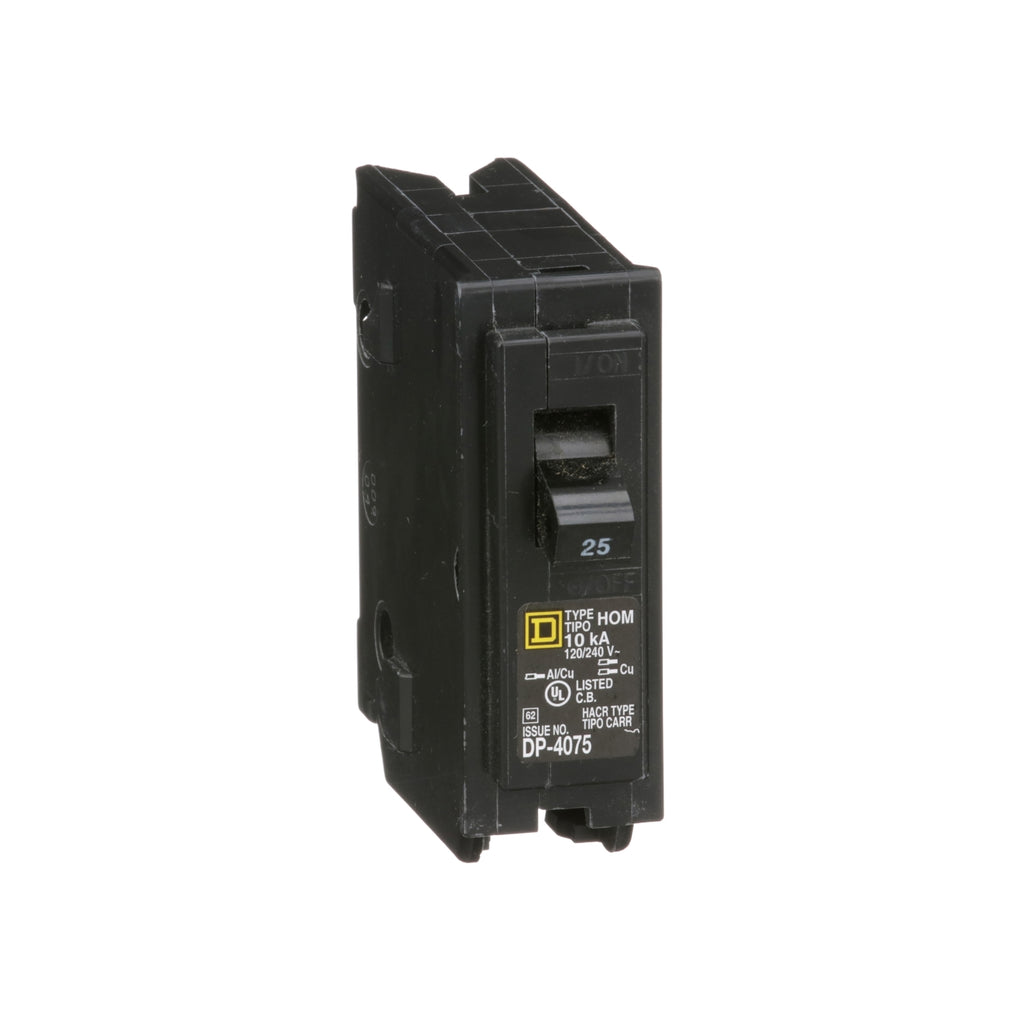

HOM125 - Schneider Electric - Plug-In 25 Amp 1 Pole 120 Volt Square D Homeline Circuit Breaker
GENERAL SPECIFICATIONS
| Main | |
| Product | Miniature circuit-breaker |
| Range | Homeline |
| Current Rating | 25 A |
| Certifications | UL Listed |
| Voltage Rating | 120/240 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 1P |
| Short Circuit Current Rating | 10 kA |
| Number of Spaces | 1 |
| Circuit Breaker Type | Standard |
| Ratings | HACR rated |
| Electrical Connection | Clamp terminal for 2 cables |
| Wire Size | 1 x AWG 14...AWG 8 ( aluminium/copper ) |
| 2 x AWG 14...AWG 10 ( copper ) | |
| Complementary | |
| Tightening torque | 35.4 lbf.in (4.0 N.m) 0.004…0.009 in² (2.5…6 mm²) (AWG 14...AWG 8) |
| Height | 3.13 in (79.50 mm) |
| Width | 1 in (25.4 mm) |
| Depth | 2.98 in (75.69 mm) |
| Environment | |
| Ambient Air Temperature for Operation | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE3D00046 |
| Discount Schedule | DE3D |
| GTIN | 785901065463 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.000 in (2.540 cm) |
| Package 1 Width | 3.000 in (7.620 cm) |
| Package 1 Length | 3.000 in (7.620 cm) |
| Package weight(Lbs) | 5.120 oz (145.149 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.100 in (7.874 cm) |
| Package 2 Width | 3.100 in (7.874 cm) |
| Package 2 Length | 10.100 in (25.654 cm) |
| Package 2 Weight | 3.360 lb(US) (1.524 kg) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 100 |
| Package 3 Height | 7.000 in (17.780 cm) |
| Package 3 Width | 11.000 in (27.940 cm) |
| Package 3 Length | 16.300 in (41.402 cm) |
| Package 3 Weight | 33.199 lb(US) (15.059 kg) |
PRODUCT DATASHEET
