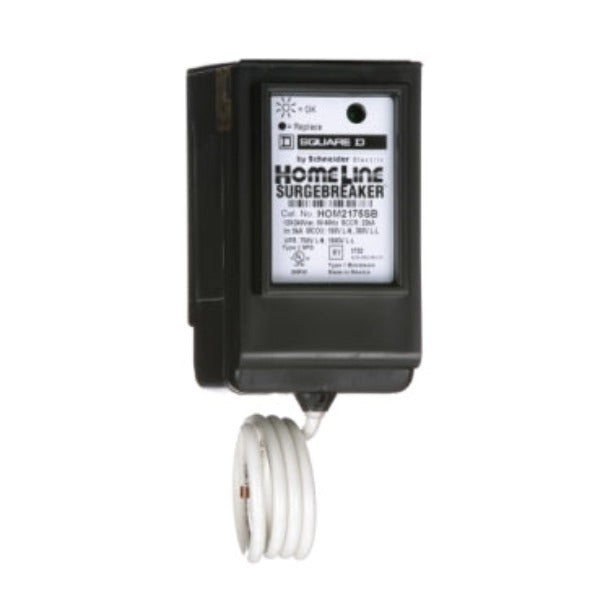

HOM2175SB - Schneider Electric - Square D - Circuit Breaker Part
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Surgebreaker is a secondary surge arrestor for Homeline load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Surgebreaker has a NEMA 1 indoor rating. This secondary surge protector is rated at 5 kA and has a SCCR of 22.5 kA. It has a plug on design and requires two pole positions. The LED indicator indicates operational status. The HOM Surgebreaker is UL Listed.
GENERAL SPECIFICATIONS
|
Main |
|
|
Product |
Surge protection device |
|
Range |
Homeline |
|
Complementary |
|
|
Surge Current |
22.5 kA |
|
Voltage Rating |
120/240 V AC |
|
Number of Phases |
1 phase |
|
Wiring Configuration |
3-wire |
|
MCOV |
150 V |
|
Rated Current |
5 kA |
|
SCCR |
22 kA |
|
Local Signalling |
1 LED green normal operation |
|
Product destination |
Load center Homeline |
|
Height |
3.7 in (93.98 mm) |
|
Width |
2 in (50.80 mm) |
|
Depth |
2.6 in (66.04 mm) |
|
Environment |
|
|
Enclosure Rating |
NEMA 1 |
|
Standards |
UL 1449:ed. 4: type II |
|
Ambient Operating |
149 °F (65 °C) |
|
Ordering and shipping details |
|
|
Category |
08461-SURGE PROTECTION RESI |
|
Discount Schedule |
DE1B |
|
GTIN |
785901210900 |
|
Returnability |
Yes |
|
Country of origin |
MX |
|
Packing Units |
|
|
Unit Type of Package 1 |
Db |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
2.20 in (5.588 cm) |
|
Package 1 Width |
2.70 in (6.858 cm) |
|
Package 1 Length |
5.30 in (13.462 cm) |
|
Package 1 Weight |
12.96 oz (367.41 g) |
|
Unit Type of Package 2 |
CAR |
|
Number of Units in Package 2 |
20 |
|
Package 2 Height |
7.00 in (17.78 cm) |
|
Package 2 Width |
6.10 in (15.494 cm) |
|
Package 2 Length |
21.30 in (54.102 cm) |
|
Package 2 Weight |
16.56 lb(US) (7.511 kg) |
