Description
| Main | |
|---|---|
| Product | Miniature circuit-breaker |
| Range | Homeline |
| Current Rating | 20 A |
| Certifications | UL Listed |
| Voltage Rating | 120/240 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 2P |
| Short Circuit Current Rating | 10 kA |
| Number of Spaces | 2 |
| Circuit Breaker Type | Ground fault protecting class B 30 mA |
| Ratings | HACR rated |
| Electrical Connection | Screw clamp terminals |
| Wire Size | 1 x 14 AWG...8 AWG ( aluminium/copper ) |
| Complementary | |
| Tightening torque | 40.7 lbf.in (4.6 N.m) 0.004…0.02 in² (2.5…10 mm²) (16 AWG...14 AWG)40.7 lbf.in (4.6 N.m) 0.006…0.03 in² (4…20 mm²) (12 AWG...4 AWG) |
| Environment | |
| Ambient Air Temperature for Operation | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE3D00143 |
| Discount Schedule | DE3D |
| GTIN | 785901564300 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.200 in (5.588 cm) |
| Package 1 Width | 3.400 in (8.636 cm) |
| Package 1 Length | 5.300 in (13.462 cm) |
| Package weight(Lbs) | 18.240 oz (517.095 g) |
| Compliance | |
| Compliance | TAA Compliant |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet

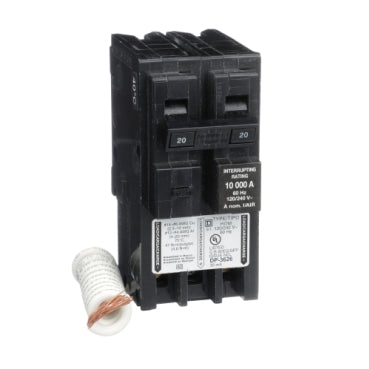

HOM220EPD
HOM220EPD
