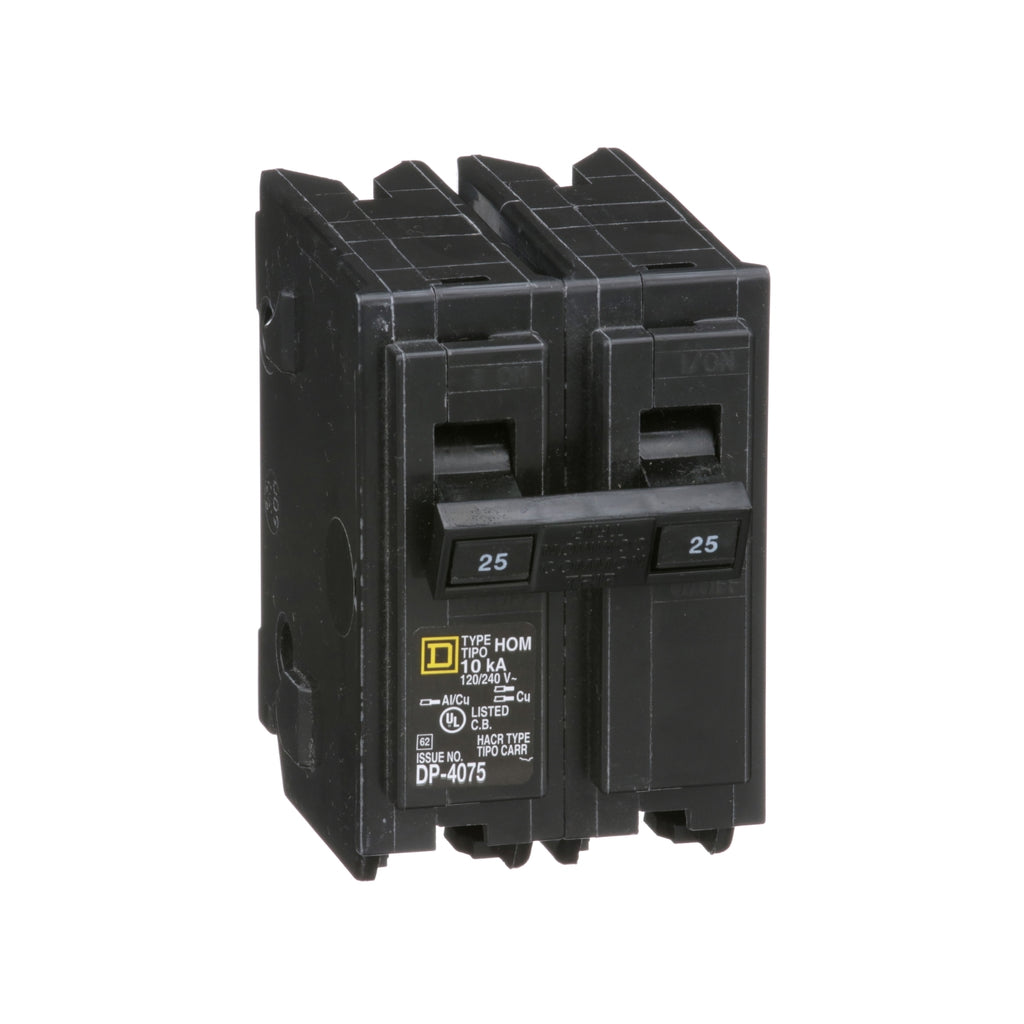

HOM225 - Schneider Electric - Plug-In 25 Amp 2 Pole 240 Volt Square D Homeline Circuit Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 25A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
GENERAL SPECIFICATIONS
| Main | |
| Product | Miniature circuit-breaker |
| Range | Homeline |
| Current Rating | 25 A |
| Certifications | UL Listed |
| Voltage Rating | 120/240 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 2P |
| Short Circuit Current Rating | 10 kA |
| Number of Spaces | 2 |
| Circuit Breaker Type | Standard |
| Ratings | HACR rated |
| Electrical Connection | Clamp terminal for 2 cables |
| Wire Size | 1 x AWG 14...AWG 8 ( aluminium/copper ) |
| 2 x AWG 14...AWG 10 ( copper ) | |
| Complementary | |
| Tightening torque | 35.4 lbf.in (4.0 N.m) 0.004…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14) |
| 35.4 lbf.in (4.0 N.m) 0.006…0.03 in² (4…20 mm²) (AWG 12...AWG 4) | |
| Height | 3.13 in (79.50 mm) |
| Width | 2 in (50.8 mm) |
| Depth | 2.98 in (75.69 mm) |
| Environment | |
| Ambient Air Temperature for Operation | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE3D00046 |
| Discount Schedule | DE3D |
| GTIN | 785901065487 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.00 in (7.62 cm) |
| Package 1 Width | 2.00 in (5.08 cm) |
| Package 1 Length | 3.10 in (7.87 cm) |
| Package weight(Lbs) | 10.56 oz (299.38 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 2.800 in (7.112 cm) |
| Package 2 Width | 2.700 in (6.858 cm) |
| Package 2 Length | 10.100 in (25.654 cm) |
| Package 2 Weight | 3.400 lb(US) (1.542 kg) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 50 |
| Package 3 Height | 10.600 in (26.924 cm) |
| Package 3 Width | 7.00 in (17.78 cm) |
| Package 3 Length | 16.600 in (42.164 cm) |
| Package 3 Weight | 34.90 lb(US) (15.83 kg) |
