Description

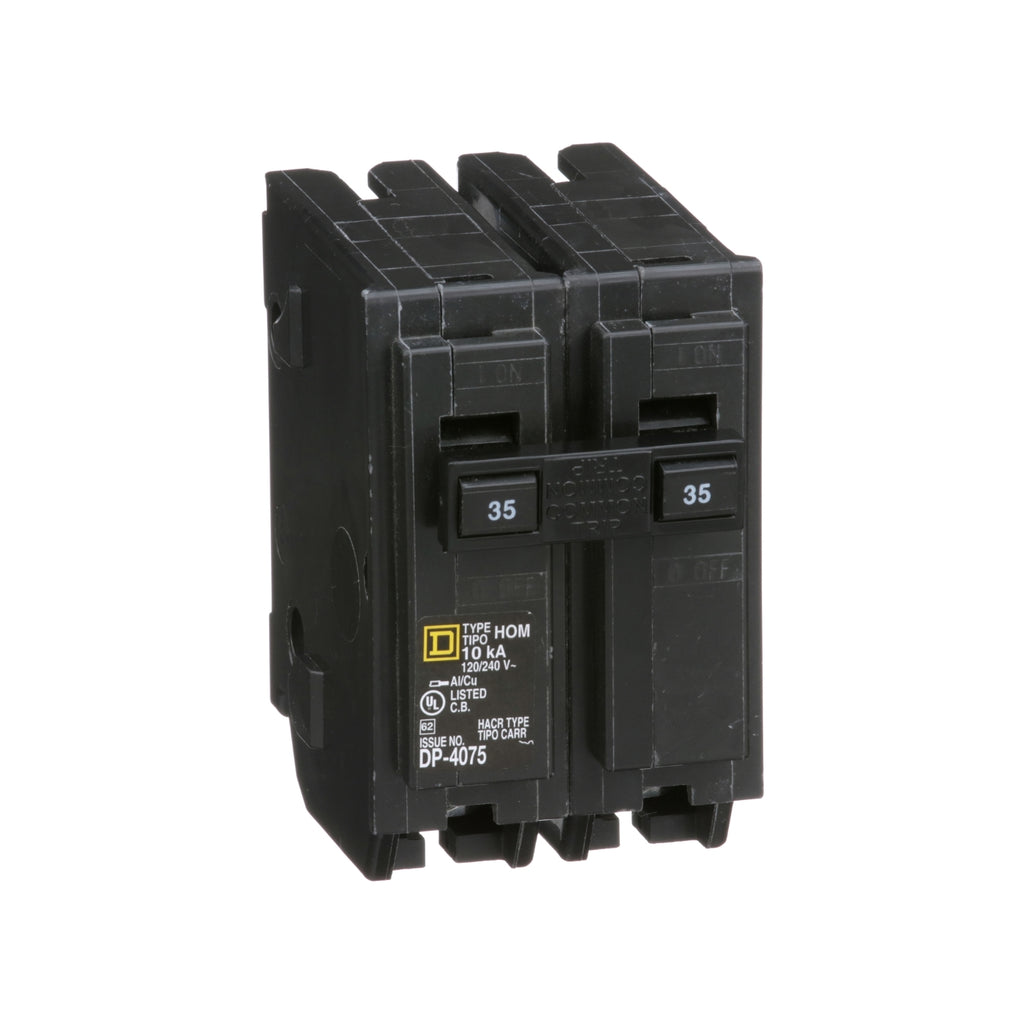

HOM235 - Schneider Electric - Plug-In 35 Amp 2 Pole 240 Volt Square D Homeline Circuit Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 35A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
GENERAL SPECIFICATIONS
| Main | |
| Product | Miniature circuit-breaker |
| Range | Homeline |
| Current Rating | 35 A |
| Certifications | UL Listed |
| Voltage Rating | 120/240 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 2P |
| Short Circuit Current Rating | 10 kA |
| Number of Spaces | 2 |
| Circuit Breaker Type | Standard |
| Ratings | HACR rated |
| Electrical Connection | Box lugs |
| Wire Size | 1 x AWG 8...AWG 2 ( aluminium/copper ) |
| Complementary | |
| Tightening torque | 40.7 lbf.in (4.6 N.m) (AWG 8...AWG 2) |
| Height | 3.13 in (79.50 mm) |
| Width | 2 in (50.8 mm) |
| Depth | 2.98 in (75.69 mm) |
| Environment | |
| Ambient Air Temperature for Operation | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE3D00046 |
| Discount Schedule | DE3D |
| GTIN | 785901065494 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.10 in (7.87 cm) |
| Package 1 Width | 2.00 in (5.08 cm) |
| Package 1 Length | 3.20 in (8.13 cm) |
| Package weight(Lbs) | 11.20 oz (317.52 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3.200 in (8.128 cm) |
| Package 2 Width | 2.600 in (6.604 cm) |
| Package 2 Length | 10.200 in (25.908 cm) |
| Package 2 Weight | 3.609 lb(US) (1.637 kg) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 50 |
| Package 3 Height | 10.50 in (26.67 cm) |
| Package 3 Width | 7.100 in (18.034 cm) |
| Package 3 Length | 16.700 in (42.418 cm) |
| Package 3 Weight | 36.500 lb(US) (16.556 kg) |
PRODUCT DATASHEET
Schneider Electric_Square-D-Homeline-Miniature-Circuit-Breakers_HOM235
