Description

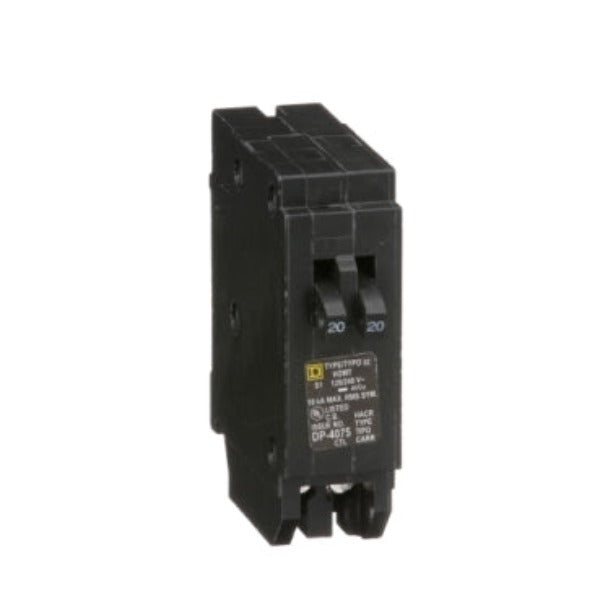

HOMT2020 - Schneider Electric - Plug-In 20/20 Amp 1 Pole 120 Volt Square D Homeline Tandem Circuit Breaker
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM plug in miniature tandem breaker with plug in mounting is rated 20A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.
GENERAL SPECIFICATIONS
|
Main |
|
|
Product |
Miniature circuit-breaker |
|
Range |
Homeline |
|
Current Rating |
20 A |
|
Certifications |
UL Listed |
|
Voltage Rating |
120/240 V AC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
1P |
|
Short Circuit Current Rating |
10 kA |
|
Number of Spaces |
1 |
|
Circuit Breaker Type |
Tandem |
|
Ratings |
HACR rated |
|
Electrical Connection |
Box lugs |
|
Wire Size |
AWG 14...AWG 8 aluminium/copper)1 |
|
Complementary |
|
|
Tightening torque |
35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8) |
|
Height |
3.13 in (79.50 mm) |
|
Width |
1 in (25.40 mm) |
|
Depth |
2.98 in (75.69 mm) |
|
Environment |
|
|
Ambient Air Temperature for Operation |
104 °F (40 °C) |
|
Ordering and shipping details |
|
|
Category |
00046-HOM/T 15-30A 1P; 15-60A 2P |
|
Discount Schedule |
DE3D |
|
GTIN |
785901065401 |
|
Returnability |
Yes |
|
Country of origin |
MX |
|
Packing Units |
|
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
3.00 in (7.62 cm) |
|
Package 1 Width |
1.00 in (2.54 cm) |
|
Package 1 Length |
3.30 in (8.382 cm) |
|
Package 1 Weight |
7.20 oz (204.117 g) |
|
Unit Type of Package 2 |
BB1 |
|
Number of Units in Package 2 |
10 |
|
Package 2 Height |
3.80 in (9.652 cm) |
|
Package 2 Width |
1.00 in (2.54 cm) |
|
Package 2 Length |
10.40 in (26.416 cm) |
|
Package 2 Weight |
4.55 lb(US) (2.064 kg) |
|
Unit Type of Package 3 |
PAL |
|
Number of Units in Package 3 |
3600 |
|
Package 3 Height |
40.00 in (101.6 cm) |
|
Package 3 Width |
40.00 in (101.6 cm) |
|
Package 3 Length |
48.00 in (121.92 cm) |
|
Package 3 Weight |
1656.00 lb(US) (751.148 kg) |
PRODUCT DATASHEET
Schneider Electric_Square-D-Homeline-Miniature-Circuit-Breakers_HOMT2020
