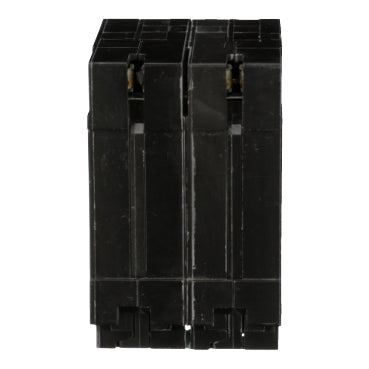

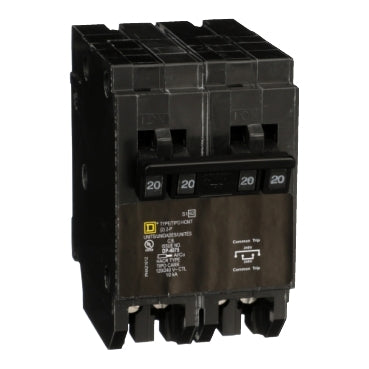

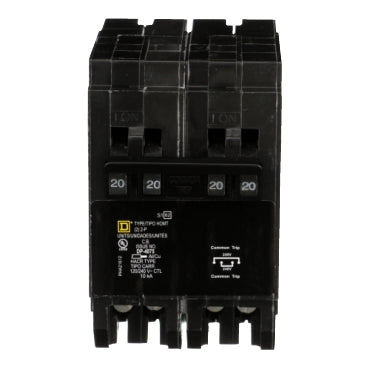

Description
| Main | |
|---|---|
| Product | Miniature circuit-breaker |
| Range | Homeline |
| Current Rating | 20 A20 A |
| Certifications | UL Listed |
| Voltage Rating | 120/240 V AC |
| Mounting Type | Plug-in |
| Number of Poles | 2P |
| Short Circuit Current Rating | 10 kA |
| Number of Spaces | 2.0 |
| Circuit Breaker Type | Quad tandem |
| Ratings | HACR rated |
| Electrical Connection | Box lugs |
| Wire Size | 1 x 14 AWG...8 AWG ( aluminium/copper ) |
| Complementary | |
| Tightening torque | 35.4 lbf.in (4.0 N.m) 0.004…0.009 in² (2.5…6 mm²) (14 AWG...8 AWG) |
| Height | 3.13 in (79.50 mm) |
| Width | 1.97 in (50.04 mm) |
| Depth | 3.23 in (82.04 mm) |
| Environment | |
| Ambient Air Temperature for Operation | 104 °F (40 °C) |
| Ordering and shipping details | |
| Category | US1DE3D00046 |
| Discount Schedule | DE3D |
| GTIN | 785901969723 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 3.200 in (8.128 cm) |
| Package 1 Width | 2.000 in (5.080 cm) |
| Package 1 Length | 3.250 in (8.255 cm) |
| Package weight(Lbs) | 13.600 oz (385.553 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3.300 in (8.382 cm) |
| Package 2 Width | 3.700 in (9.398 cm) |
| Package 2 Length | 10.250 in (26.035 cm) |
| Package 2 Weight | 4.449 lb(US) (2.018 kg) |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 50 |
| Package 3 Height | 10.750 in (27.305 cm) |
| Package 3 Width | 7.700 in (19.558 cm) |
| Package 3 Length | 17.300 in (43.942 cm) |
| Package 3 Weight | 44.800 lb(US) (20.321 kg) |
| Contractual warranty | |
| Warranty (in months) | 18 |
Product Datasheet
HOMT220220
HOMT220220
