HPAFD - Schneider Electric - Square D Mini Circuit Breaker Accessory

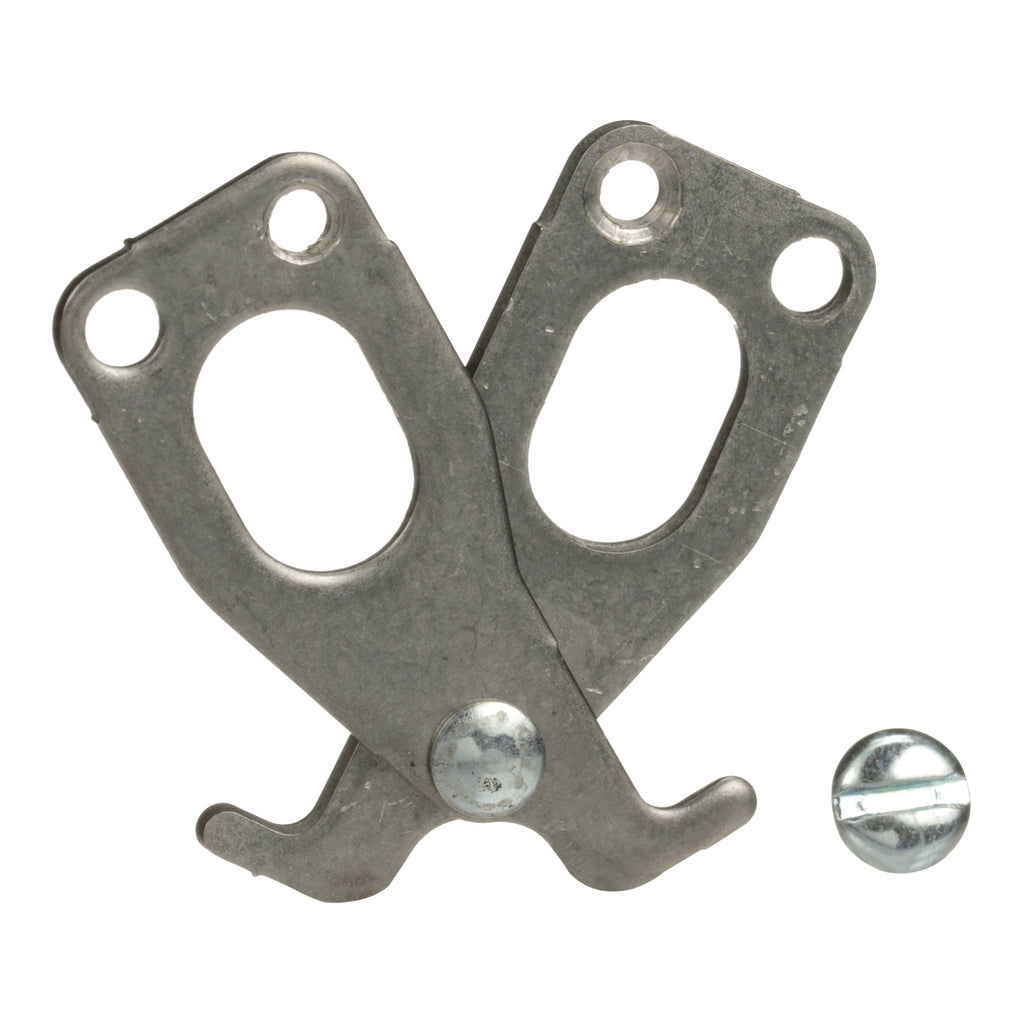

This padlock attachment is to lock a circuit breaker handle. The padlock locks the breaker into a set position, on or off. PowerPacT H padlock attachments comply to UL, CSA, and IEC standards. This PowerPacT H-Frame Circuit Breakers Padlock attachment is for a standard circuit breaker type.
GENERAL SPECIFICATION
Main
| Product or Component Type |
Padlocking device |
| Circuit breaker type |
Standard |
| Breaking capacity |
18 kA 480 V AC |
| Product destination |
circuit breaker |
Complementary
| Product destination |
Handle |
| Locking options description |
Padlocking device |
| Net Weight |
5 lb(US) (2.3 kg) |
Environment
| Product Certifications |
IEC
CSA
UL Listed |
Ordering and shipping details
| Category |
US10DE201078 |
| Discount Schedule |
0DE2 |
| GTIN |
785901077572 |
| Returnability |
Yes |
| Country of origin |
MX |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.20 in (0.508 cm) |
| Package 1 Width |
2.80 in (7.112 cm) |
| Package 1 Length |
4.40 in (11.176 cm) |
| Package 1 Weight |
0.480 oz (13.608 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
200 |
| Package 2 Height |
3.80 in (9.652 cm) |
| Package 2 Width |
13.50 in (34.290 cm) |
| Package 2 Length |
20.70 in (52.578 cm) |
| Package 2 Weight |
7.480 lb(US) (3.393 kg) |
PRODUCT DATASHEET
Schneider Electric_PowerPacT-HFrame-Molded-Case-Circuit-Breakers_HPAFD
