HPAFK - Schneider Electric - Square D Mini Circuit Breaker Accessory

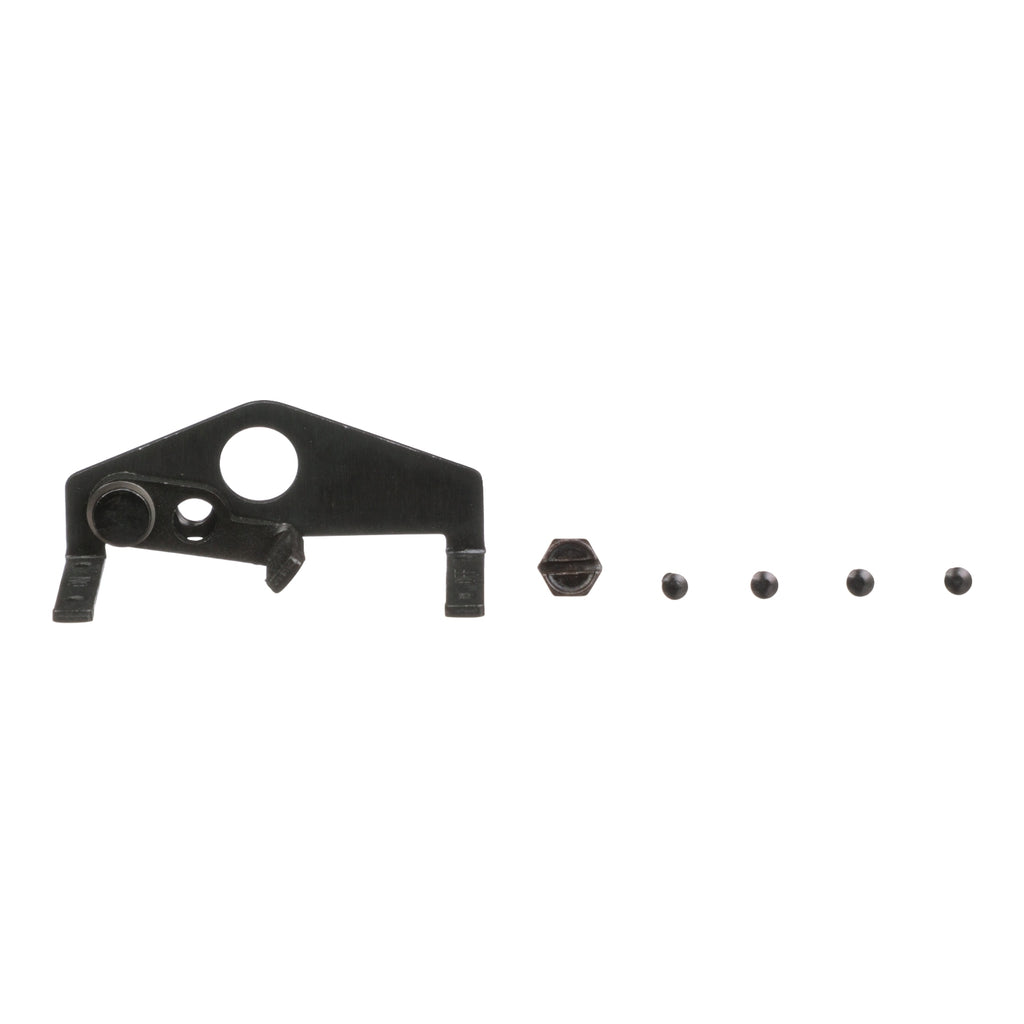

This padlock attachment is to lock a circuit breaker handle. The padlock locks the breaker into a set position, on or off. PowerPacT H padlock attachments comply to UL, CSA, and IEC standards. This PowerPacT H-Frame circuit breakers padlock attachment is for a circuit breaker type.
GENERAL SPECIFICATION
Main
| Product or Component Type |
Padlocking device |
| Range of Product |
PowerPact H |
| Product destination |
FA/FC/FH/FI/FY, series 2/KA/KH/KC/KI circuit breaker |
Complementary
| Product destination |
Handle |
| Locking options description |
Padlocking device |
| Net Weight |
5 lb(US) (2.3 kg) |
Environment
| Product Certifications |
UL Listed
IEC
CSA |
Ordering and shipping details
| Category |
US10DE201078 |
| Discount Schedule |
0DE2 |
| GTIN |
785901009801 |
| Returnability |
Yes |
| Country of origin |
US |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
0.80 in (2.032 cm) |
| Package 1 Width |
2.80 in (7.112 cm) |
| Package 1 Length |
4.50 in (11.430 cm) |
| Package 1 Weight |
1.437 oz (40.733 g) |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
100 |
| Package 2 Height |
3.90 in (9.906 cm) |
| Package 2 Width |
13.60 in (34.544 cm) |
| Package 2 Length |
20.70 in (52.578 cm) |
| Package 2 Weight |
8.860 lb(US) (4.019 kg) |
PRODUCT DATASHEET
Schneider Electric_PowerPacT-HFrame-Molded-Case-Circuit-Breakers_HPAFK
