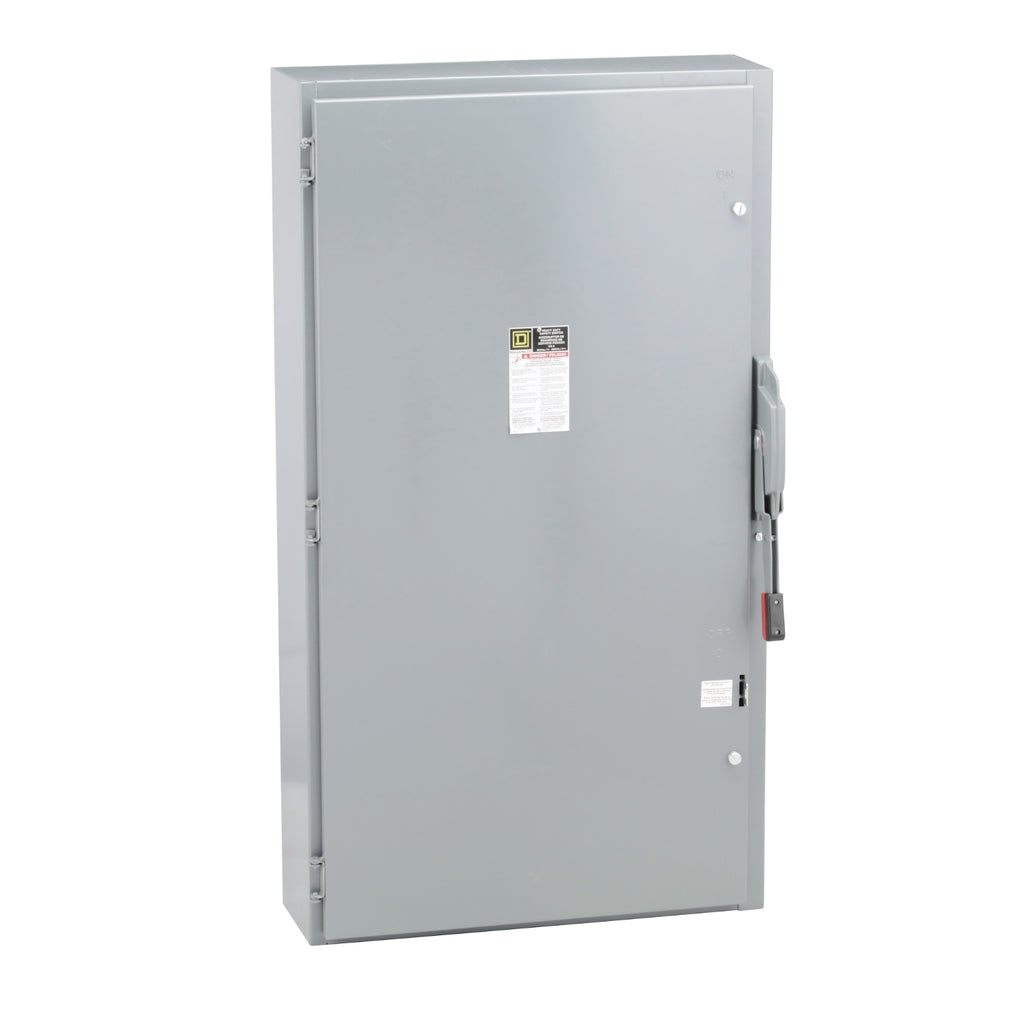

HU365 - Schneider Electric - 30A 240V Square D Heavy Duty Safety Switch 2Pole NEMA 3R
The Square D(TM) by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 200A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of galvannealed steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Non-fusible disconnect |
| Factory Installed Neutral | None |
| Number of Poles | 3 |
| Current Rating | 400 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 1 steel |
| Standard Motor Power Rating | 125 hp at 240 V AC 50-60 Hz for 3 phase motors 250 hp at 480 V AC 50-60 Hz for 3 phase motors 350 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 250 V DC 50 hp at 600 V DC |
| Mounting Type | Surface |
|---|---|
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 1/0...750 kcmil copper or aluminium |
| Tightening torque | 550 lbf.in (62.1 N.m) (AWG 1/0...750 kcmil) |
| Depth | 10.13 in (257.30 mm) |
| Width | 27.63 in (701.80 mm) |
| Height | 50.25 in (1276.35 mm) |
| Net Weight | 170.0 lb(US) (77.1 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100053 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901787303 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package | 1 |
| Package 1 Height | 14.300 in (36.322 cm) |
| Package 1 Width | 28.300 in (71.882 cm) |
| Package 1 Length | 52.000 in (132.080 cm) |
| Package 1 Weight | 170.0008 lb(US) (77.111 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 32.500 in (82.550 cm) |
| Package 2 Width | 40.000 in (101.600 cm) |
| Package 2 Length | 56.000 in (142.240 cm) |
| Package 2 Weight | 339.999 lb(US) (154.221 kg) |
