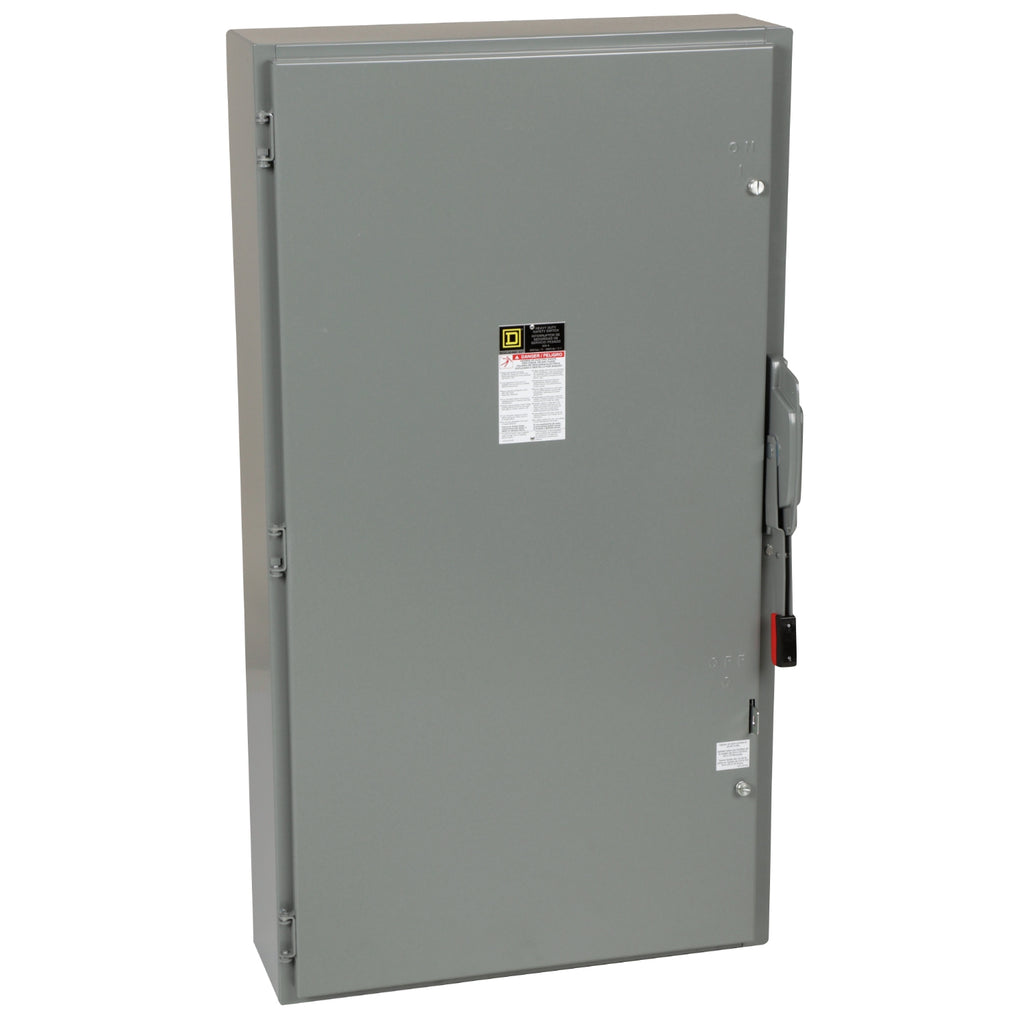

HU366 - Schneider Electric - 60A 240V Square D Heavy Duty Safety Switch 2Pole NEMA 3R
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty safety switch has a rated current of 600A and has a NEMA 1 degree of protection. This non-fusible disconnect has a short circuit rating of 200kA at 600VAC. This safety switch has a steel enclosure and is surface mounted. This product is compatable with H or K, R, J or L fuses. The acceptable AWG gauge for this product is AWG 3/0 / 500 kcmil, copper or aluminiumand has a tightening torque of 375-375 lb force per square inch. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 50.25 in (H), 27.63 in (W), 10.13 in (D).
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Non-fusible disconnect |
| Factory Installed Neutral | None |
| Number of Poles | 3 |
| Current Rating | 600 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 1 steel |
| Standard Motor Power Rating | 200 hp at 240 V AC 50-60 Hz for 3 phase motors 400 hp at 480 V AC 50-60 Hz for 3 phase motors 500 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 250 V DC 50 hp at 600 V DC |
| Mounting Type | Surface |
|---|---|
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 3/0...500 kcmil copper or aluminium |
| Tightening torque | 375 lbf.in (42.4 N.m) (AWG 3/0...500 kcmil) |
| Depth | 10.13 in (257.30 mm) |
| Width | 27.63 in (701.80 mm) |
| Height | 50.25 in (1276.35 mm) |
| Net Weight | 175.05 lb(US) (79.4 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100053 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901505655 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 14.300 in (36.322 cm) |
| Package 1 Width | 28.300 in (71.882 cm) |
| Package 1 Length | 51.900 in (131.826 cm) |
| Package weight(Lbs) | 175.0009 lb(US) (79.379 kg) |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 32.500 in (82.550 cm) |
| Package 2 Width | 40.000 in (101.600 cm) |
| Package 2 Length | 56.000 in (142.240 cm) |
| Package 2 Weight | 350.000 lb(US) (158.757 kg) |
