Description

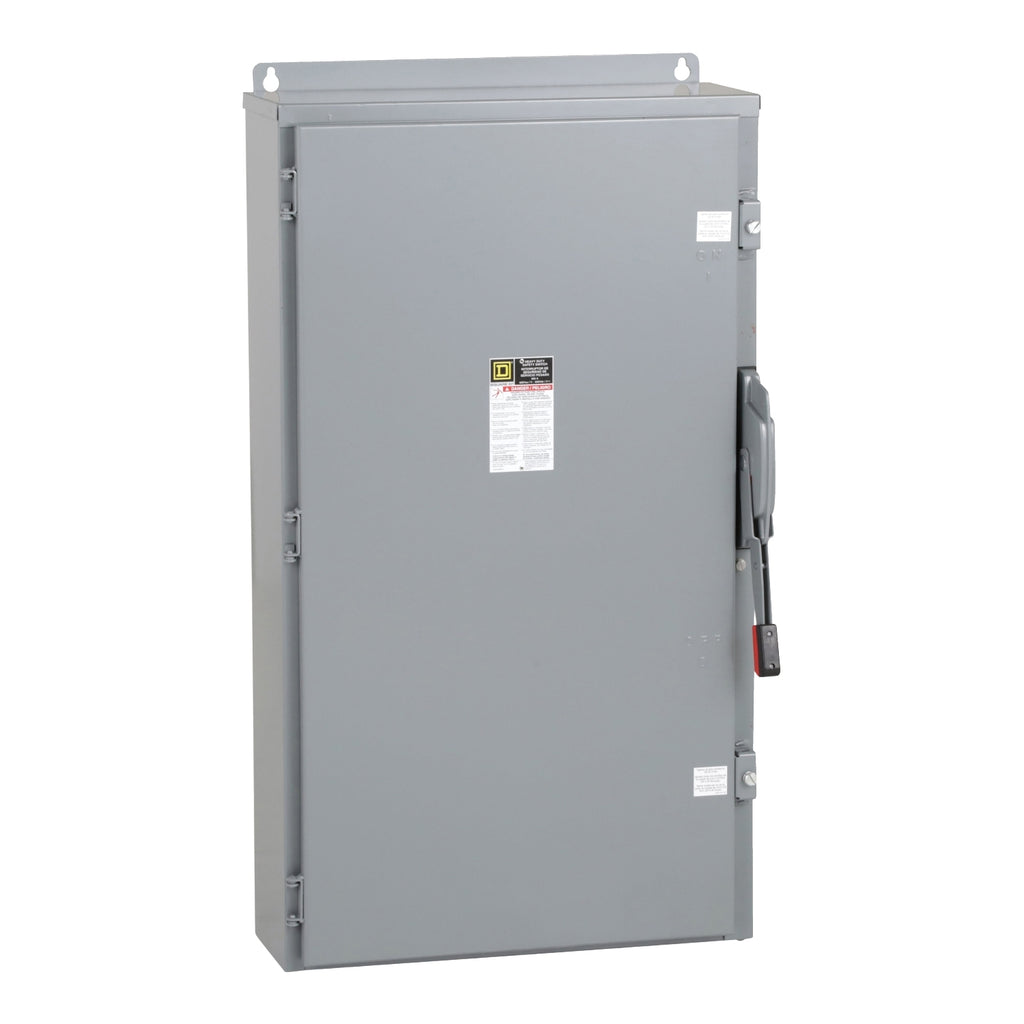

HU366AWK - Schneider Electric - Square D Safety Switch Heavy Duty Non-Fusible 600A 3 Pole 600VAC NEMA 4X
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Non-fusible disconnect |
| Factory Installed Neutral | None |
| Number of Poles | 3 |
| Current Rating | 600 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 3R/12 galvannealed steel |
| Standard Motor Power Rating | 200 hp at 240 V AC 50-60 Hz for 3 phase motors 400 hp at 480 V AC 50-60 Hz for 3 phase motors 500 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 250 V DC 50 hp at 600 V DC |
| Mounting Type | Surface |
|---|---|
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 3/0...500 kcmil copper or aluminium |
| Tightening torque | 375 lbf.in (42.4 N.m) (AWG 3/0...500 kcmil) |
| Depth | 10.13 in (257.30 mm) |
| Width | 26.25 in (666.75 mm) |
| Height | 46.25 in (1174.75 mm) |
| Net Weight | 164.9 lb(US) (74.8 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100155 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901455516 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.8 in (32.5 cm) |
| Package 1 Width | 27.3 in (69.3 cm) |
| Package 1 Length | 51.0 in (129.5 cm) |
| Package 1 Weight | 175.0009 lb(US) (79.379 kg) |
PRODUCT DATASHEET
