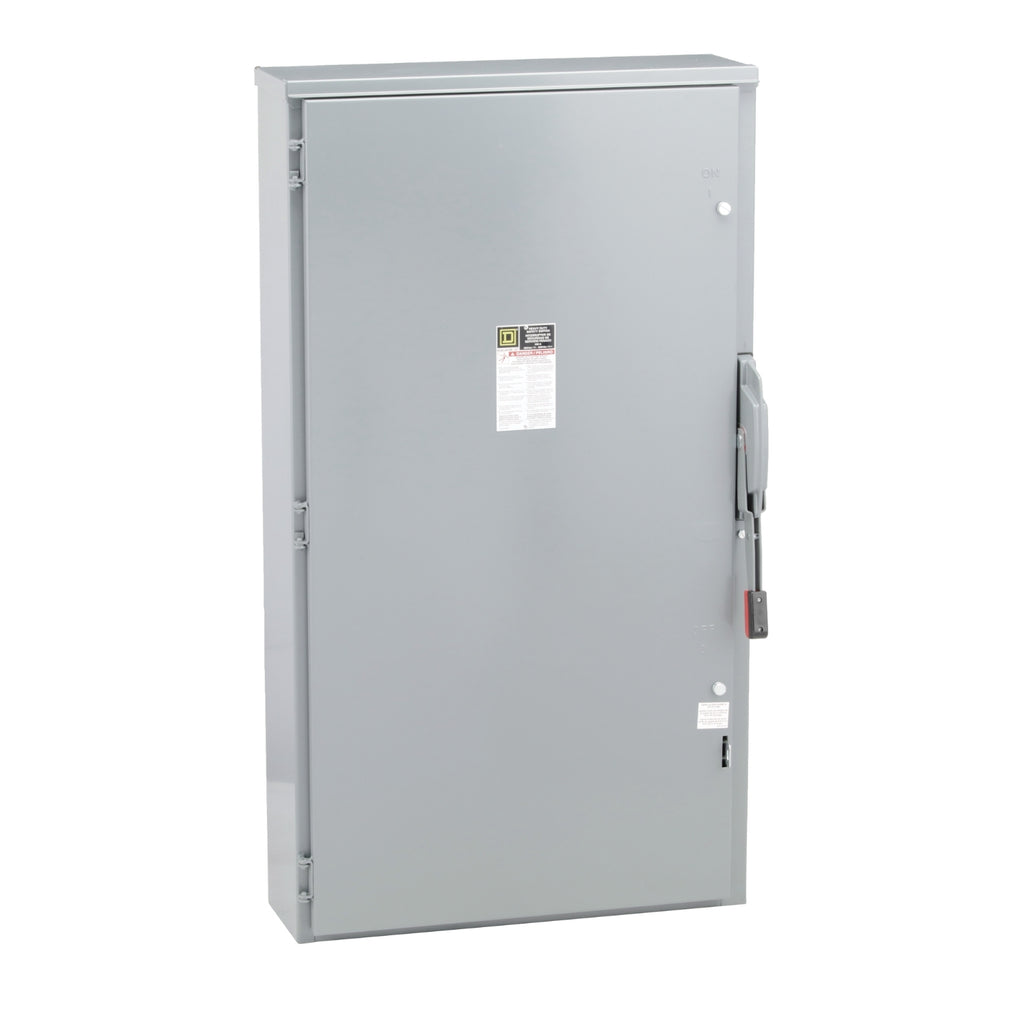

HU366R - Schneider Electric - Square D Safety Switch Heavy Duty Non-Fusible 3 Pole 3 Wire 600VAC/DC 600A Type 3R
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of galvannealed steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.
GENERAL SPECIFICATIONS
| Product | Single Throw Safety Switch |
|---|---|
| Duty Rating | Heavy duty |
| Device Application | Heavy application |
| Disconnect Type | Non-fusible disconnect |
| Factory Installed Neutral | None |
| Number of Poles | 3 |
| Current Rating | 600 A |
| Voltage Rating | 600 V AC/DC |
| Enclosure Rating | NEMA 3R galvannealed steel |
| Standard Motor Power Rating | 200 hp at 240 V AC 50-60 Hz for 3 phase motors 400 hp at 480 V AC 50-60 Hz for 3 phase motors 500 hp at 600 V AC 50-60 Hz for 3 phase motors 50 hp at 250 V DC 50 hp at 600 V DC |
| Mounting Type | Surface |
|---|---|
| Electrical Connection | Lugs |
| Wiring configuration | 3-wire |
| Wire Size | AWG 3/0...500 kcmil copper or aluminium |
| Tightening torque | 375 lbf.in (42.4 N.m) (AWG 3/0...500 kcmil) |
| Depth | 10.13 in (257.30 mm) |
| Width | 27.88 in (708.15 mm) |
| Height | 50.31 in (1277.87 mm) |
| Net Weight | 195.1 lb(US) (88.5 kg) |
| Certifications | UL listed file E2875 |
|---|
| Category | US10DE100054 |
|---|---|
| Discount Schedule | 0DE1 |
| GTIN | 785901452164 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.5 in (34.3 cm) |
| Package 1 Width | 28.2 in (71.6 cm) |
| Package 1 Length | 51.3 in (130.3 cm) |
| Package 1 Weight | 168.0 lb(US) (76.2 kg) |
