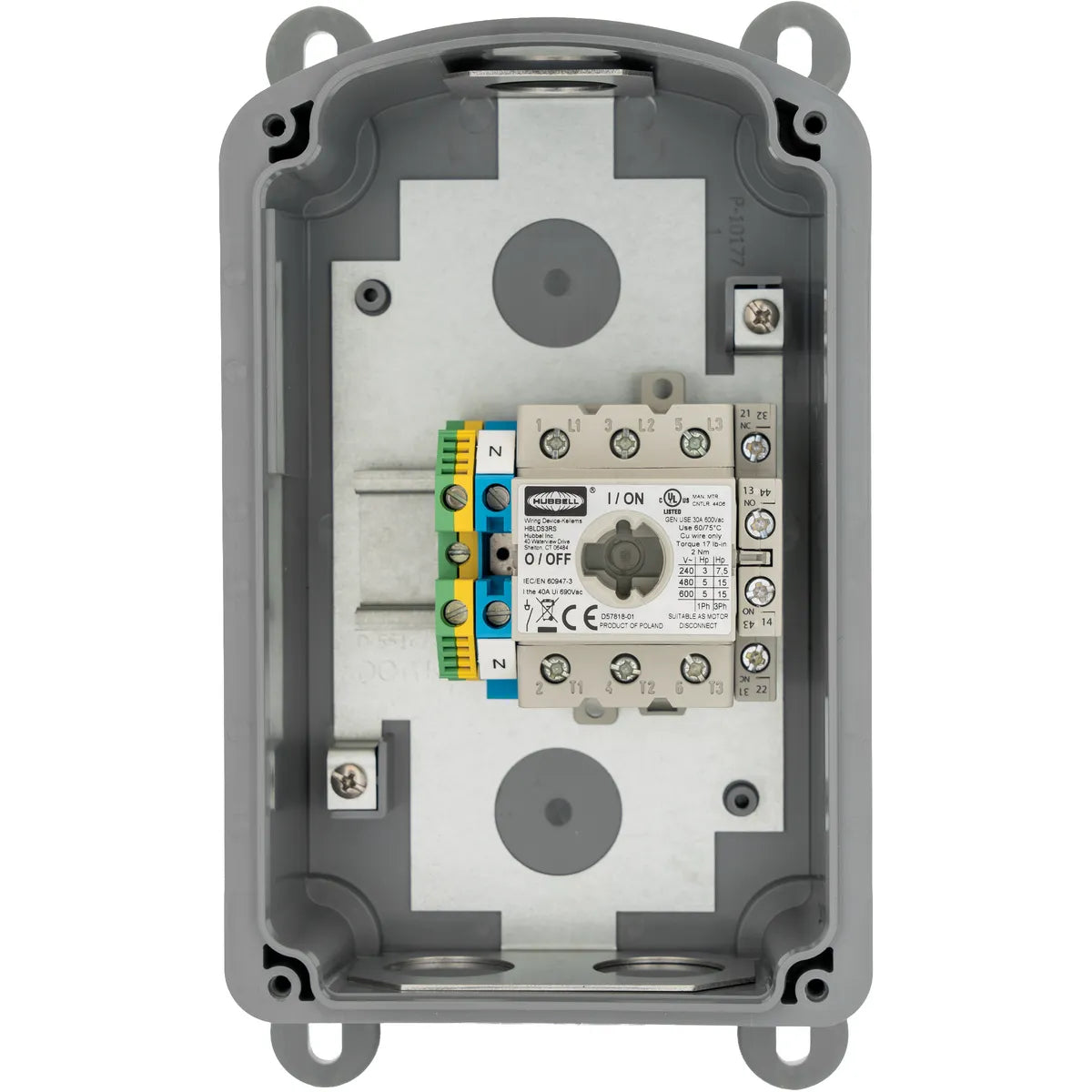

HUBHBLDS100AC - Hubbell - 100A 3-Pole Unfused Motor Disconnect, 600V AC, NEMA 4X
HUBHBLDS100AC - Hubbell - 100A 3-Pole Unfused Motor Disconnect, 600V AC, NEMA 4X
Roll over image to zoom in Click on image to zoom
HUBHBLDS100AC - Hubbell - 100A 3-Pole Unfused Motor Disconnect, 600V AC, NEMA 4XHUBHBLDS100AC - Hubbell - 100A 3-Pole Unfused Motor Disconnect, 600V AC, NEMA 4X

HUBHBLDS100AC - Hubbell - 100A 3-Pole Unfused Motor Disconnect, 600V AC, NEMA 4X

HubbellSKU: HUBHBLDS100AC
Price:
$572.88
Stock:
Sold out

Description

Product Specifications
General
Application Heavy Duty Industrial and/or Washdown
Catalog Number HBLDS100AC
Color Gray
Enclosure Type IP69k and UL Type 4X, 12
Environmental Conditions Indoor and Outdoor
Horsepower - Maximum 50
Ingress Protection IP69k, NEMA Type 4X, 12
Material - Mounting Hardware Stainless Steel Screw Mounting
Mounting Method External fully adjustable feet
Operating Cycles 10,000 Cycles Minimum
Operating Temperature Without Impact Maximum continuous 75°C and minimum -40°C
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage
  • Electrical - Dielectric Voltage - Withstands 3000V AC minimum
  • Electrical - Max Working Voltage - 600V AC RMS
  • Environmental - Flammability - UL94-5VA and V0 Classification
  • Environmental - Operating Temperature - Max Continuous 75°C, Min Continuous -40°C without impact
  • Environmental - UV Resistance - All materials are UV stabilized
  • Mechanical - Impact Resistance - In accordance with UL746C
  • Mechanical - Mounting - Non-Metallic External Fully Adjustable Feet
  • Mechanical - Product Identification - Identification and ratings are part of external label
  • Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Series Non-Fused
Specifications
  • Base - Valox®
  • Enclosure Gasket - Neoprene
  • Handle - Valox®
  • Shaft (Unfused) - Valox®
  • Top - Valox®
Style Heavy Duty
Type Disconnect Switches
UPC 783585763347
Dimensions
Height 5.94 in
Hub Size 1 1/4""
Weight 3.363 lb
Electrical Ratings
Current / Amperage Rating 100 A
Dielectric Strength Withstands 3000V AC minimum
Conductor Related
Wire Size #2 to #10 AWG
Certifications And Compliance
Environmental Conditions Indoor and Outdoor
Industry Standard(s) cULus Listed
Operational
Horsepower - Maximum 50
Operating Cycles 10,000 Cycles Minimum
Operating Temperature Without Impact Maximum continuous 75°C and minimum -40°C
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage
  • Electrical - Dielectric Voltage - Withstands 3000V AC minimum
  • Electrical - Max Working Voltage - 600V AC RMS
  • Environmental - Flammability - UL94-5VA and V0 Classification
  • Environmental - Operating Temperature - Max Continuous 75°C, Min Continuous -40°C without impact
  • Environmental - UV Resistance - All materials are UV stabilized
  • Mechanical - Impact Resistance - In accordance with UL746C
  • Mechanical - Mounting - Non-Metallic External Fully Adjustable Feet
  • Mechanical - Product Identification - Identification and ratings are part of external label
  • Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Configuration
Mounting Method External fully adjustable feet
Logistics
Carton Quantity 1
