Description
General
Application
Heavy Duty Industrial and/or Washdown
Catalog Number
HBLDS30AC
Color
Gray
Enclosure Type
IP69K and UL Type 4X, 12
Environmental Conditions
Indoor and Outdoor
Horsepower - Maximum
15
Ingress Protection
IP69K, NEMA Type 4X, 12
Material - Mounting Hardware
Stainless Steel Screw Mounting

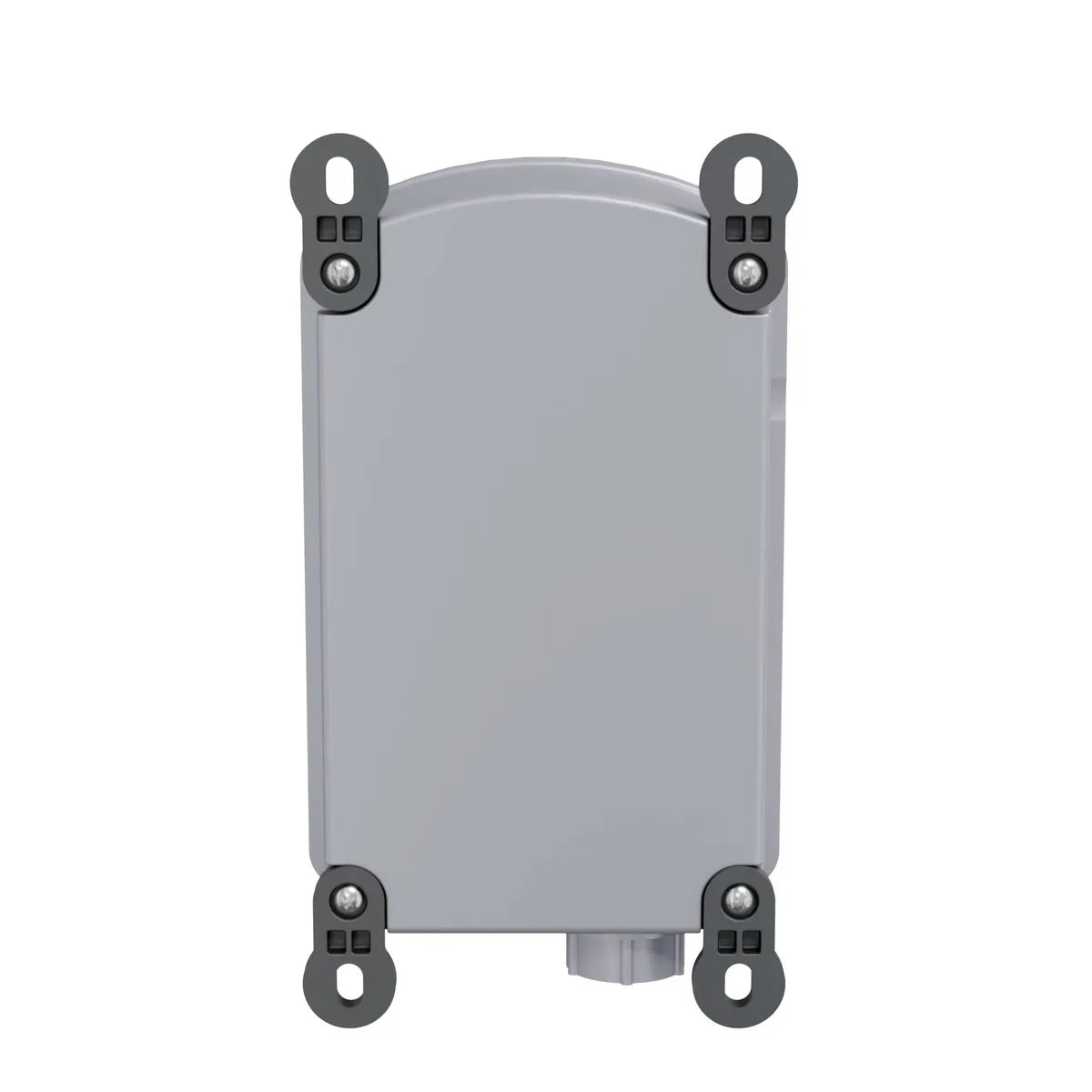

Mounting Method
External fully adjustable feet
Operating Cycles
10,000 Cycles Minimum
Operating Temperature
Without Impact Maximum continuous 75°C and minimum -40°C
Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage
- Electrical - Dielectric Voltage - Withstands 3000V AC minimum
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - UL94-5VA and V0 Classification
- Environmental - Operating Temperature - Max Continuous 75°C / Min Continuous -40°C w/o impact
- Environmental - UV Resistance - All materials are UV stabilized
- Mechanical - Impact Resistance - In accordance with UL 746C
- Mechanical - Mounting - Non-Metallic - External fully adjustable feet
- Mechanical - Product Identification - Identification and ratings are part of external label
- Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Series
Non-Fused
Specifications
- Base - Valox®
- Enclosure Gasket - Neoprene
- Handle - Valox®
- Shaft (Unfused) - Valox®
- Top - Valox®
Style
Heavy Duty
Type
Disconnect Switches
UPC
783585763033
Dimensions
Height
4.12 in
Hub Size
3/4""
Weight
2.8 lb
Electrical Ratings
Current / Amperage Rating
30 A
Dielectric Strength
Withstands 3000V AC minimum
Conductor Related
Wire Size
#14 AWG to #8 AWG
Certifications And Compliance
Environmental Conditions
Indoor and Outdoor
Industry Standard(s)
cULus Listed
Configuration
Mounting Method
External fully adjustable feet
Logistics
Carton Quantity
1
Pallet Quantity
360
