| Application |
Heavy Duty Industrial and/or Washdown |
| Catalog Number |

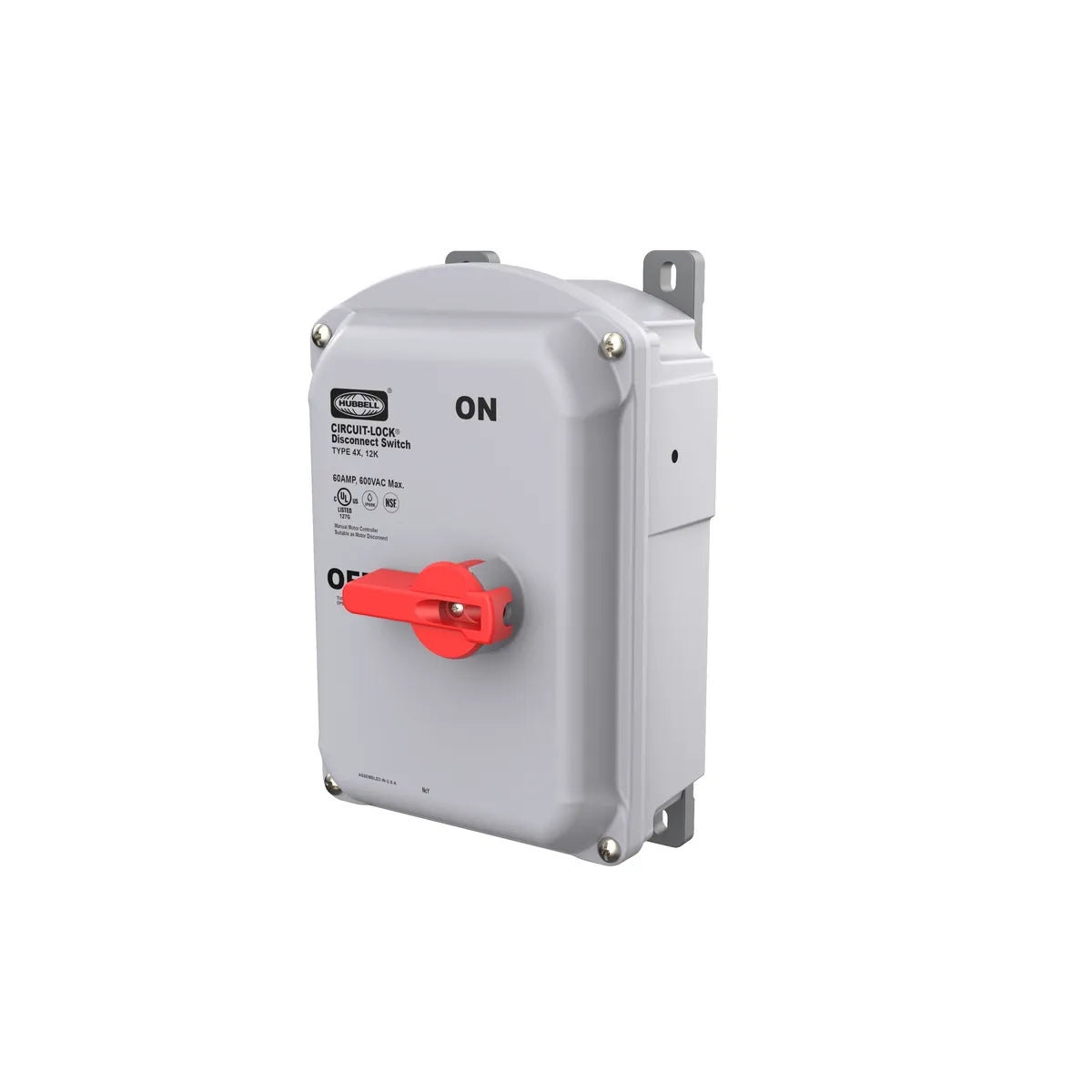

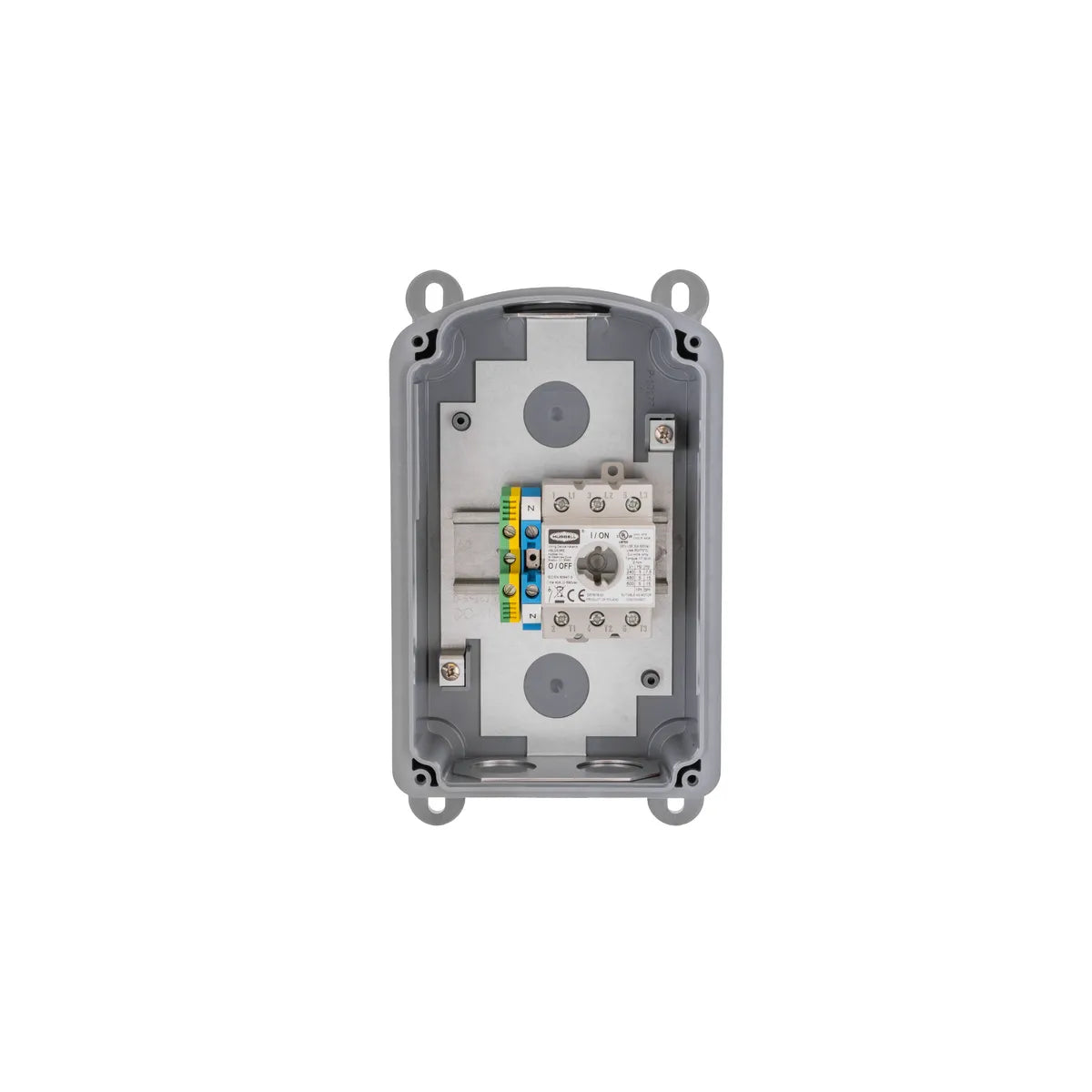

HBLDS60 |
| Color |
Gray |
| Enclosure Type |
IP69K and UL Type 4X, 12 |
| Environmental Conditions |
Indoor and Outdoor |
| Horsepower - Maximum |
50 |
| Ingress Protection |
IP69K and UL NEMA Type 4X, 12 |
| Material - Mounting Hardware |
Stainless Steel Screw Mounting |
| Mounting Method |
External fully adjustable feet |
| Operating Cycles |
10,000 Cycles Minimum |
| Operating Temperature |
Without Impact Maximum continuous 75°C and minimum -40°C |
| Performance |
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage
- Electrical - Dielectric Voltage - Withstands 3000V AC minimum
- Electrical - Max. Working Voltage - 600V AC RMS
- Environmental - Flammability - UL94-5VA and V0 Classification
- Environmental - Operating Temperature - Max Continuous 75°C / Min Continuous -40°C (w/o impact)
- Environmental - UV Resistance - All materials are UV stabilized
- Mechanical - Impact Resistance - In accordance with UL 746C
- Mechanical - Mounting - Non-Metallic - External fully adjustable feet
- Mechanical - Product Identification - Identification and ratings are part of external label
- Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
|
| Series |
Non-Fused |
| Specifications |
- Base - Valox®
- Enclosure Gasket - Neoprene
- Handle - Valox®
- Shaft (Unfused) - Valox®
- Top - Valox®
|
| Style |
Heavy Duty |
| Type |
Disconnect Switches |
| UPC |
783585763224 |
