Description

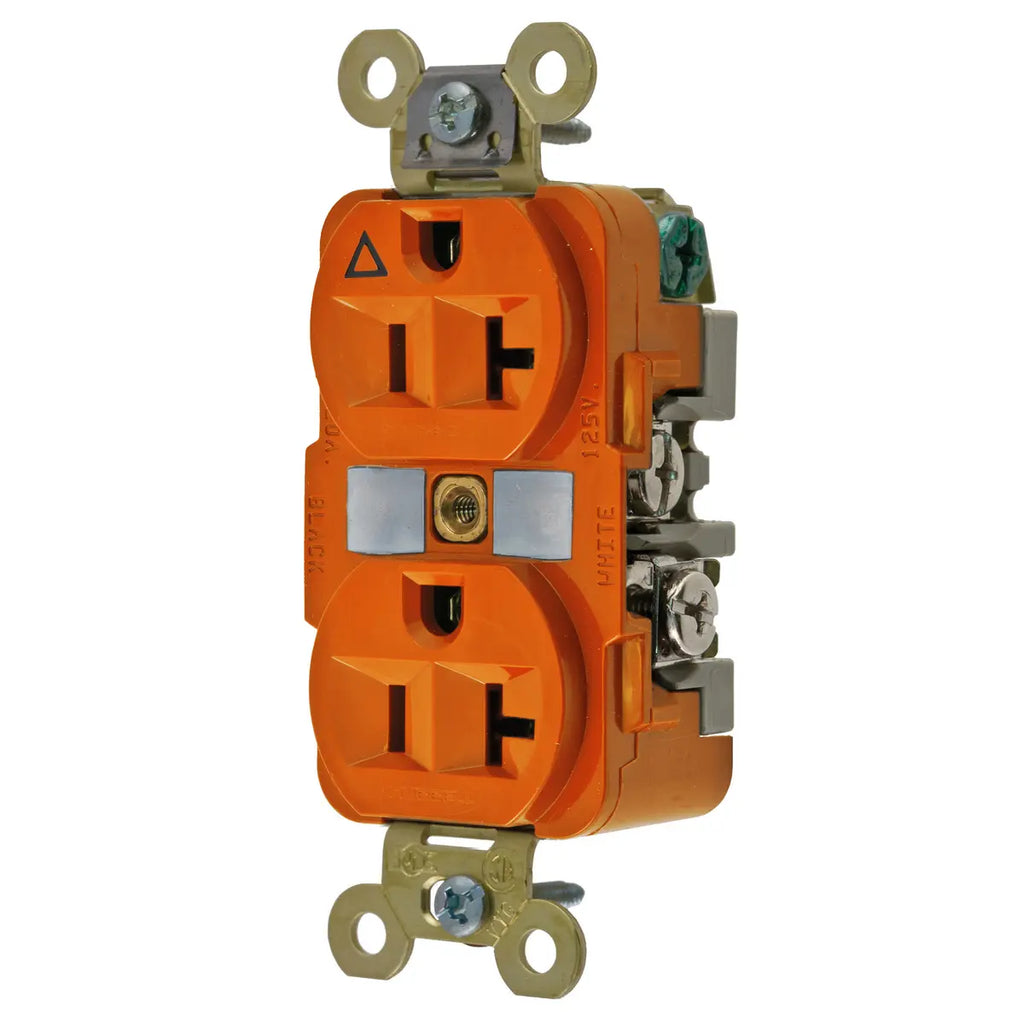

IG5362 - Hubbell Wiring Device-Kellems 20A 125V 2 Pole 3 Wire Receptacle Isolated Ground Duplex
Straight Blade Devices, Isolated Ground, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Orange, Single Pack
In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
- Triangle marking on face indicates isolated ground
- Slender compact design
- Finder Groove Face
Isolated Ground
GENERAL SPECIFICATION
| Catalog Number | IG5362 |
| Color | Orange |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| EU RoHS Indicator | Yes |
| Horsepower - Maximum | 1 |
| Item Type | Traditional Duplex |
| Material | Nylon |
| Material - Mounting Hardware | Screw Mounting |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
| Series |
Heavy Duty |
| Specifications |
|
| Style | Finder Groove Face |
| Type | Standard Duplex |
| UPC | 783585778402 |
Dimensions
| Dimensions | 3.28 in x 1.33 in x 1.05 in |
| Display Size | Standard Sized Product |
| Height | 1.05 in |
| Length | 3.28 in |
| Weight | 0.25 lb |
| Width | 1.33 in |
Electrical Ratings
| Amperage Rating | 20 A |
| Connectivity | Back and Side Wired Screw Terminals |
| Current / Amperage Rating | 20 A |
| Current Rating | 20 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Phase | Single Phase |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
| Wattage | 2500 W |
Conductor Related
| Number Of Poles | 2-Pole |
| Number Of Wires | 3-Wire |
| Wire Size | #12 AWG to #10 AWG |
Operational
| Horsepower - Maximum | 1 |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Performance |
|
Logistics
| Carton Quantity | 10 |
| Pallet Quantity | 3600 |
