Description

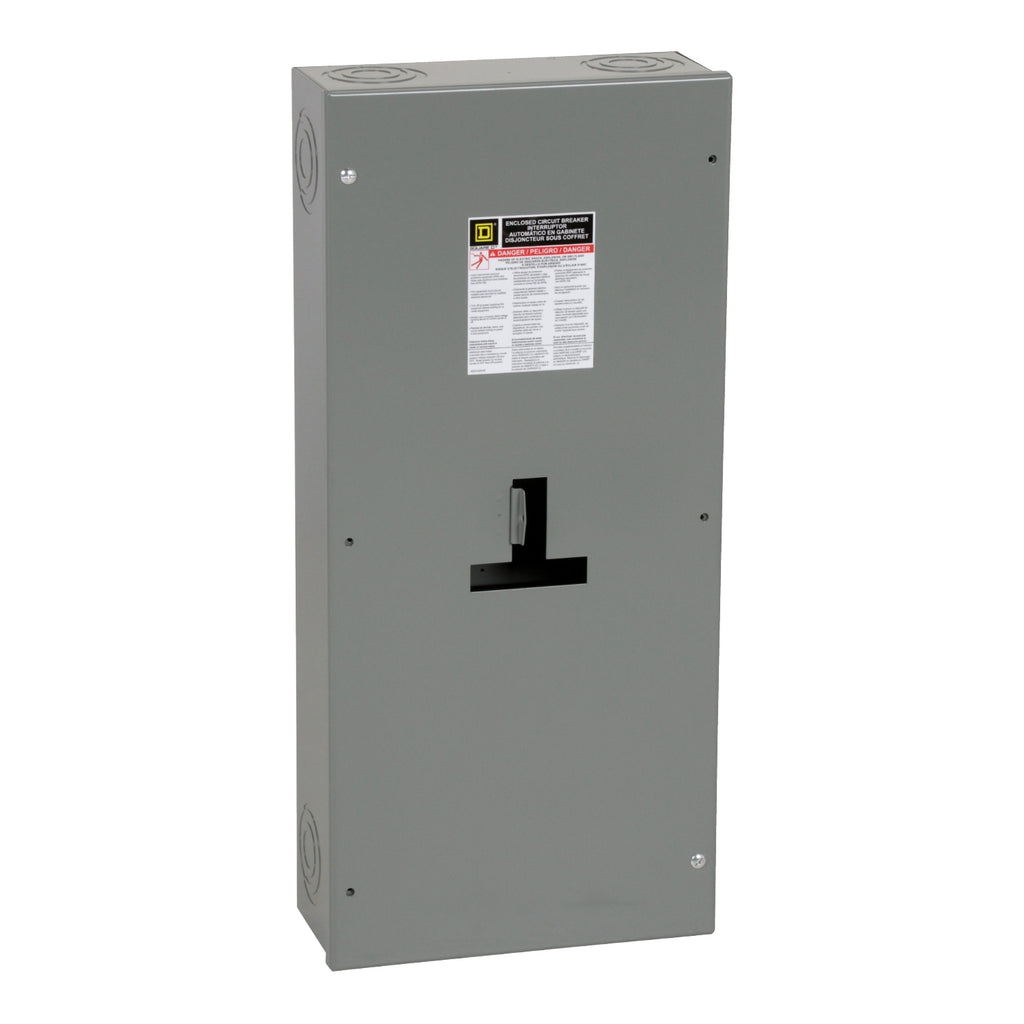

J250S - Schneider Electric - 250 Amp 600 Volt 250 Amp Square D Circuit Breaker Enclosure
This PowerPacT circuit breaker enclosure is designed for H-Frame and J-Frame 15A to 250A circuit breakers. PowerPact H and J circuit breaker enclosures accept 80% or 100% rated circuit breakers. Wiring sizing requirements apply when using 100% rated circuit breakers. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The enclosures are not compatible with earth leakage or ground fault modules. This enclosure is a NEMA 1 surface mount of gray baked enamel.
GENERAL SPECIFICATIONS
| Main | |
| Breaker Compatibility | Circuit breaker H-Frame 15…250 A |
| Circuit breaker J-Frame 15…250 A | |
| Complementary | |
| Height | 31.36 in (796.54 mm) |
| Width | 14.36 in (364.74 mm) |
| Depth | 6 in (152.4 mm) |
| Environmental | |
| NEMA Degree of Protection | NEMA 1 |
| Ordering and shipping details | |
| Category | US10DE100030 |
| Discount Schedule | 0DE1 |
| GTIN | 785901568049 |
| Returnability | Yes |
| Country of origin | MX |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 7.100 in (18.034 cm) |
| Package 1 Width | 15.400 in (39.116 cm) |
| Package 1 Length | 32.900 in (83.566 cm) |
| Package weight(Lbs) | 36.251 lb(US) (16.443 kg) |
PRODUCT DATASHEET
Schneider Electric_Industrial-and-Residential-Circuit-Breaker-Enclosures_J250S
