Description

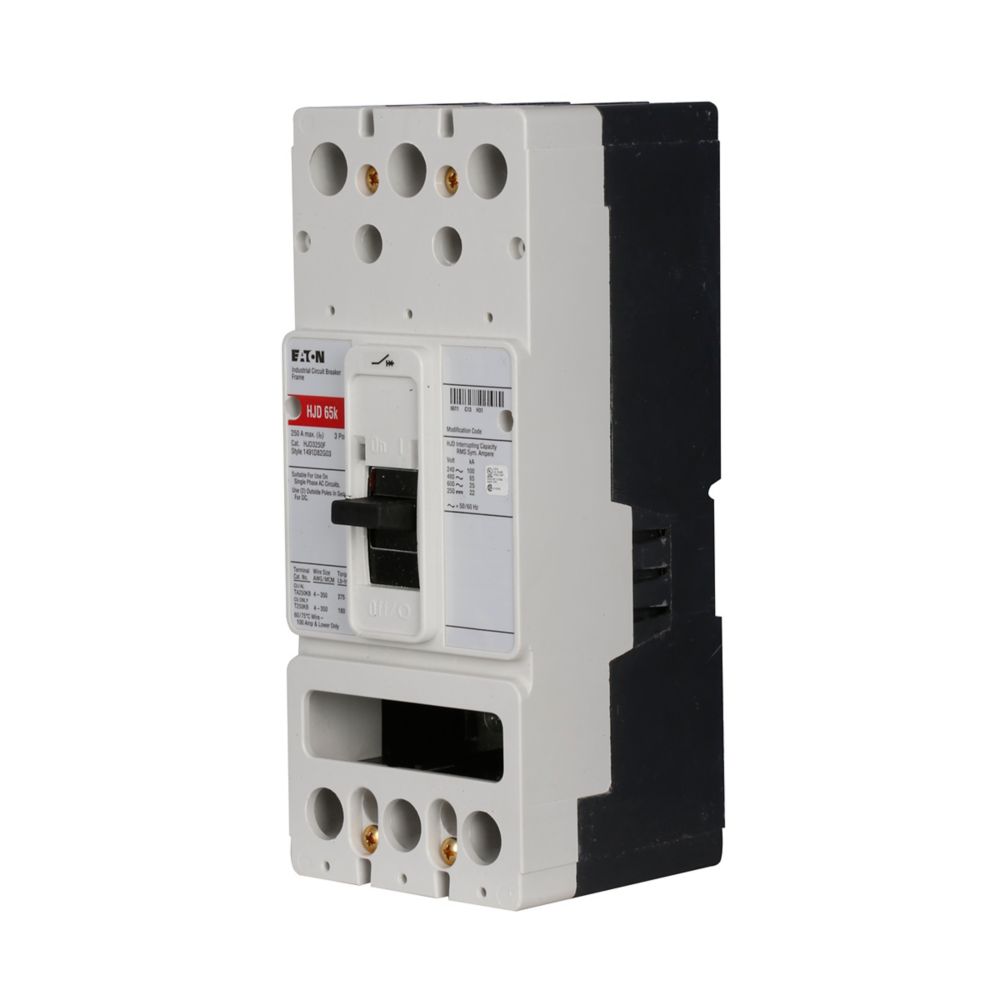

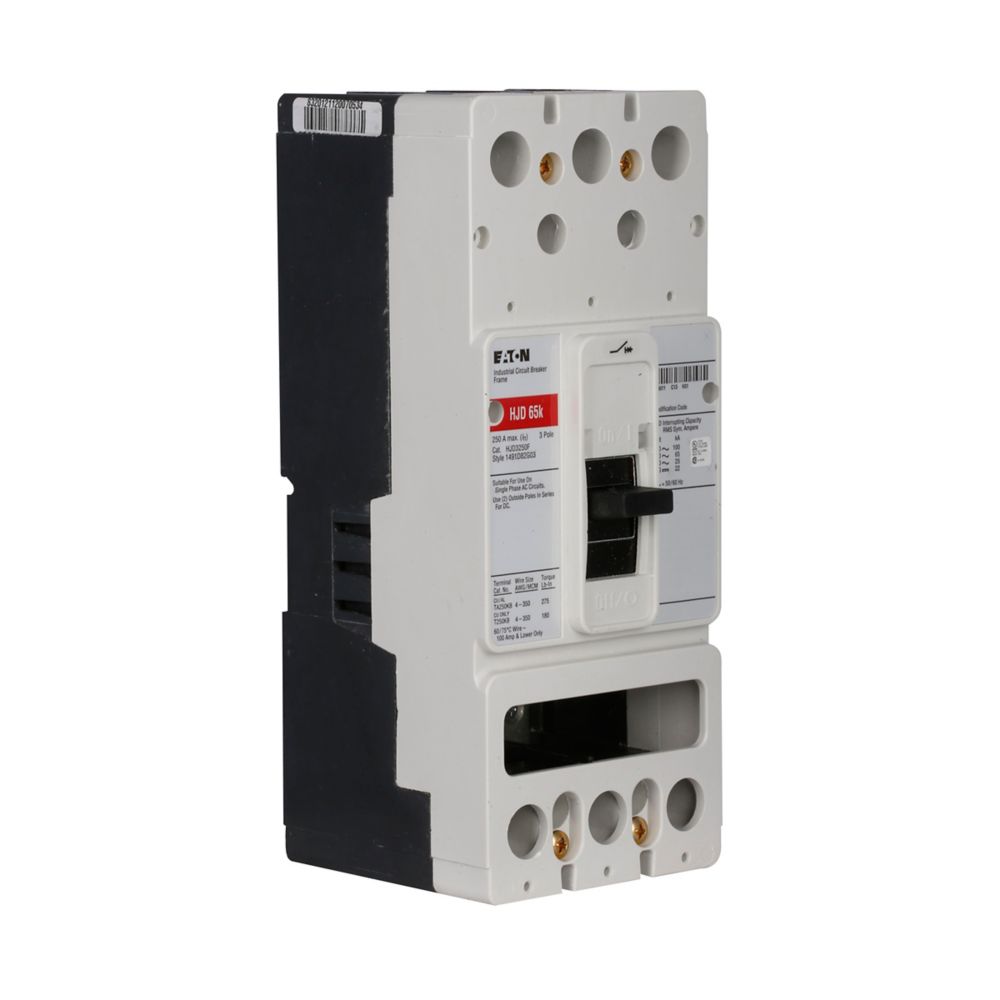

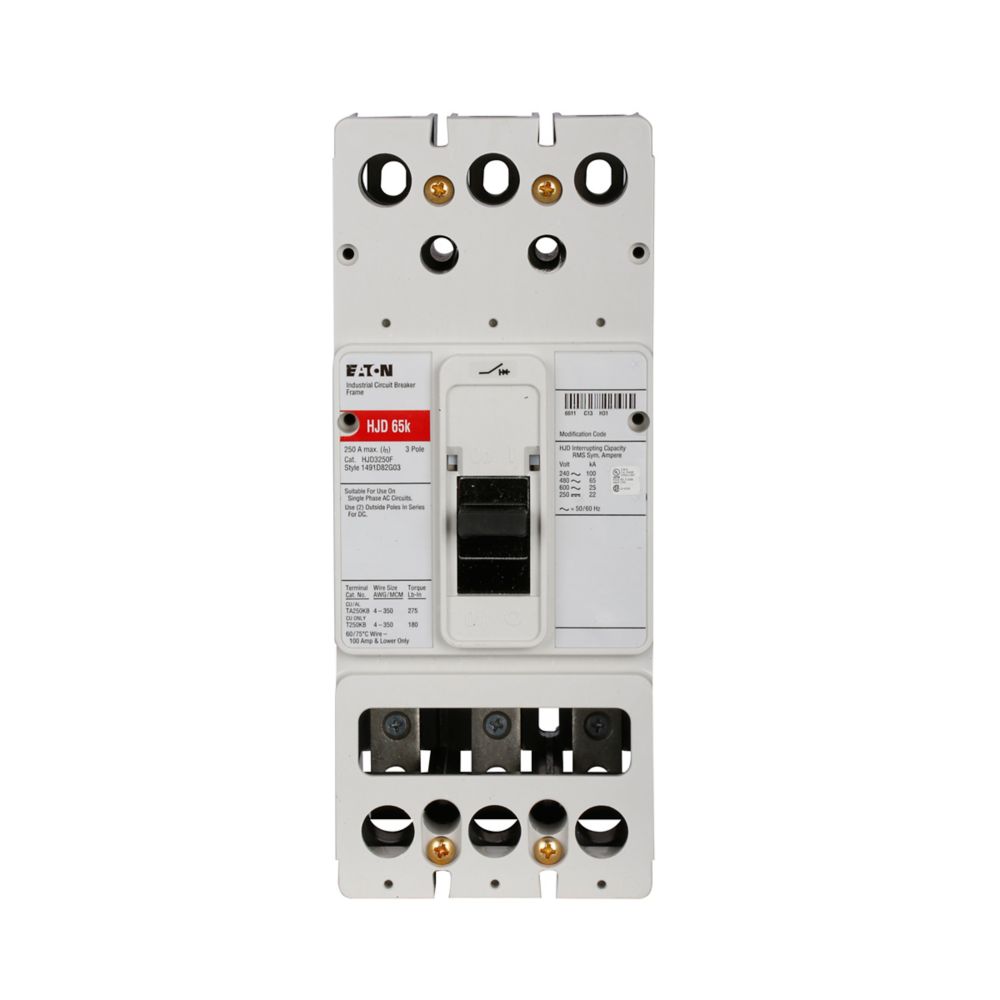

JD3250F - Eaton Cutler Hammer - 250A Three-Pole Circuit Breaker Frame
Eaton Series C molded case circuit breaker frame, J-frame molded case circuit breaker frame, 250 A, Three-pole, Non-interchangeable thermal magnetic trip, JD breaker
GENERAL SPECIFICATIONS
| Product Name |
Eaton Series C molded case circuit breaker frame
|
| Catalog Number |
JD3250F
|
| UPC |
786679516379
|
| Product Length/Depth |
4.06 in
|
| Product Height |
4.13 in
|
| Product Width |
4.13 in
|
| Product Weight |
9.55 lb
|
| Certifications |
UL Listed
|
| Product Type |
Molded case circuit breaker
|
PRODUCT SPECIFICATIONS
| Amperage Rating |
250 A
|
| Voltage rating |
600 Vac, 250 Vdc
|
| Trip Type |
T186
|
| Circuit breaker type |
JD
|
| Circuit breaker frame type |
Frame only
|
| Series |
Series C
|
| Frame |
J
|
| Frequency rating |
50 to 60 Hz
|
| Interrupt rating |
65 kAIC at 240 Vac
35 kAIC at 480 Vac |
| Number of poles |
Three-pole
|
| Type |
Frame only
|
