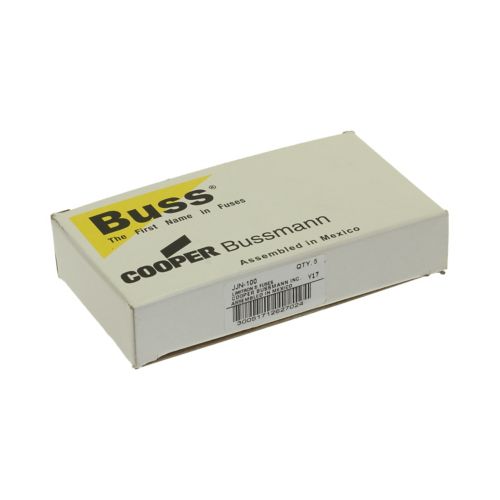

JJN-100 - Eaton Bussmann Series - 100A JJN Fuse
Eaton Bussmann series JJN fuse, Current-limiting very fast acting fuse, VFD line protection, 100 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 20 kAIC at 160 Vdc,200 kAIC at 300 V, Standard, 5, 300 V, 160 Vdc
GENERAL SPECIFICATIONS
| Product Name |
Eaton Bussmann series JJN fuse |
| Catalog Number |
JJN-100 |
| UPC |
051712627023 |
| EAN |
5027590508599 |
| Product Length/Depth |
2.16 in |
| Product Height |
0.75 in |
| Product Width |
0.75 in |
| Product Weight |
0.078 lb |
| Warranty |
Not Applicable |
| Compliances |
CE Marked RoHS Compliant |
| Certifications |
UL Listed CSA Certified |
| Product Type |
Fuse |
ELECTRICAL RATING
| Amperage Rating |
100 A |
| Interrupt rating |
20 kAIC at 160 Vdc 200 kAIC at 300 Vac |
| Voltage rating |
300 Vac, 160 Vdc |
PHYSICAL DETAILS
GENERAL INFORMATION
| Class |
Class T |
| Connection |
Bolted blade end x bolted blade end |
| Fuse indicator |
Non-indicating |
| Quantity |
5 |
PRODUCT DATASHEET
skuPage.JJN-100.pdf
