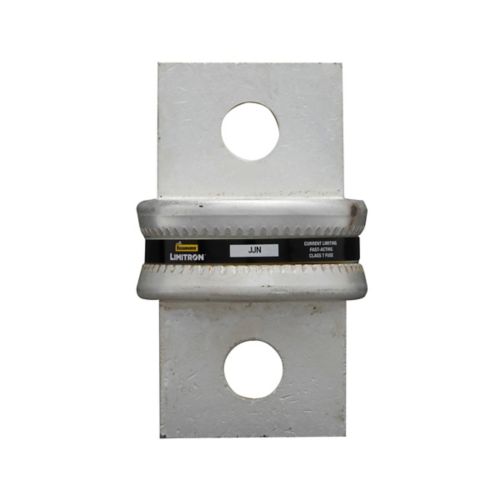

JJN-1200 - Eaton Bussmann Series - 1200A JJN Fuse
Eaton Bussmann series JJN fuse, Current-limiting, VFD line protection, 1200 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 100 kAIC at 170 Vdc, 200 kAIC at 300 V, Standard, 1, 300 V, 170 Vdc
GENERAL SPECIFICATIONS
| Product Name |
Eaton Bussmann series JJN fuse |
| Catalog Number |
JJN-1200 |
| UPC |
051712627238 |
| Product Length/Depth |
4 in |
| Product Height |
2 in |
| Product Width |
2 in |
| Product Weight |
1.45 lb |
| Warranty |
Not Applicable |
| Compliances |
CE Marked RoHS Compliant |
| Product Type |
Fuse |
ELECTRICAL RATING
| Amperage Rating |
1200 A |
| Interrupt rating |
200 kAIC at 300 Vac 100 kAIC at 170 Vdc |
| Voltage rating |
300 Vac, 170 Vdc |
PHYSICAL DETAILS
GENERAL INFORMATION
| Class |
Class T |
| Connection |
Bolted blade end x bolted blade end |
| Fuse indicator |
Non-indicating |
| Quantity |
1 |
PRODUCT DATASHEET
skuPage.JJN-1200.pdf
