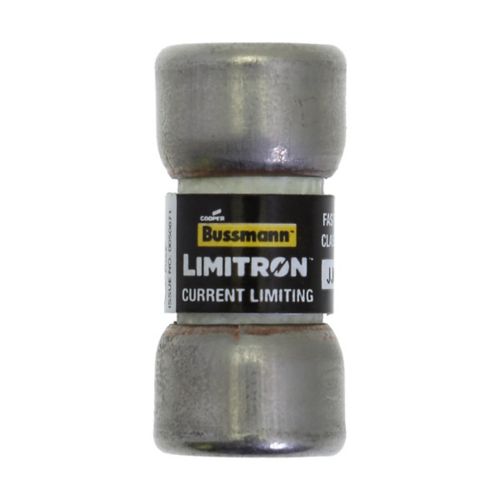

JJN-225 - Eaton Bussmann Series - 225A JJN Fuse
Eaton Bussmann series JJN fuse, Current-limiting, VFD line protection, 225 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 300 V, 20 kAIC at 160 Vdc, Standard, 1, 300 V, 160 Vdc
GENERAL SPECIFICATIONS
| Product Name |
Eaton Bussmann series JJN fuse |
| Catalog Number |
JJN-225 |
| UPC |
051712627221 |
| Product Length/Depth |
2.75 in |
| Product Height |
1 in |
| Product Width |
1 in |
| Product Weight |
0.25 lb |
| Warranty |
Not Applicable |
| Compliances |
CE Marked RoHS Compliant |
| Product Type |
Fuse |
ELECTRICAL RATING
| Amperage Rating |
225 A |
| Interrupt rating |
200 kAIC at 300 Vac 20 kAIC at 160 Vdc |
| Voltage rating |
300 Vac, 160 Vdc |
PHYSICAL DETAILS
GENERAL INFORMATION
| Class |
Class T |
| Connection |
Bolted blade end x bolted blade end |
| Fuse indicator |
Non-indicating |
| Quantity |
1 |
