Description

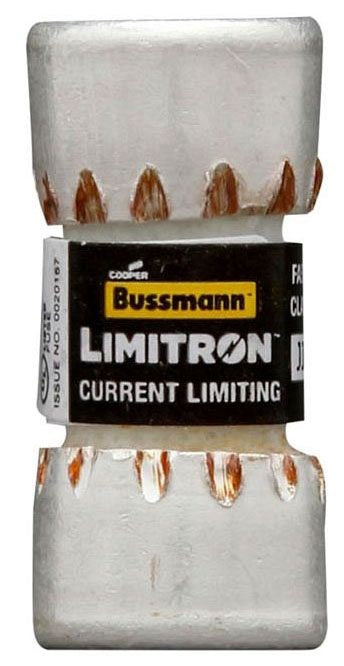

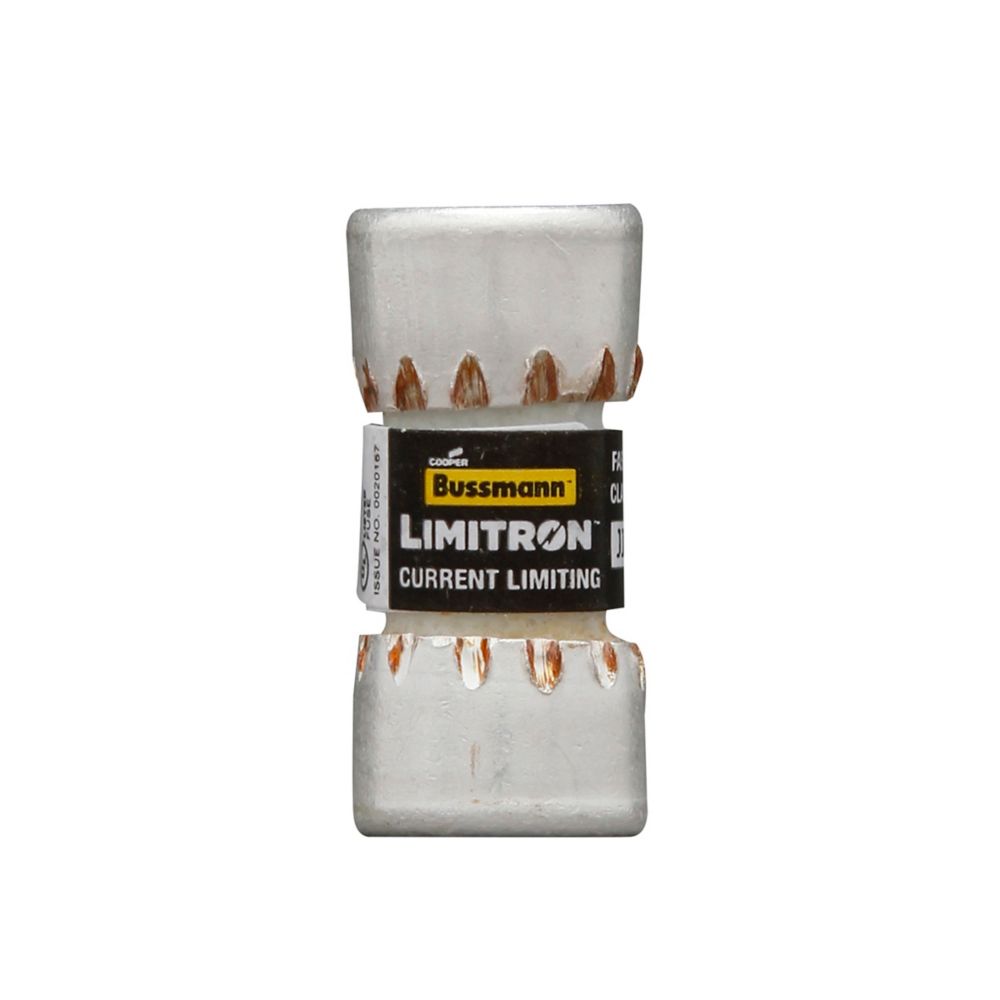

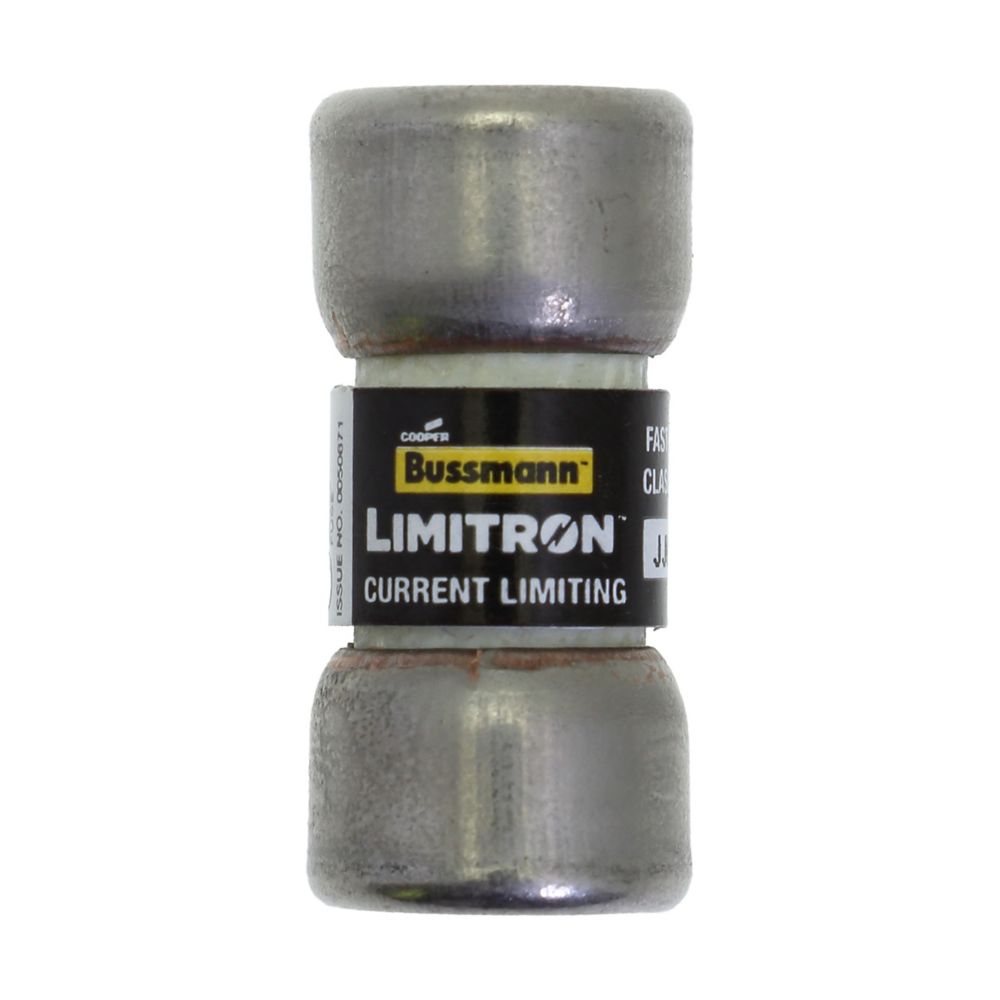

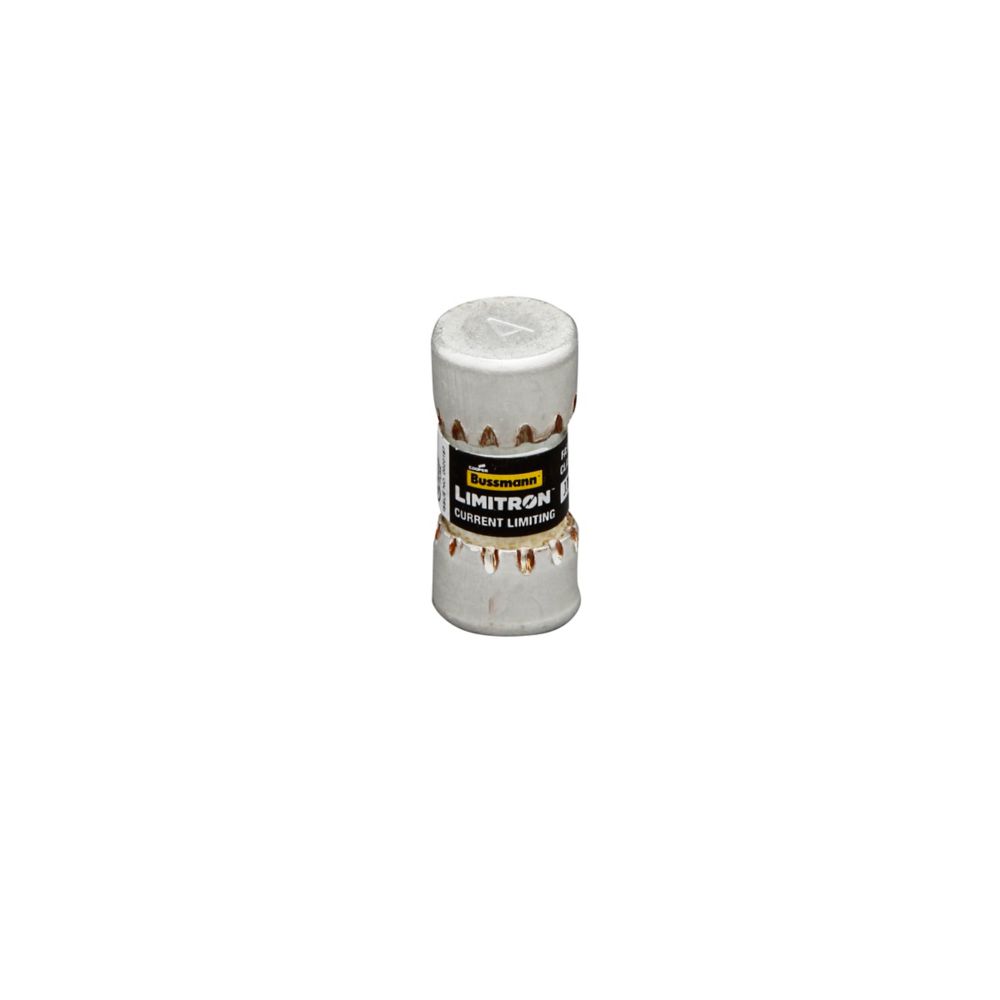

JJN-25 - Eaton Bussmann Series - Eaton Bussmann series JJN fuse
| SKU | JJN-25 |
| descriptionLabel | Eaton Bussmann series JJN fuse, Current-limiting, VFD line protection, 25 A, Class T, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 300 V, 20 kAIC at 160 Vdc, Standard, 10, 300 V, 160 Vdc |
| Product Name | Eaton Bussmann series JJN fuse |
| Catalog Number | JJN-25 |
| UPC | 051712627252 |
| Product Length/Depth | 0.88 in |
| Product Height | 0.41 in |
| Product Width | 0.41 in |
| Product Weight | 0.1 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked RoHS Compliant |
| Product Type | Fuse |
| Amperage Rating | 25 A |
| Interrupt rating | 200 kAIC at 300 Vac 20 kAIC at 160 Vdc |
| Voltage rating | 300 Vac, 160 Vdc |
| Packaging type | Standard |
| Class | Class T |
| Connection | Ferrule end x ferrule end |
| Fuse indicator | Non-indicating |
| Quantity | 10 |
