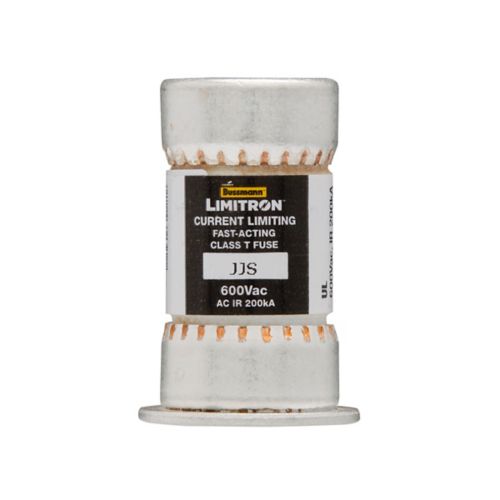

JJS-90 - Eaton Bussmann Series - 90A JJS Fuse
Eaton Bussmann series JJS fuse, Current-limiting, Small footprint, VFD line protection, 90 A, Class T, Non-indicating, Bolted blade end x bolted blade end, 200 kAIC at 600 V, Standard, 5, 600 V
GENERAL SPECIFICATIONS
| Product Name |
Eaton Bussmann series JJS fuse |
| Catalog Number |
JJS-90 |
| UPC |
051712628907 |
| Product Length/Depth |
2.95 in |
| Product Height |
0.75 in |
| Product Width |
0.75 in |
| Product Weight |
0.11 lb |
| Warranty |
Not Applicable |
| Compliances |
CE Marked RoHS Compliant |
| Product Type |
Fuse |
ELECTRICAL RATING
| Amperage Rating |
90 A |
| Interrupt rating |
200 kAIC at 600 Vac |
| Voltage rating |
600 V |
PHYSICAL DETAILS
GENERAL INFORMATION
| Class |
Class T |
| Connection |
Bolted blade end x bolted blade end |
| Fuse indicator |
Non-indicating |
| Quantity |
5 |
| Special features |
Rejection style |
PRODUCT DATASHEET
skuPage.JJS-90.pdf
