Description

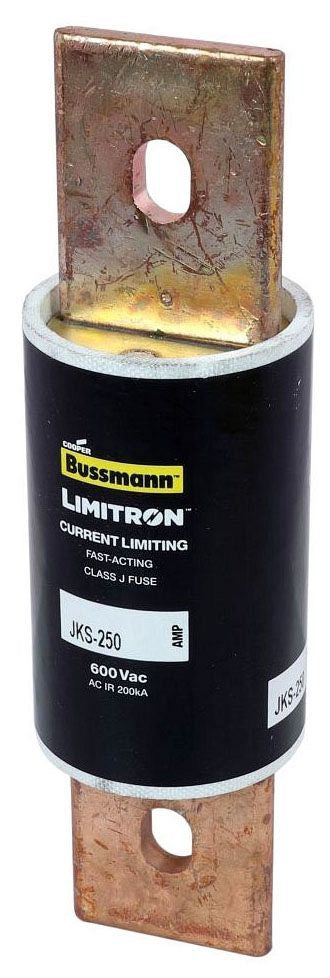

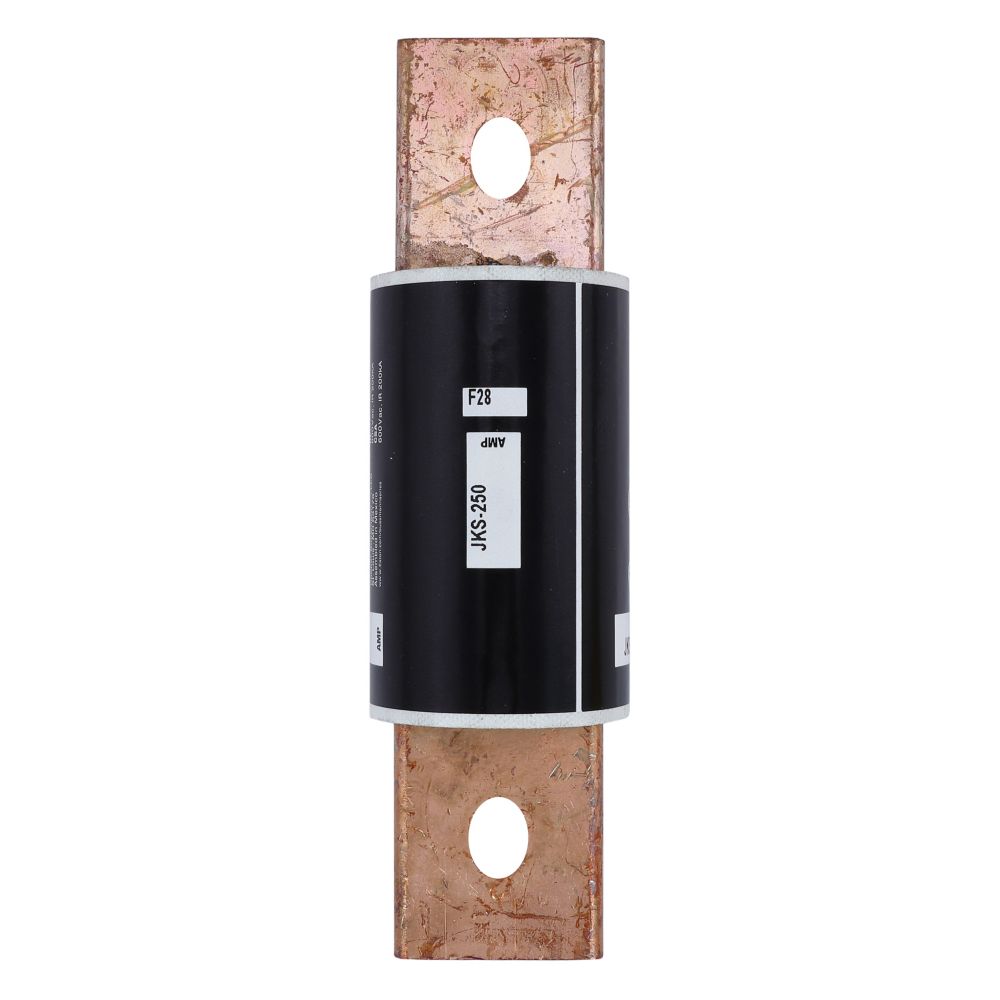

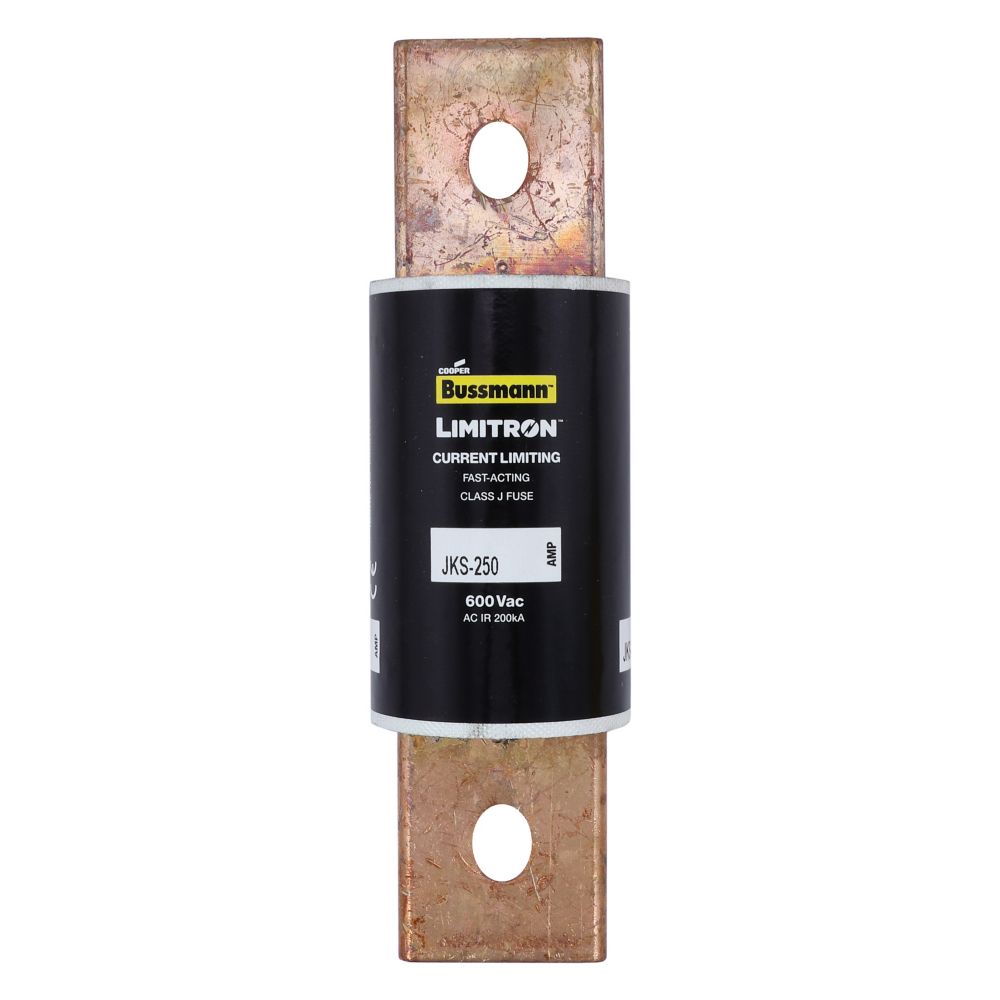

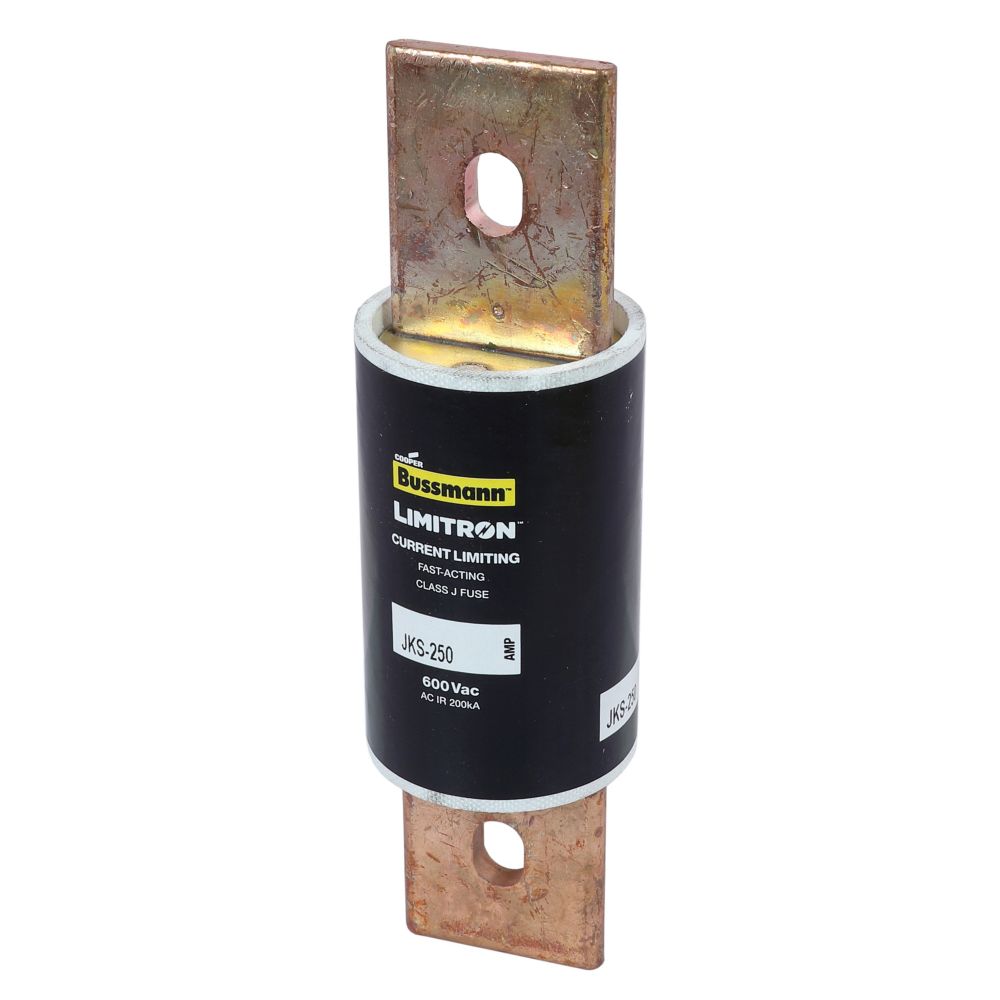

JKS-250 - Eaton Bussmann Series - Eaton Bussmann series JKS fuse
| SKU | JKS-250 |
| descriptionLabel | Eaton Bussmann Series Class J fuse, JKS, fast-acting, current limiting fuse, 250 A, rejection style fuse, interrupting rating of 200kA at 600Vac |
| Product Name | Eaton Bussmann series JKS fuse |
| Catalog Number | JKS-250 |
| UPC | 051712632508 |
| Product Length/Depth | 7.13 in |
| Product Height | 2 in |
| Product Width | 2 in |
| Product Weight | 1.85 lb |
| Warranty | Not Applicable |
| Compliances | RoHS Compliant |
| Product Type | Fuse |
| Amperage Rating | 250 A |
| Interrupt rating | 200 kAIC at 600 Vac |
| Voltage rating | 600 V |
| Number of elements | 1 |
| Packaging type | Standard |
| Class | Class J |
| Connection | Bolted blade end x bolted blade end |
| Fuse indicator | Non-indicating |
| Quantity | 1 |
