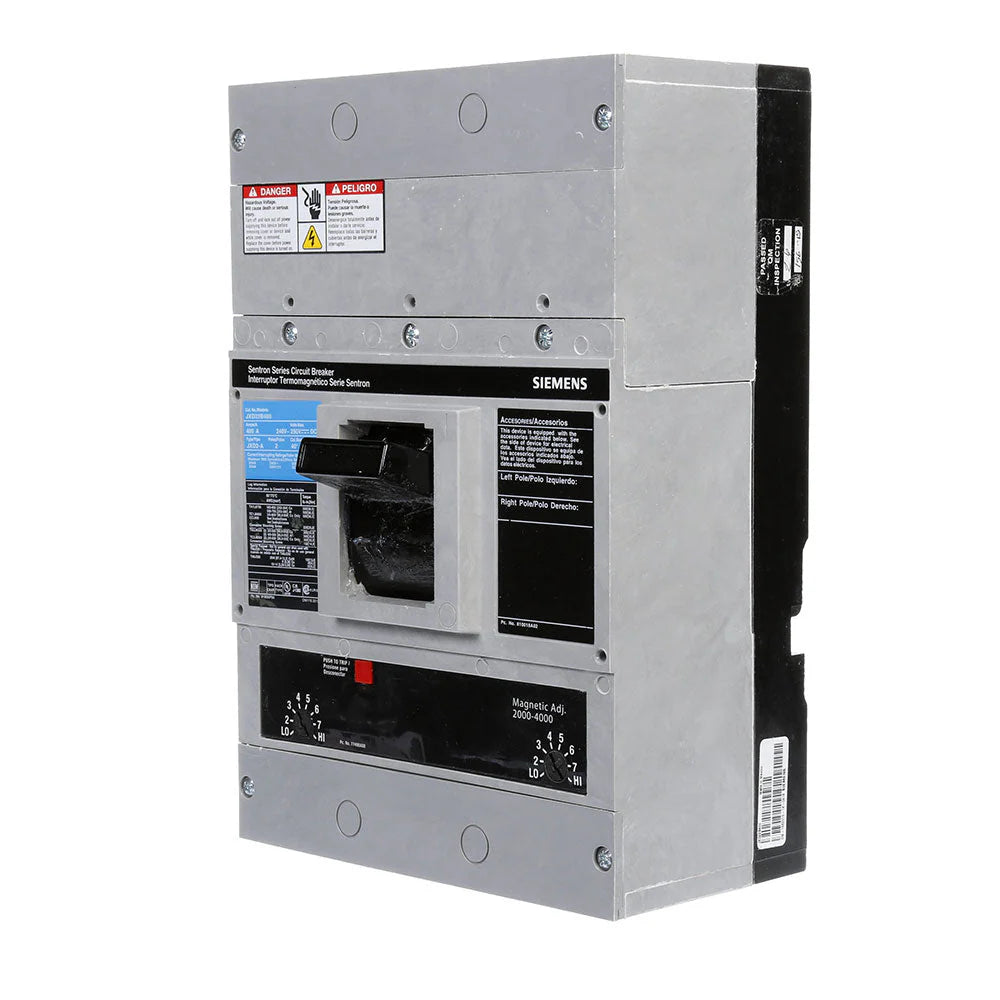

JXD23B300 - Siemens - 300A 240V 3 Pole Circuit Breaker
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY AND NON-INTERCHANGEABLE TRIP. MEETS UL 489 / IEC 60947-2 STANDARDS. 300A 3-POLE BREAKER (65KAIC AT 240V). SPECIAL FEATURES: NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN: 7.5 x 11 x 4.
TECHNICAL SPECIFICATIONS
Product related
| Article number |
US2:JXD23B300 |
| MFN |
JXD23B300 |
| UPC |
783643212954 |
| Commodity Code |
85362099 |
Pricing related
Delivery related
| Export Control Regulations |
AL : N / ECCN : EAR99 |
| Standard delivery time |
18 Day/Days |
| Packaging dimensions (L x W x H) |
Not available |
| Net weight |
18.301 lb |
| Quantity Unit |
1 Piece |
| Packaging Quantity |
1 |
| Dangerous goods |
No |
Environment related
| WEEE (2012/19/EU) Take-Back Obligations |
Yes |
| Compliance with the substance restrictions according to RoHS directive |
Since: 07/14/2008 |
| SCIP Number |
not available |
Siemens specific
| Product Group |
3741 |
| Catalog ID |
LV10.1 |
| Group Code |
P360 |
| Country of origin |
Mexico |
| Returnable Status |
Yes |
PRODUCT DATASHEET
JXD23B300
