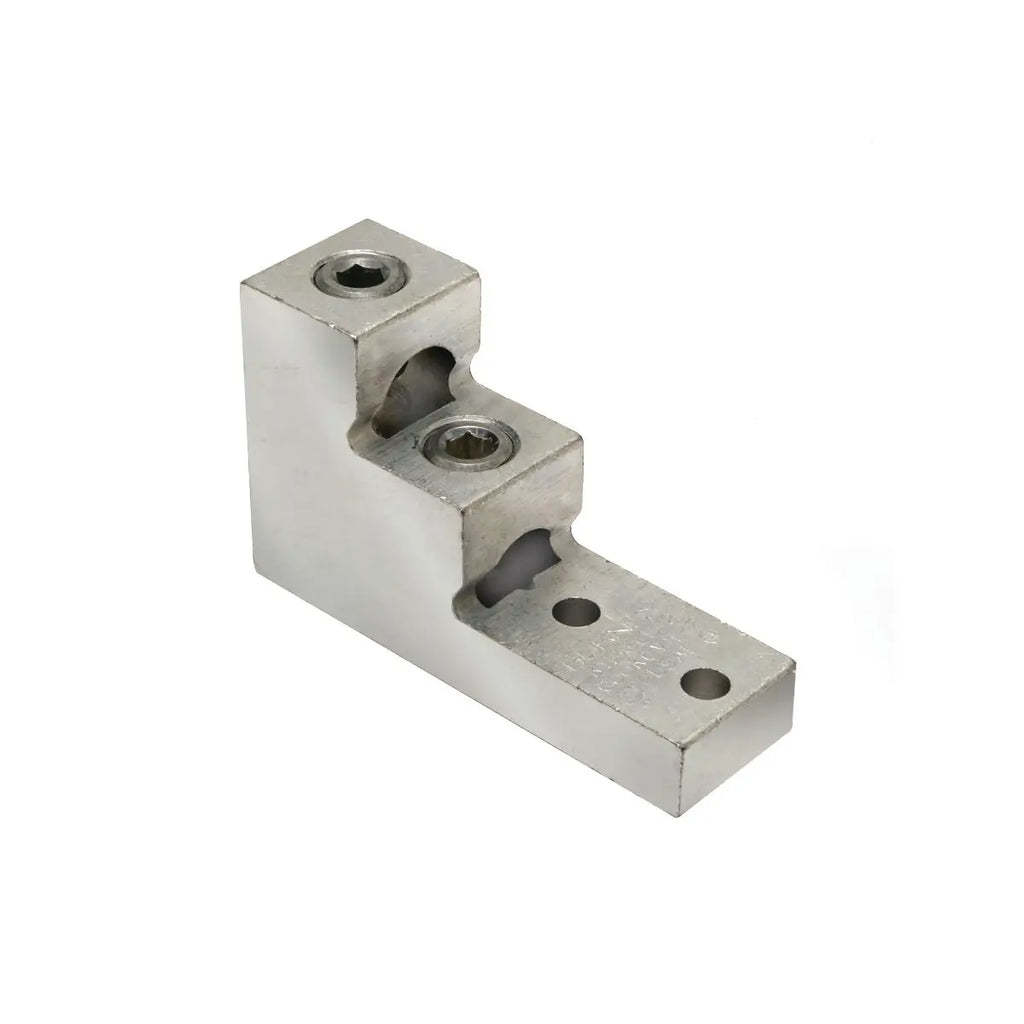

K11A36U2 - Burndy - 3/8" to 1.38" Stud 2-Hole 2 Cable Aluminum Universal Terminal
Roll over image to zoom in Click on image to zoom
K11A36U2 - Burndy - 3/8" to 1.38" Stud 2-Hole 2 Cable Aluminum Universal Terminal

K11A36U2 - Burndy - 3/8" to 1.38" Stud 2-Hole 2 Cable Aluminum Universal Terminal

BurndySKU: BURK11A36U2
Price:
$77.17
Stock:
14 In Stock and Ready To Ship

Description

K11A36U2 - Burndy - 3/8" to 1.38" Stud 2-Hole 2 Cable Aluminum Universal Terminal

Aluminum Universal Terminal, 2 Hole, Two: 2 AWG (Str)-600 kcmil, 3/8" Stud, 1.38" Stud Hole Spacing, 2 Screws, Al/Cu Rated, Tin Plated.

  • Dual-rated panelboard lugs
  • Constructed from high-strength, extruded aluminum alloy
  • Electro tin-plated to provide low contact resistance

Universal terminal. These dual-rated panelboard lugs are constructed from high-strength extruded aluminum alloy and electro-tin-plated to provide low contact resistance

GENERAL SPECIFICATIONS

Application For Aluminum And Copper Conductors
Catalog Number K11A36U2
Connector Type Stacked
EU RoHS Indicator Yes
Installation Torque Recommended in-lb 375 LBS/in
Material Aluminum
Material - Hardware Aluminum
Physical Attribute - Number of Holes 2
Physical Attribute - Number of Screws 2
Physical Attribute - Screw Type Allen
Plated Y
Plating Type Tin Plated
Sub Brand UNIVERSAL TERM
Temperature Rating 194
Type Bolted Lugs & Terminals
UPC 781810370285
UPC 14 Digit GTIN 00781810370285


Dimensions

Dimension - Bolt Hole Size inch 0.38 in
Dimension - Bolt Size fraction 3/8
Dimension - D inch 2.31 in
Dimension - Height fraction 3 in
Dimension - Height inch 3.02 in
Dimension - Height mm 76.7 mm
Dimension - Hole Size inch 0.41 in
Dimension - Hole Size mm 10 mm
Dimension - L Length Overall mm 125 mm
Dimension - Length Overall inch 4.91 in
Dimension - N inch 0.38 in
Dimension - Pad Width inch 1.52 in
Dimension - Screw Size inch 15/16
Dimension - Stud Size fraction 3/8
Dimension - Stud Size inch 3/8 in
Dimension - Width fraction 1-1/2 in
Dimension - Width inch 1.52 in
Dimension - Width mm 38 mm


Conductor Related

Conductor - AL Str Size 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
Conductor - AL Str Size Range 2 AWG (Str)-600 kcmil
Conductor - Copper Solid Size 1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
Conductor - Copper Solid Size Range 1 AWG-4/0 AWG
Conductor - Copper Str Size

2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil
Conductor - Copper Str Size Range 2 AWG (Str)-600 kcmil
Conductor Type
  • AL C Str-Size
  • CU C Str-Size
  • CU C Solid-Size
Number of Conductors 2


Force Related

Installation Torque Recommended in-lb 375 LBS/in

Operational

Temperature Rating 194

Configuration

Connector Type Stacked
Physical Attribute - Number of Holes 2
Physical Attribute - Number of Screws 2

Logistics

Carton Quantity 18
Pallet Quantity 576

PRODUCT DATASHEET

K11A36U2
