Description

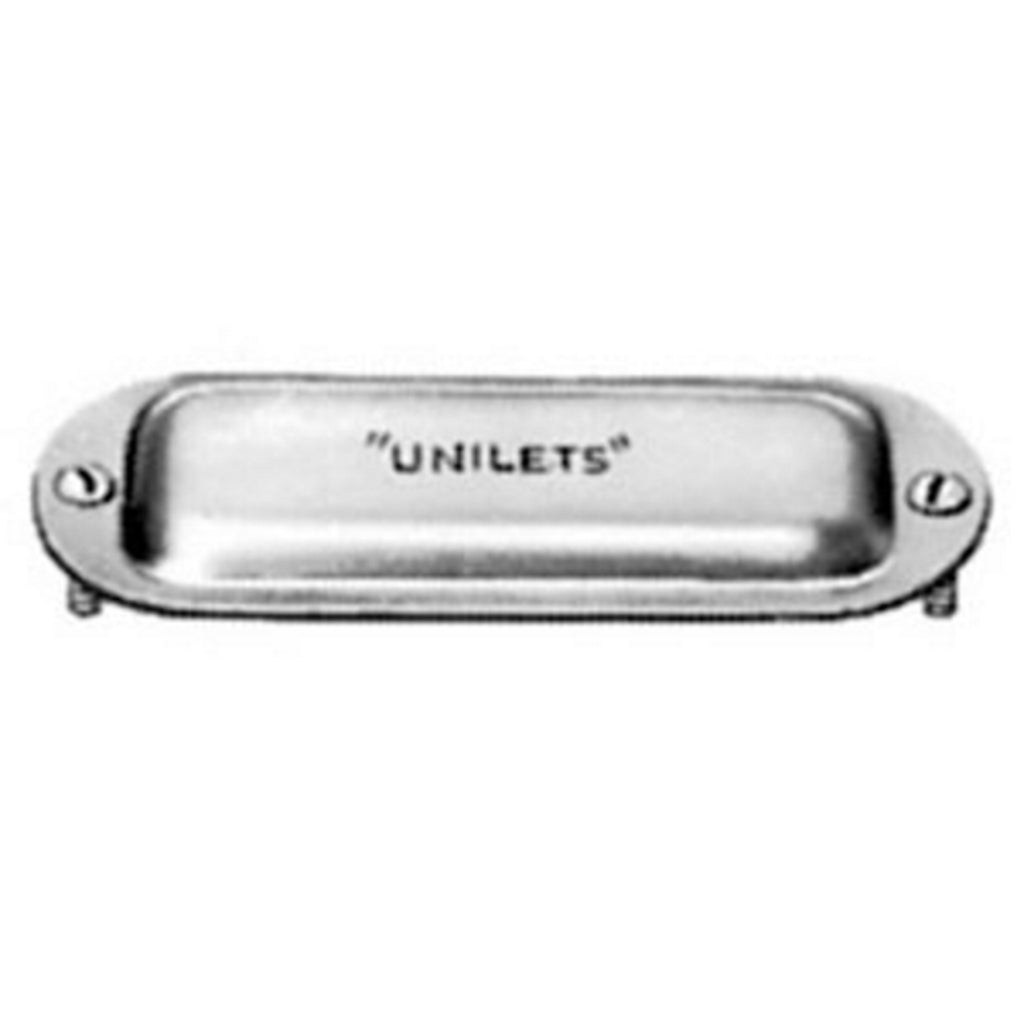

K200A - Appleton - 2" Form 85 Aluminum Screw-On/Flat Type Conduit Body Cover
An aluminum version of the K200 cover, offering excellent corrosion resistance for harsh settings. Lightweight yet strong, it's ideal for marine, coastal, or chemical facilities. Maintains system integrity while reducing weight load. Suitable for outdoor and wet locations
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
- 1/2 thru 2 Standard Materials and Finishes
- Pressure cast copperfree (max. 4/10 of 1%) aluminum bodies and covers with epoxy powder coat; stamped aluminum or covers with natural finish; malleable iron covers; neoprene or composition fiber gaskets
- 2-1/1 thru 4 Standard Materials and Finishes
- Sand cast copperfree (max. 4/10 of 1%) aluminum bodies and covers with epoxy powder coat; stamped aluminum or covers with natural finish; malleable iron covers; neoprene or composition fiber gaskets
- Optional Finishes
- PVC coating available on select bodies and covers. See catalog pages for details
PRODUCT DATASHEET
