Description
GENERAL
| Application | Terminate multiple conductors onto equiment pads, panel boards, or switchgear |

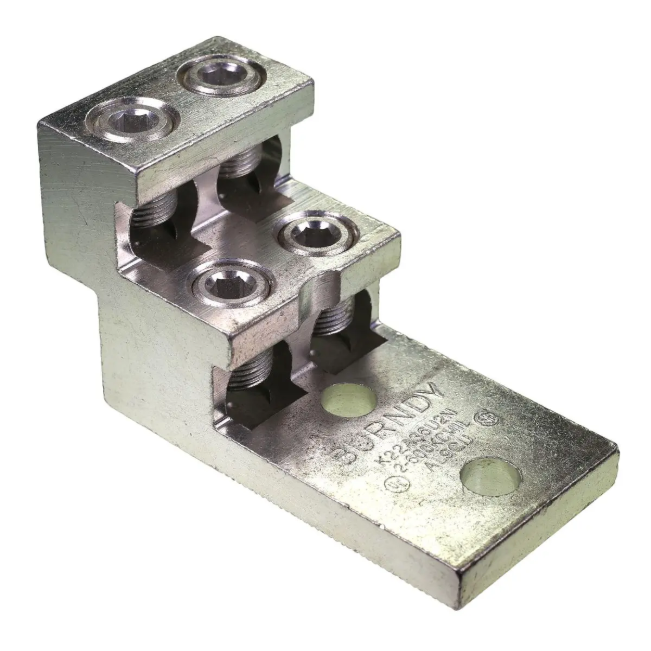

| Catalog Number | K22A36U2N |
| Connector Type | Stacked |
| Construction Material - Main | Aluminum |
| Material | Aluminum |
| Plated | Yes |
| Plating Type | Tin |
| Product Family | MECHANICAL |
| Product Type | Terminal |
| Temperature Rating | 194 |
| Trade Name | N |
| Type | Bolted Lugs & Terminals |
| UPC | 781810670156 |
| UPC 14 Digit GTIN | 00781810670156 |
DIMENSIONS
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Height mm | 0 mm |
| Dimension - Hole Size mm | 0 mm |
| Dimension - L Length Overall mm | 0 mm |
| Dimension - Thread Size | - |
| Dimension - Width mm | 0 mm |
| Dimensions | 5.34 in x 2.47 in x 3 in |
| Height | 3 in |
| Length | 5.34 in |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
| Width | 2.47 in |
ELECTRICAL RATINGS
| Voltage Rating | 600 V |
CONDUCTOR RELATED
| Conductor Type | AL C Str-Size CU C Str-Size |
CERTIFICATIONS AND COMPLIANCE
| Certification - CSA Approved | Yes |
| Certification - cULus | N |
| Certification - ETL | No |
| Certification - UL Recognized | N |
| Industry Standard(s) | UL 486A-486B |
| Standards - Industry Standards Met | UL 486A-486B |
| Standards - RoHS Compliance Status | EX |
| UL Listed | Yes |
OPERATIONAL
| Temperature Rating | 194 |
CONFIGURATION
| Connector Type | Stacked |
LOGISTICS
| Carton Quantity | 18 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 576 |
