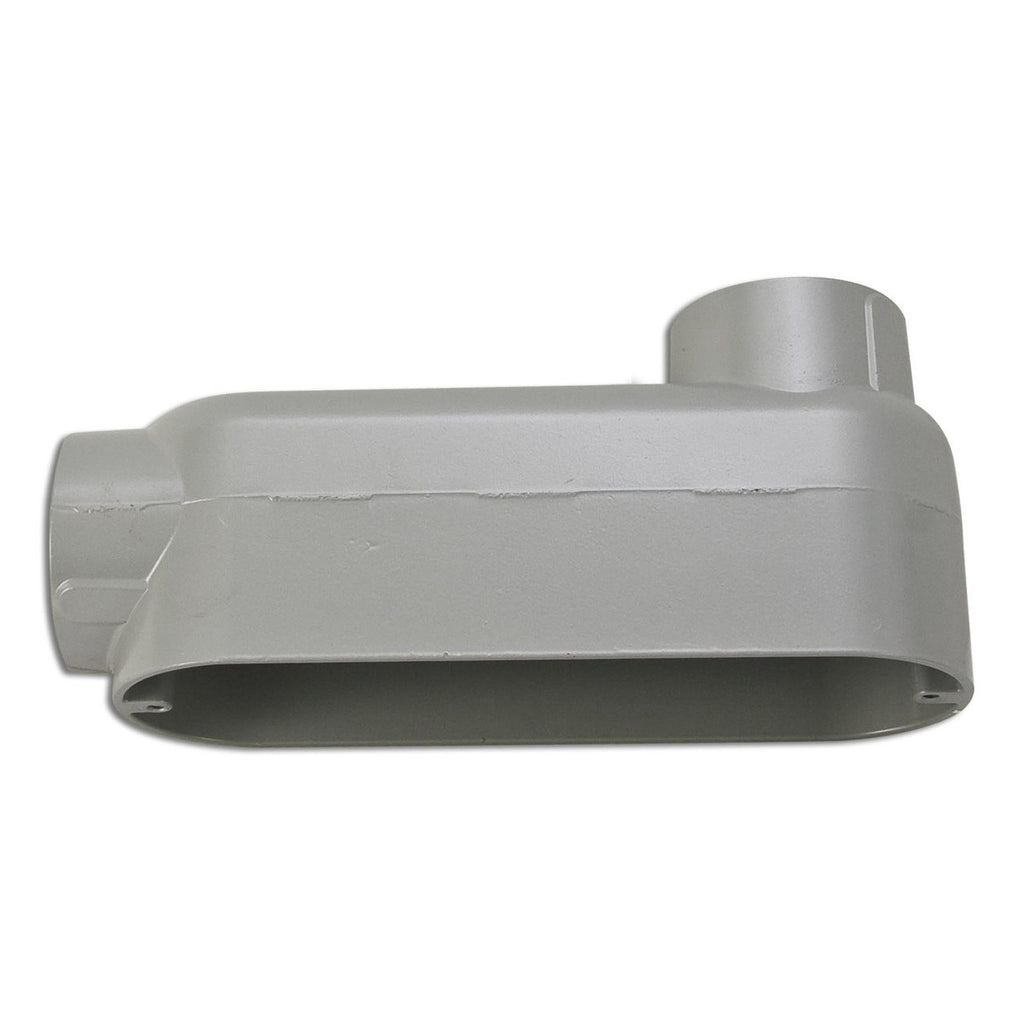

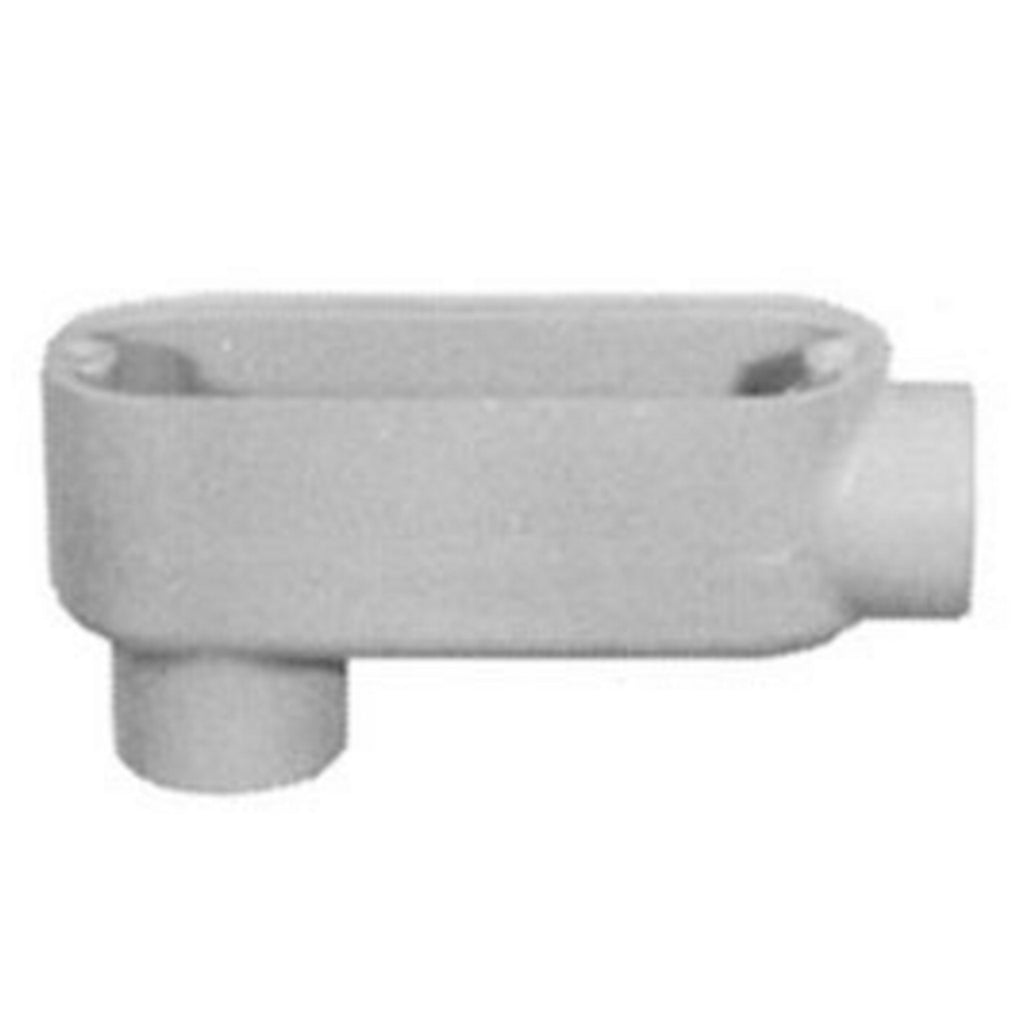

LB100A - Appleton - 1" Form 85 Type LB Aluminum Conduit Body
A 1" aluminum LB-style conduit body, Form 85, designed for directional changes in conduit runs. Lightweight and corrosion-resistant, it's perfect for outdoor or coastal use. Offers a side opening for easy wire pulling and maintenance. Enhances flexibility and reliability in system design.
GENERAL SPECIFICATIONS
- NEC/CEC Certifications and Compliances
- Suitable for use in Class I, Division 2 hazardous locations per NEC 501.10(B)(4)
- 1/2 thru 2 Standard Materials and Finishes
- Pressure cast copperfree (max. 4/10 of 1%) aluminum bodies and covers with epoxy powder coat; stamped aluminum or covers with natural finish; malleable iron covers; neoprene or composition fiber gaskets
- 2-1/1 thru 4 Standard Materials and Finishes
- Sand cast copperfree (max. 4/10 of 1%) aluminum bodies and covers with epoxy powder coat; stamped aluminum or covers with natural finish; malleable iron covers; neoprene or composition fiber gaskets
- Optional Finishes
- PVC coating available on select bodies and covers. See catalog pages for details
