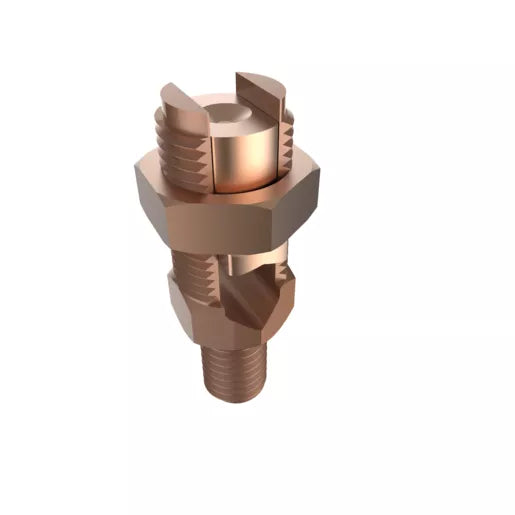

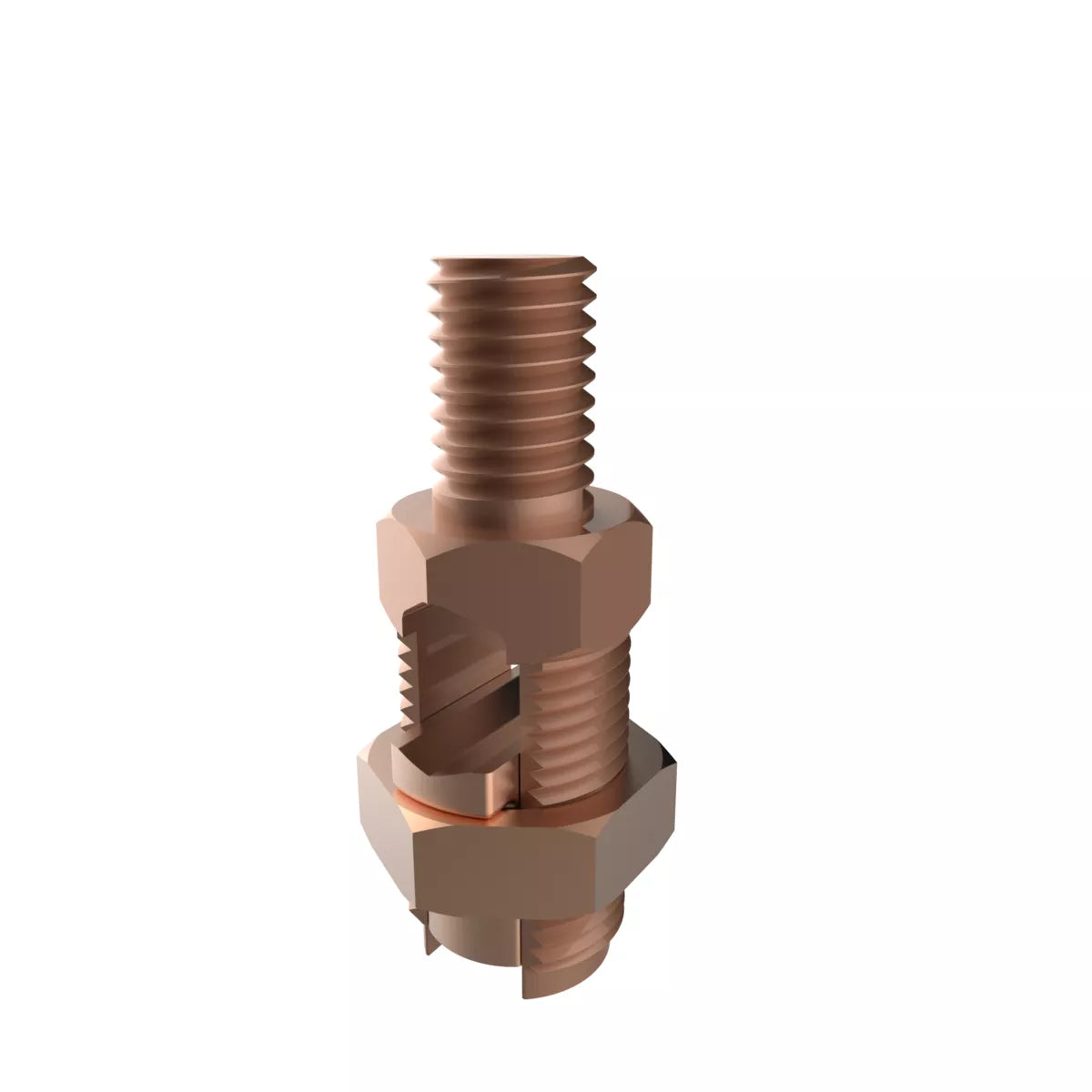

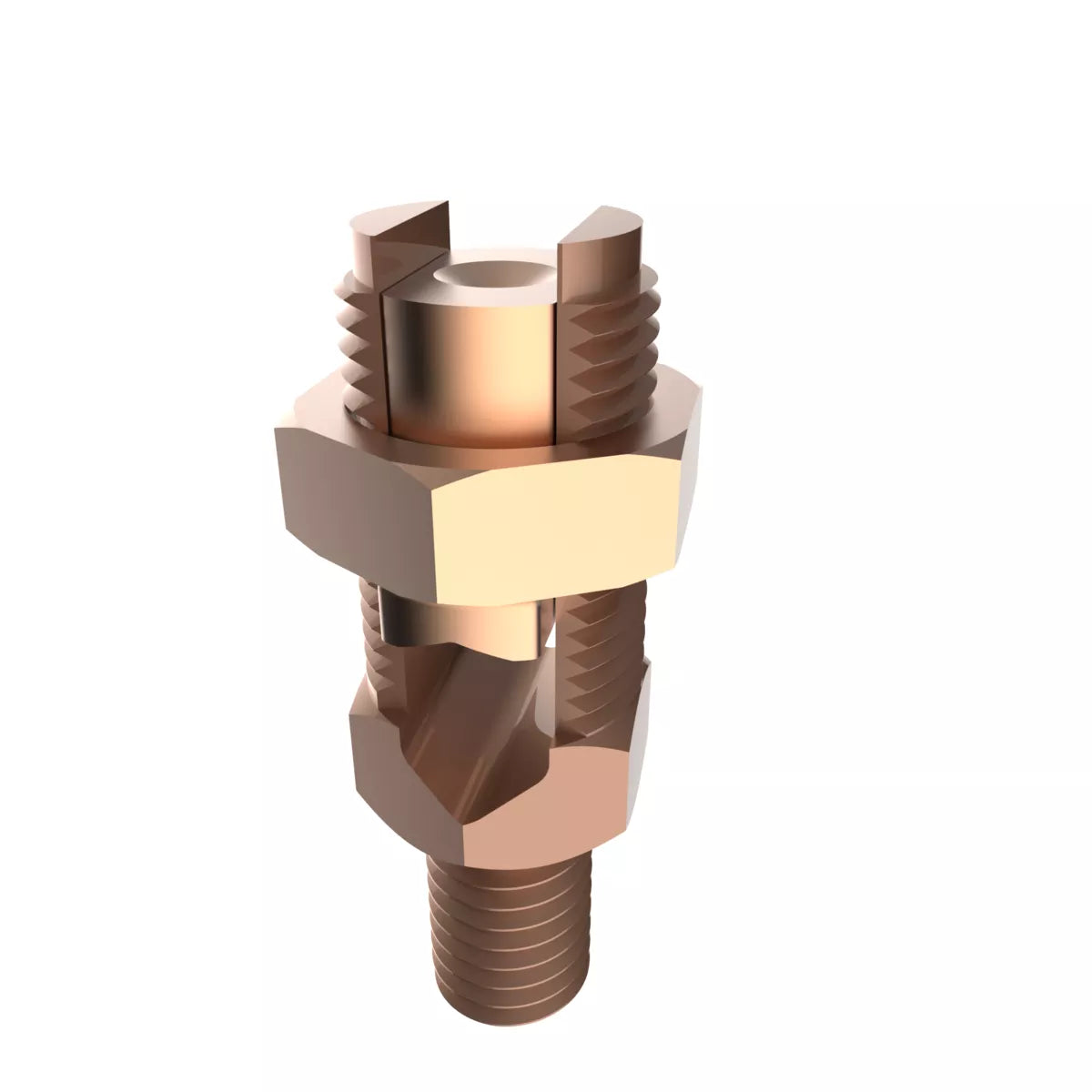

K2C23B1 - Burndy - 3/8" Stud Mechanical Grounding Connector
Mechanical Grounding Connector, Cable to Flat, 8-2 AWG (Str) / 10-1 AWG (Sol), 3/8" Stud.

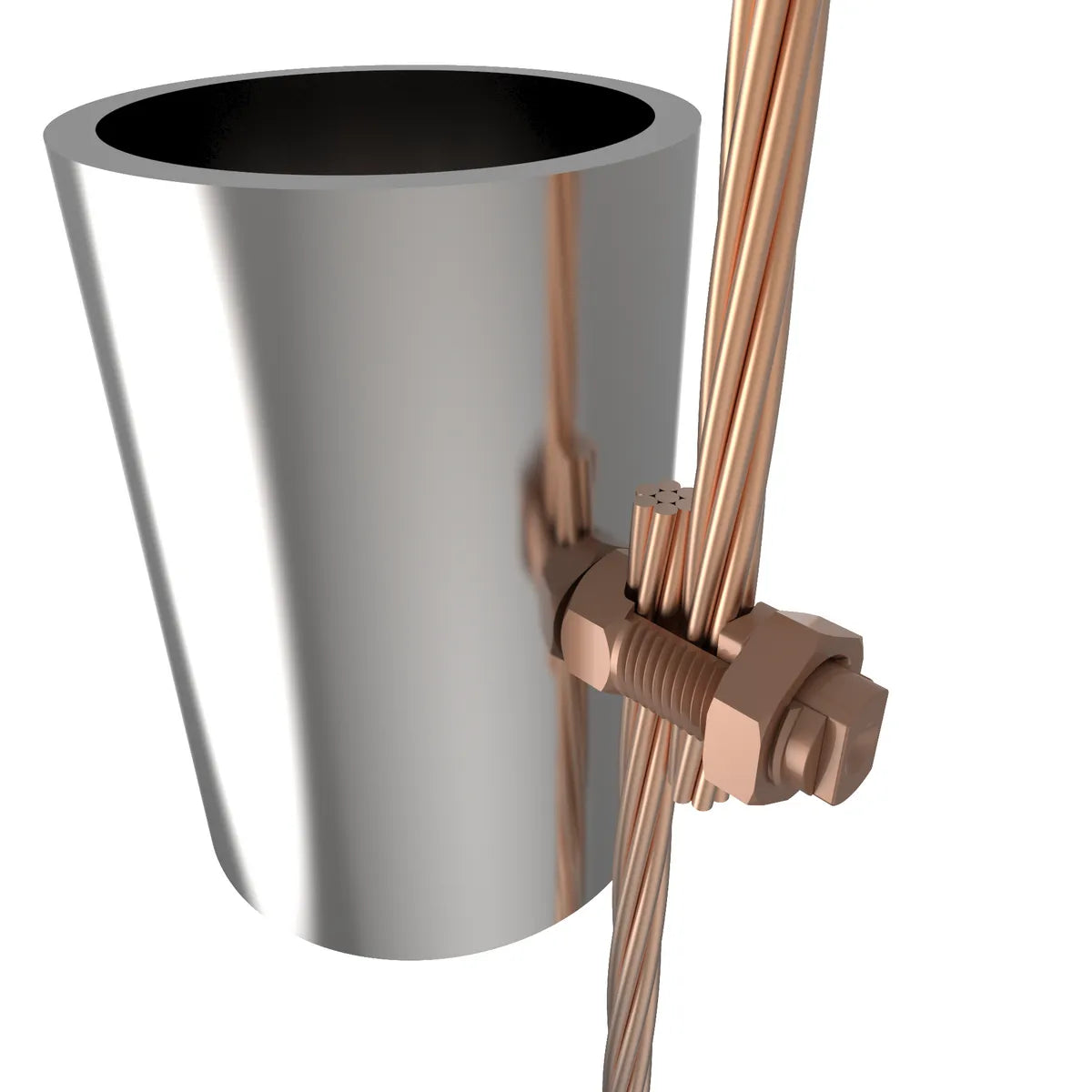

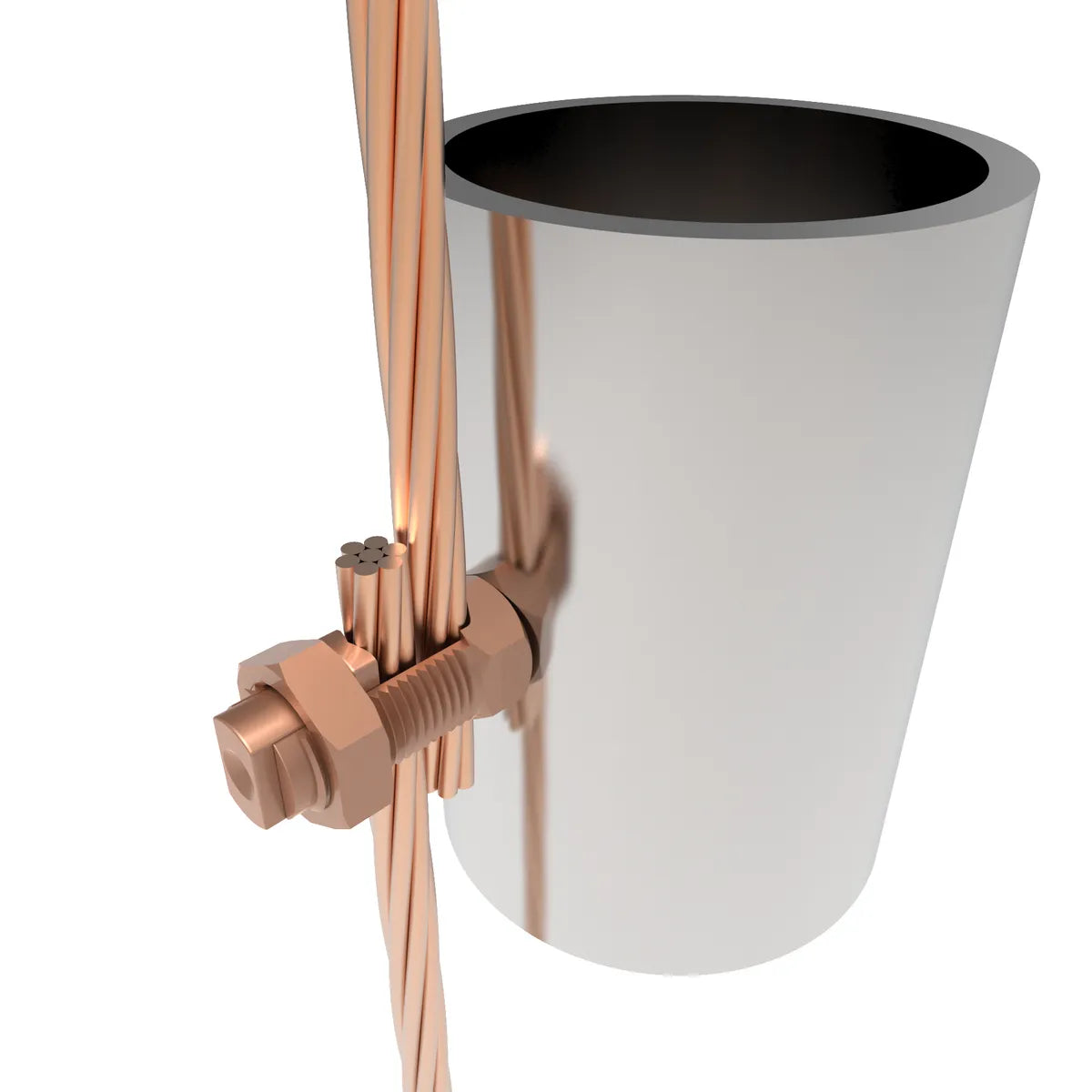

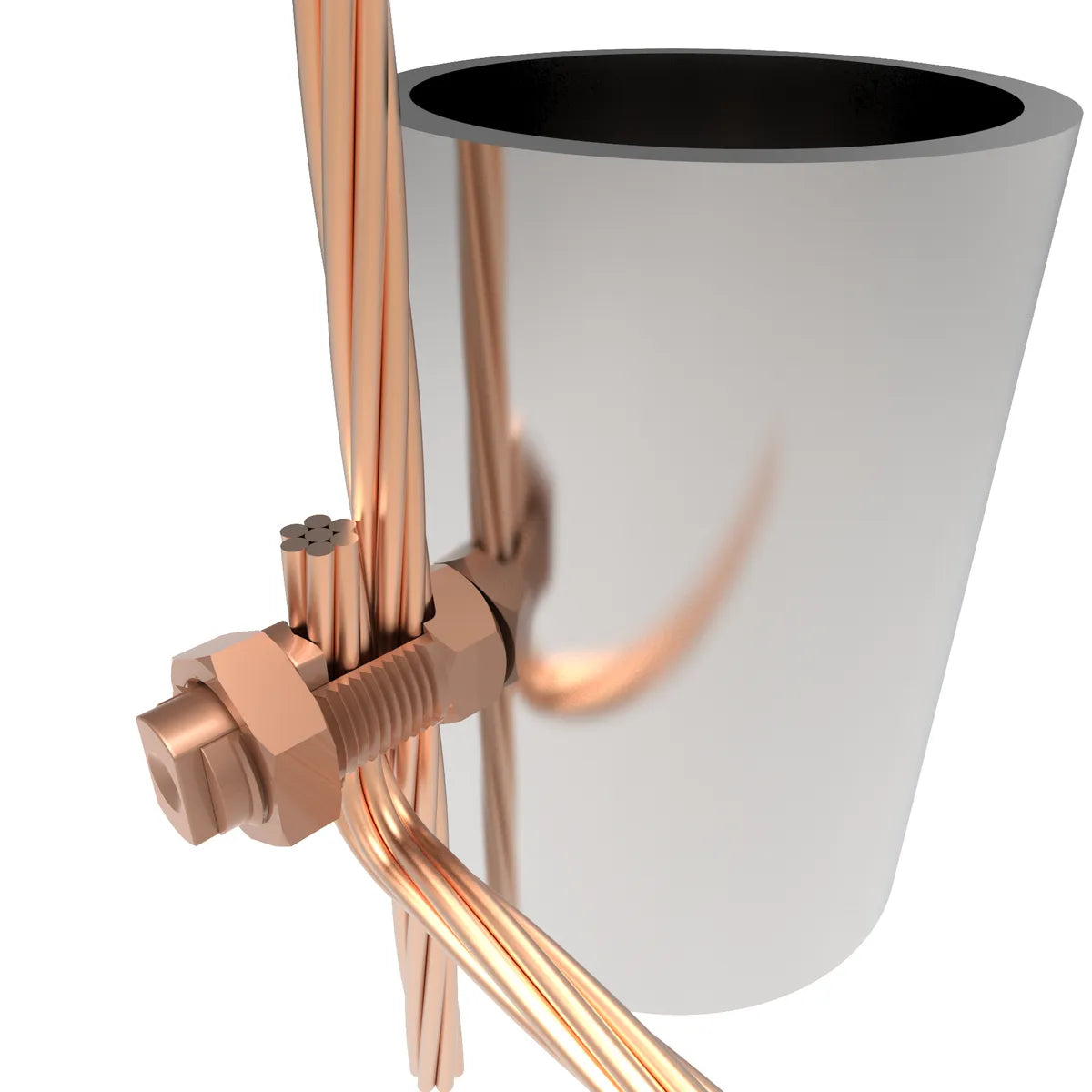

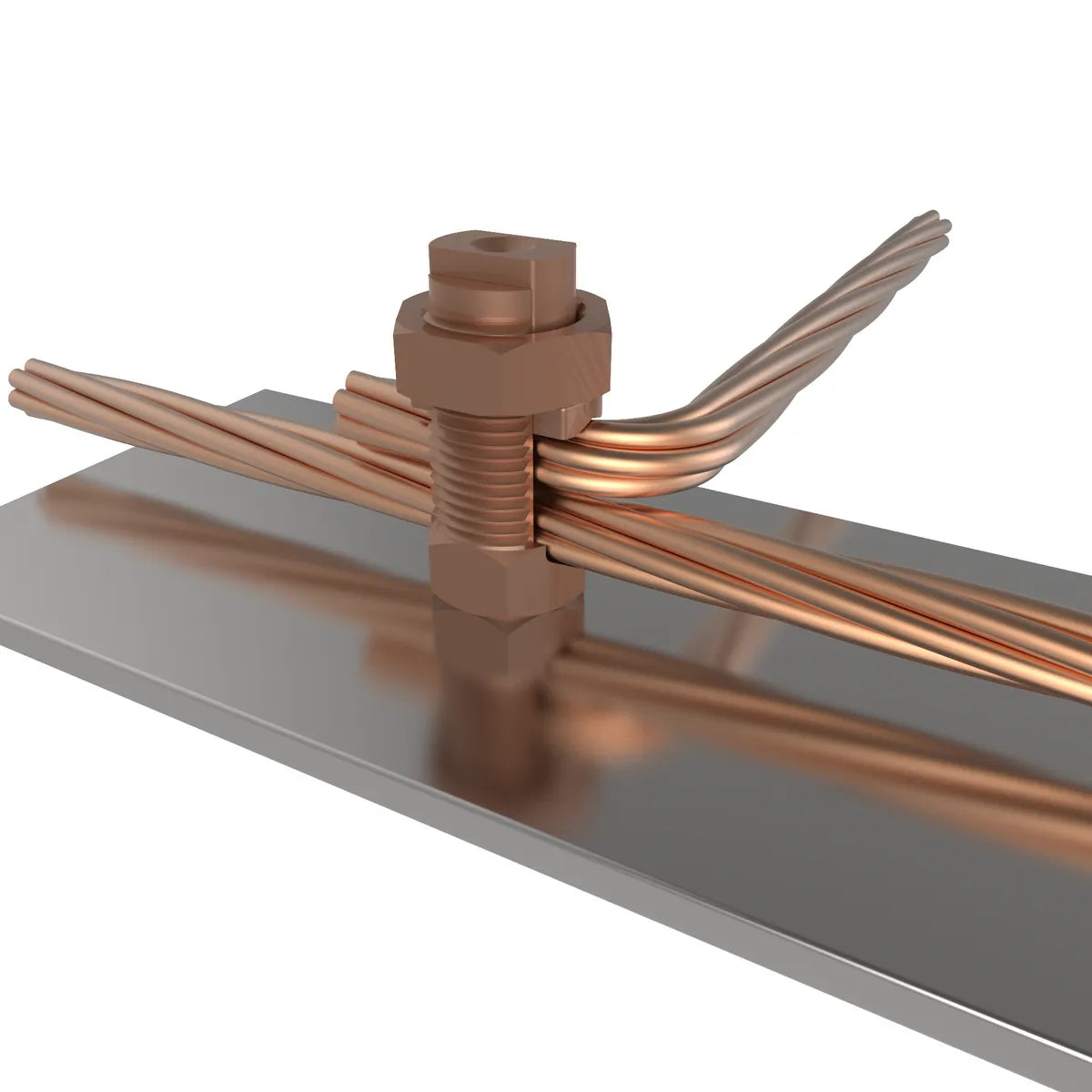

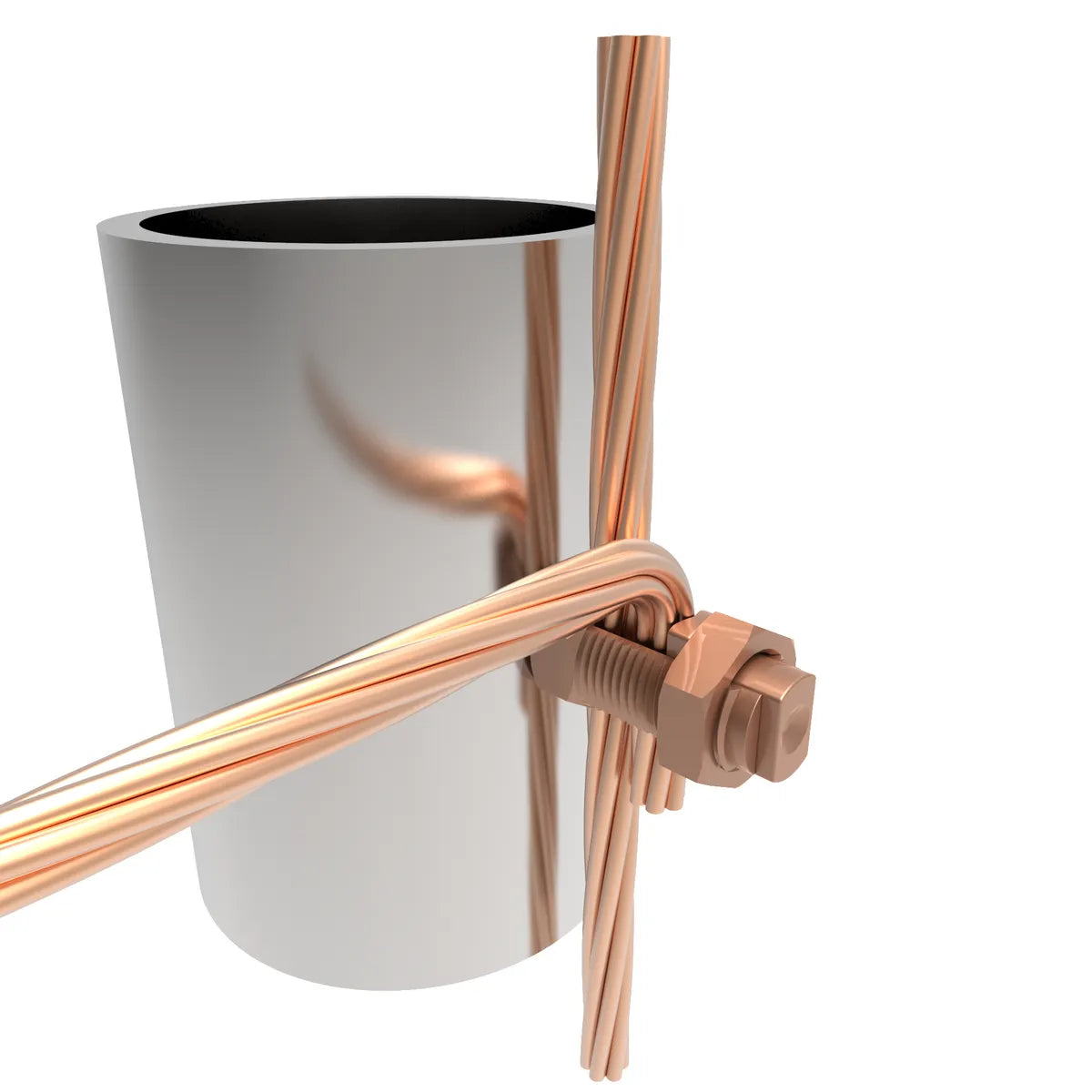

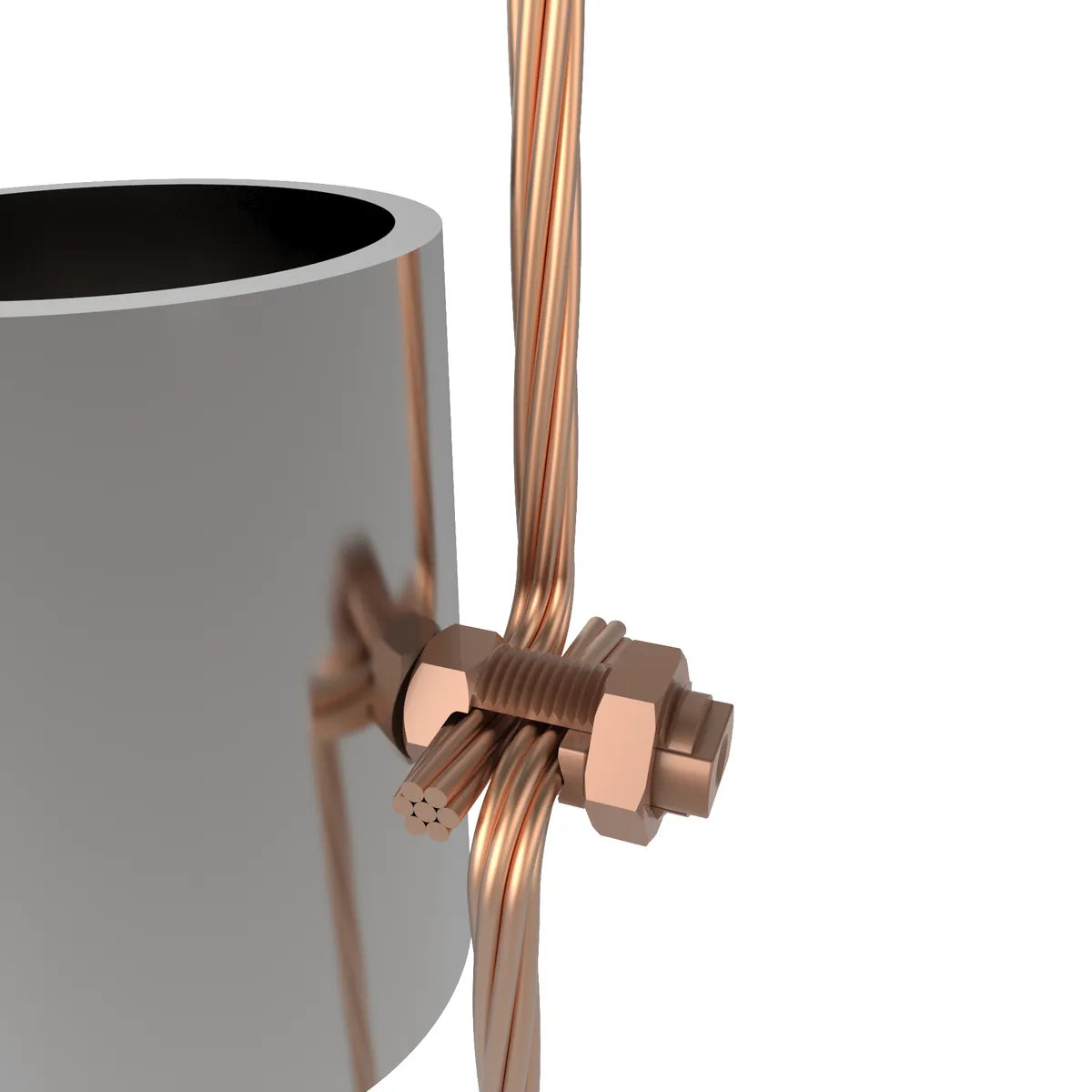

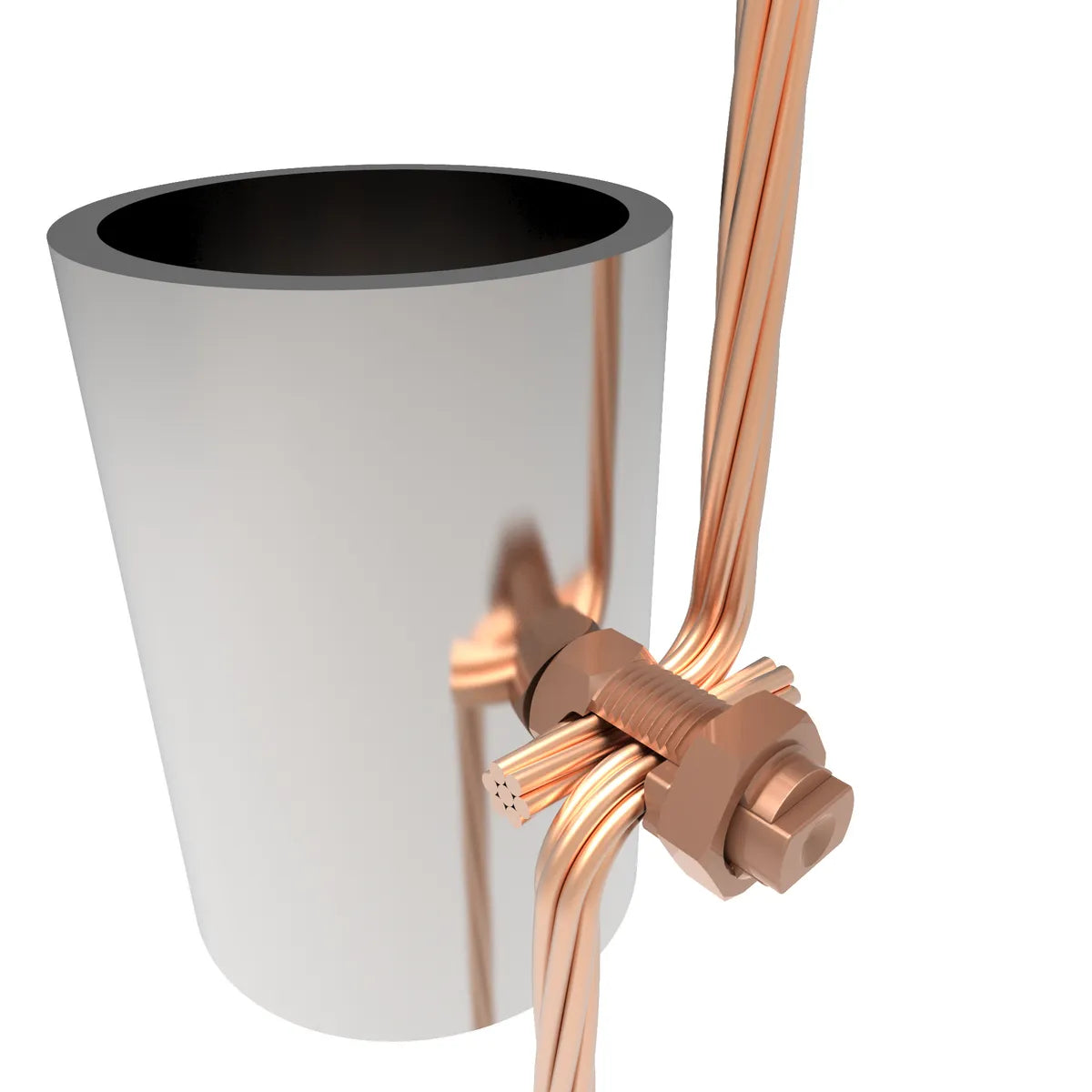

- SERVIT POST(TM) mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers

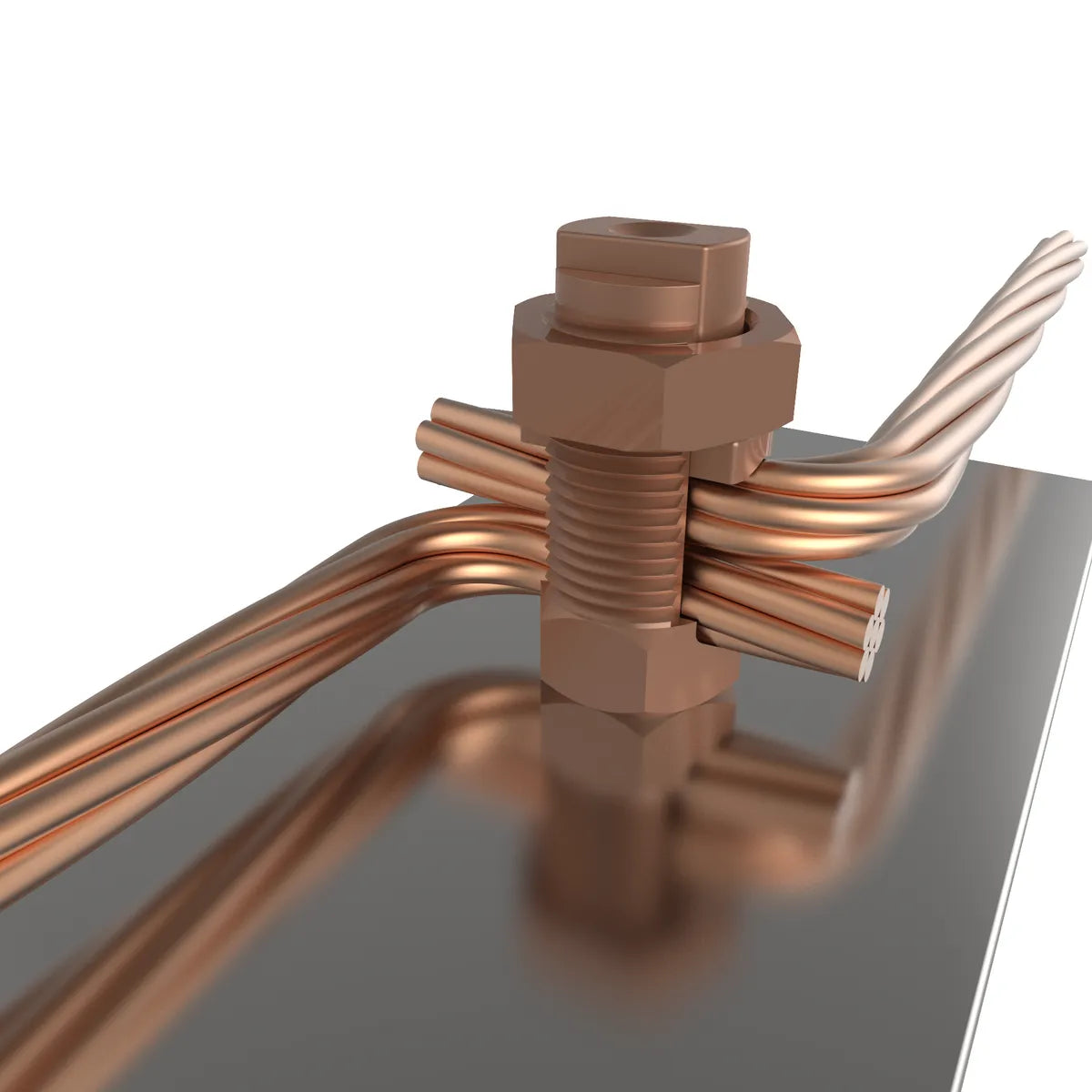

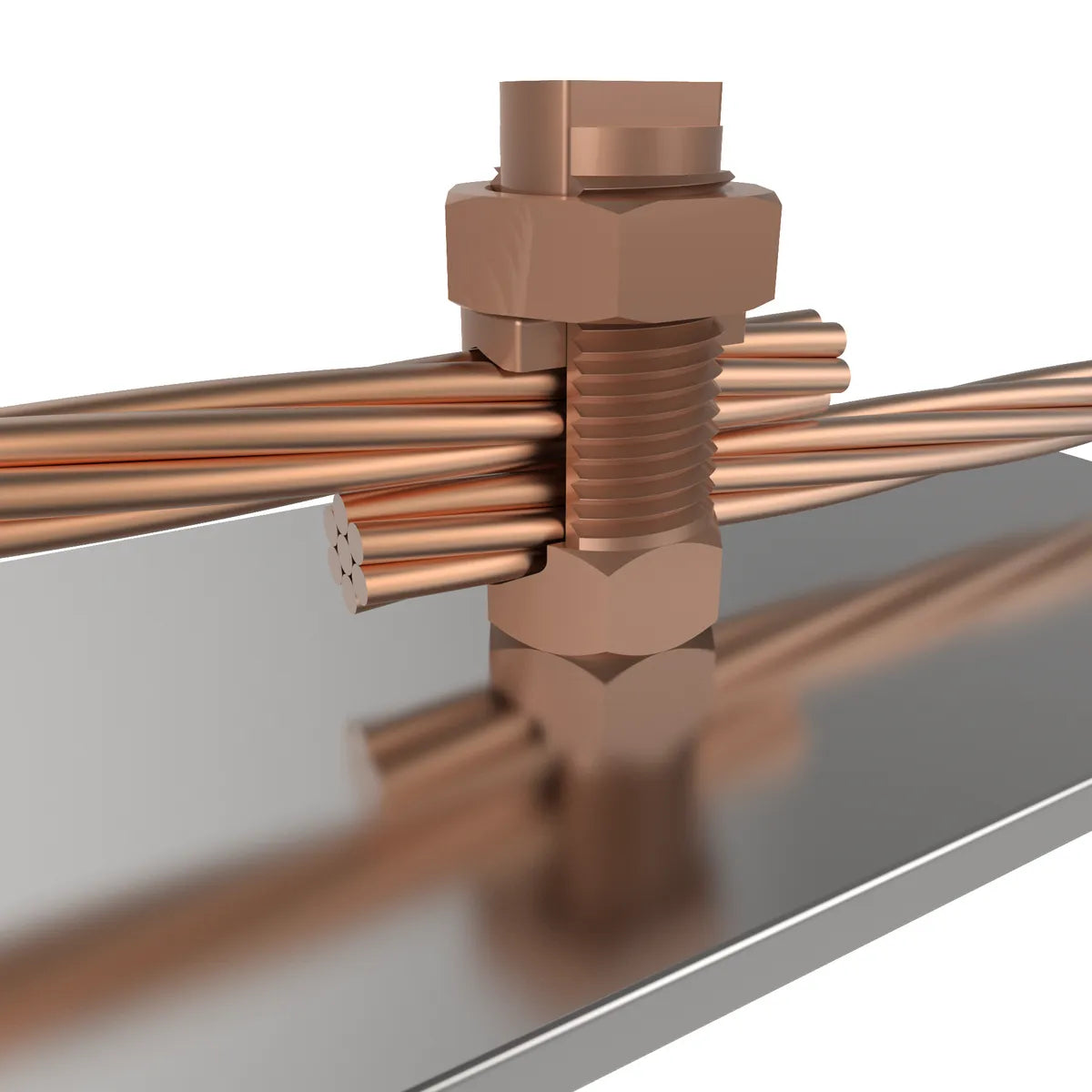

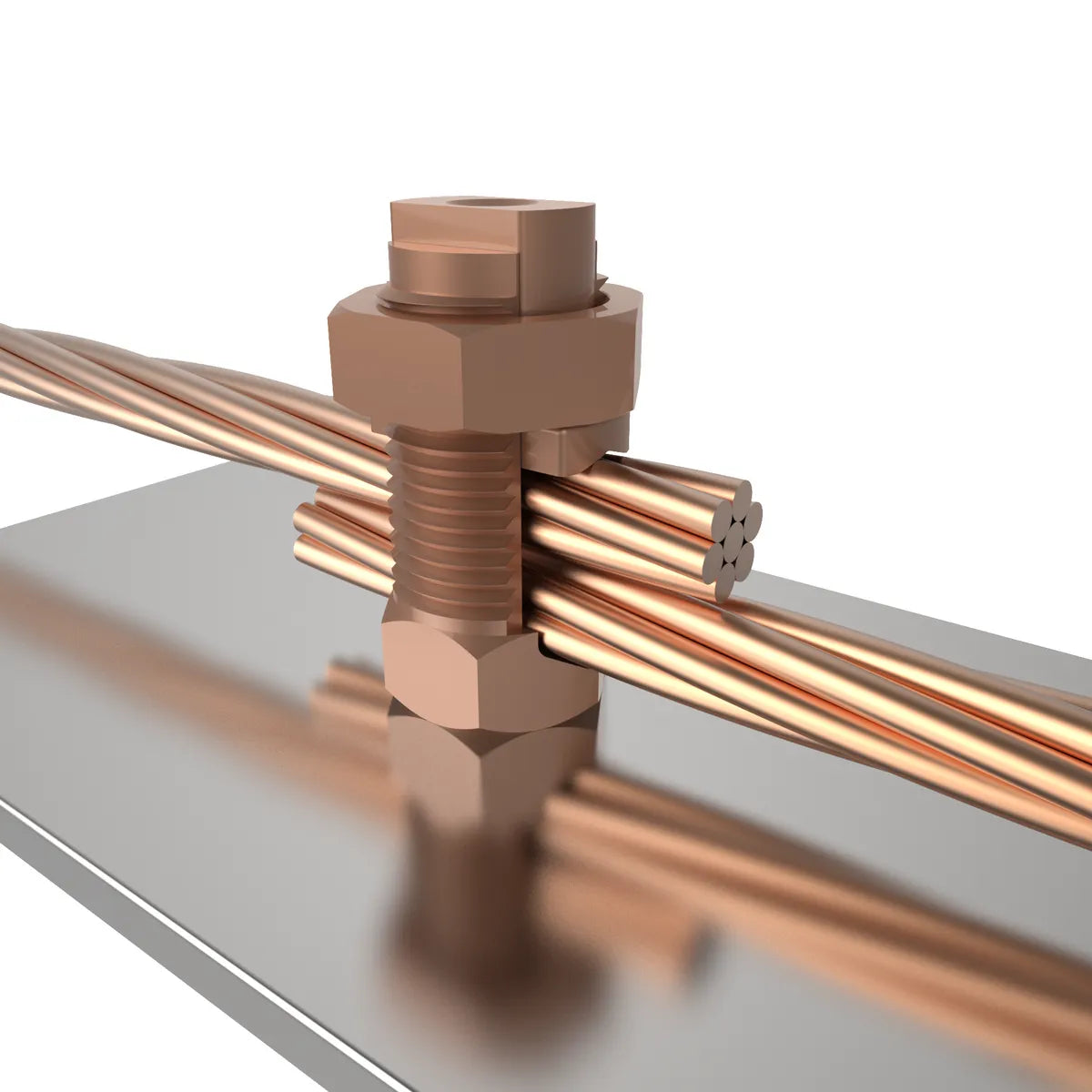

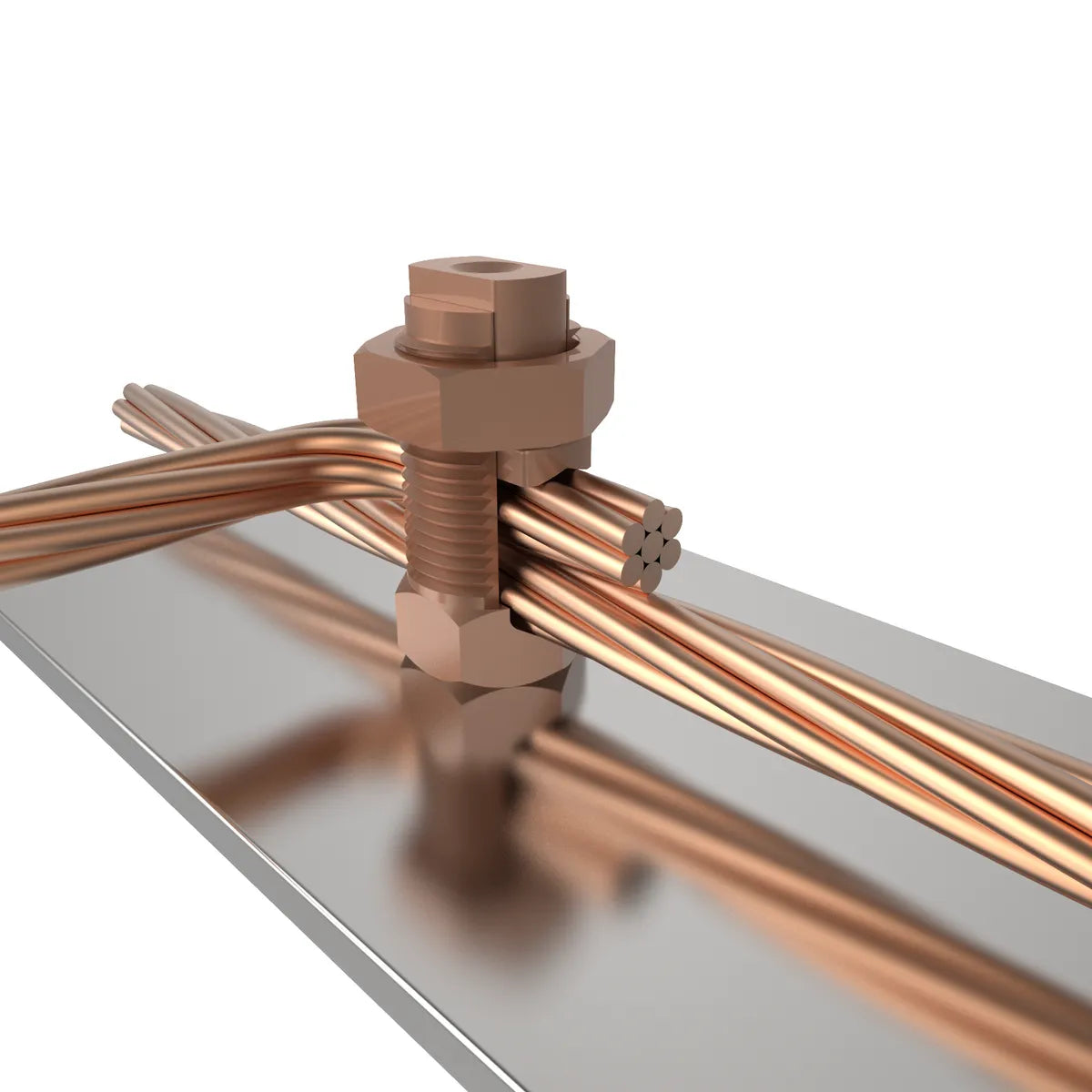

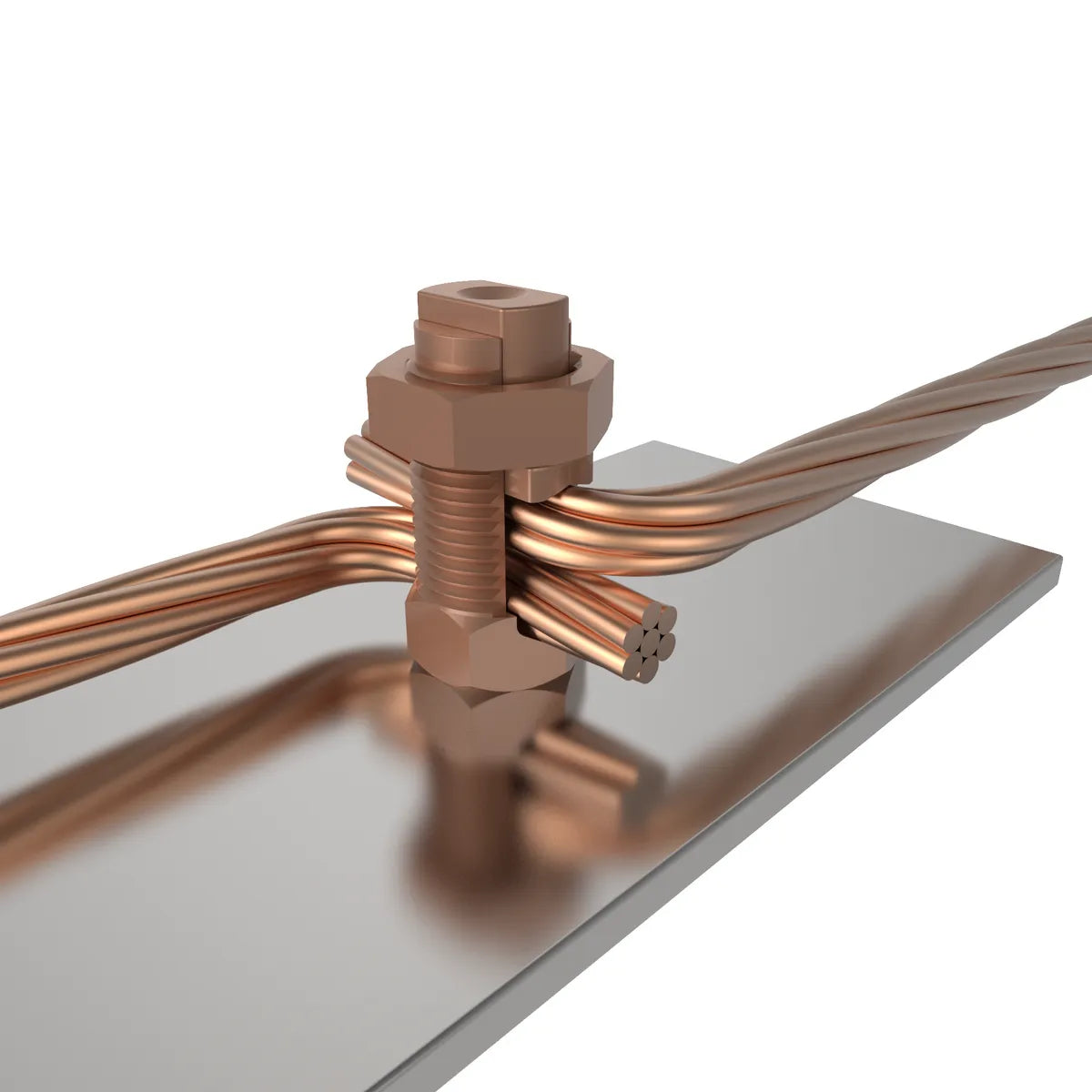

- Also used to tap 1 or 2 cables from the bus bar
- 1-Wrench installation
GENERAL SPECIFICATIONS
| Application |
For Direct Burial Applications And Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar |
| Catalog Number |
K2C23B1 |
| EU RoHS Indicator |
Yes |
| Material |
Bronze Alloy, Leaded |
| Plated |
N |
| Plating Type |
Unplated |
| Stud Installation Torque inch pounds |
280 LBS/in |
| Sub Brand |
SERVIT POST |
| Trade Name |
SERVIT POST(TM) |
| Type |
KC and K2C Series |
| UPC |
781810257258 |
| UPC 14 Digit GTIN |
00781810257258
|
Dimensions
| Dimension - B Length fraction |
31/32 in |
Dimension - B Length inch
|
0.97 in |
| Dimension - Body Width inch |
0.62 in |
| Dimension - Bolt Size fraction |
3/8 |
| Dimension - D inch |
1.12 in |
| Dimension - Height fraction |
1 |
| Dimension - Height inch |
1.05 in |
| Dimension - Height mm |
26.7 mm |
Dimension - Length Overall mm
|
63 mm |
Dimension - Length Overall inch
|
2.47 in |
| Dimension - Nut Width inch |
0.81 in |
| Dimension - P inch |
0.32 in |
| Dimension - Threads per inch |
16 |
Conductor Related
| Conductor - Copper Solid Size |
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG |
| Conductor - Copper Solid Size Range |
10 AWG - 1 AWG |
Conductor - Copper Str Size
|
8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Conductor - Copper Str Size Range |
8 AWG - 2 AWG |
| Physical Attribute - Number of Conductors Accommodated Total |
2 |
Force Related
| Stud Installation Torque inch pounds |
280 LBS/in |
Logistics
| Carton Quantity |
50 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
14500 |
PRODUCT DATASHEET
K2C23B1
