Description

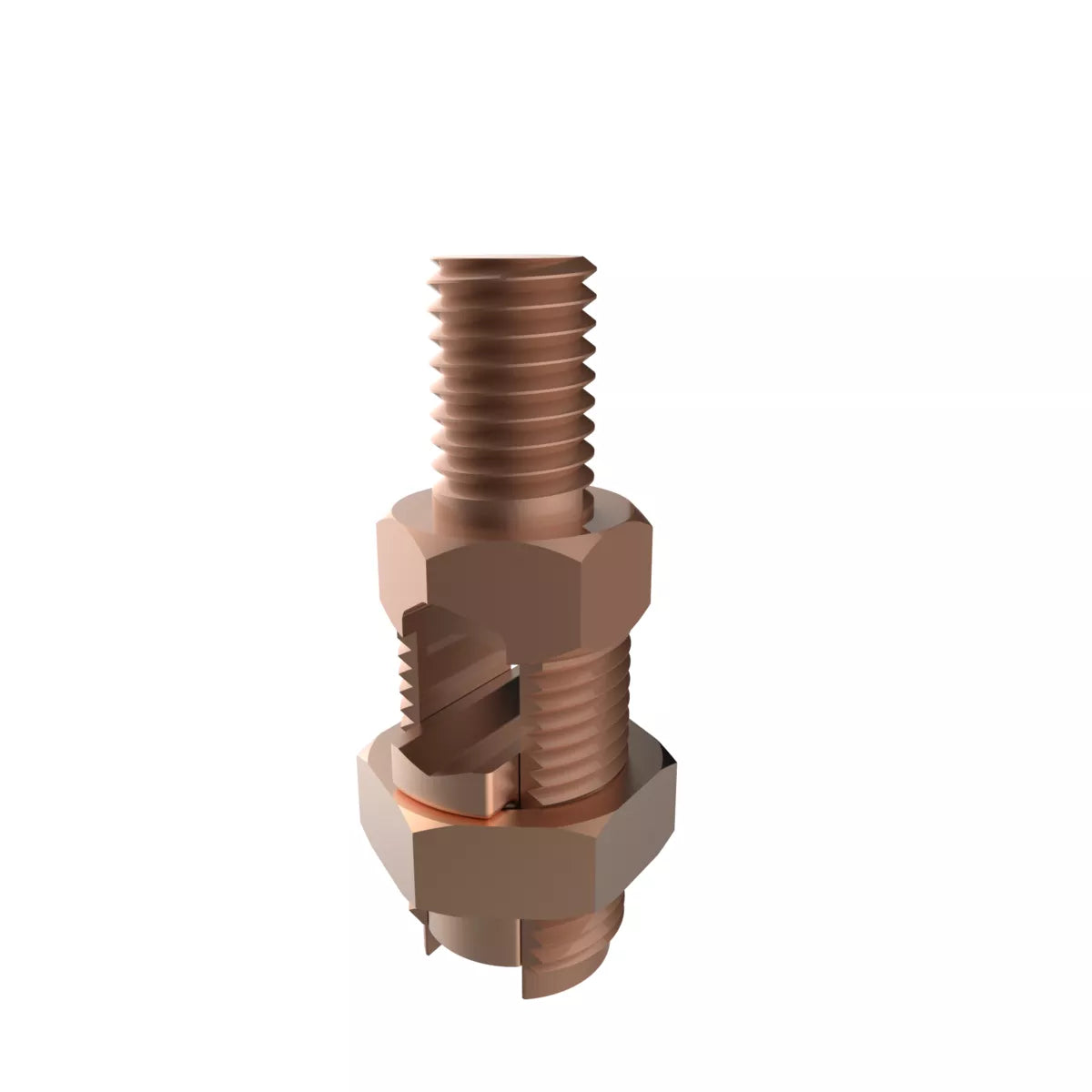

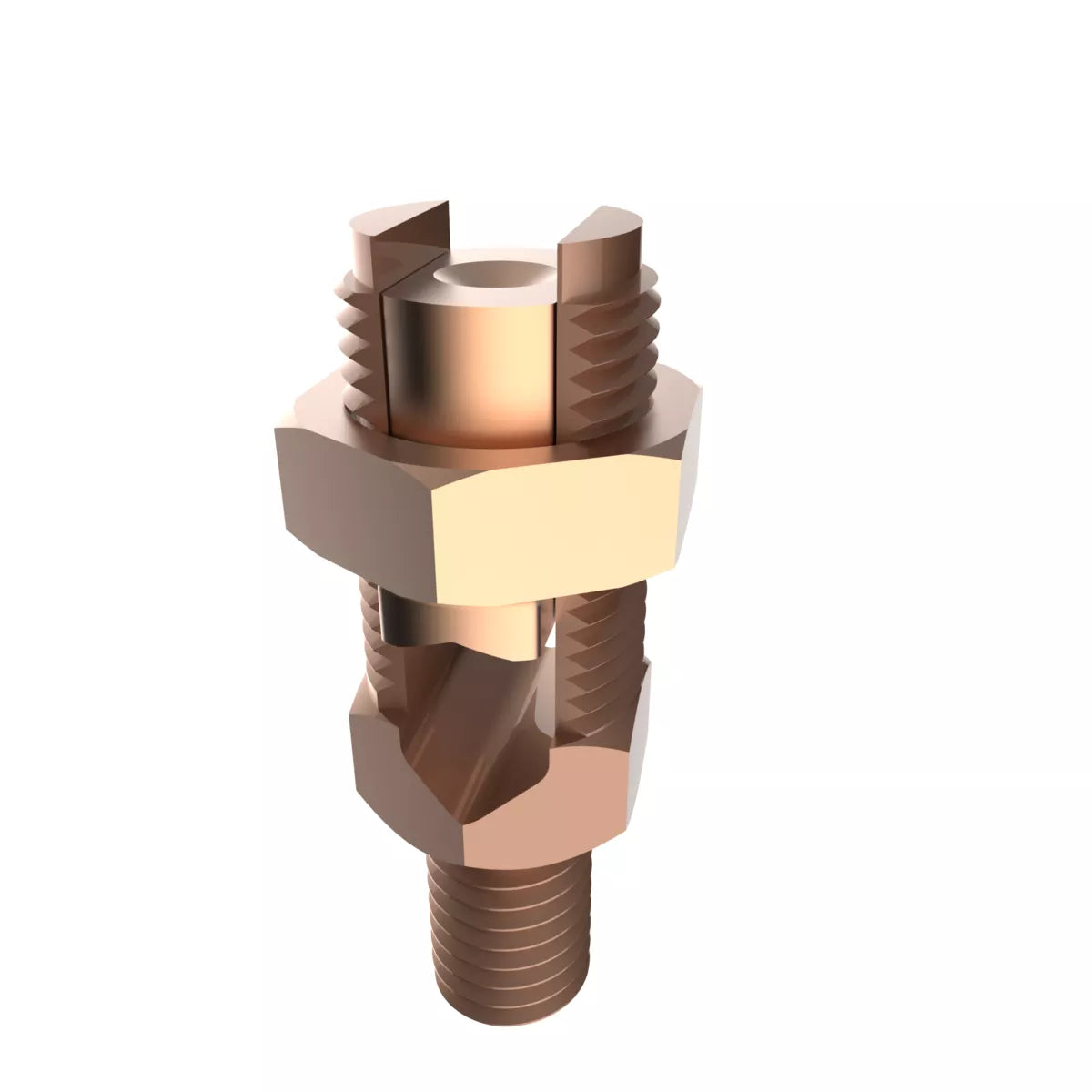

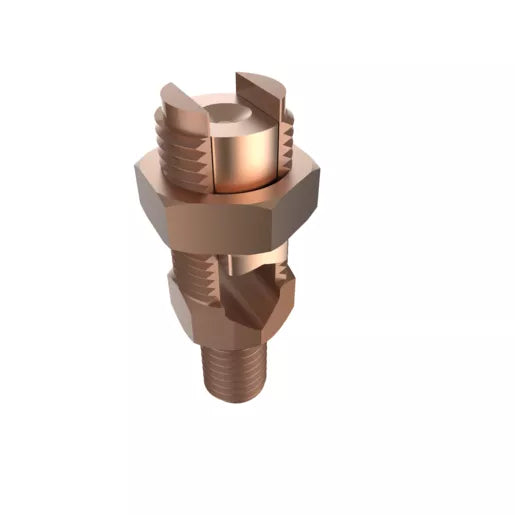

K2C25 - Burndy - 1/2" Stud Mechanical Grounding Connector
Mechanical Grounding Connector, Cable to Flat, 2-1/0 AWG (Str) / 2-2/0 AWG (Sol), Stud dia:1/2-13,1-1/8 H.

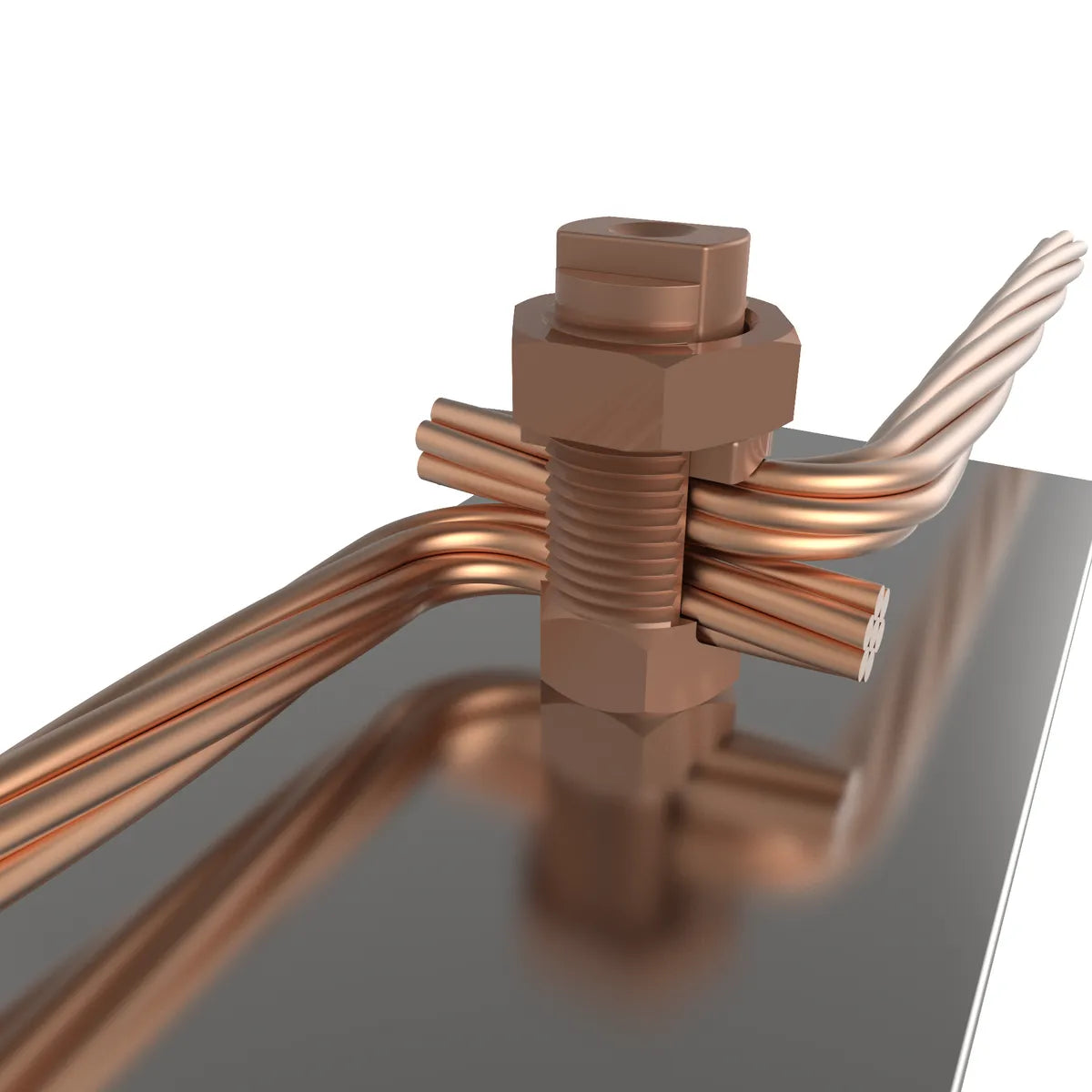

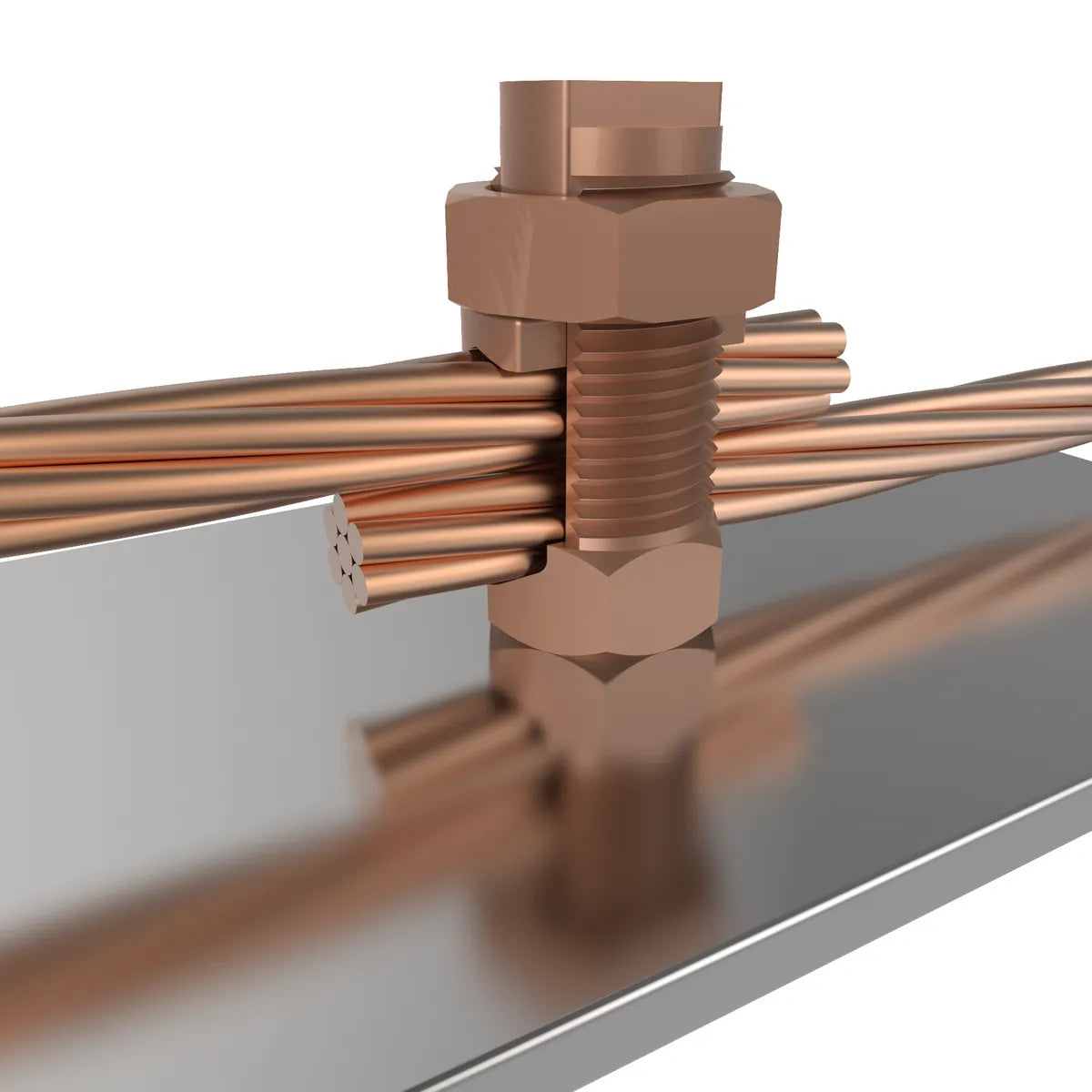

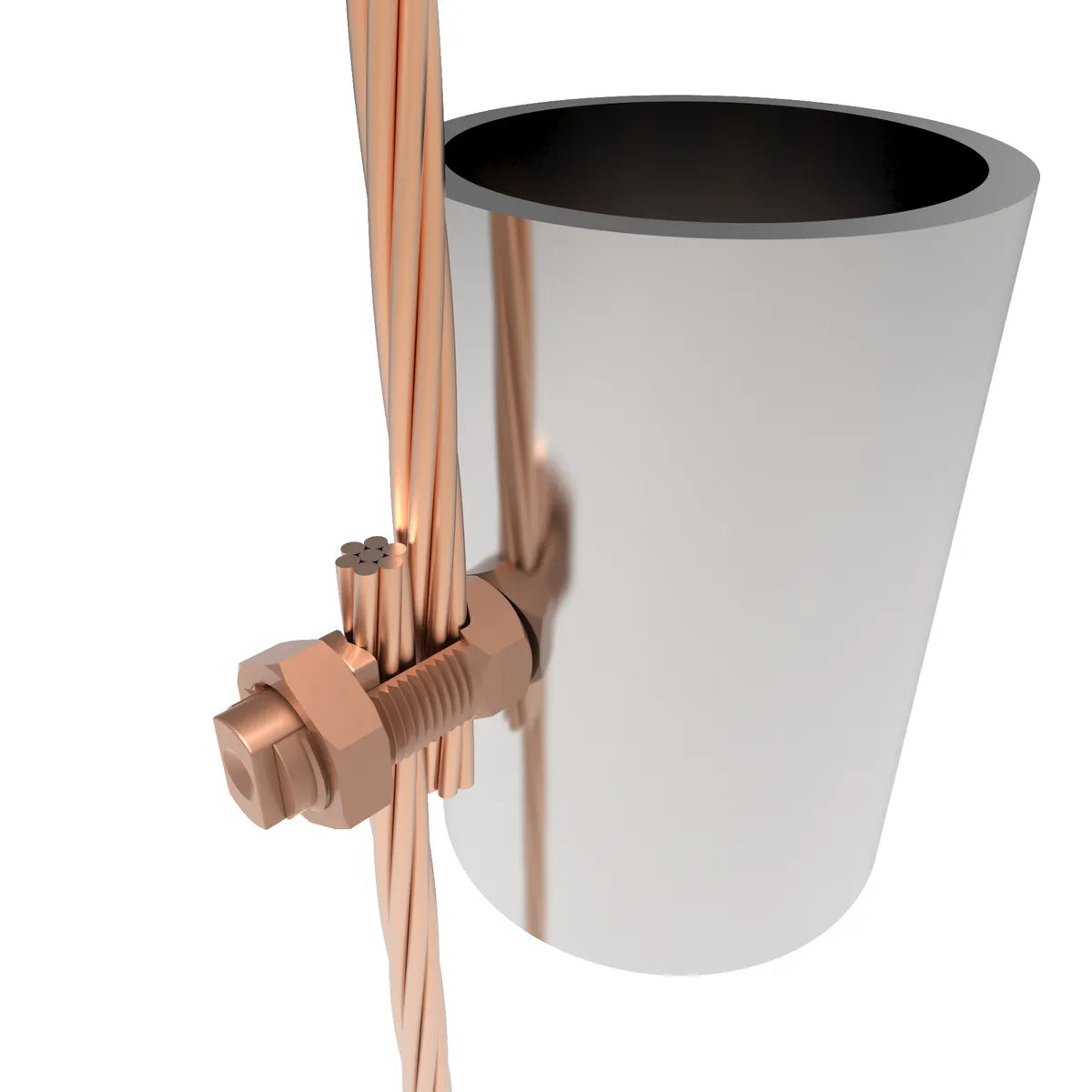

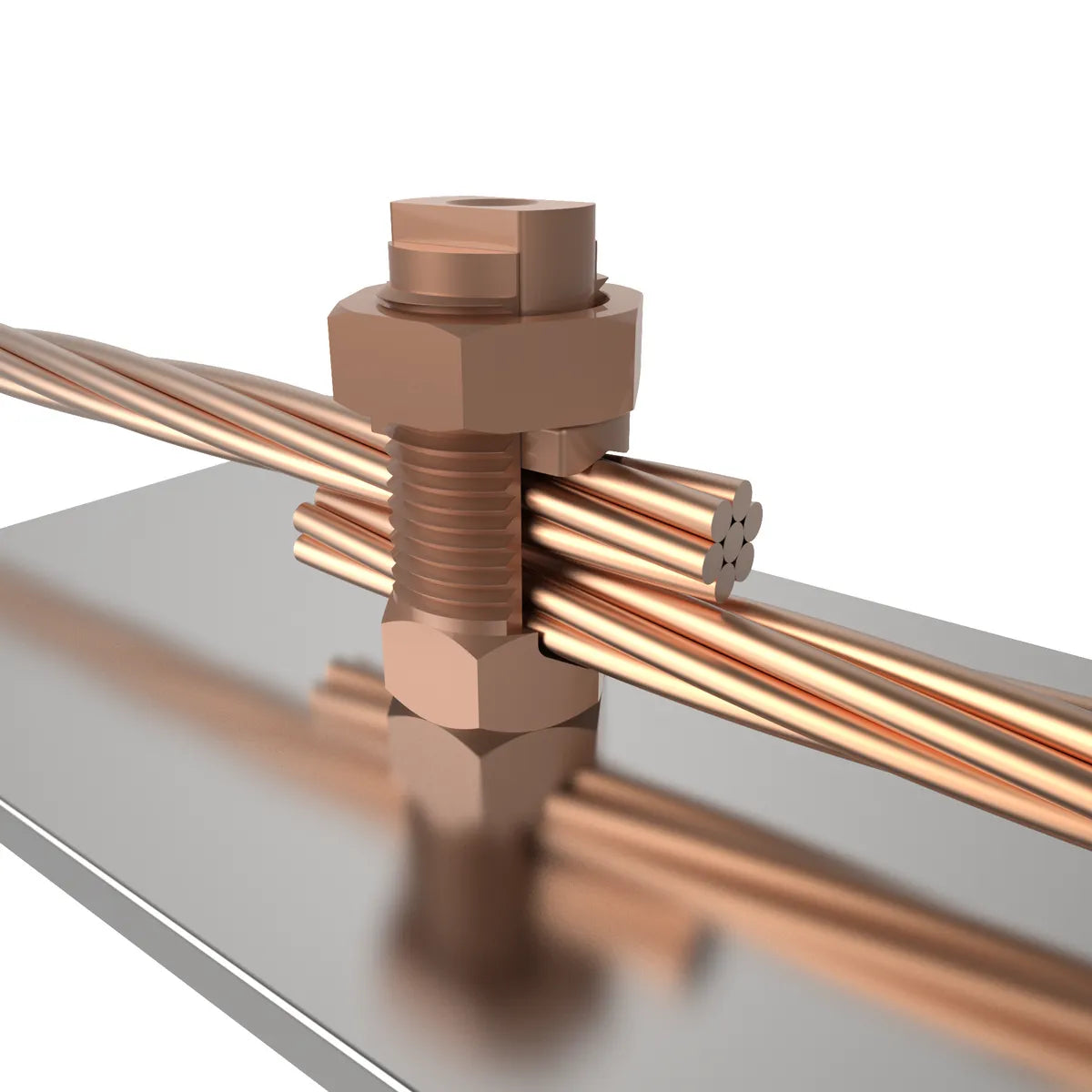

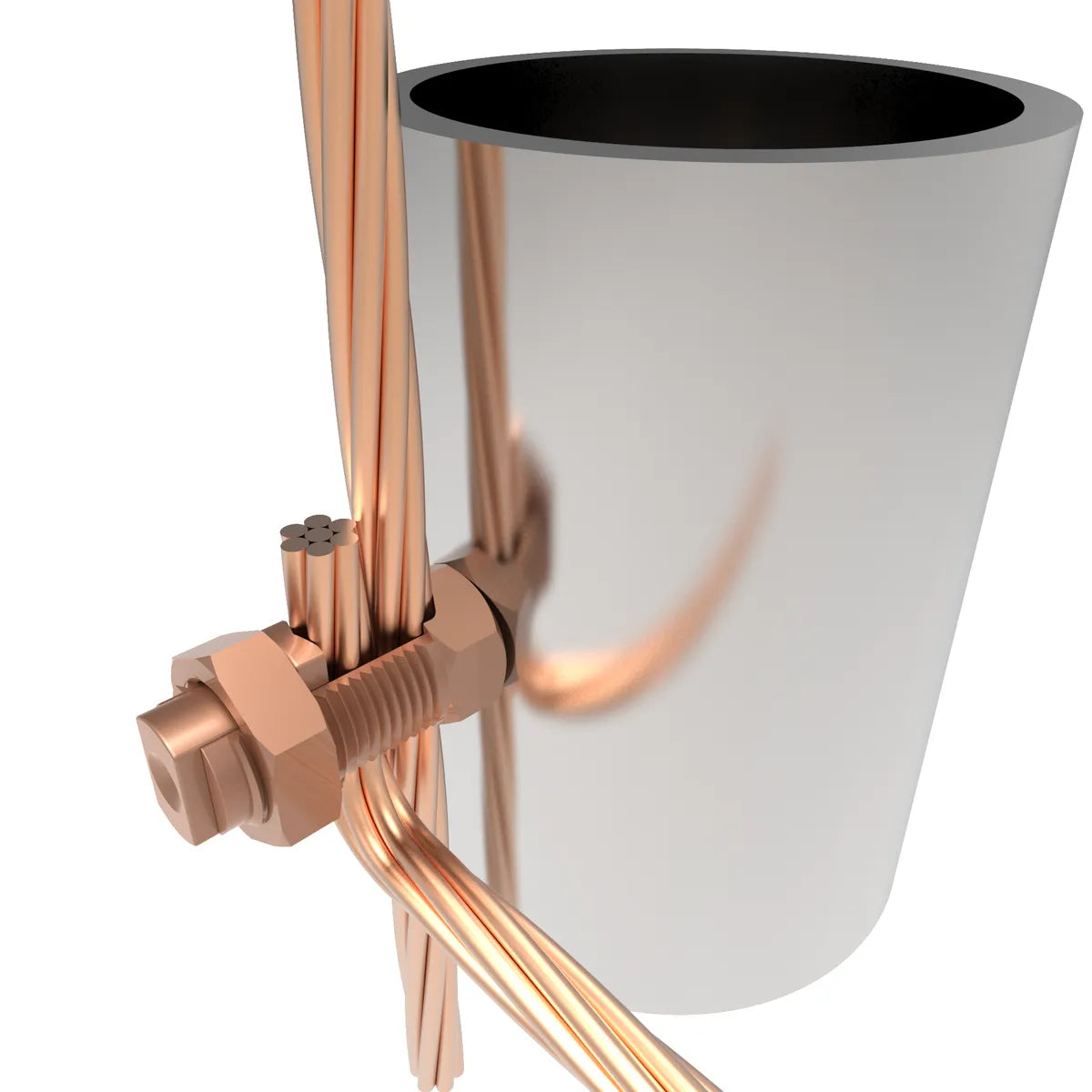

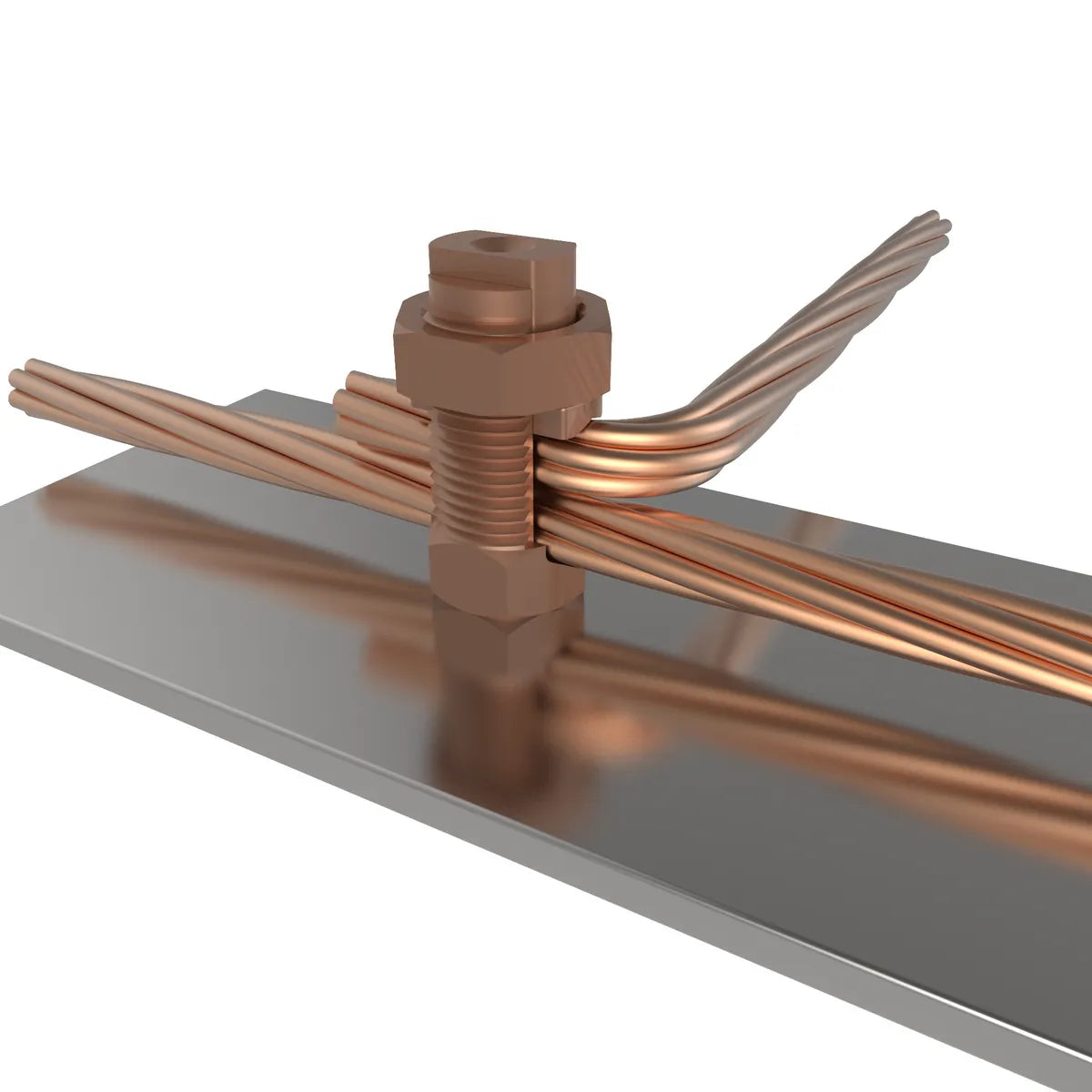

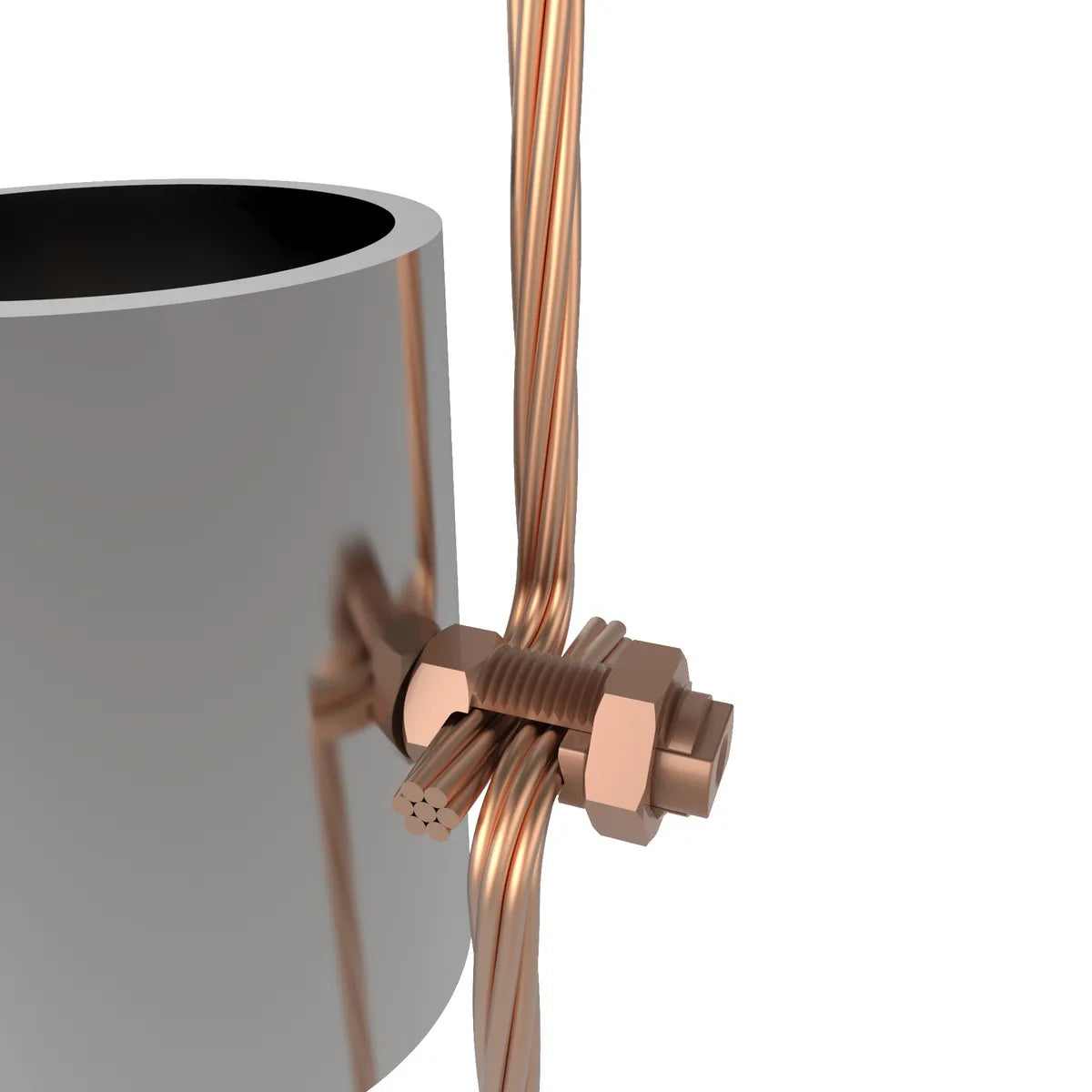

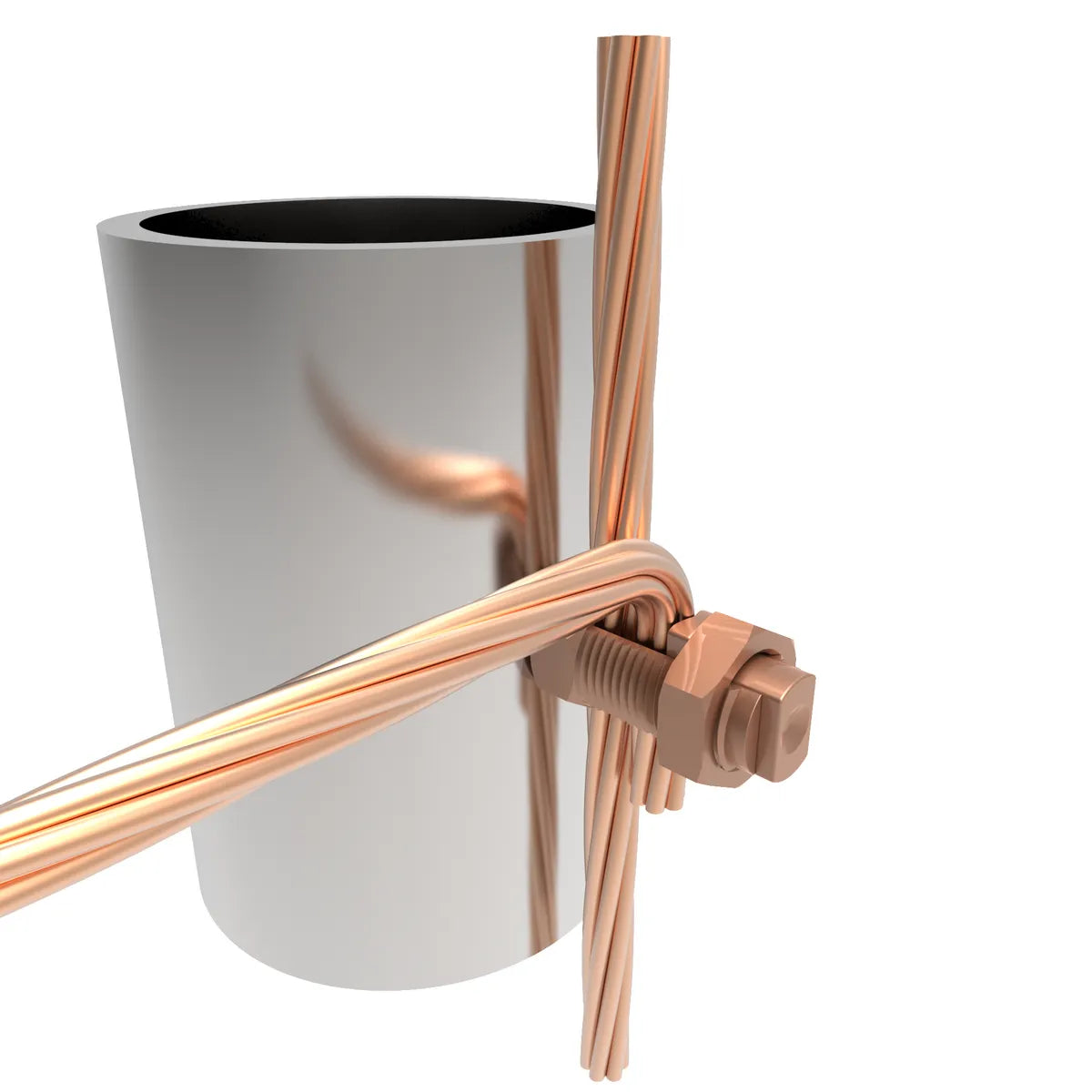

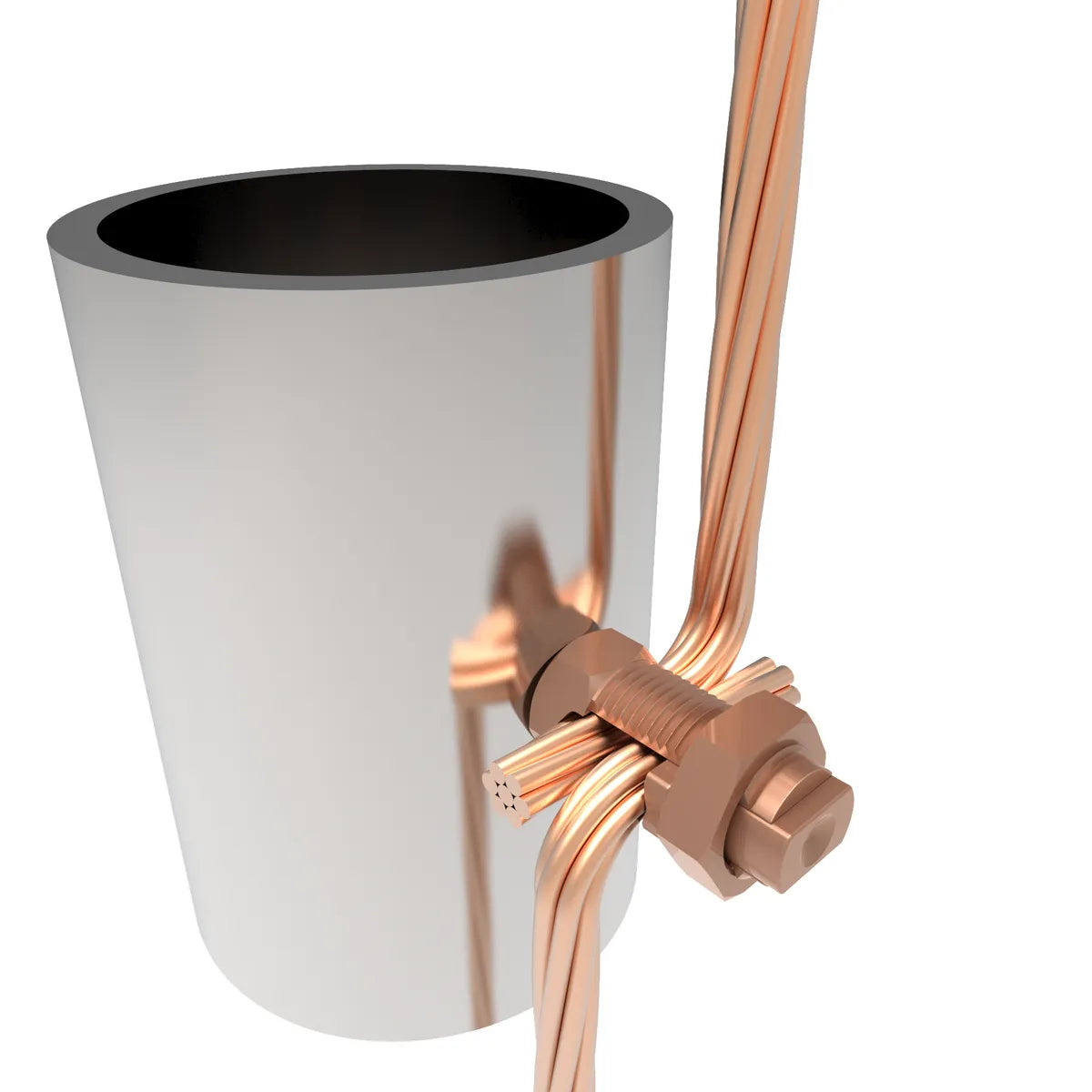

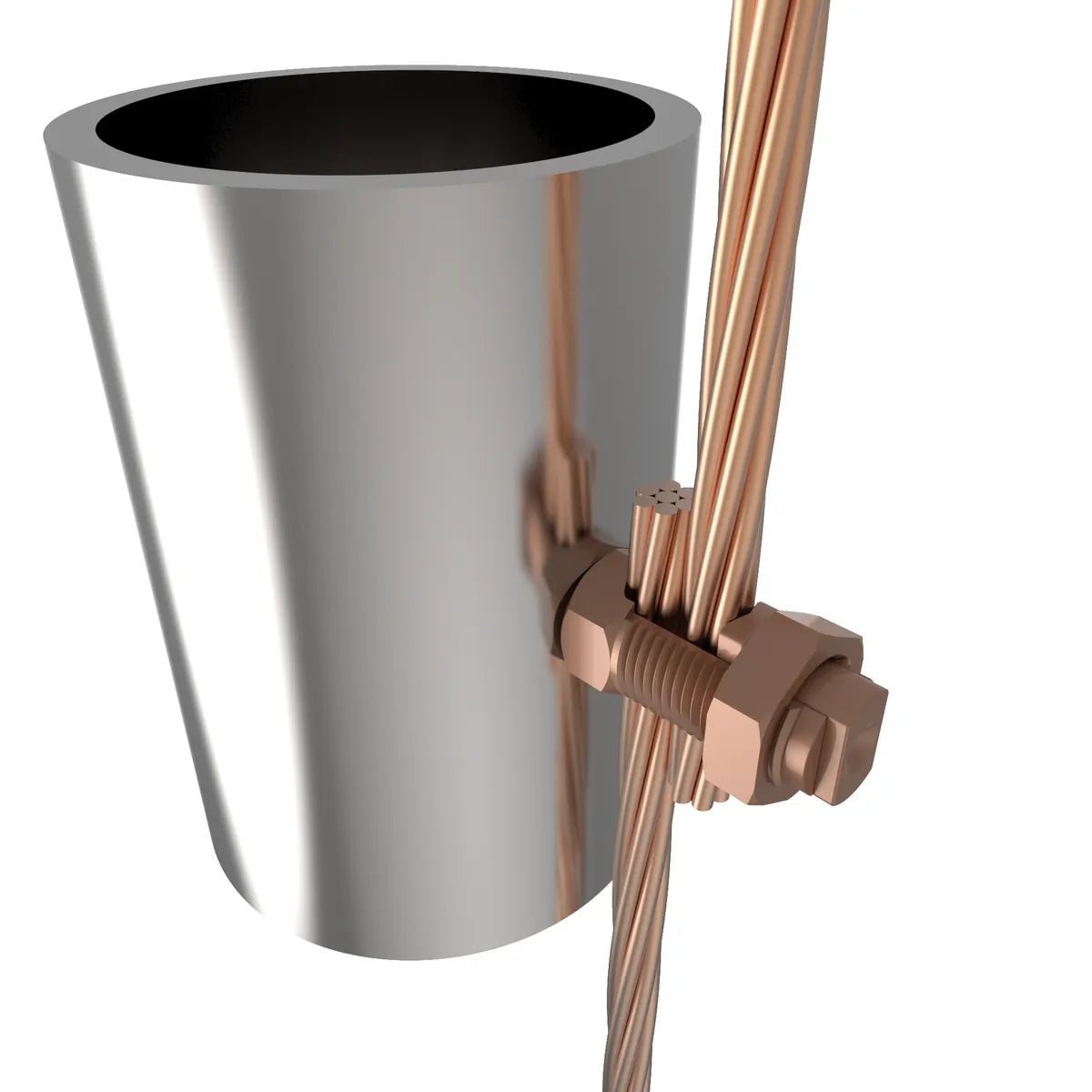

- SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers

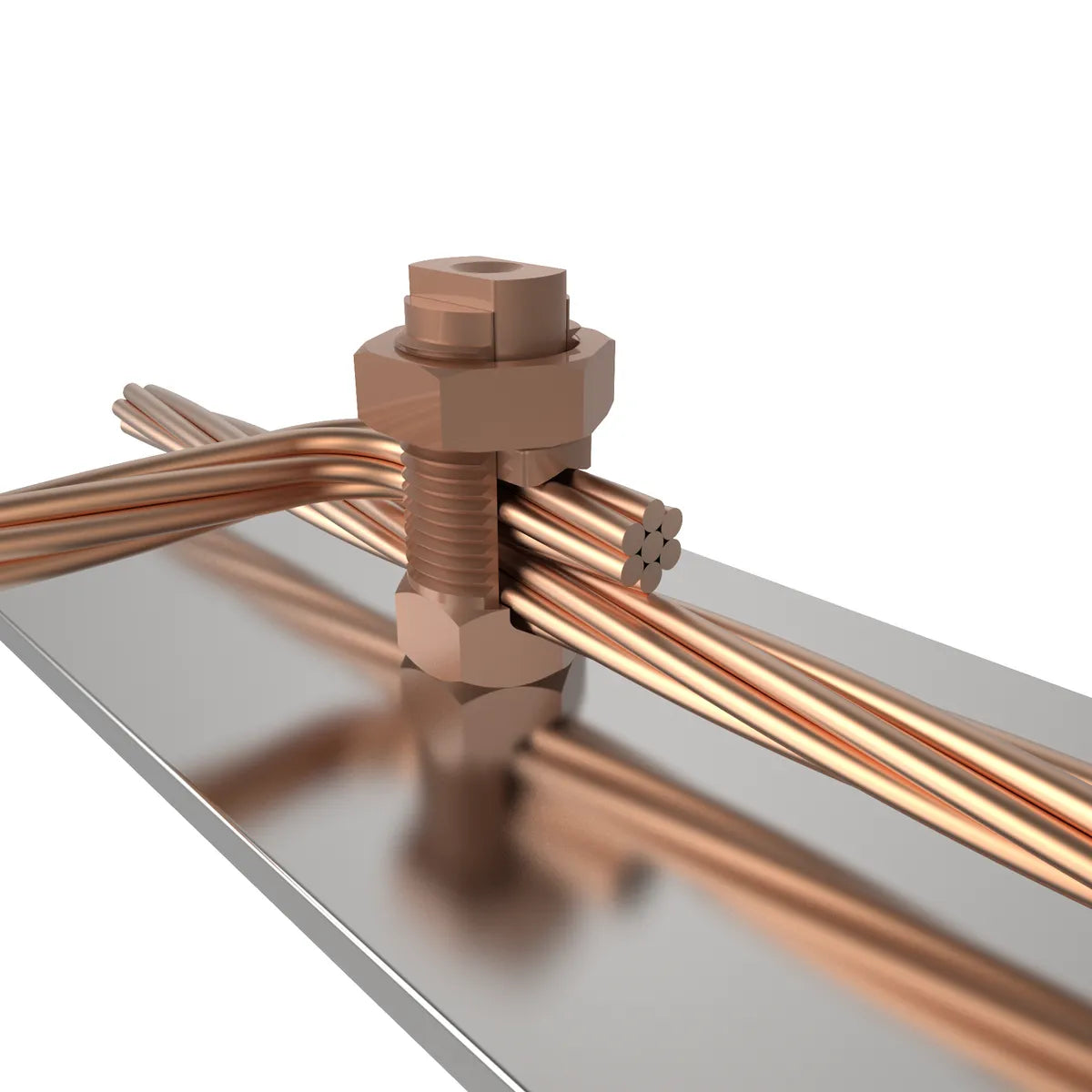

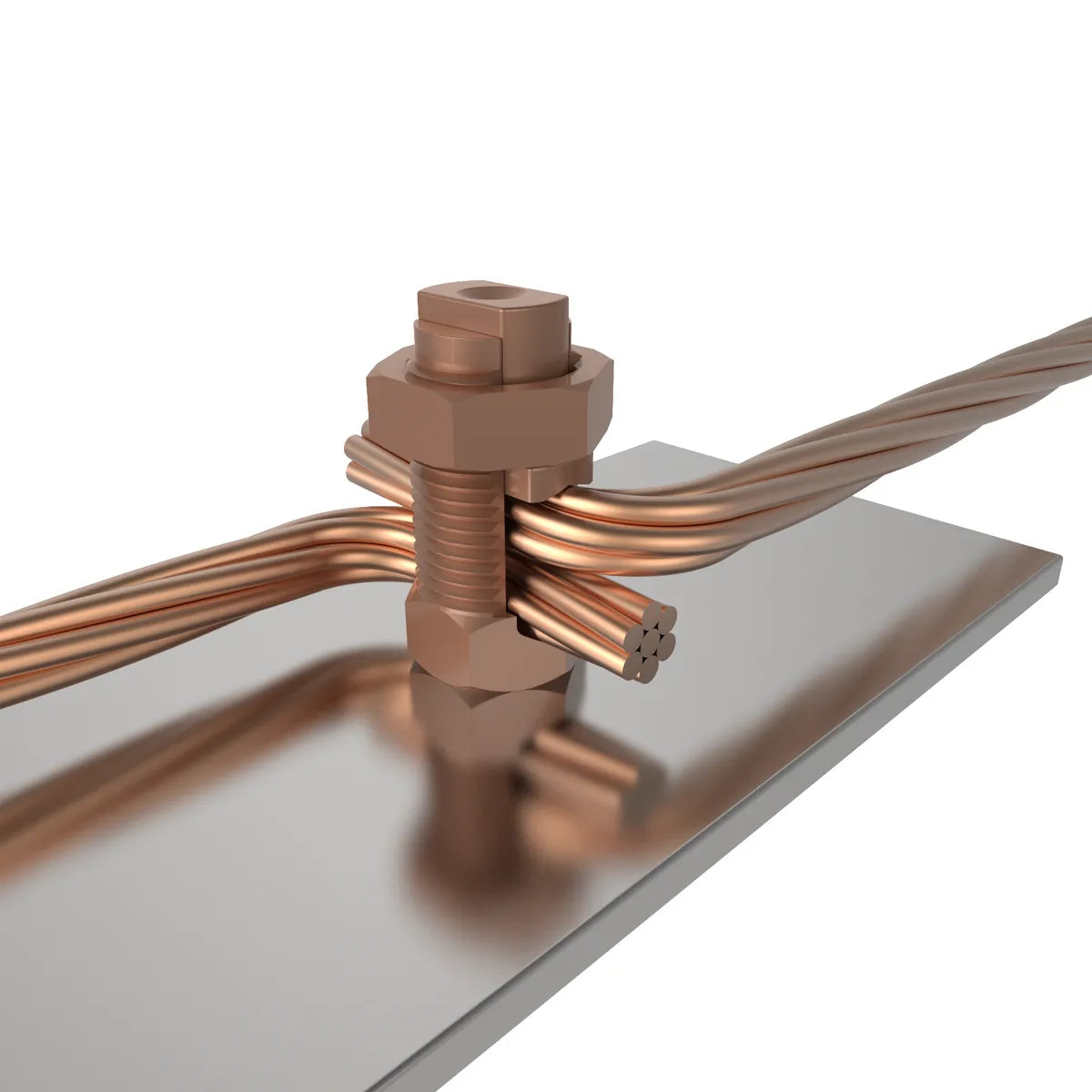

- Also used to tap 1 or 2 cables from the bus bar
- 1-Wrench installation
GENERAL SPECIFICATIONS
| Application | For Direct Burial Applications And Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar |
| Catalog Number | K2C25 |
| EU RoHS Indicator | Yes |
| Material | Bronze Alloy, Leaded |
|
Plated
|
N
|
|
Plating Type
|
Unplated
|
| Stud Installation Torque inch pounds | 480 LBS/in |
| Sub Brand | SERVIT POST |
| Trade Name | SERVIT POST™ |
| Type | KC and K2C Series |
| UPC | 781810257302 |
| UPC 14 Digit GTIN | 00781810257302 |
Dimensions
| Dimension - B Length fraction | 9/16 in |
| Dimension - B Length inch |
0.53 in |
| Dimension - Body Width inch | 0.75 in |
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - D inch | 0.75 in |
| Dimension - Height fraction | 1-1/8 |
| Dimension - Height inch | 1.56 in |
| Dimension - Height mm | 30.2 mm |
|
Dimension - L Length Overall mm
|
62 mm
|
|
Dimension - Length Overall inch
|
2.44 in
|
| Dimension - Nut Width inch | 0.93 in |
| Dimension - P inch | 0.39 in |
| Dimension - Threads per inch | 13 |
| Dimension - Width inch | 40 mm |
Conductor Related
| Conductor - Copper Solid Size | 2 AWG;1 AWG;1/0 AWG;2/0 AWG |
| Conductor - Copper Solid Size Range | 2 AWG-2/0 AWG |
| Conductor - Copper Str Size |
2 AWG;1 AWG;1/0 AWG |
| Conductor - Copper Str Size Range | 1/0 AWG - 2 AWG |
| Physical Attribute - Number of Conductors Accommodated Total | 2 |
Force Related
| Stud Installation Torque inch pounds | 480 LBS/in |
Logistics
| Carton Quantity | 25 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 7425 |
PRODUCT DATASHEET
