Description

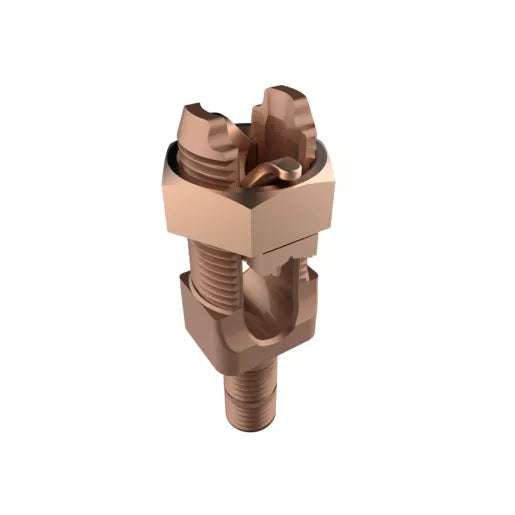

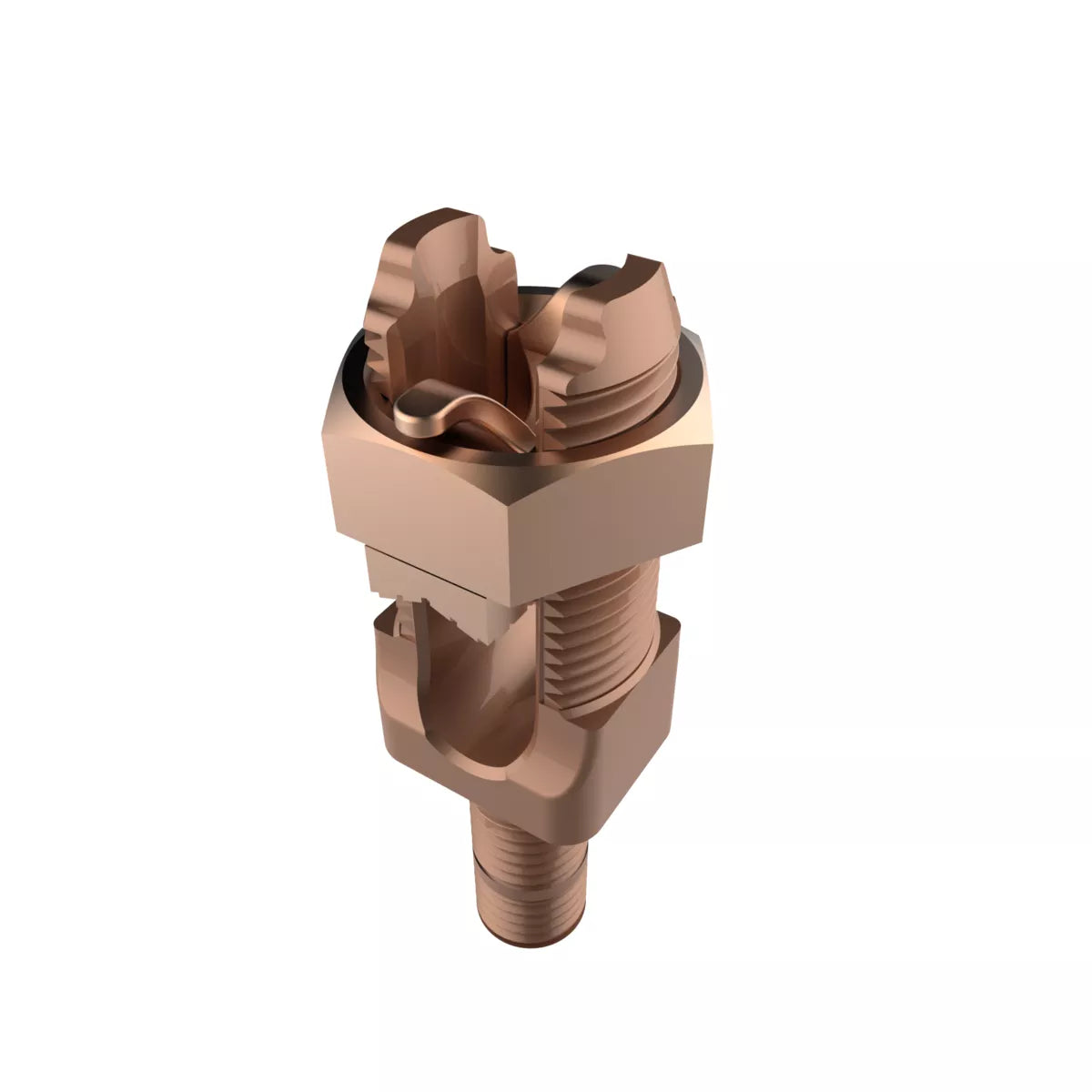

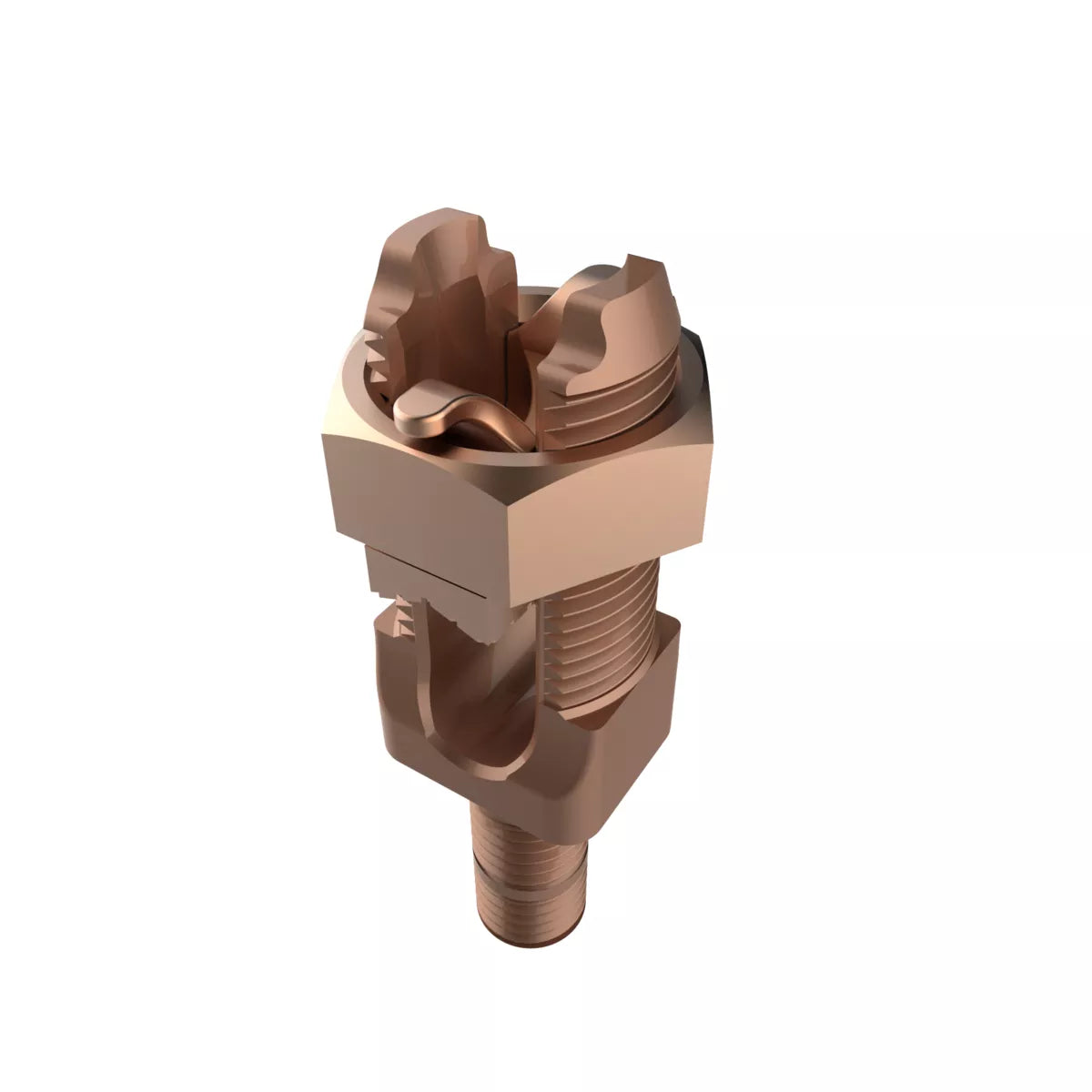

K2C28 - Burndy - 5/8" Stud Mechanical Grounding Connector
Mechanical Grounding Connector, Cable to Flat, 1-4/0 AWG, Stud Dia:5/8-11.

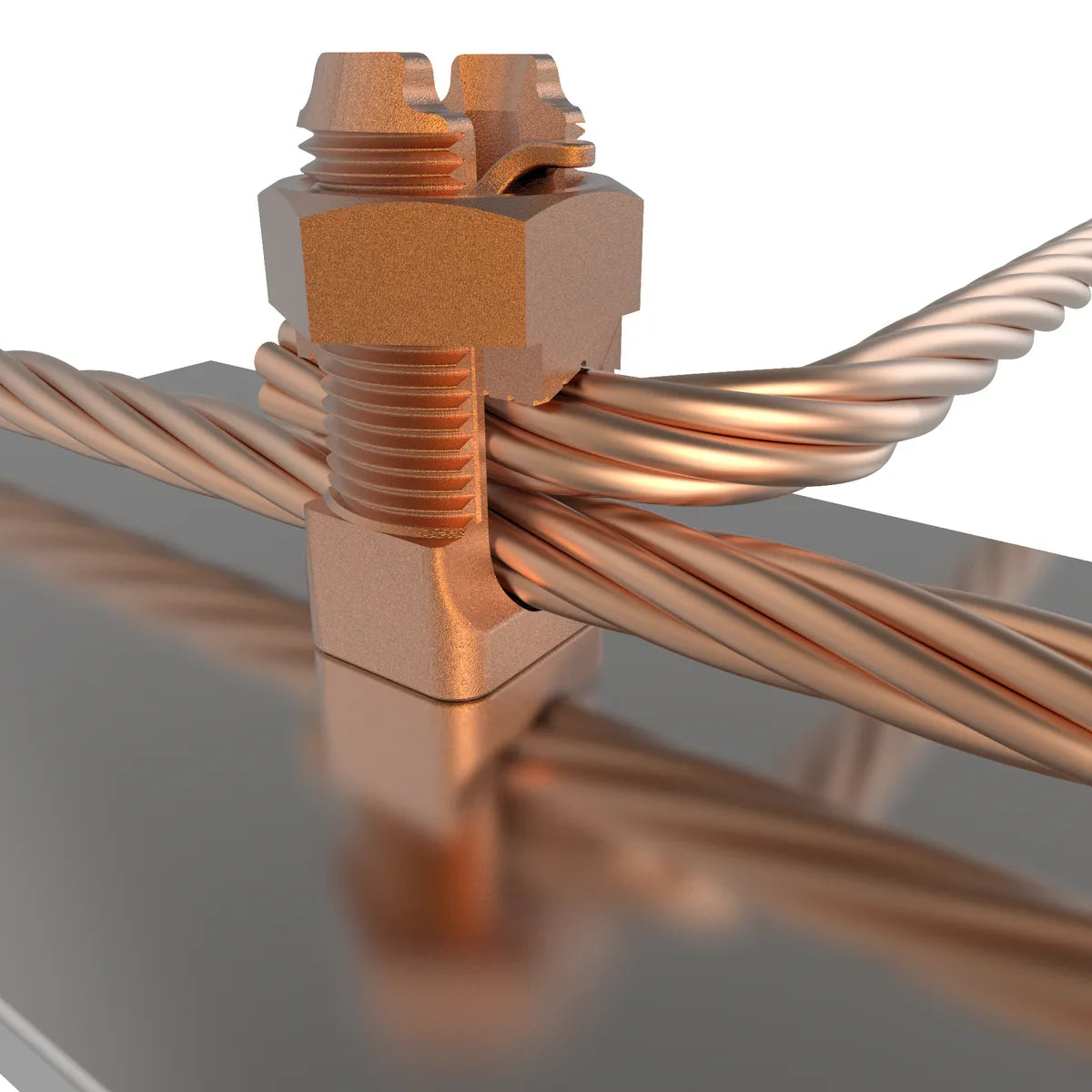

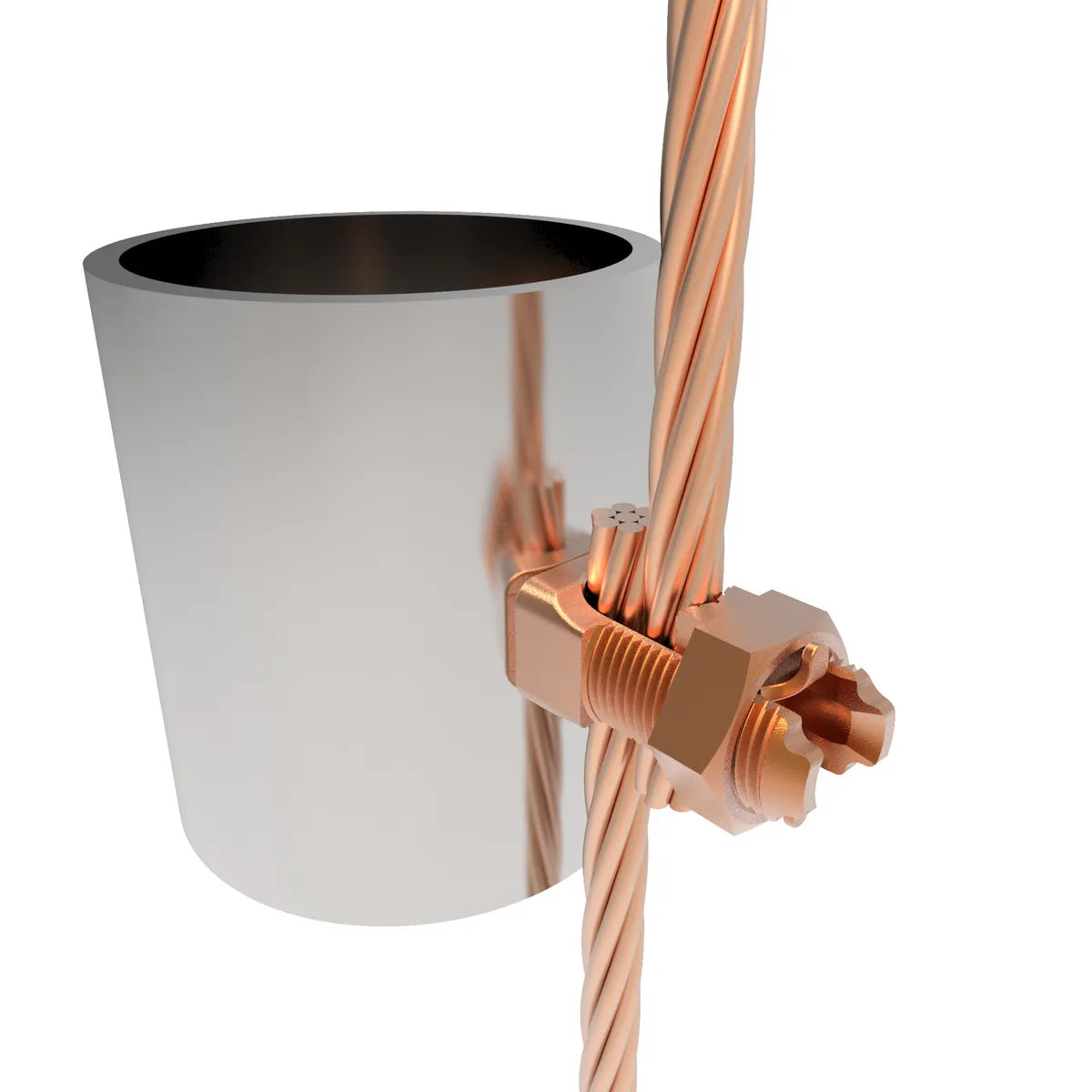

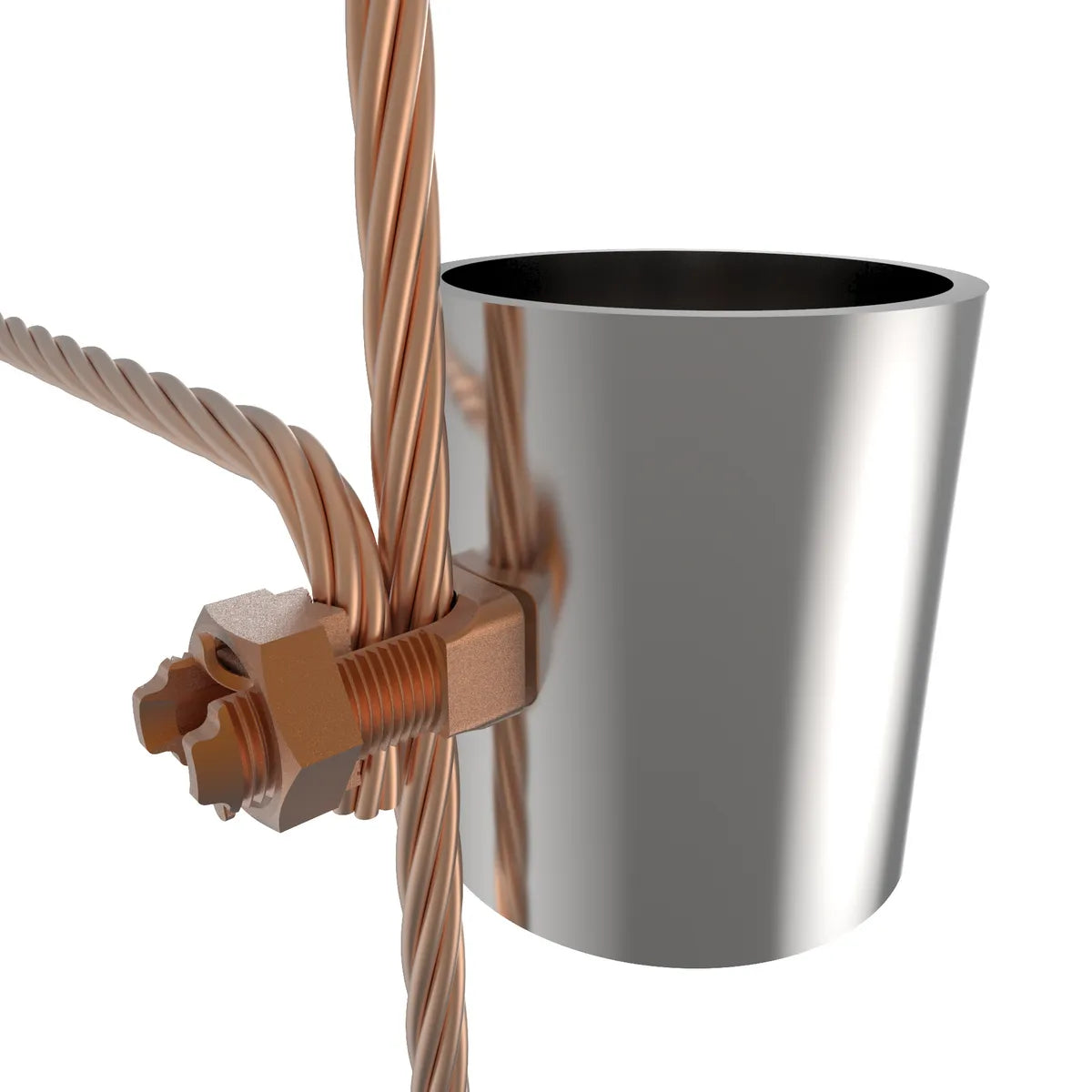

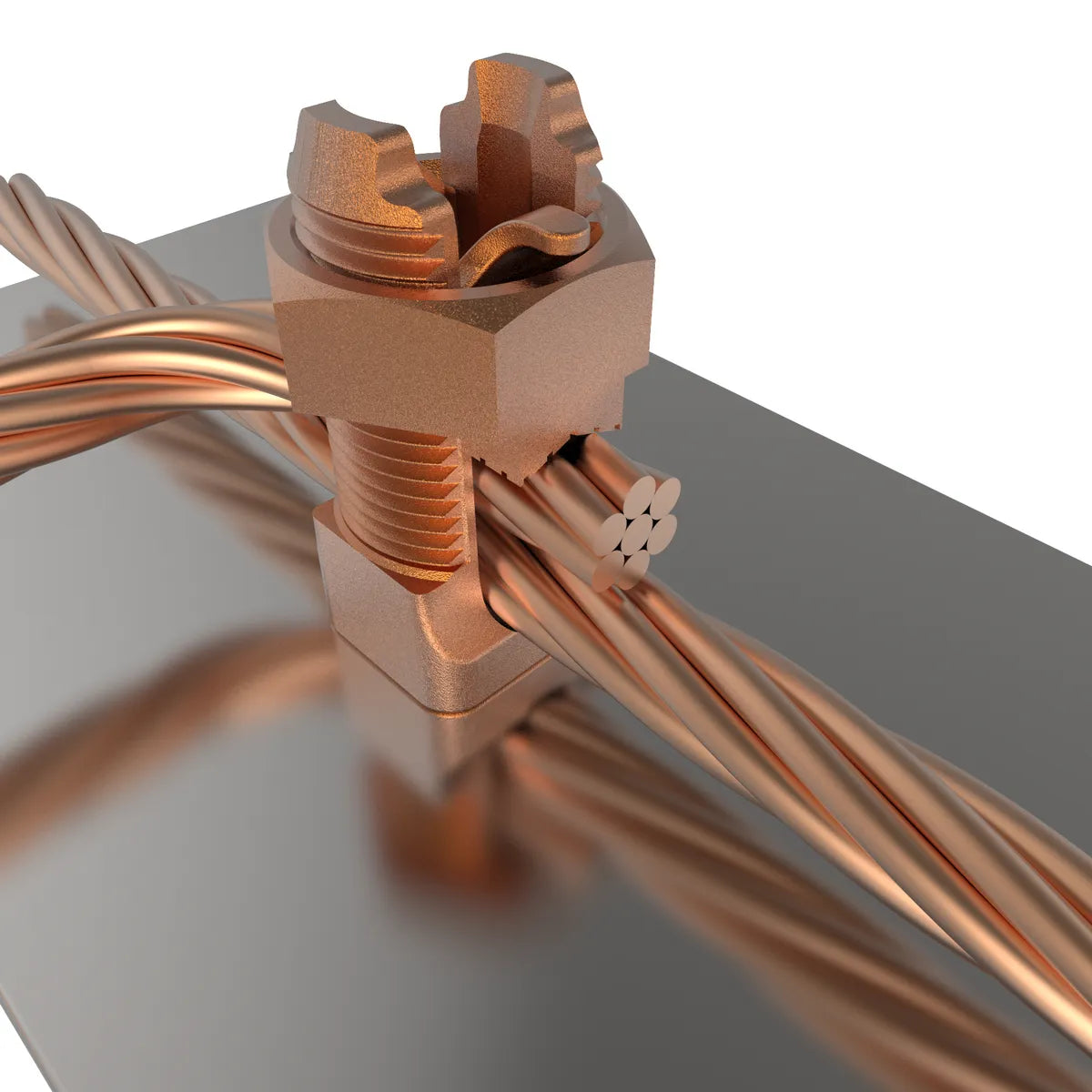

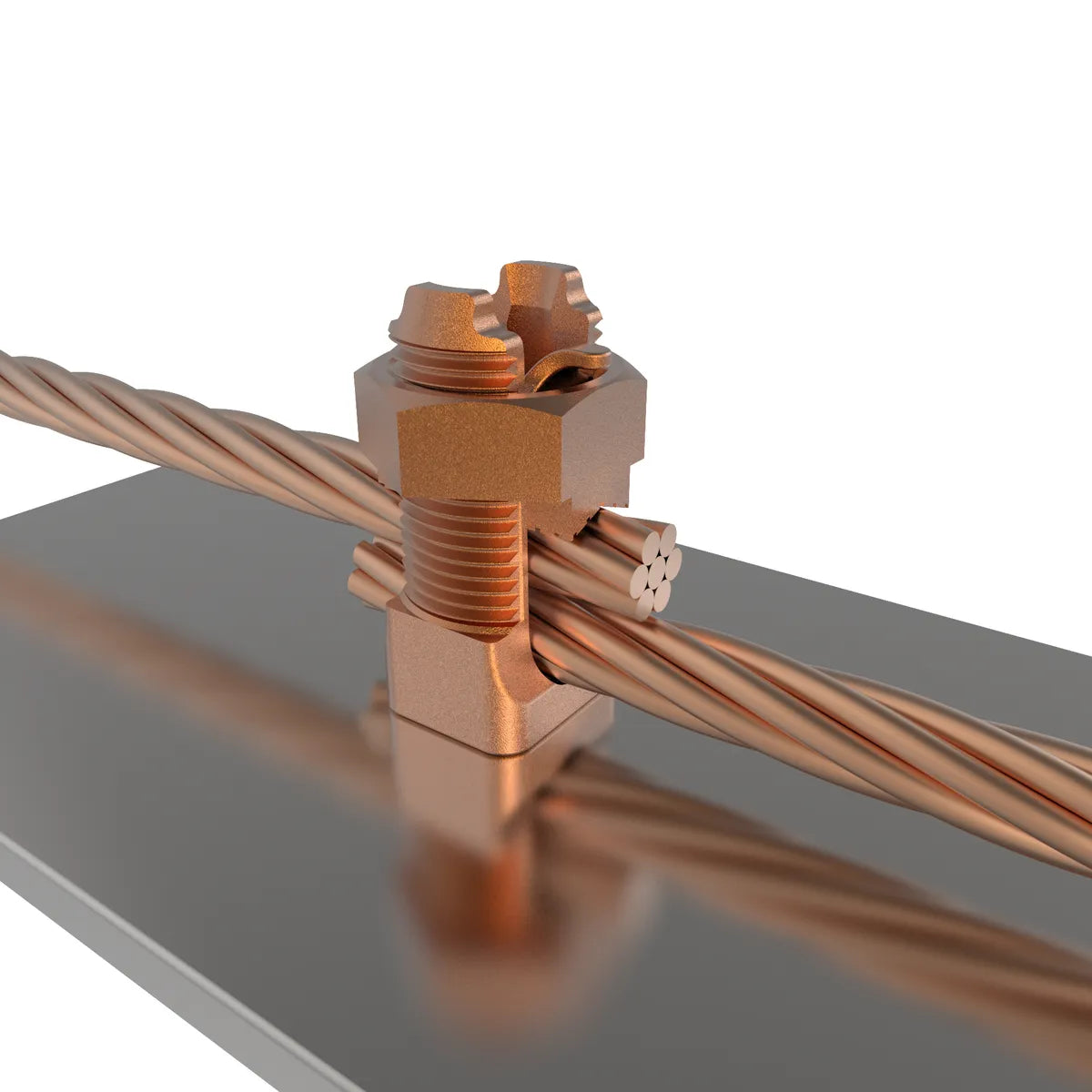

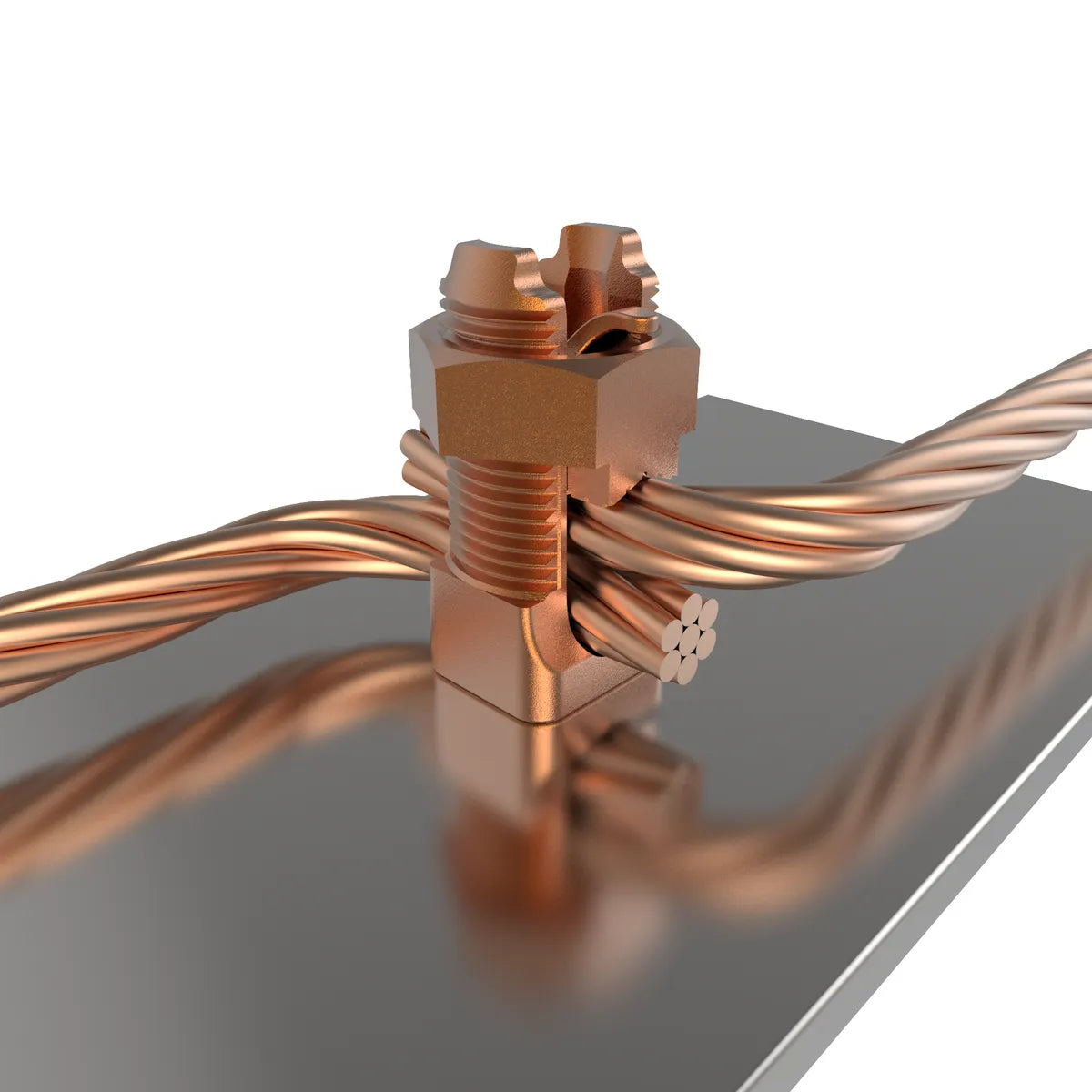

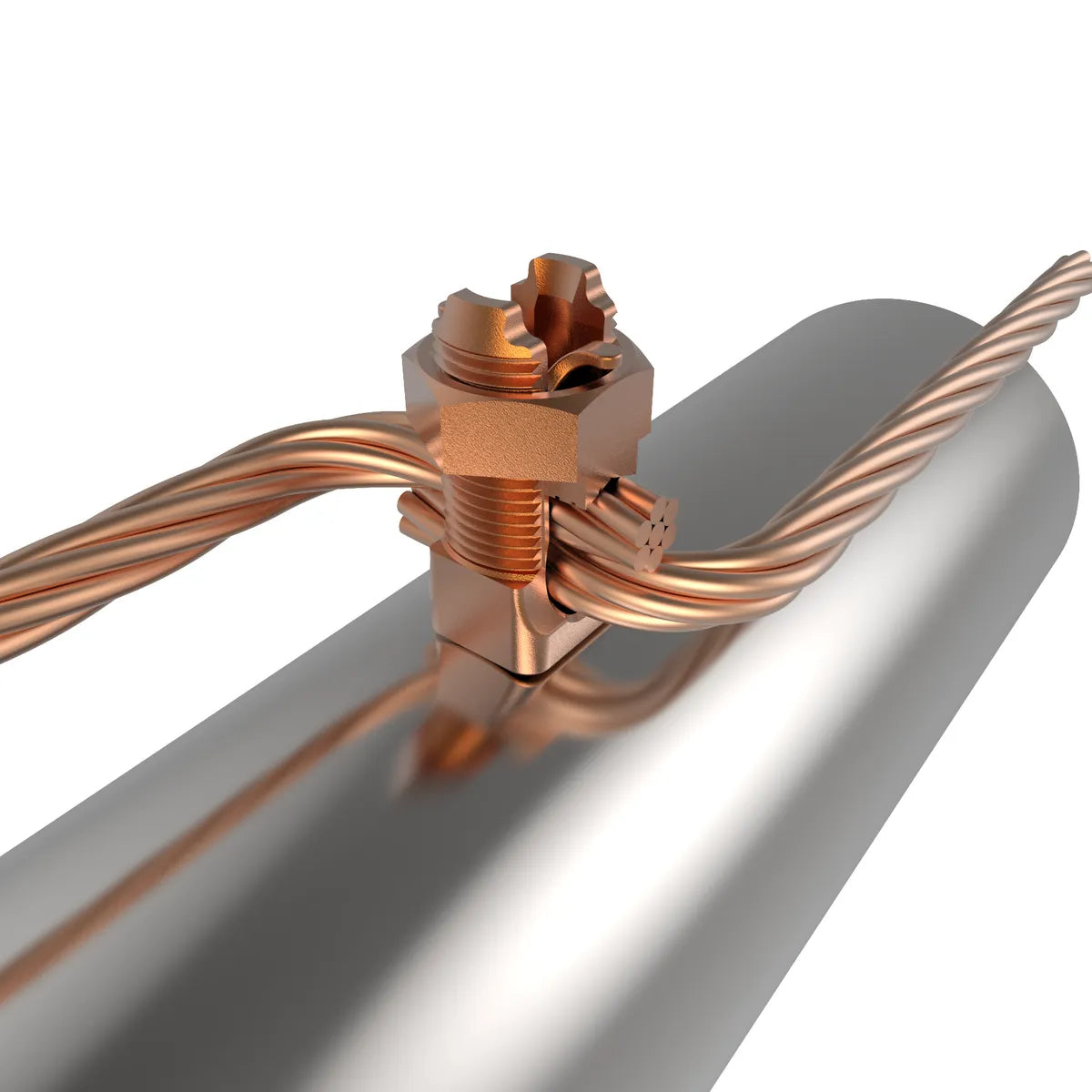

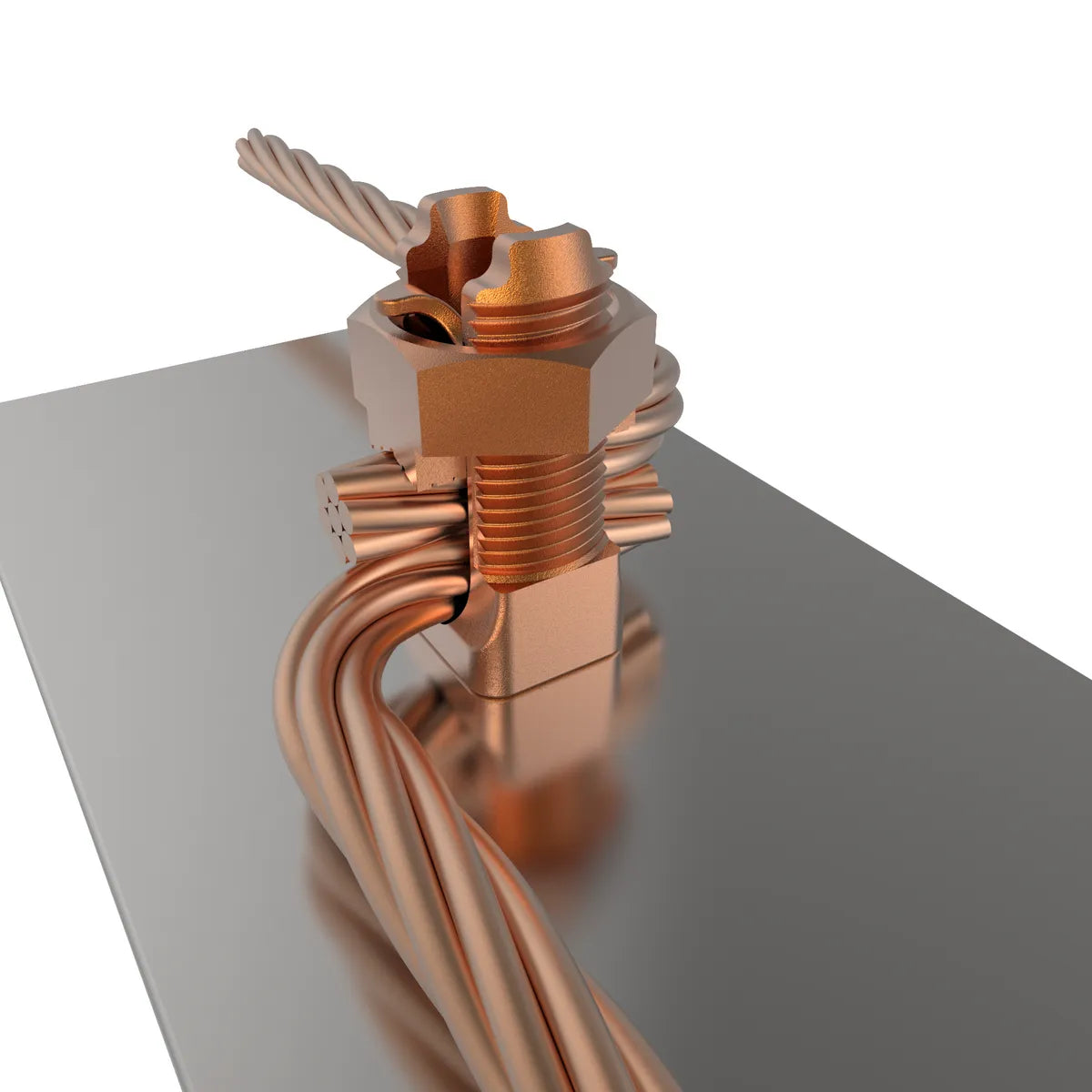

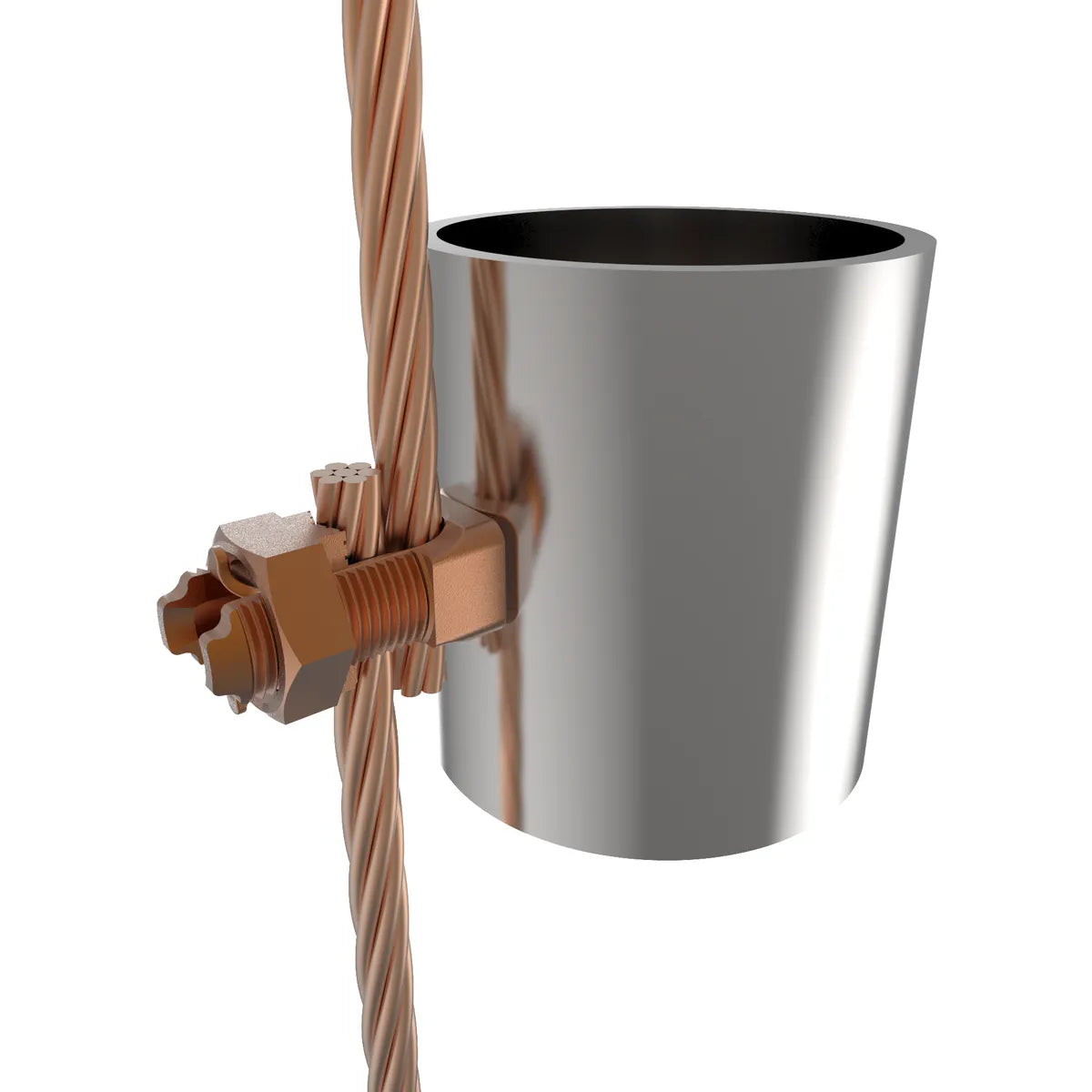

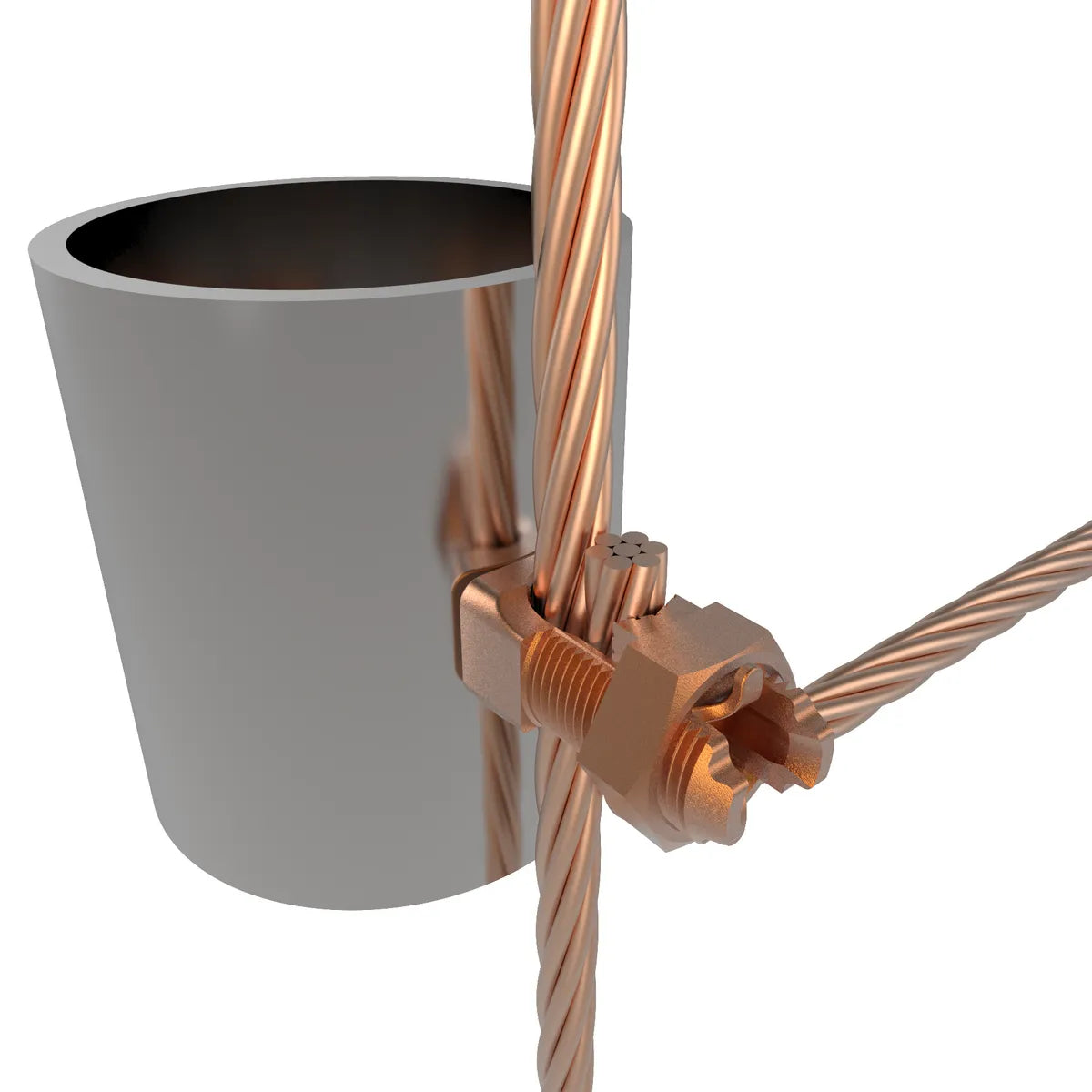

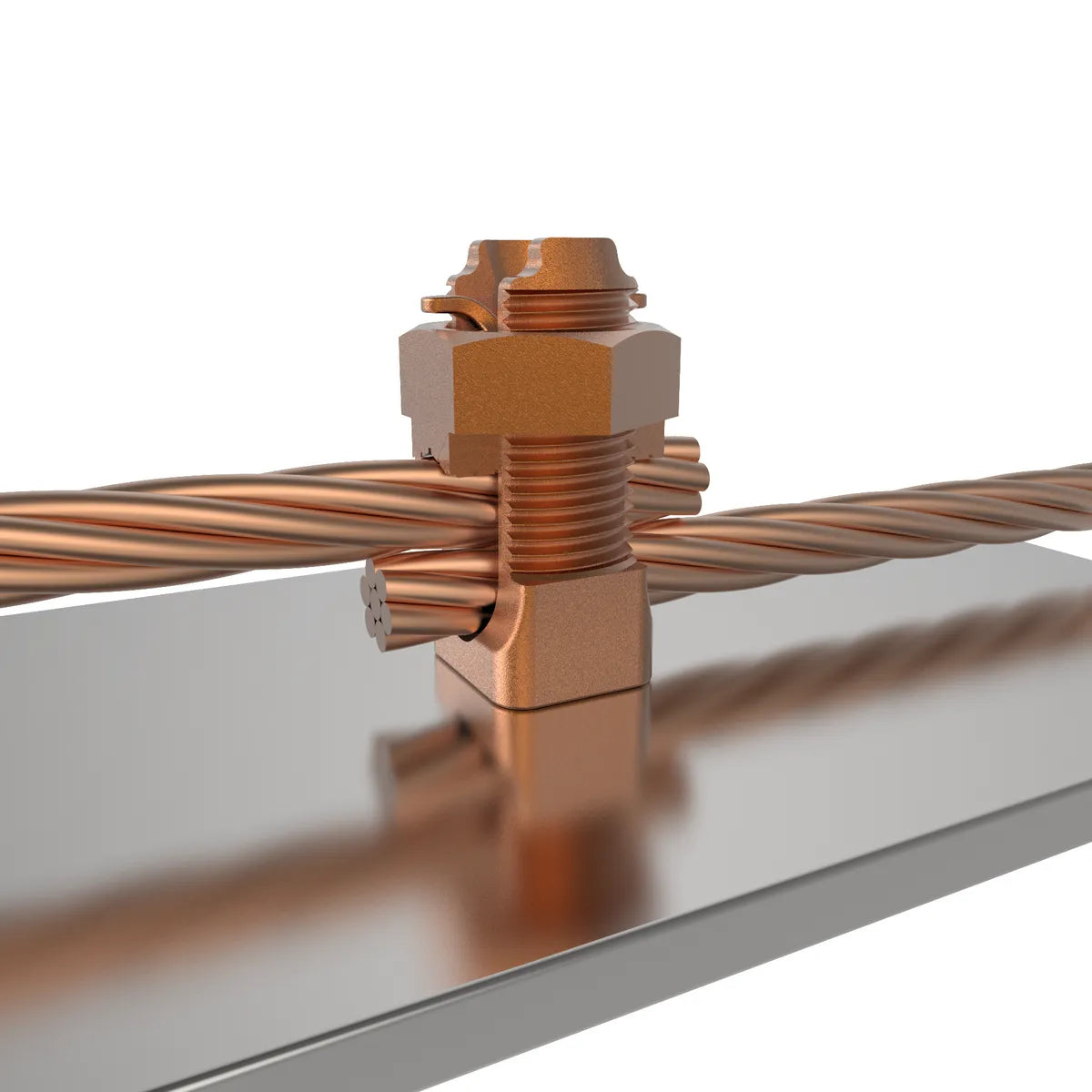

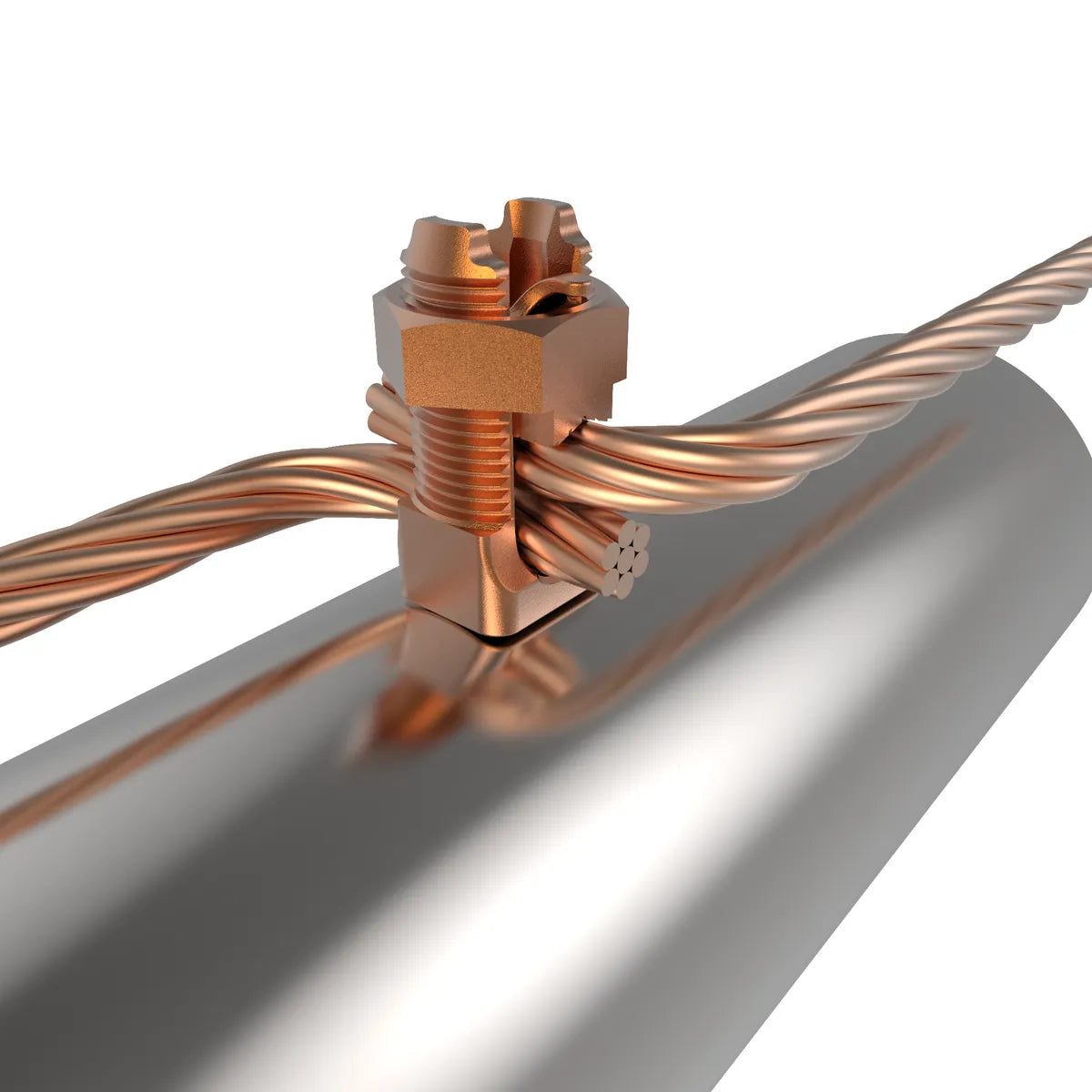

- SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers
- Also used to tap 1 or 2 cables from the bus bar
- 1-Wrench installation
GENERAL SPECIFICATIONS
| Application | For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
| Catalog Number | K2C28 |
| EU RoHS Indicator | Yes |
| Material | Copper Alloy |
|
Plated
|
N
|
|
Plating Type
|
Unplated
|
| Stud Installation Torque inch pounds | 660 LBS/in |
| Sub Brand | SERVIT POST |
| Trade Name | SERVIT POST™ |
| Type | KC and K2C Series |
| UPC | 781810257500 |
| UPC 14 Digit GTIN | 00781810257500 |
Dimensions
| Dimension - B Length fraction | 3/4 in |
| Dimension - B Length inch | 0.75 in |
| Dimension - Body Width inch | 1.18 in |
| Dimension - Bolt Size fraction | 5/8 |
| Dimension - D inch | 1.00 in |
| Dimension - Height fraction | 1-3/4 |
| Dimension - Height inch | 2.46 in |
| Dimension - Height mm | 49.3 mm |
| Dimension - Length Overall mm |
88 m |
| Dimension - Length Overall inch |
3.45 in |
| Dimension - Nut Width inch | 1.35 in |
| Dimension - P inch | 0.55 in |
| Dimension - Threads per inch | 11 |
| Dimension - Width inch | 62 mm |
Conductor Related
| Conductor - Copper Solid Size | 1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Solid Size Range | 1 AWG-4/0 AWG |
| Conductor - Copper Str Size |
1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Str Size Range | 4/0 AWG-1 AWG |
| Physical Attribute - Number of Conductors Accommodated Total | 2 |
Force Related
| Stud Installation Torque inch pounds | 660 LBS/in |
Logistics
| Carton Quantity | 25 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 2700 |
