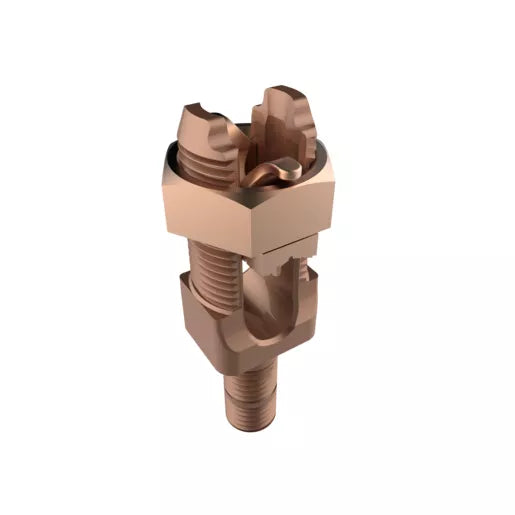

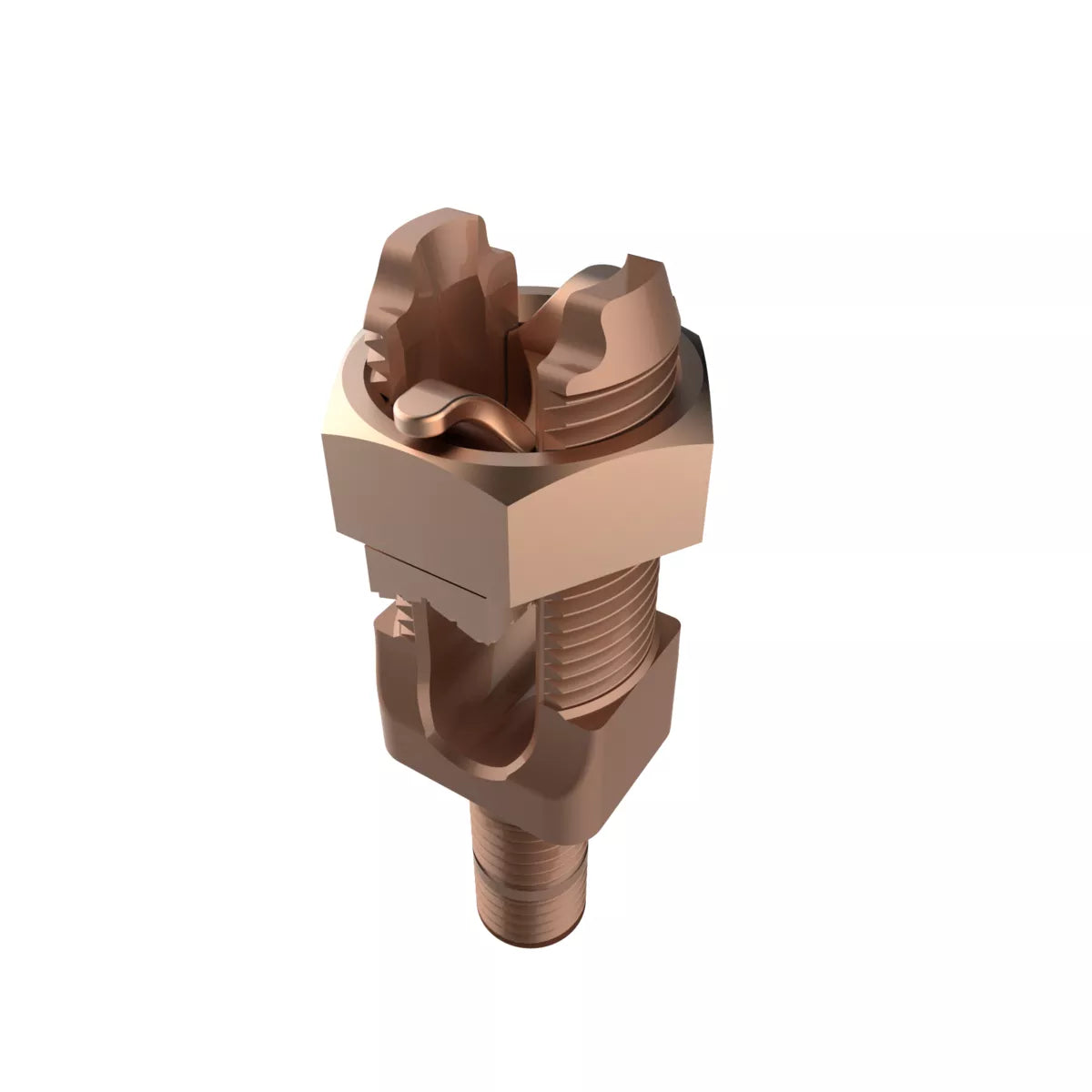

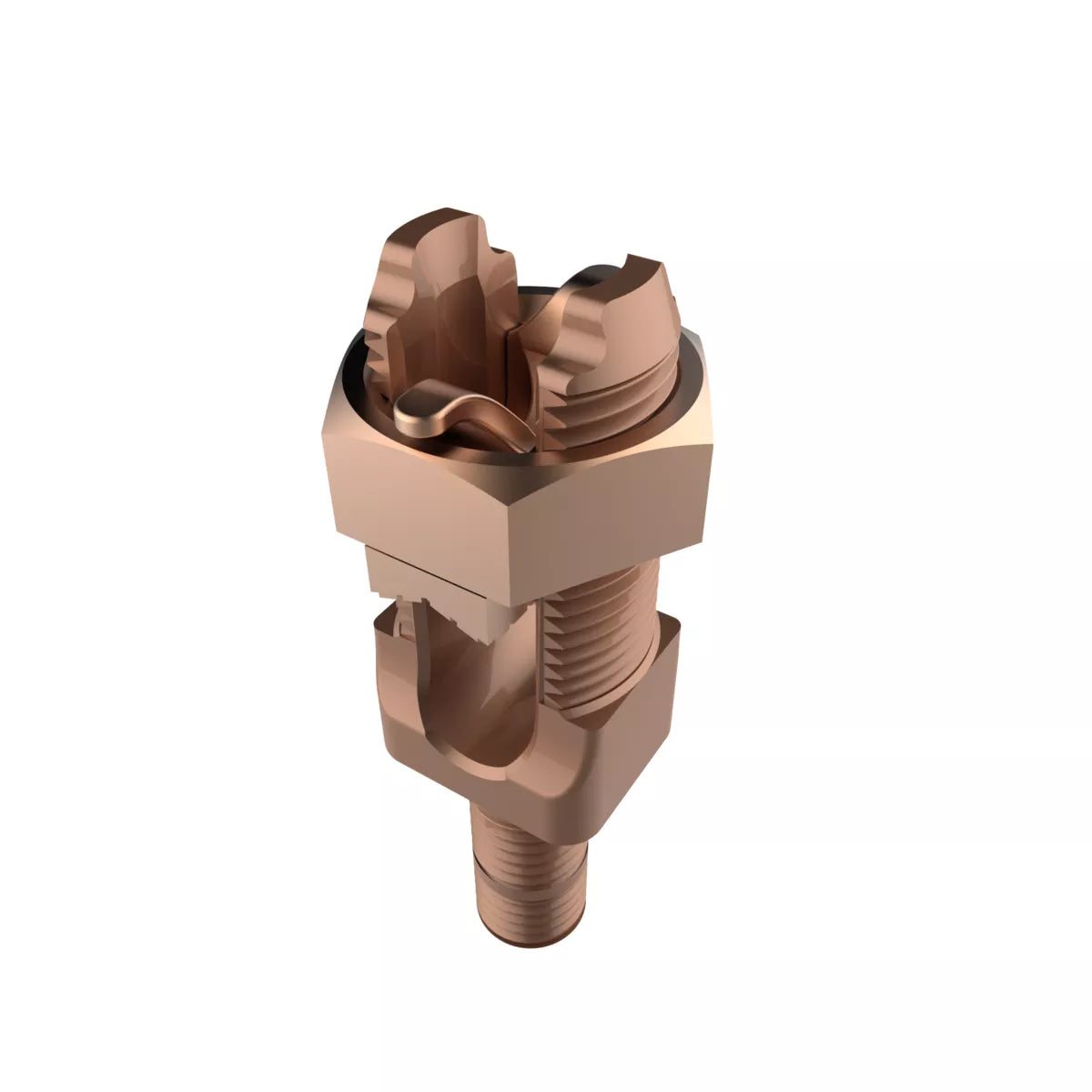

K2C28B1 - Burndy - 5/8" Stud Mechanical Grounding Connector
Mechanical Grounding Connector, Cable to Flat, 1-4/0 AWG, 5/8" Stud.

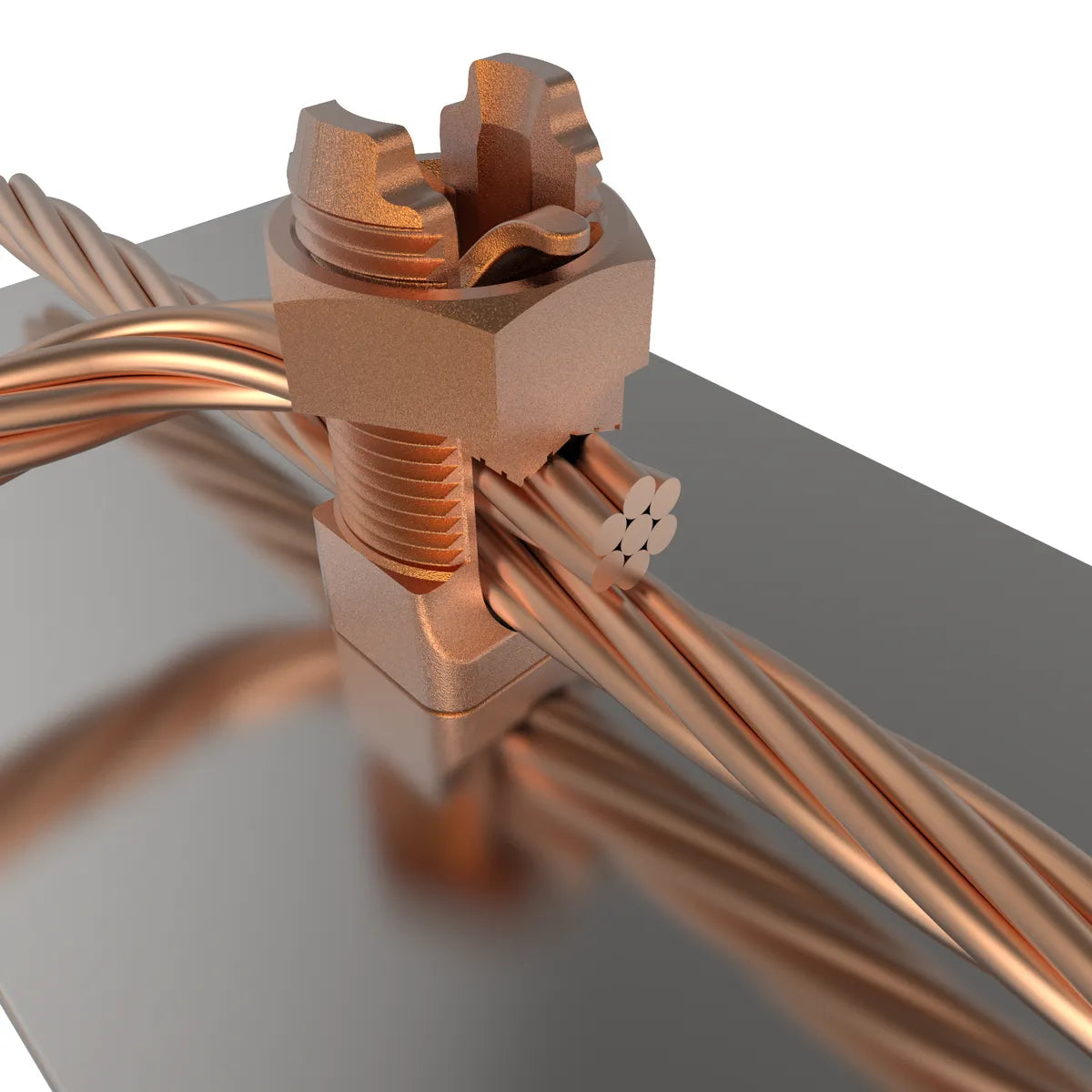

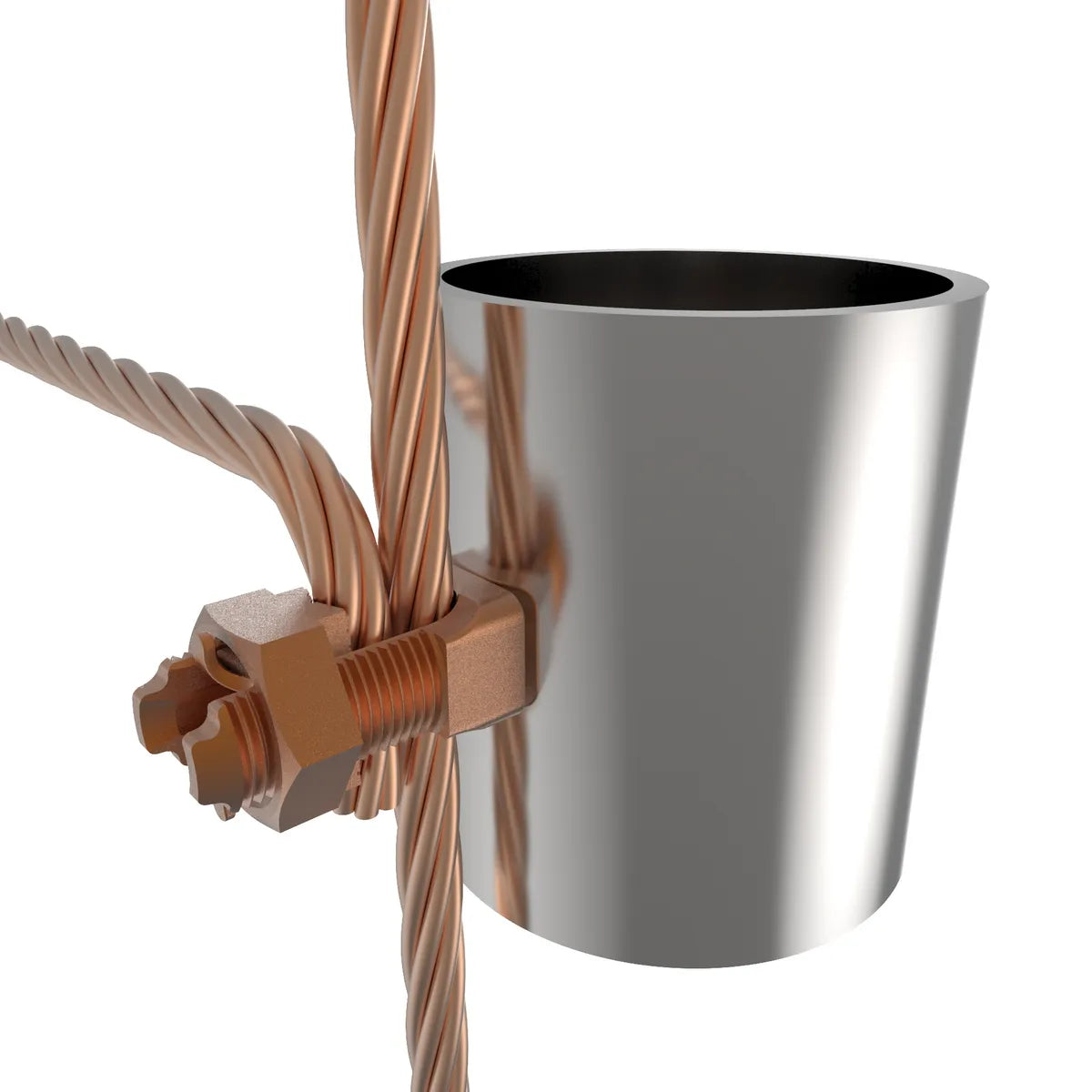

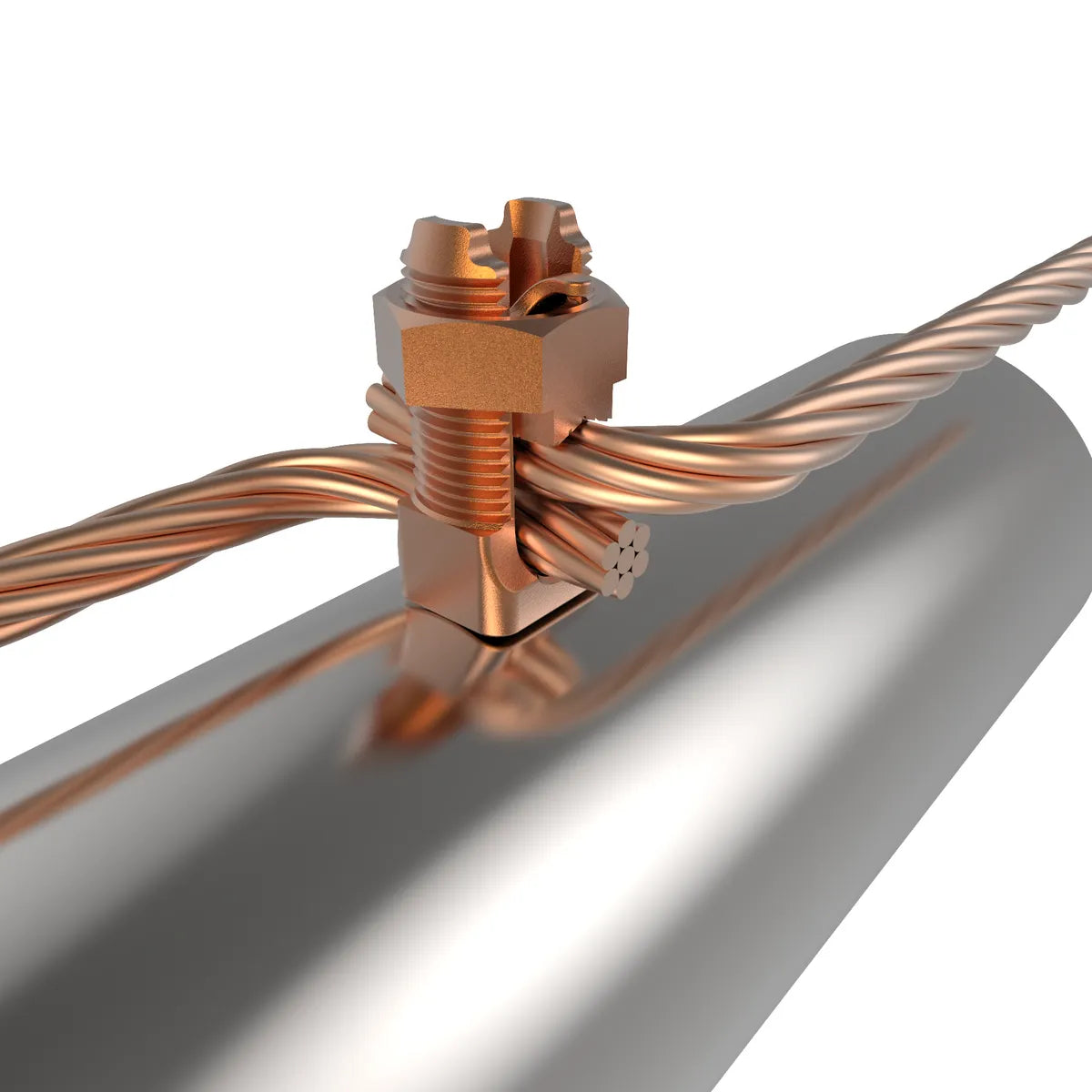

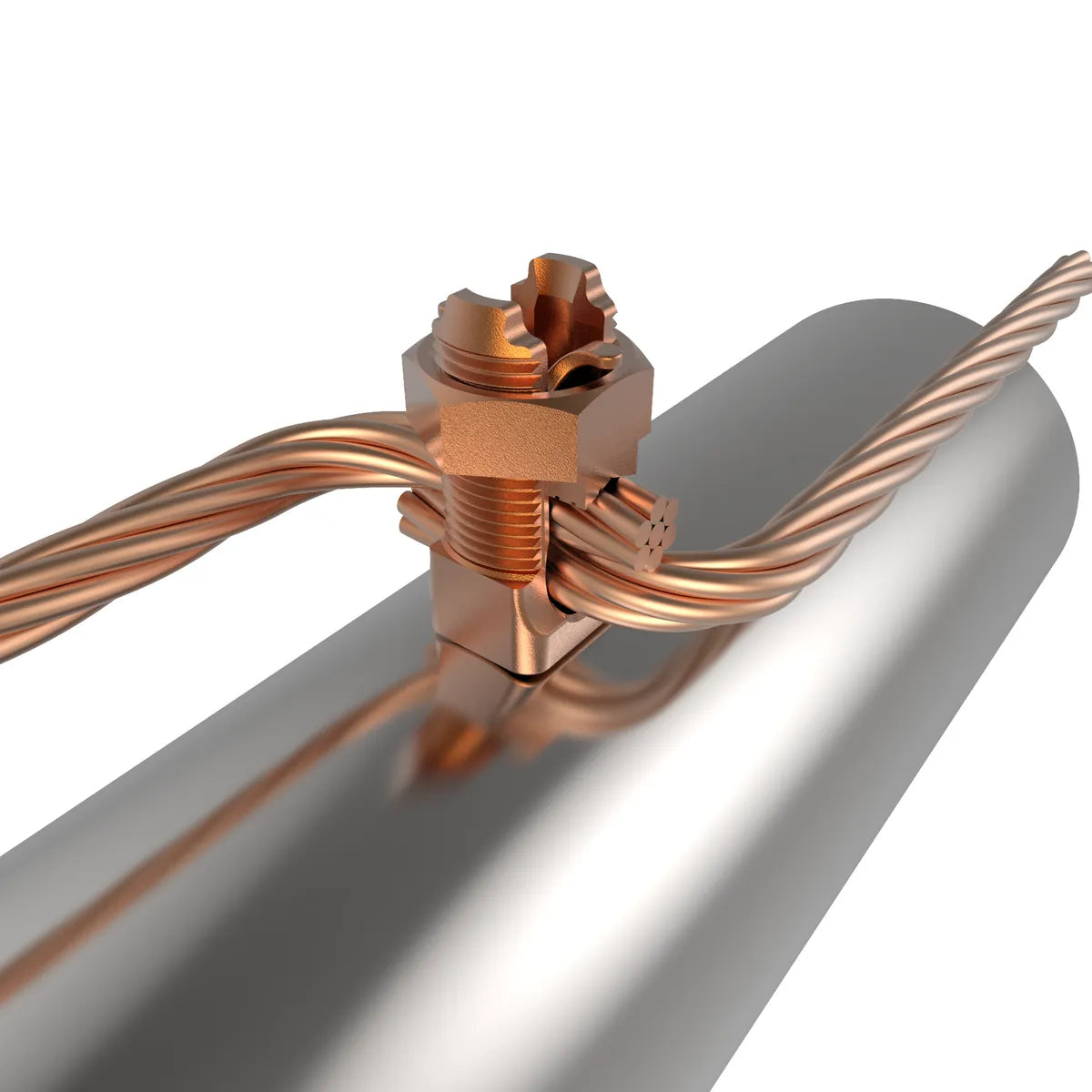

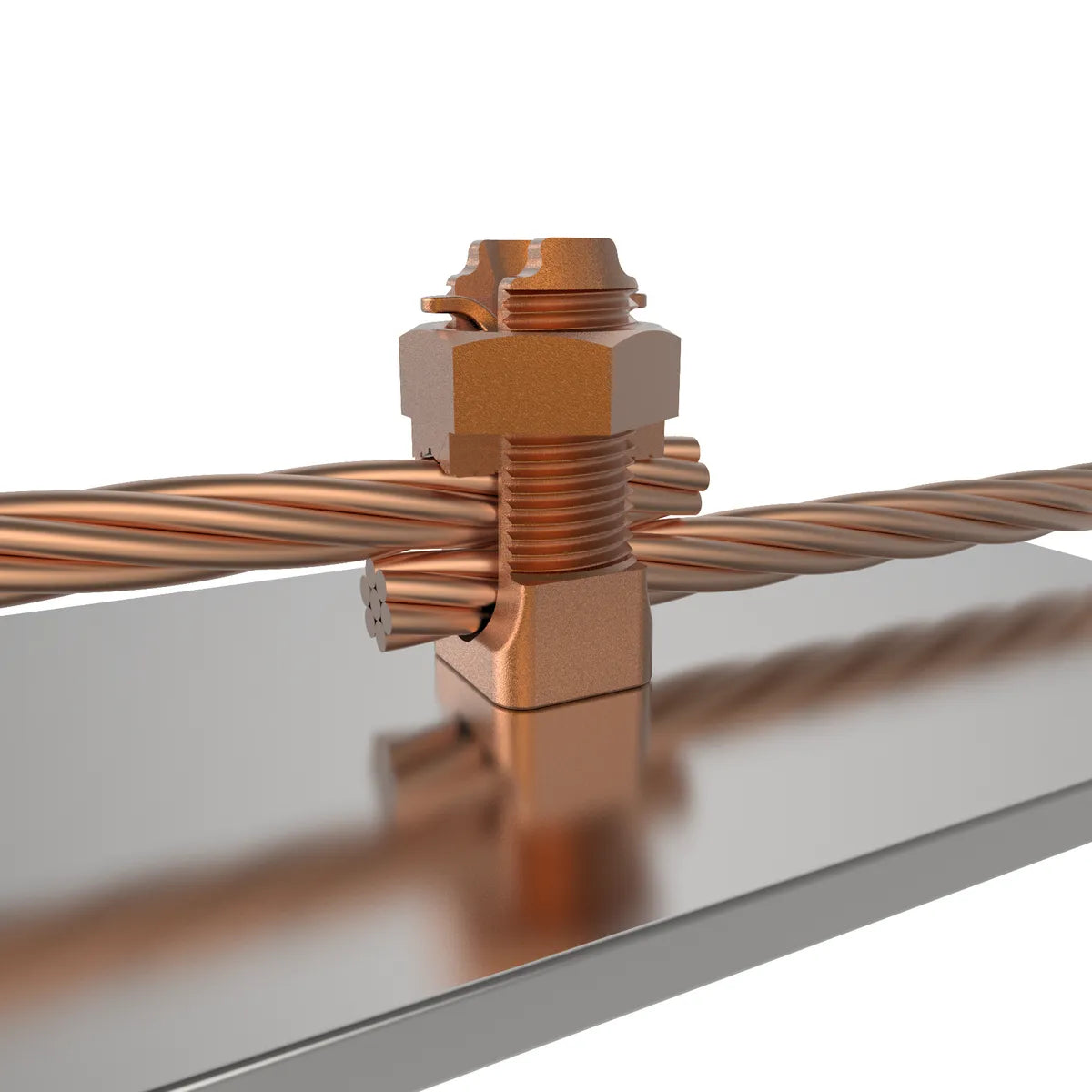

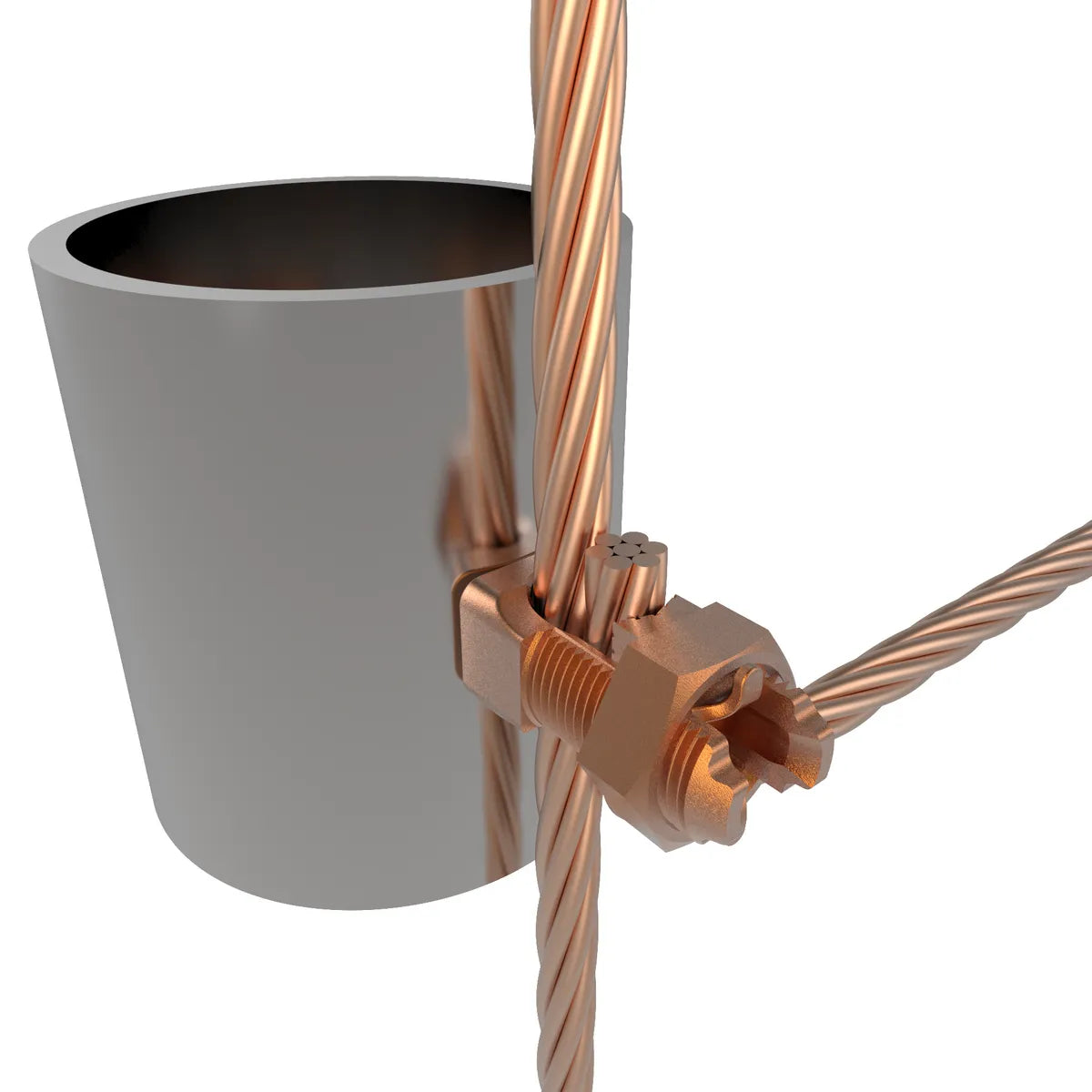

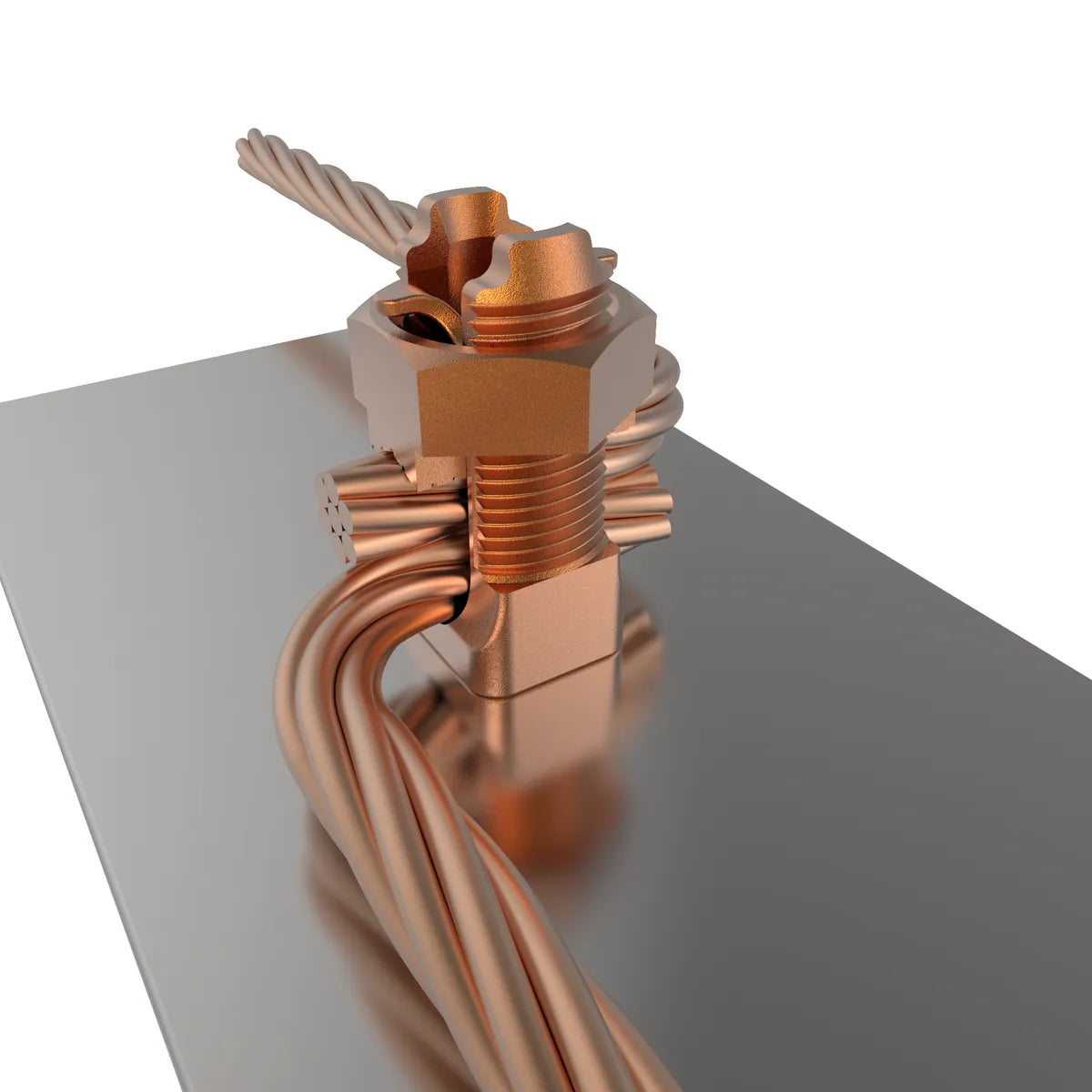

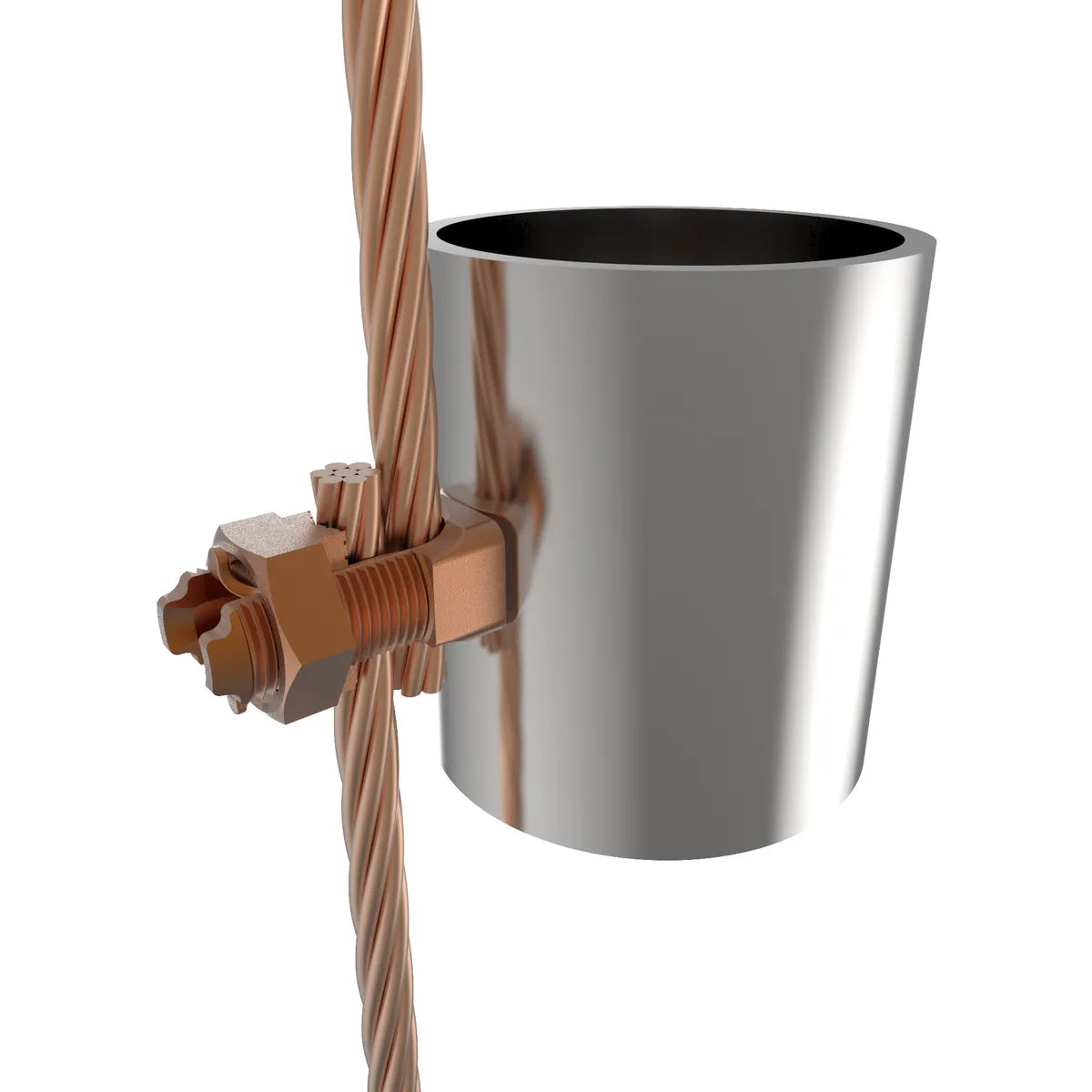

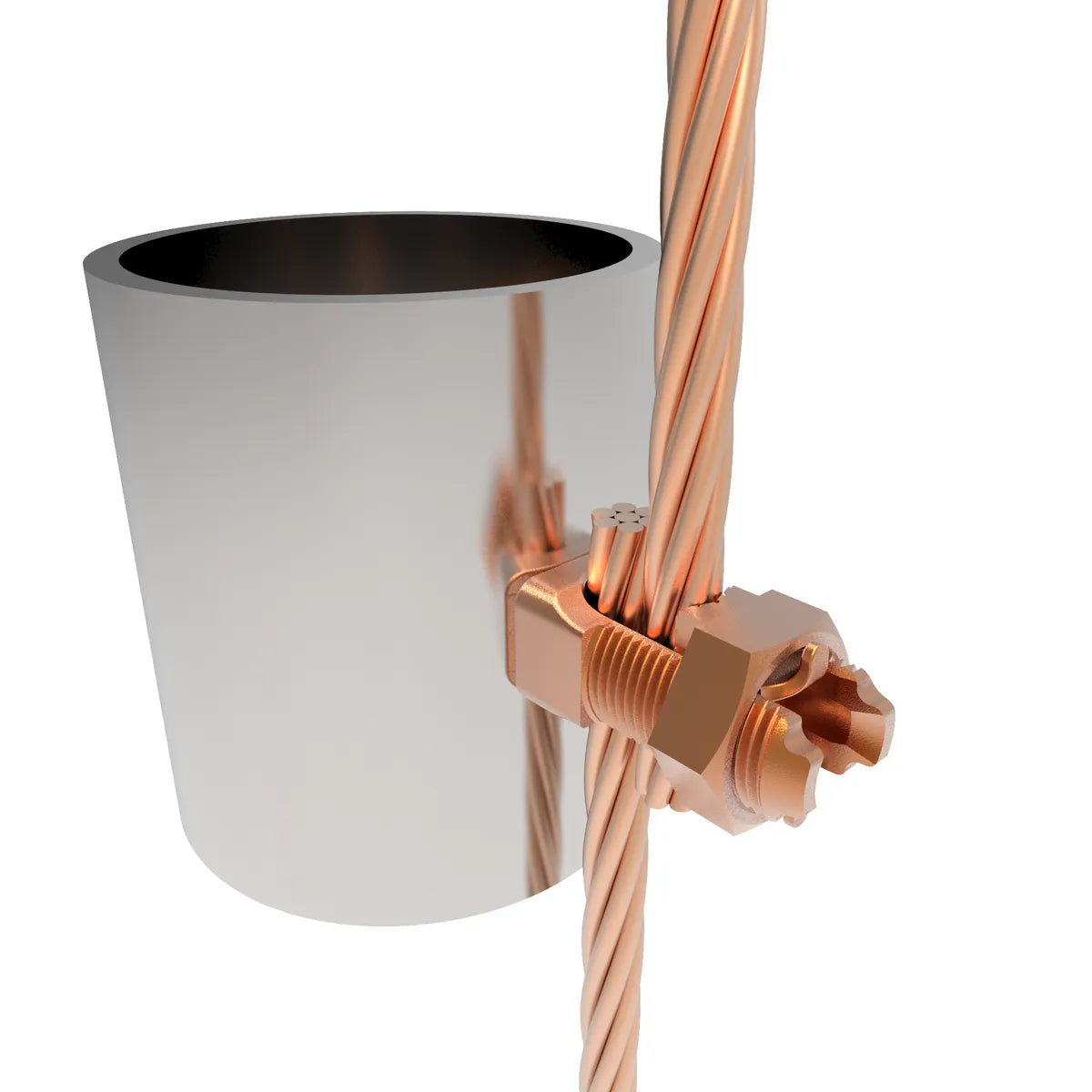

- SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers

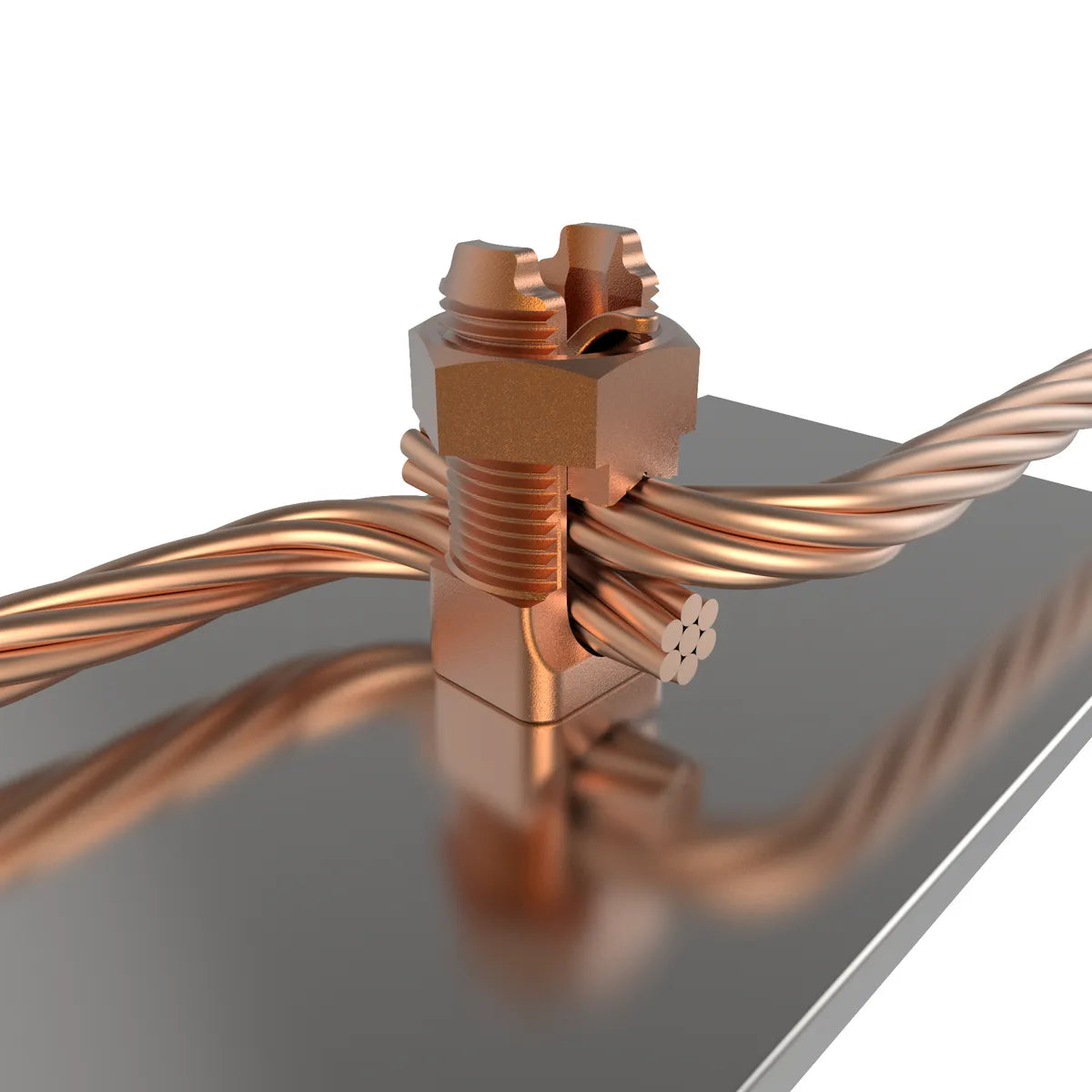

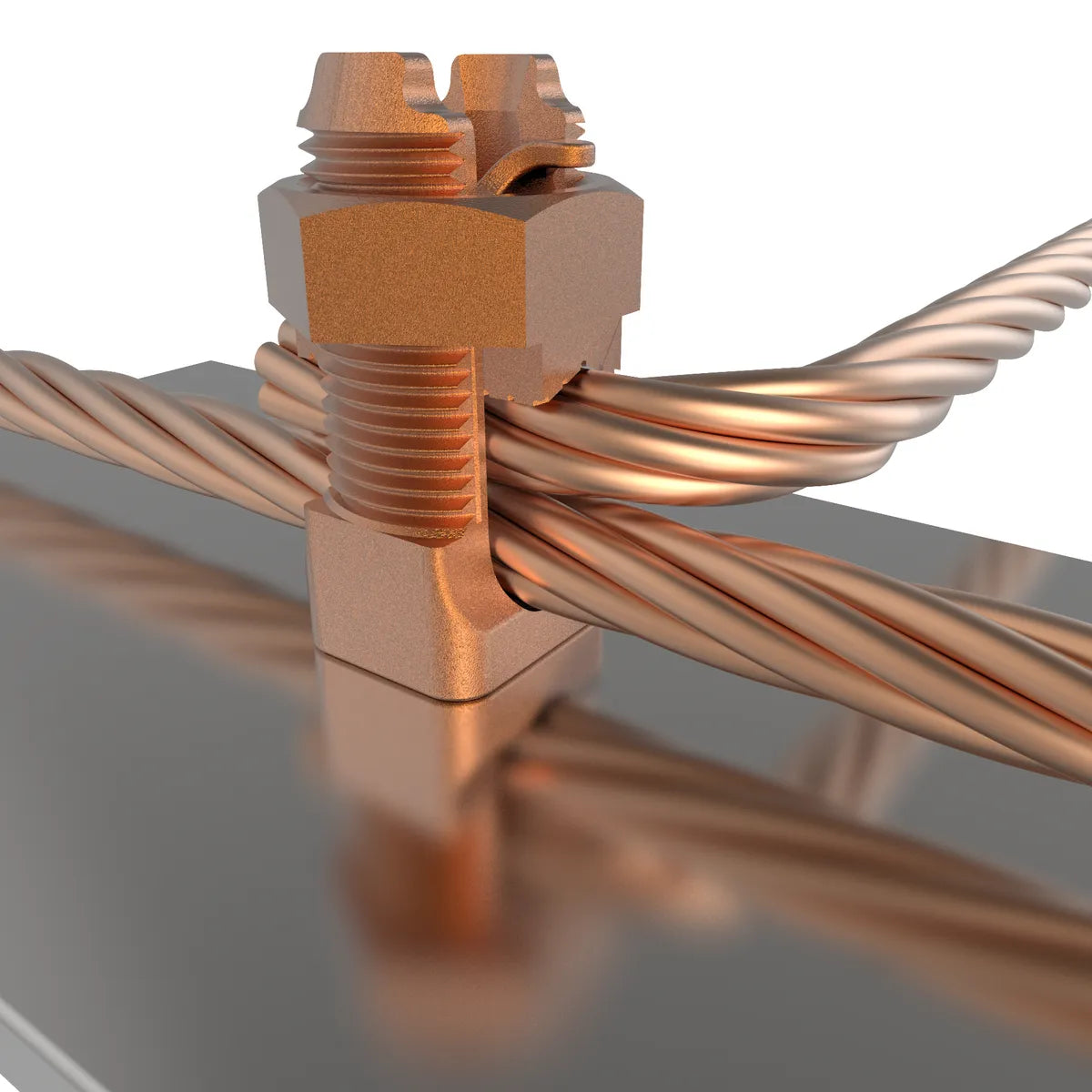

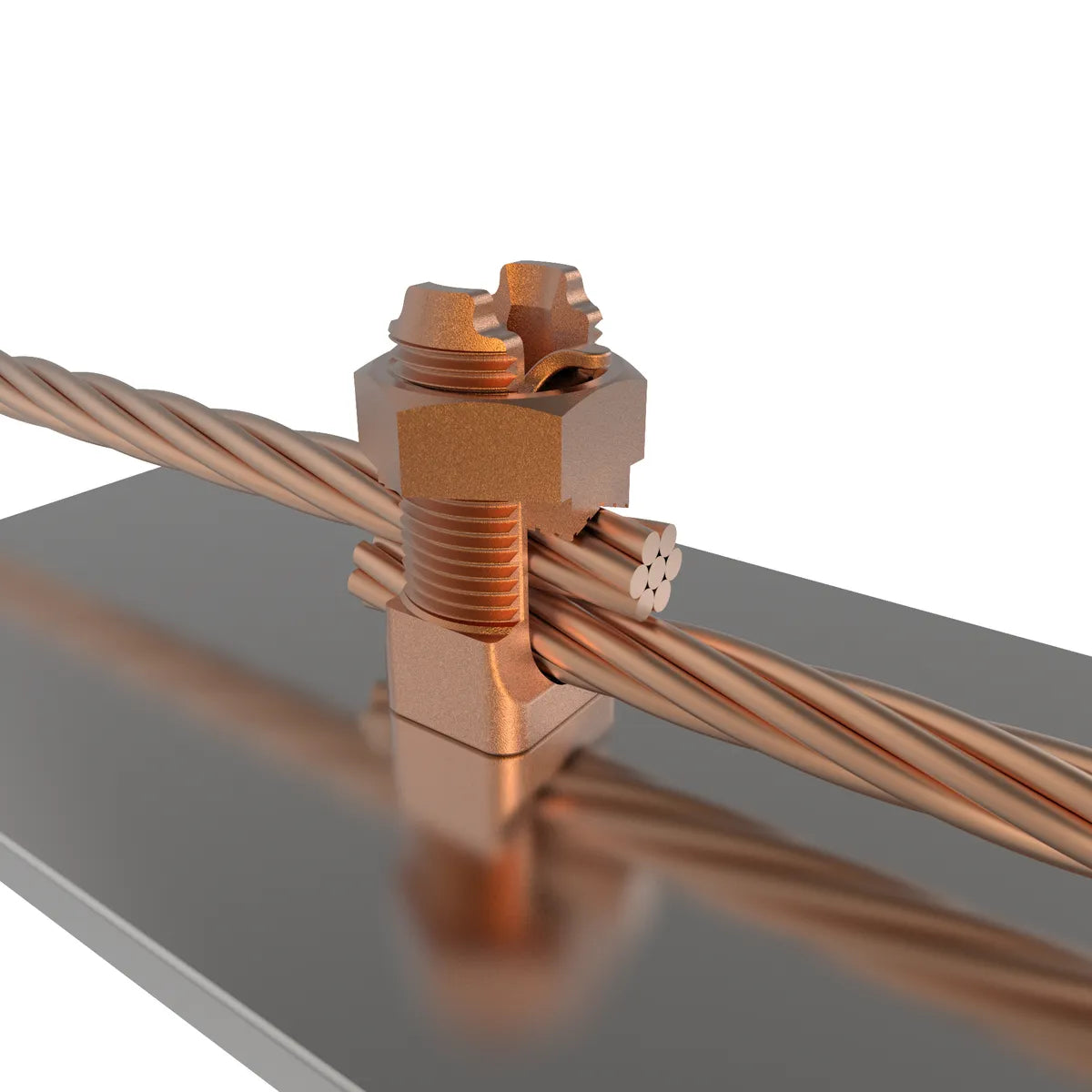

- Also used to tap 1 or 2 cables from the bus bar
- 1-Wrench installation
GENERAL SPECIFICATIONS
| Application | For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar, and Direct Burial |
| Catalog Number | K2C28B1 |
| EU RoHS Indicator | Yes |
| Material | Copper Alloy |
| Plated | N |
| Plating Type | Unplated |
| Stud Installation Torque inch pounds | 660 LBS/in |
| Sub Brand | SERVIT POST |
| Trade Name | SERVIT POST™ |
| Type | KC and K2C Series |
| UPC | 781810257555 |
| UPC 14 Digit GTIN | 00781810257555 |
Dimensions
| Dimension - B Length fraction | 1-1/4 in |
| Dimension - B Length inch | 1.25 in |
| Dimension - Body Width inch | 1.18 in |
| Dimension - Bolt Size fraction | 5/8 |
| Dimension - D inch | 1.50 in |
| Dimension - Height fraction | 1-3/4 |
| Dimension - Height inch | 1.94 in |
| Dimension - Height mm | 49.3 mm |
|
Dimension - L Length Overall mm |
100 mm |
|
Dimension - Length Overall inch |
3.94 in |
| Dimension - Nut Width inch | 1.35 in |
| Dimension - P inch | 0.55 in |
| Dimension - Threads per inch | 11 |
Conductor Related
| Conductor - Copper Solid Size | 1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Solid Size Range | 1 AWG-4/0 AWG |
|
Conductor - Copper Str Size |
1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Str Size Range | 1 AWG-4/0 AWG |
| Physical Attribute - Number of Conductors Accommodated Total | 2 |
Force Related
|
Stud Installation Torque inch pounds |
660 LBS/in |
Logistics
| Carton Quantity | 25 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 3000 |
