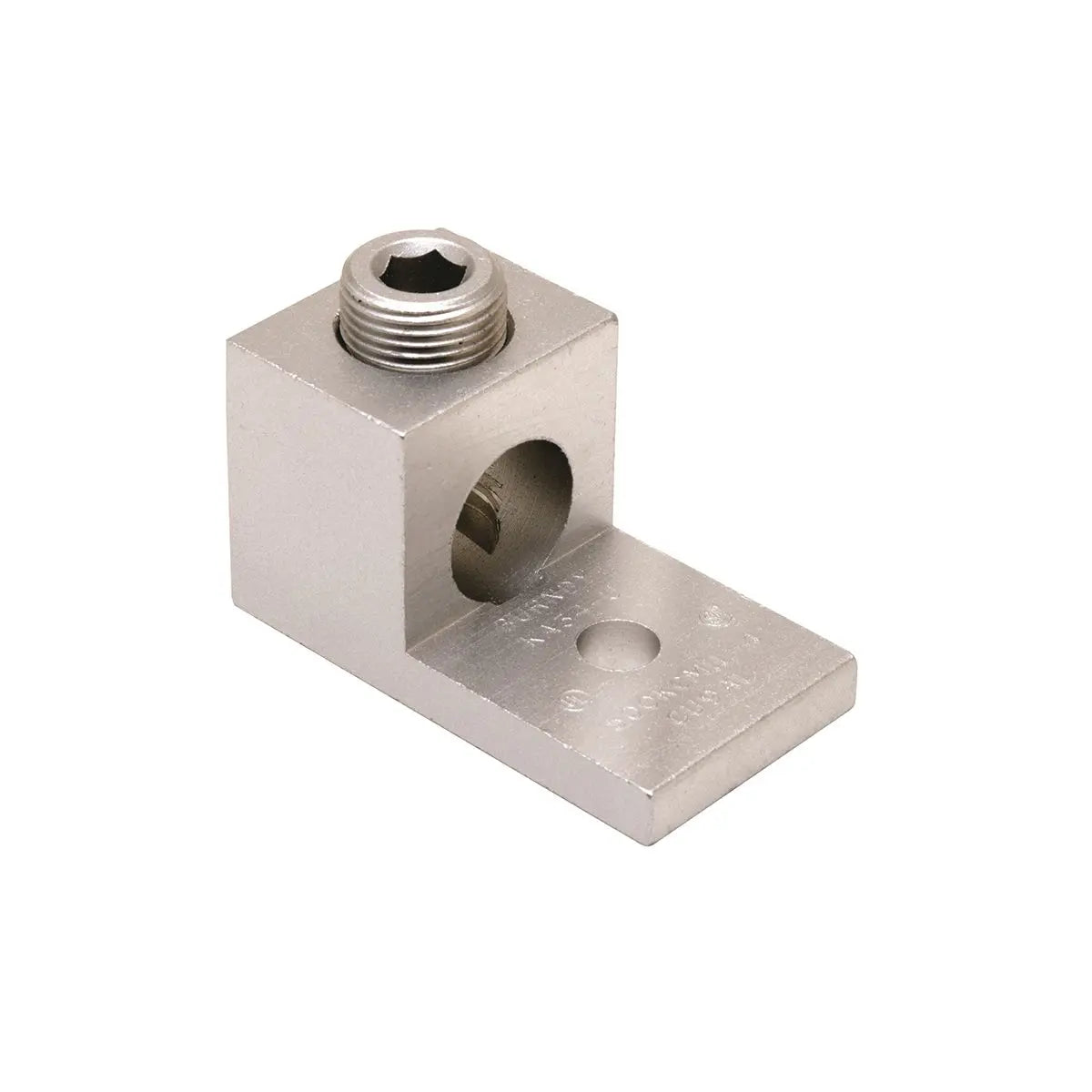

KA30U - Burndy - 5/16" Stud 1-Hole 6 AWG (Str)-300 kcmil AL Universal Terminal
Aluminum Universal Terminal, 1 Hole, 6 AWG (Str)-300 kcmil, 5/16" Stud, 1 Screw, Al/Cu Rated, Tin Plated.
- Dual-rated lug
- Constructed from high-strength aluminum alloy
- electro tin plated, providing low contact resistance
Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 1/4 IN, Set Screw Type: Allen Key, Length: 2 IN, Installation Torque: 275 IN-LB, Width: 1 IN, Height: 1.12 IN, Dimension D: 0.94 IN, Dimension N: 0.5 IN, Dimension T: 0.25 IN
GENERAL SPECIFICATIONS
| Application | For Aluminum And Copper Conductors |
| Catalog Number | KA30U |
|
Connector Type |
Terminal |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended (in-lb) | 275 LBS/in |
| Material | Aluminum |
| Material - Hardware | Aluminum |
| Number of Holes | 1 |
| Number of Screws | 1 |
| Screw Type | Allen |
| Plated | Y |
| Plating Type | Tin |
| Sub Brand | UNIVERSAL TERM |
| Temperature Rating (°F) | 194 |
| Type | Bolted Lugs & Terminals |
| UPC | 781810370223 |
| UPC 14 Digit GTIN | 00781810370223 |
Dimensions
| Bolt Hole Size inch | 0.31 in |
| Bolt Size fraction | 5/16 |
| Dimension - D inch | 0.94 in |
| Height fraction | 1.14 in |
| Height inch | 1.14 in |
| Height mm | 29 mm |
| Hole Size inch | 0.33 in |
| Hole Size mm | 8 mm |
|
Dimension - L Length Overall mm |
51 mm |
|
Dimension - Length Overall inch |
2.00 in |
| Dimension - N inch | 0.45 in |
| Pad Width inch | 1.02 in |
| Stud Size inch | 5/16 |
| Width inch | 1.00 in |
| Width mm | 25 mm |
Conductor Related
| AL Str Size | 6 AWG; 4 AWG; 3 AWG; 2 AWG; 1 AWG; 1/0 AWG; 2/0 AWG; 3/0 AWG; 4/0 AWG; 250 kcmil; 266 kcmil; 300 kcmil |
| AL Str Size Range | 6 AWG - 300 kcmil |
| Copper Solid Size | 4 AWG; 3 AWG; 2 AWG; 1 AWG; 1/0 AWG; 2/0 AWG; 3/0 AWG; 4/0 AWG |
| Copper Solid Size Range | 4 AWG - 4/0 AWG |
|
Conductor - Copper Str Size |
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil |
| Copper Str Size Range | 6 AWG - 300 kcmil |
|
Conductor Size |
6 AWG-300 KCMIL |
| Conductor Type |
|
| Number of Conductors | 1 |
Force Related
|
Installation Torque Recommended in-lb |
275 LBS/in |
Operational
|
Temperature Rating |
194 |
Configuration
|
Connector Type |
Terminal |
|
Physical Attribute - Number of Holes |
1 |
|
Physical Attribute - Number of Screws |
1 |
Logistics
| Carton Quantity | 275 |
| Pallet Quantity | 8800 |
PRODUCT DATASHEET
