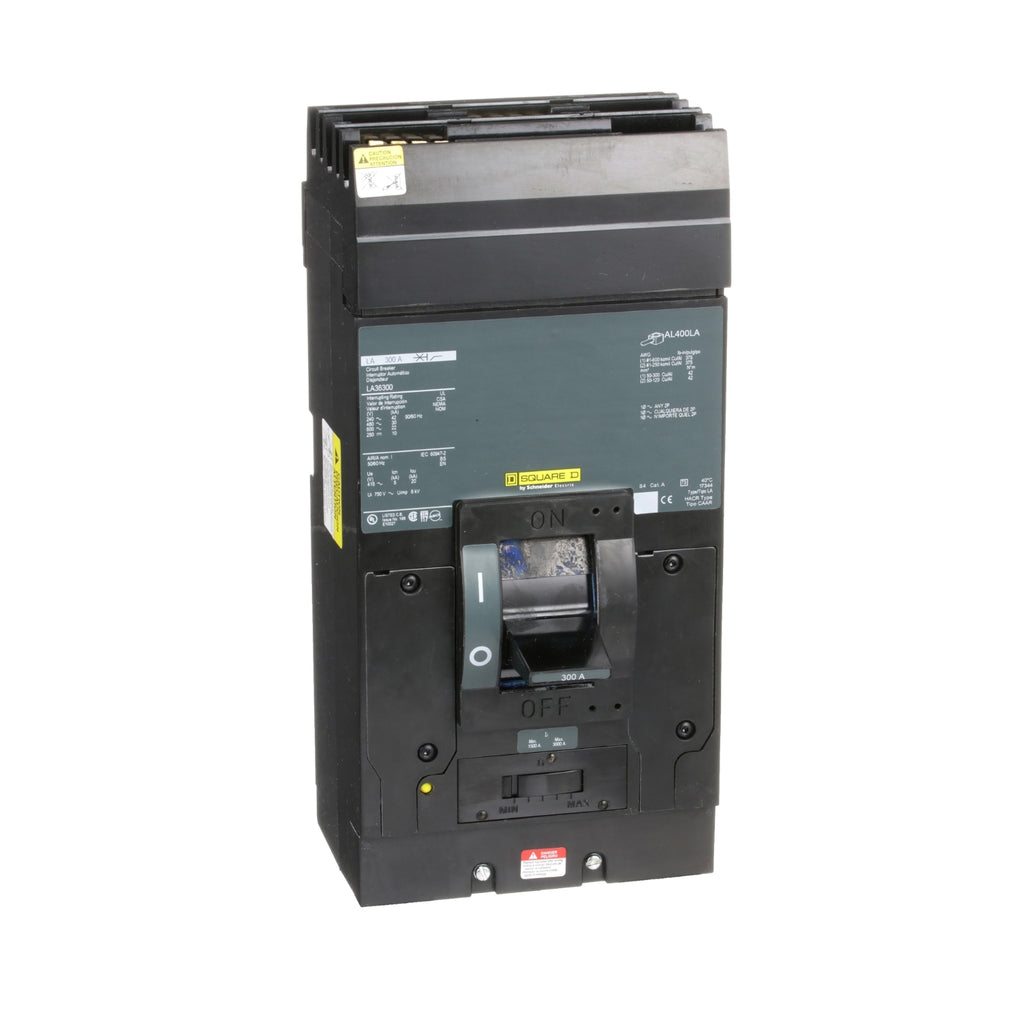

LA36300 - Schneider Electric - I-Line Plug-In 300 Amp 3 Pole 600 Volt Square D Molded Case Circuit Breaker
Square D(TM)-brand I-Line(TM) circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories(R) (UL(R)) Listed. I-Line circuit breaker panelboards are available as 400-1200A main lugs only and 100-1200A main circuit breakers. I-Line circuit breakers, with their exclusive bus connection design, provide superior reliability and performance advantages. A wide variety of accessories are available for field or factory installation of I-Line panelboards. This I-Line, 3P, circuit breaker has a 300A rated current. This breaker has a breaking capacity of 22 kA@600 VAC operation voltage. This breaker has a thermal-magnetic trip technology. The dimensions are 11 in (H), 6 in (W), 5.84 in (D).
GENERAL SPECIFICATIONS
| Product or Component Type | Circuit breaker |
|---|---|
| Trip Unit Technology | Thermal-magnetic |
| Line Rated Current | 300 A |
|---|---|
| Number of Poles | 3P |
| Breaking capacity code | A |
| Mounting Mode | I-Line |
| Wiring Configuration | 3-wire |
| Magnetic Hold Current | 1500 A |
| Magnetic Tripping Current | 3000 A |
| Electrical connection | Lugs, load I-Line connection, line |
| Terminal identifier | AL400LA |
| Height | 11 in (279.4 mm) |
| Width | 6 in (152.4 mm) |
| Depth | 5.84 in (148.34 mm) |
| Circuit breaker application | HACR rated |
