Description
GENERAL
| Application | For Aluminum and Copper Conductors |

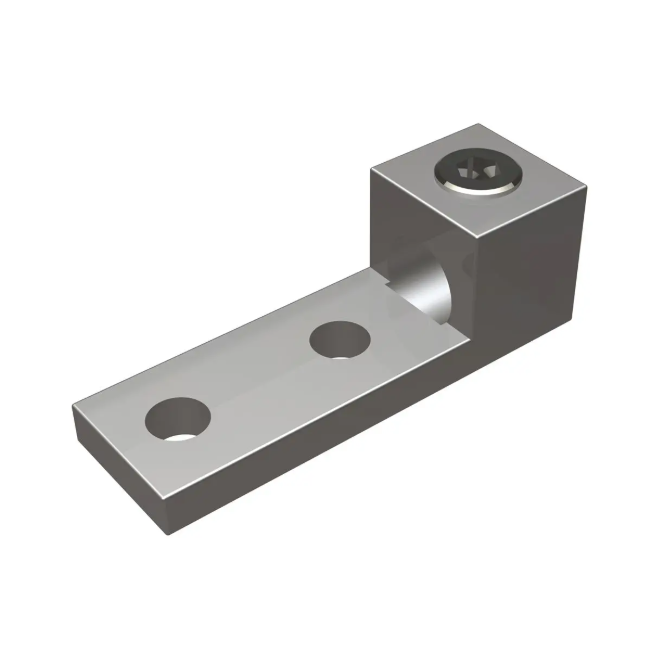

| Catalog Number | KA40U2N |
| Connector Type | Terminal |
| Installation Torque Recommended in-lb | 500 LBS/in |
| Material | Aluminum |
| Material - Hardware | Aluminum |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Number of Screws | 1 |
| Physical Attribute - Screw Type | Allen |
| Plated | Yes |
| Plating Type | Tin |
| Product Family | MECHANICAL |
| Product Type | Terminal |
| Sub Brand | UNIVERSAL TERM |
| Type | Bolted Lugs & Terminals |
| UPC | 781810370452 |
| UPC 14 Digit GTIN | 00781810370452 |
DIMENSIONS
| Dimension - Bolt Hole Size inch | 0.50 in |
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - D inch | 3.03 in |
| Dimension - Height inch | 1.95 in |
| Dimension - Height mm | 49.5 mm |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - Hole Size mm | 14 mm |
| Dimension - L Length Overall mm | 121 mm |
| Dimension - Length Overall inch | 4.75 in |
| Dimension - N inch | 0.63 in |
| Dimension - Pad Width inch | 1.77 in |
| Dimension - Stud Size inch | 1/2 |
| Dimension - Width fraction | 1-3/4 in |
| Dimension - Width inch | 1.75 in |
| Dimension - Width mm | 44 mm |
| Package Height | 0 in |
| Package Length | 0 in |
| Package Weight | 0 lb |
| Package Width | 0 in |
CONDUCTOR RELATED
| Conductor - AL Str Size | 300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil |
| Conductor - AL Str Size Range | 300 kcmil-800 kcmil |
| Conductor - Copper Str Size | 300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil |
| Conductor - Copper Str Size Range | 300 kcmil-800 kcmil |
| Conductor Size | 300-800 KCMIL |
| Conductor Type | CU C Str-Size AL C Str-Size |
| Number of Conductors | 1 |
CERTIFICATIONS AND COMPLIANCE
| Buy America(n) Qualified | BABA Compliant (All status valid till December 2026) |
| Certification - CSA Approved | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL Listed Direct Burial | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL 486A-486B |
| Standards - Industry Standards Met | UL 486A-486B |
| Standards - RoHS Compliance Status | EX |
| UL Listed | Yes |
FORCE RELATED
| Installation Torque Recommended in-lb | 500 LBS/in |
CONFIGURATION
| Connector Type | Terminal |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Number of Screws | 1 |
LOGISTICS
| Carton Quantity | 54 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 2520 |
