Description

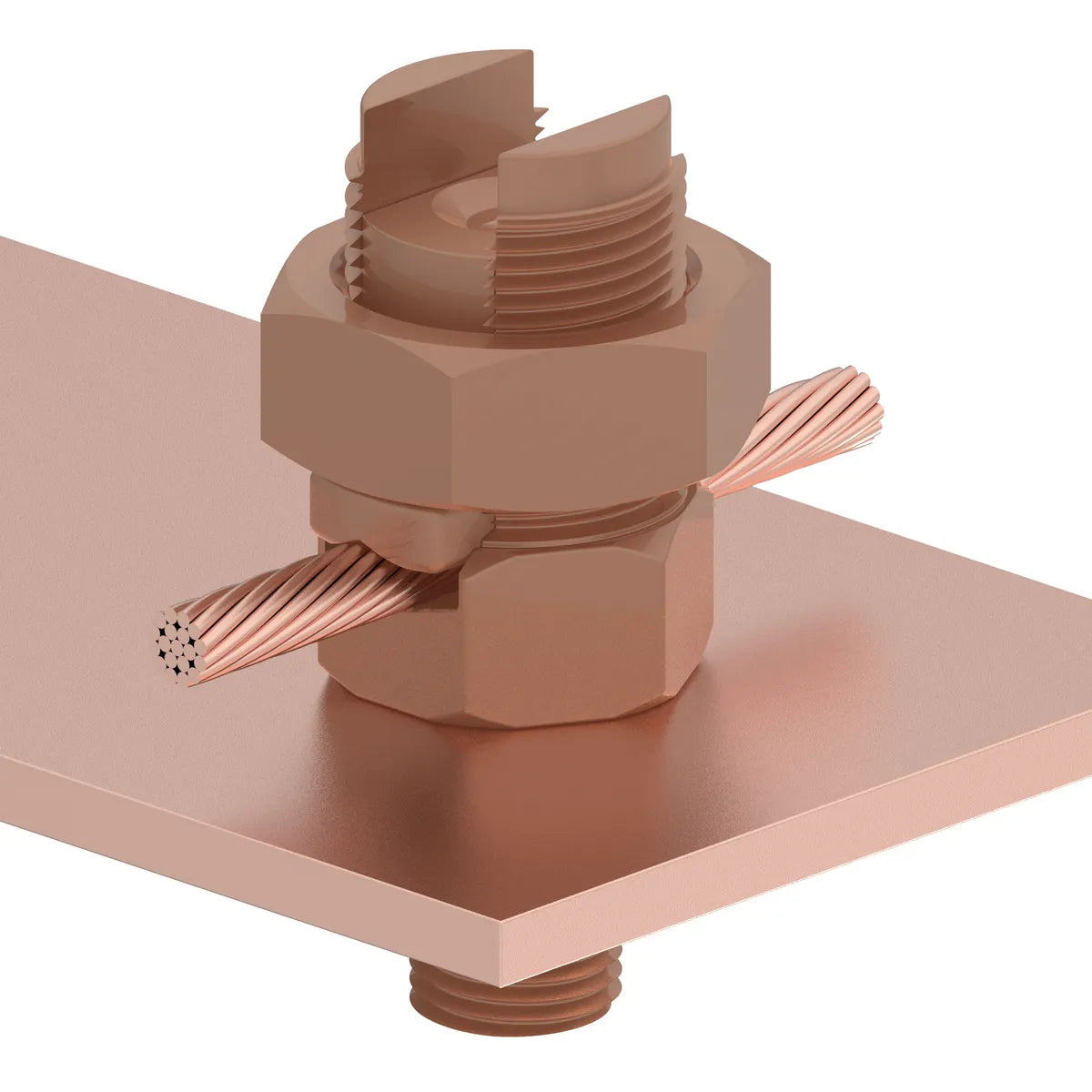

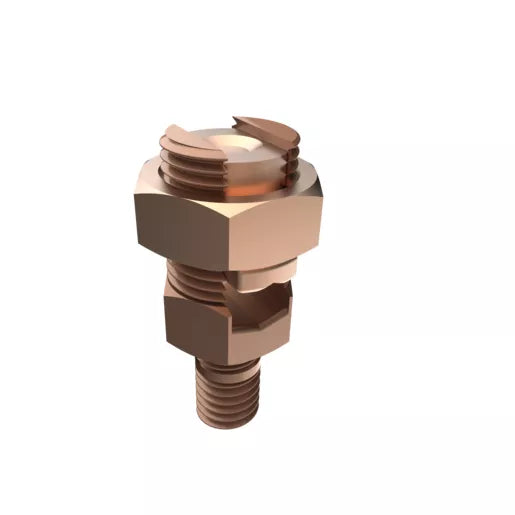

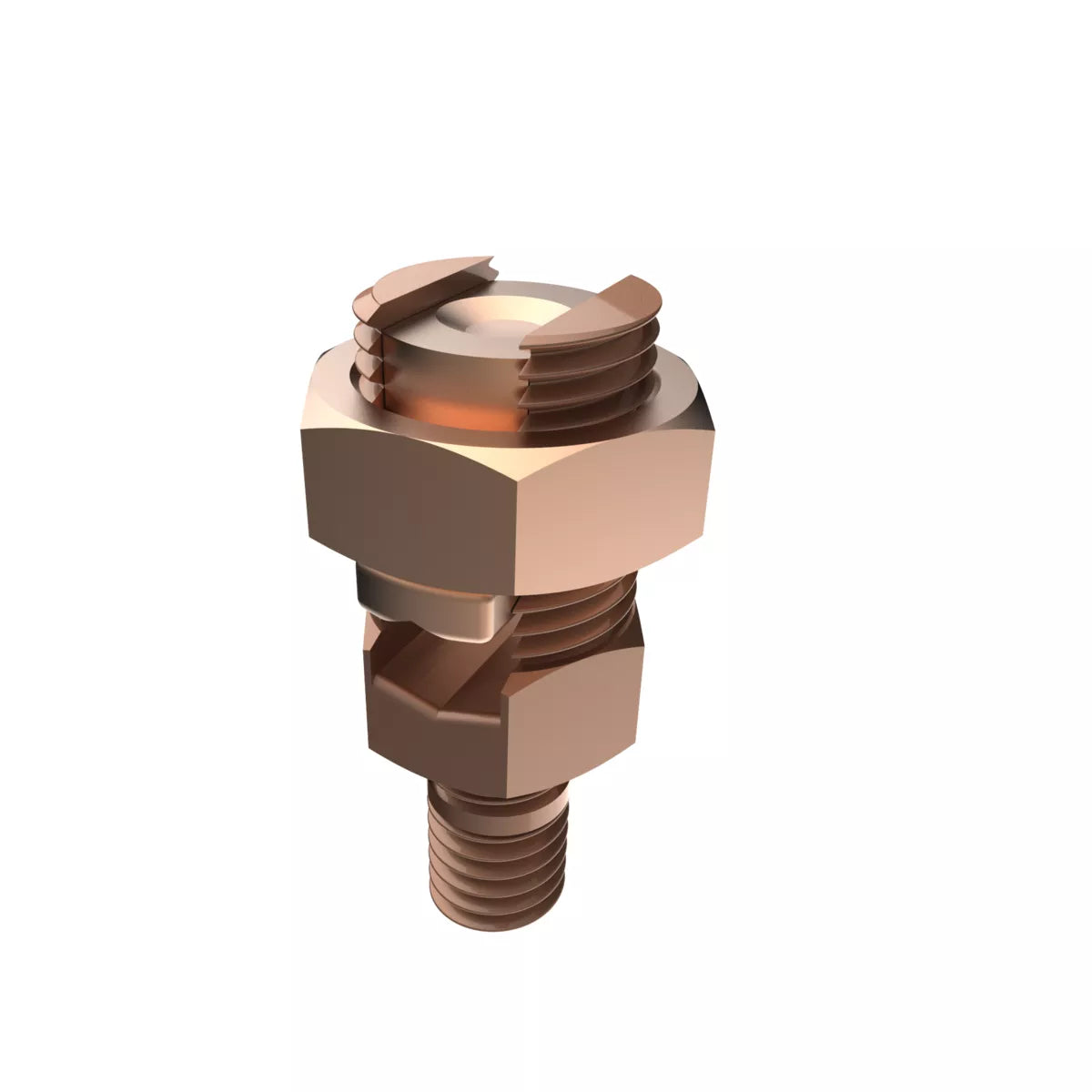

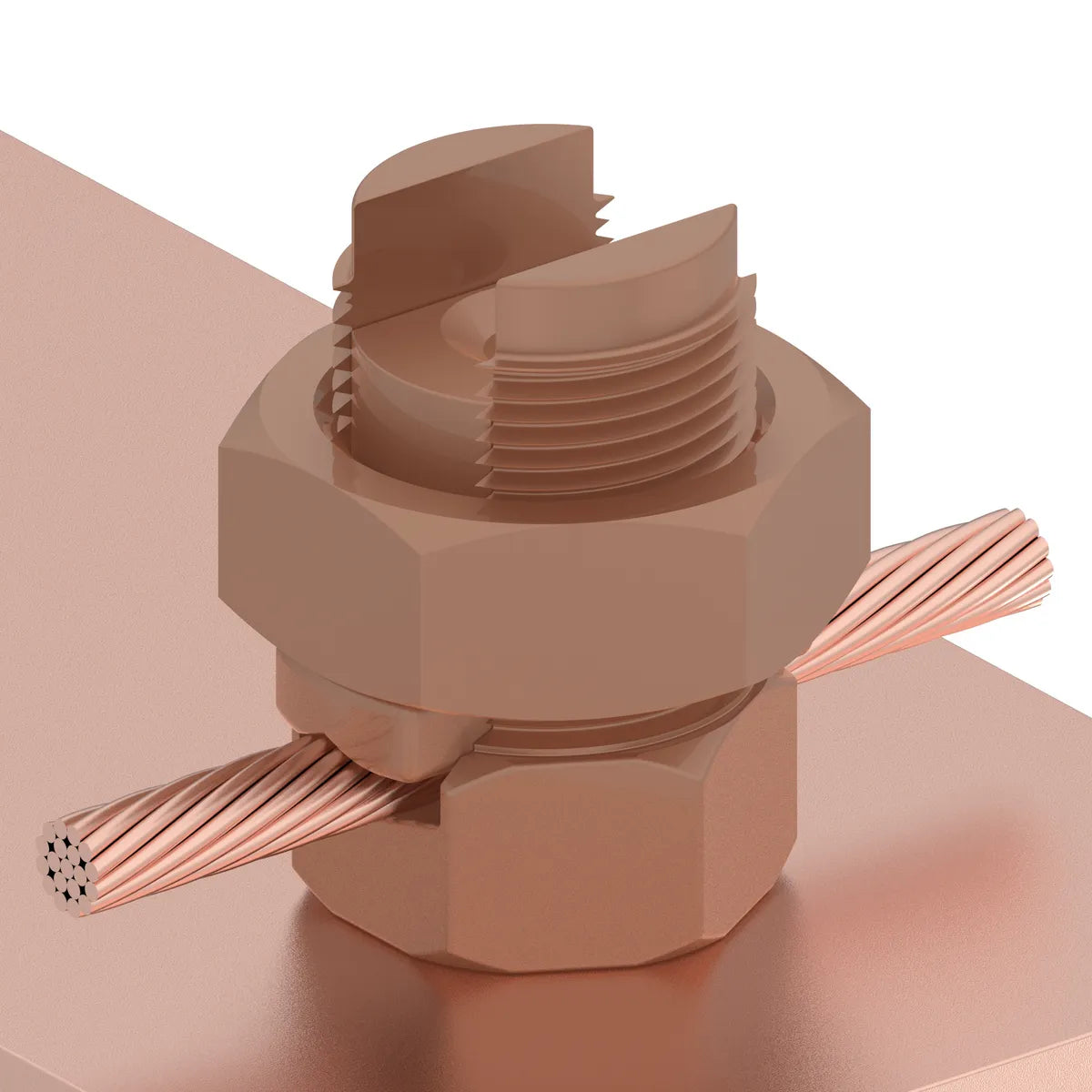

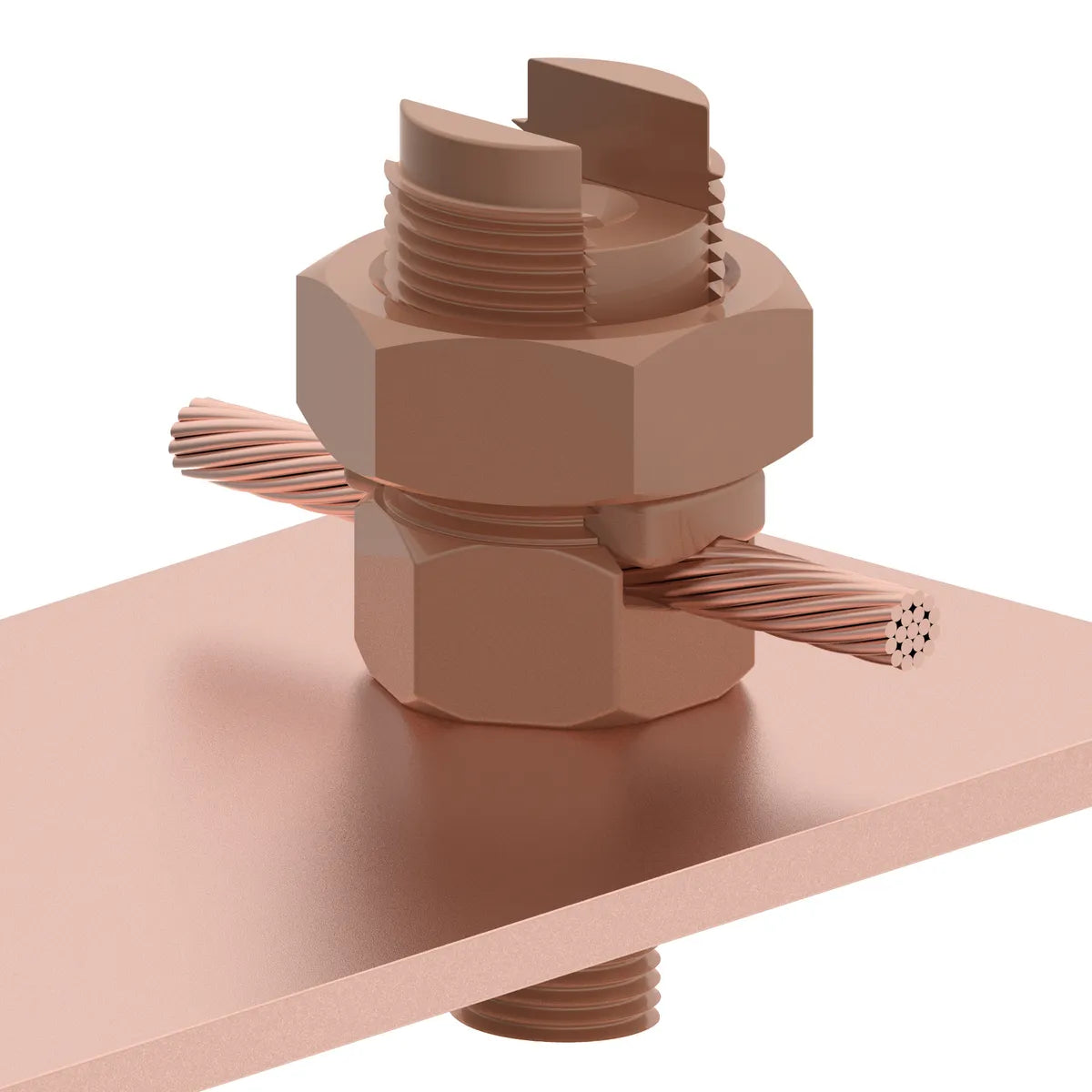

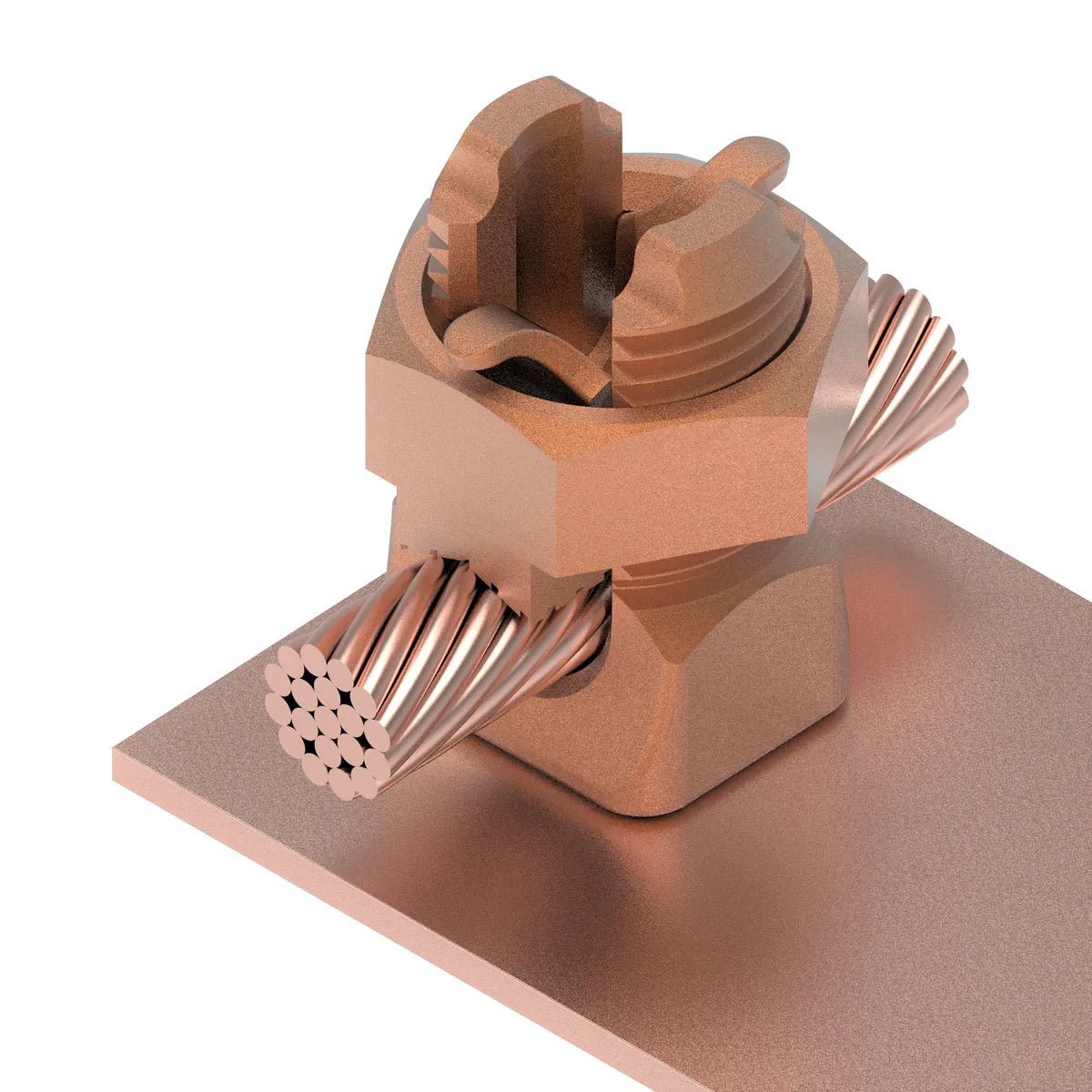

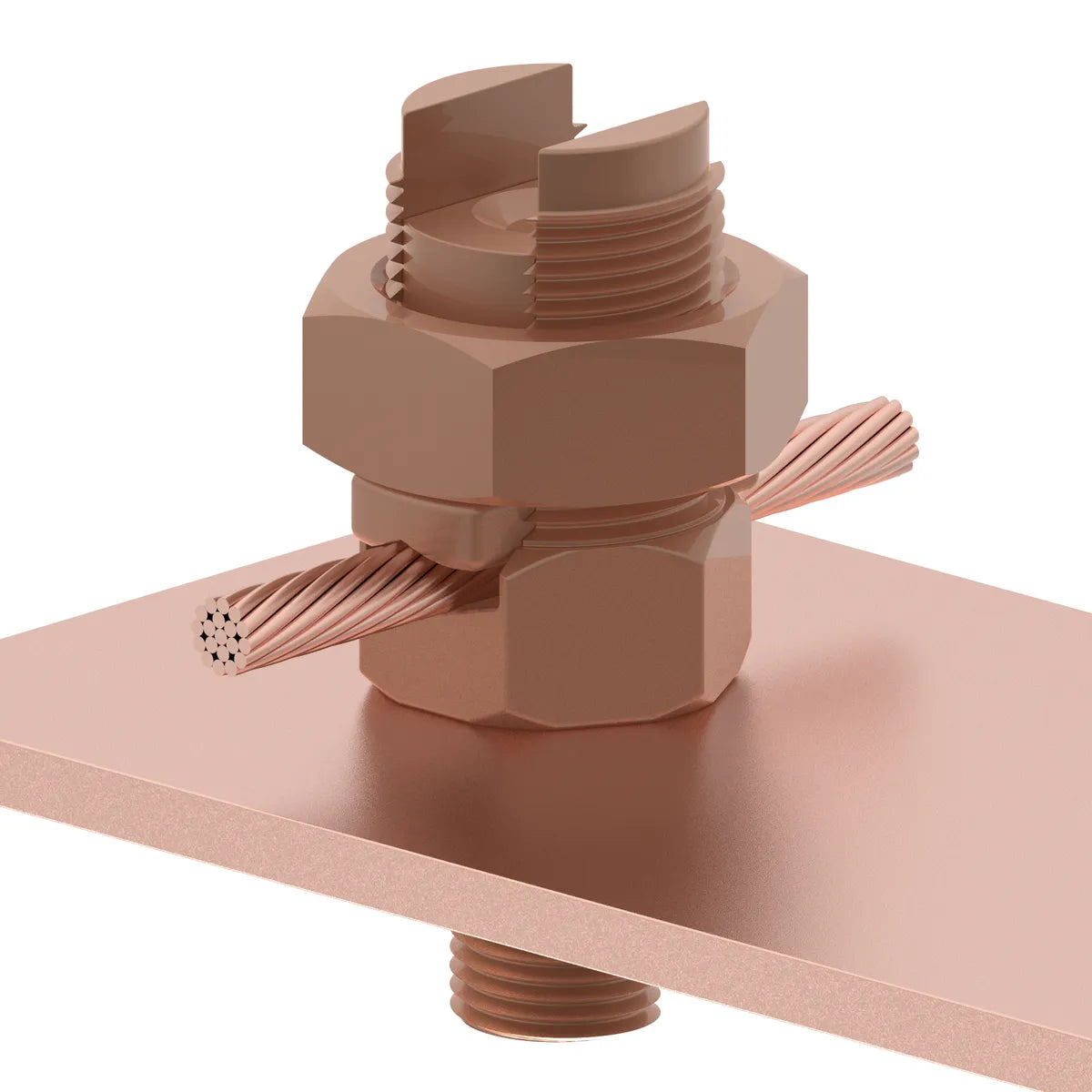

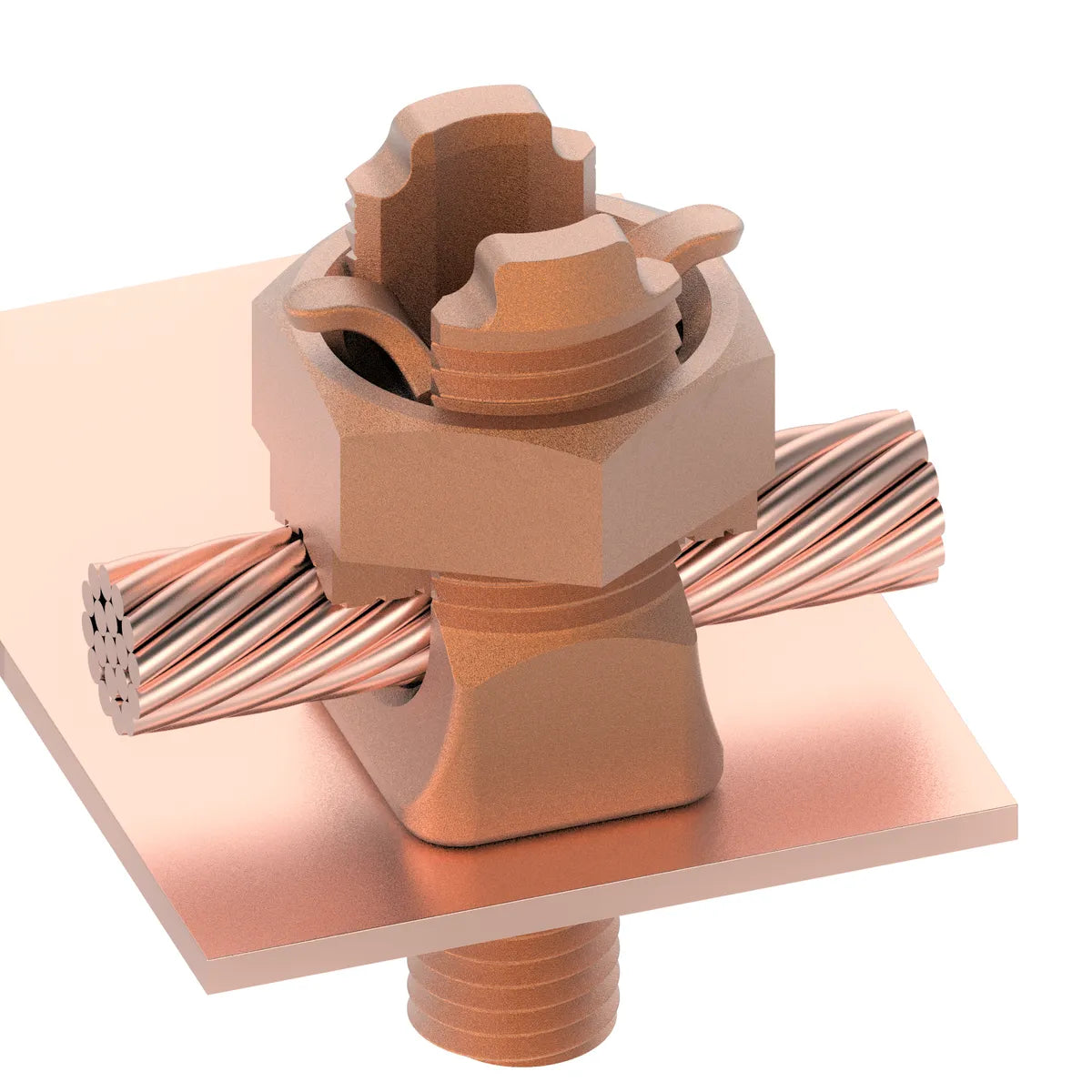

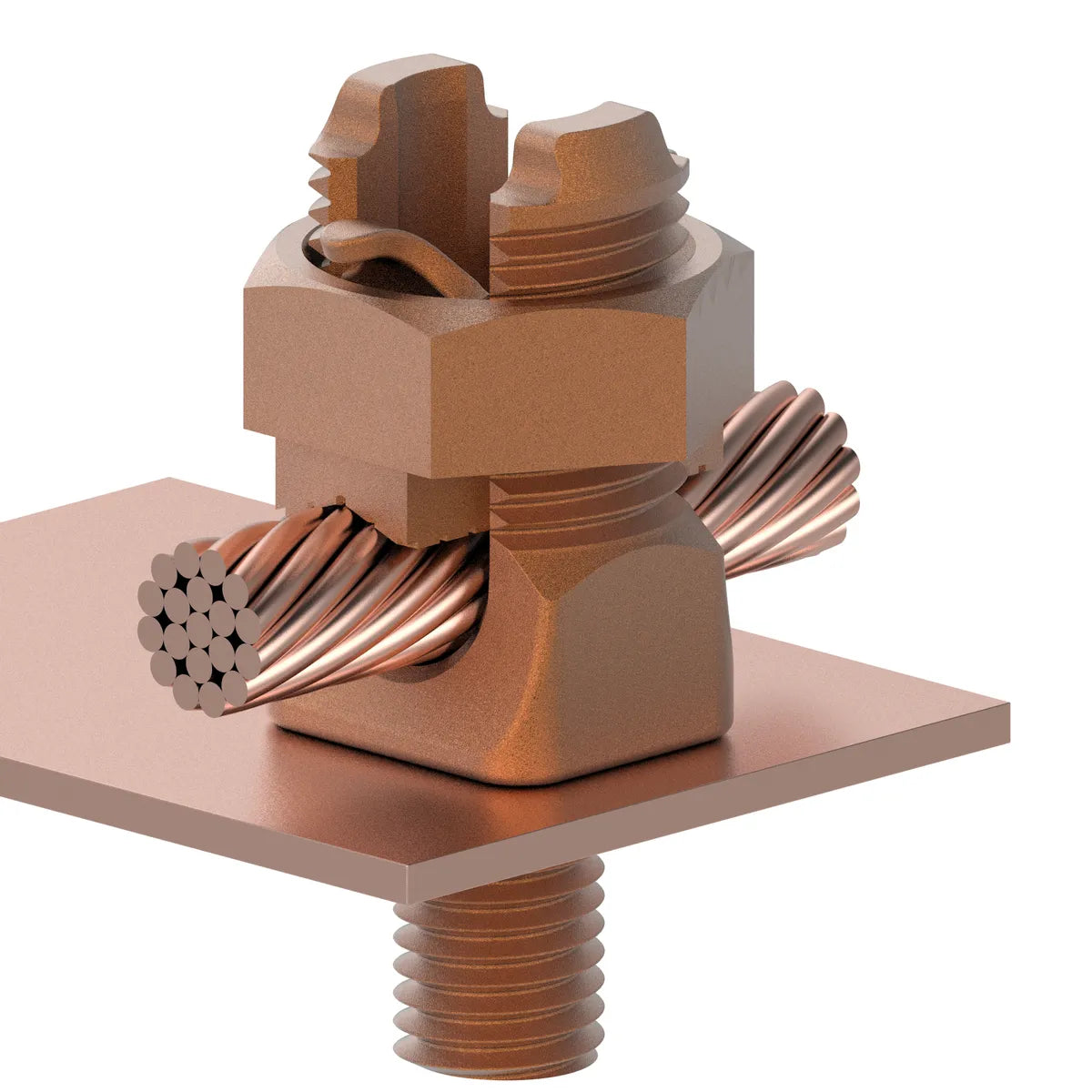

KC17 - Burndy - 1/4" Stud Mechanical Grounding Connector for Cable to Flat
Mechanical Grounding Connector, Cable to Flat, 10 - 7 AWG (Str) / 10 - 6 AWG (Sol), 1/4" Stud.
- SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers
- Also used to tap 1 or 2 cables from the bus bar
- 1-Wrench installation
GENERAL SPECIFICATIONS
| Application | For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
| Catalog Number | KC17 |
| EU RoHS Indicator | Yes |
| Material | Bronze, Leaded, Commercial |
| Plated | N |
| Plating Type | Leaded Bronze Alloy |
| Stud Installation Torque inch pounds | 80 LBS/in |
| Sub Brand | SERVIT POST |
| Trade Name | SERVIT POST™ |
| Type | KC and K2C Series |
| UPC | 781810254301 |
| UPC 14 Digit GTIN | 00781810254301 |
Dimensions
| Dimension - B Length fraction | 3/8 in |
| Dimension - B Length inch | 0.37 in |
| Dimension - Body Width inch | 0.44 in |
| Dimension - Bolt Size fraction | 1/4 |
| Dimension - D inch | 0.50 in |
| Dimension - Height fraction | 7/8 |
| Dimension - Height inch | 0.84 inn |
| Dimension - Height mm | 21.3 mm |
|
Dimension - L Length Overall mm |
34.0 mm |
|
Dimension - Length Overall inch |
1.34 in |
| Dimension - Nut Width inch | 0.62 in |
| Dimension - P inch | 0.17 in |
| Dimension - Threads per inch | 20 |
| Dimension - Width inch | 21 mm |
Conductor Related
| Conductor - Copper Solid Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG |
| Conductor - Copper Solid Size Range | 6 AWG-10 AWG |
|
Conductor - Copper Str Size |
10 AWG;9 AWG;8 AWG;7 AWG |
| Conductor - Copper Str Size Range | 7 AWG-10 AWG |
| Physical Attribute - Number of Conductors Accommodated Total | 1 |
Force Related
|
Stud Installation Torque
|
80 LBS/in
|
Logistics
| Carton Quantity | 50 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 44550 |
PRODUCT DATASHEET
