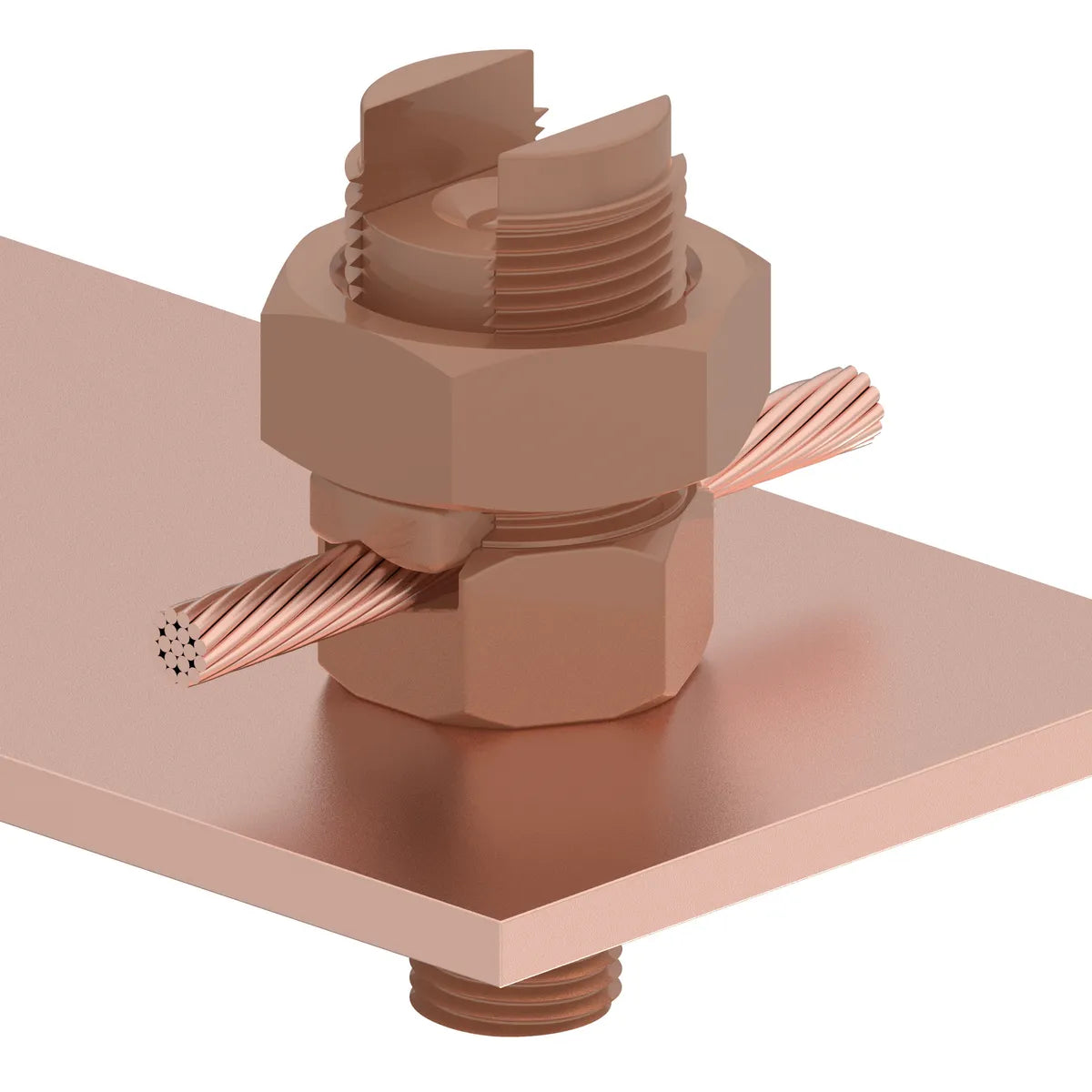

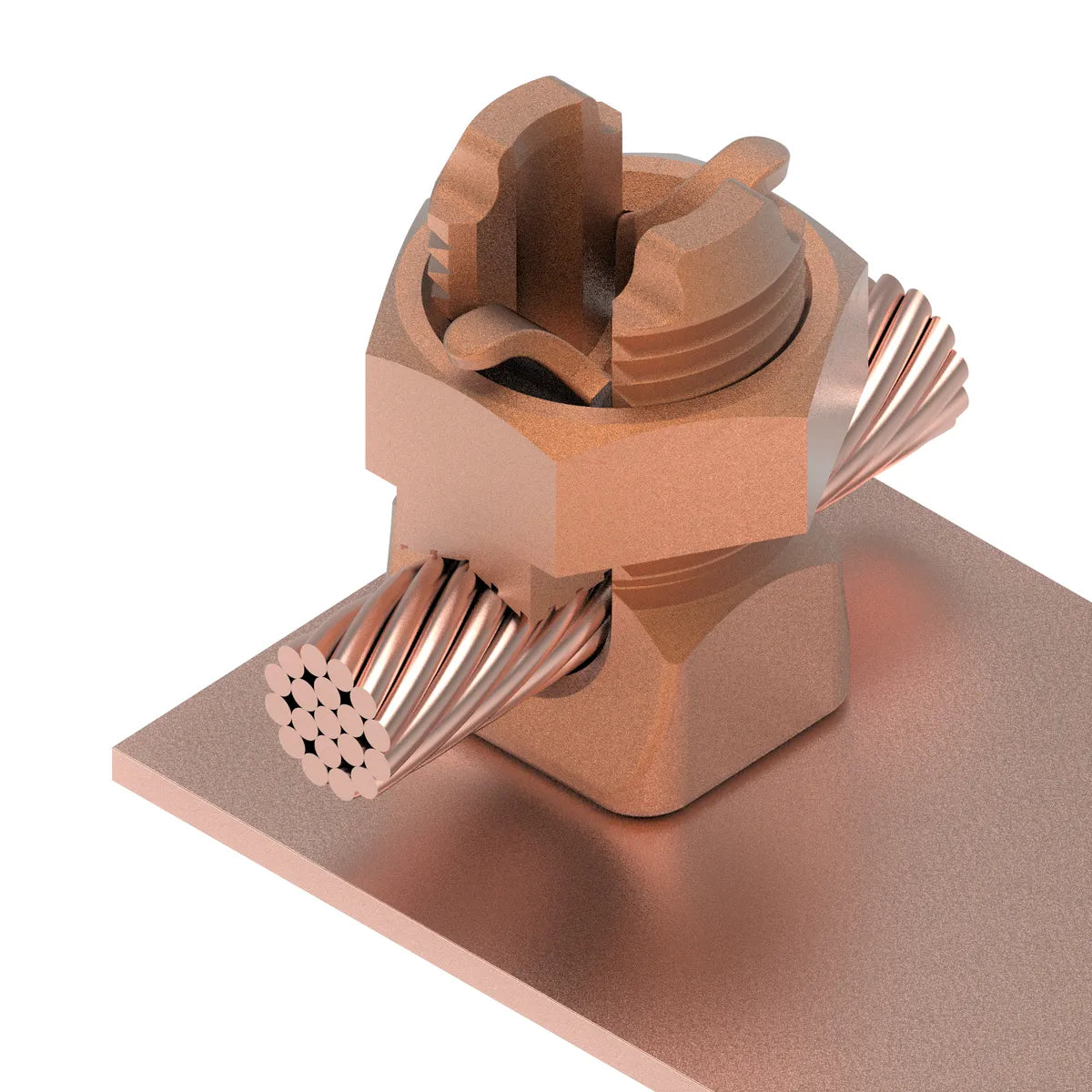

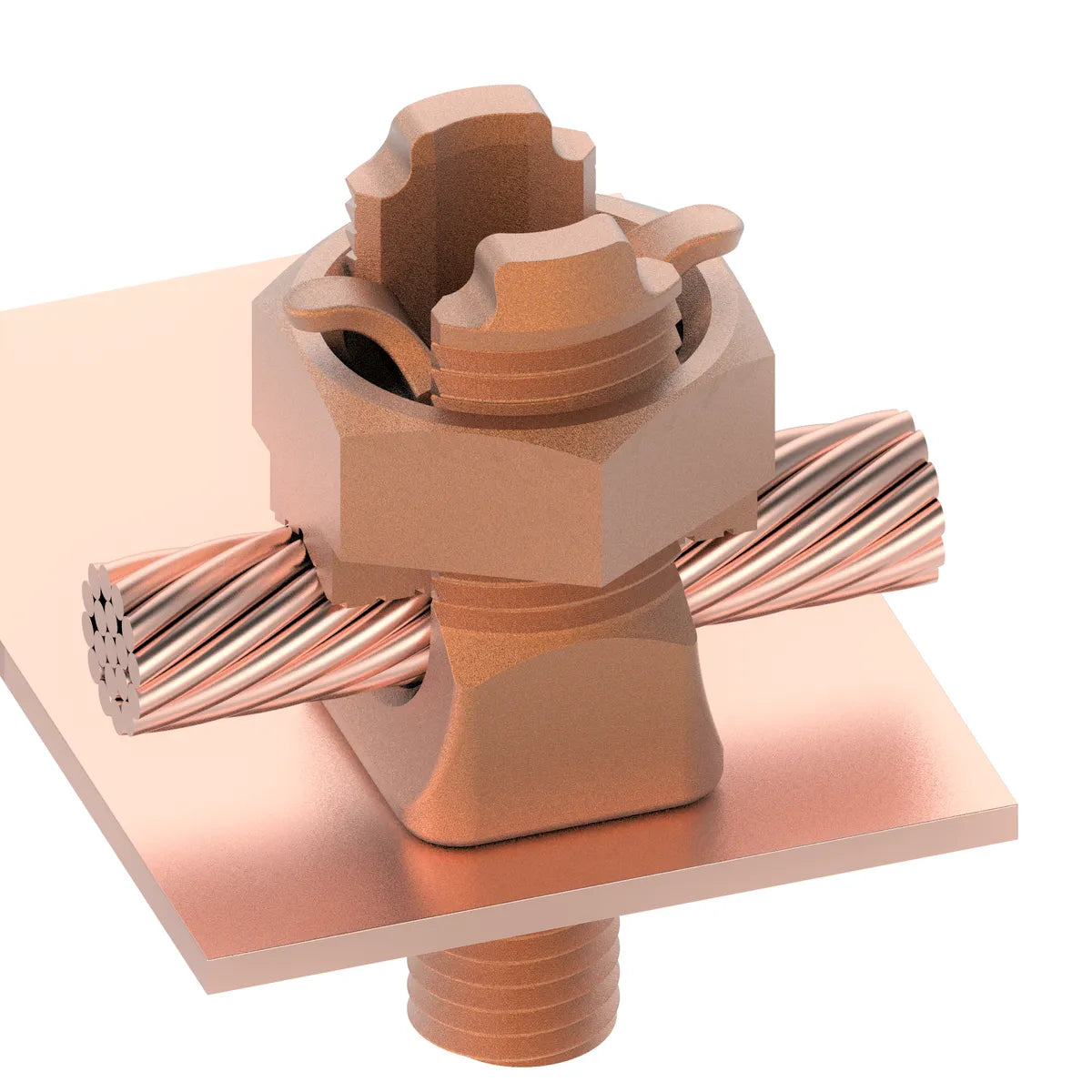

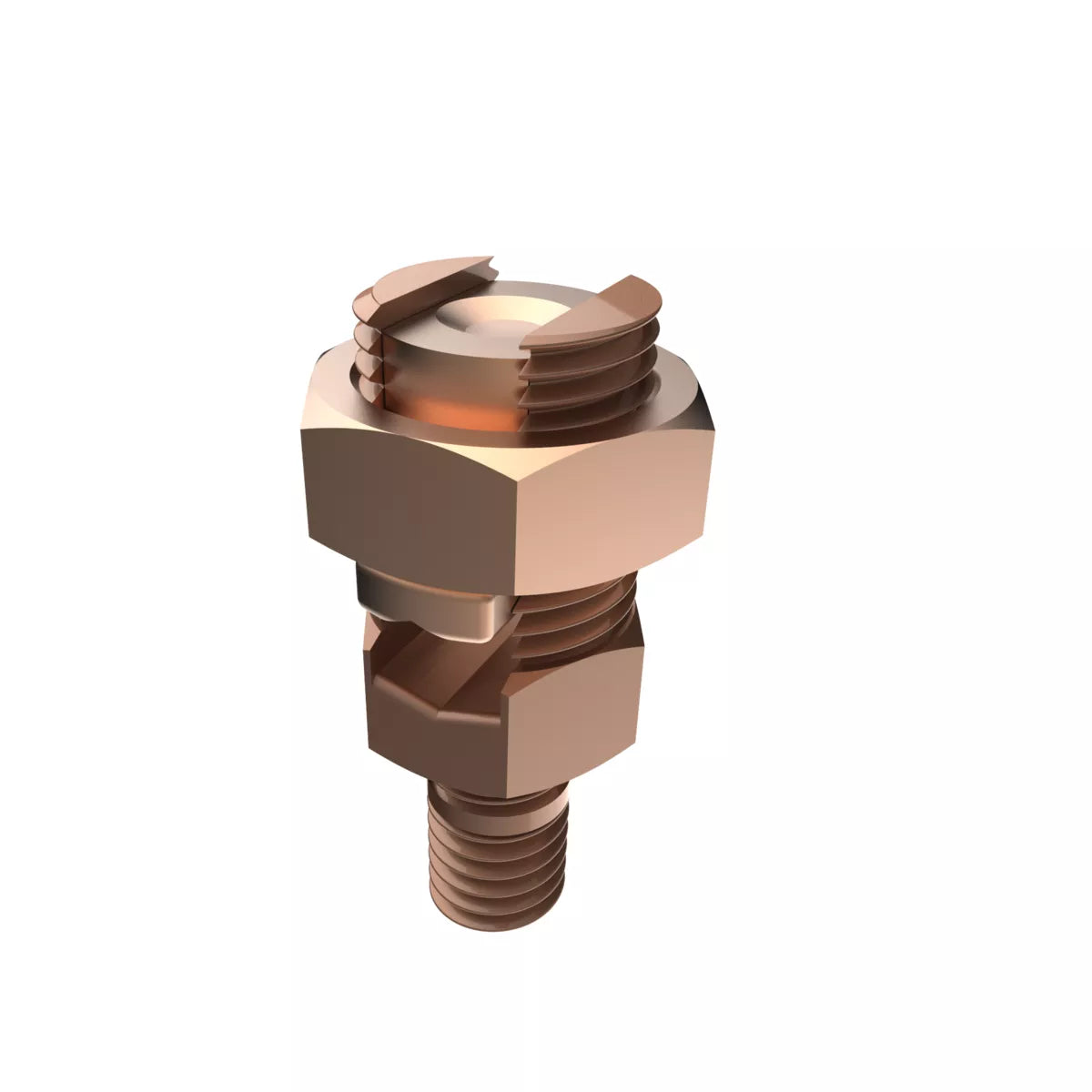

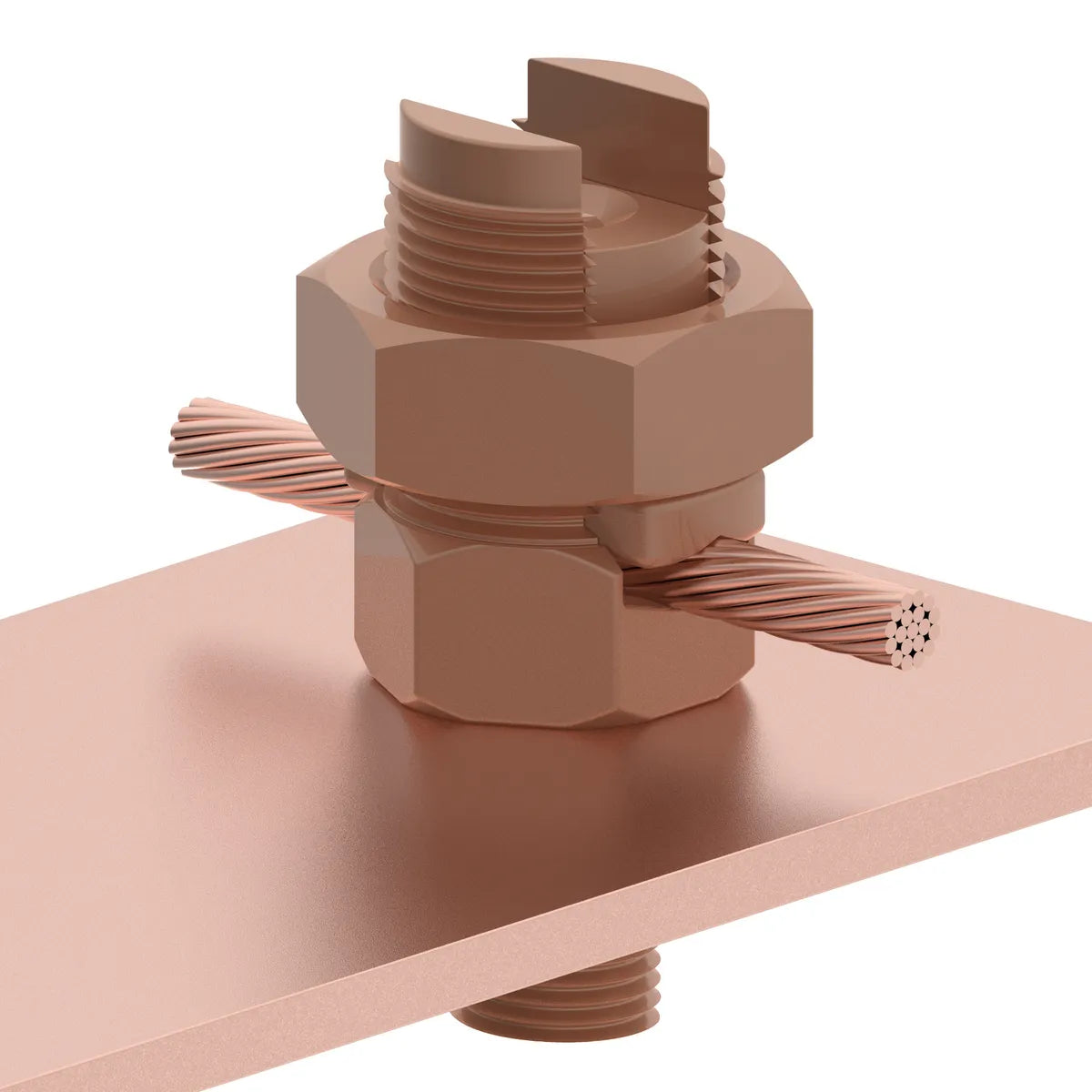

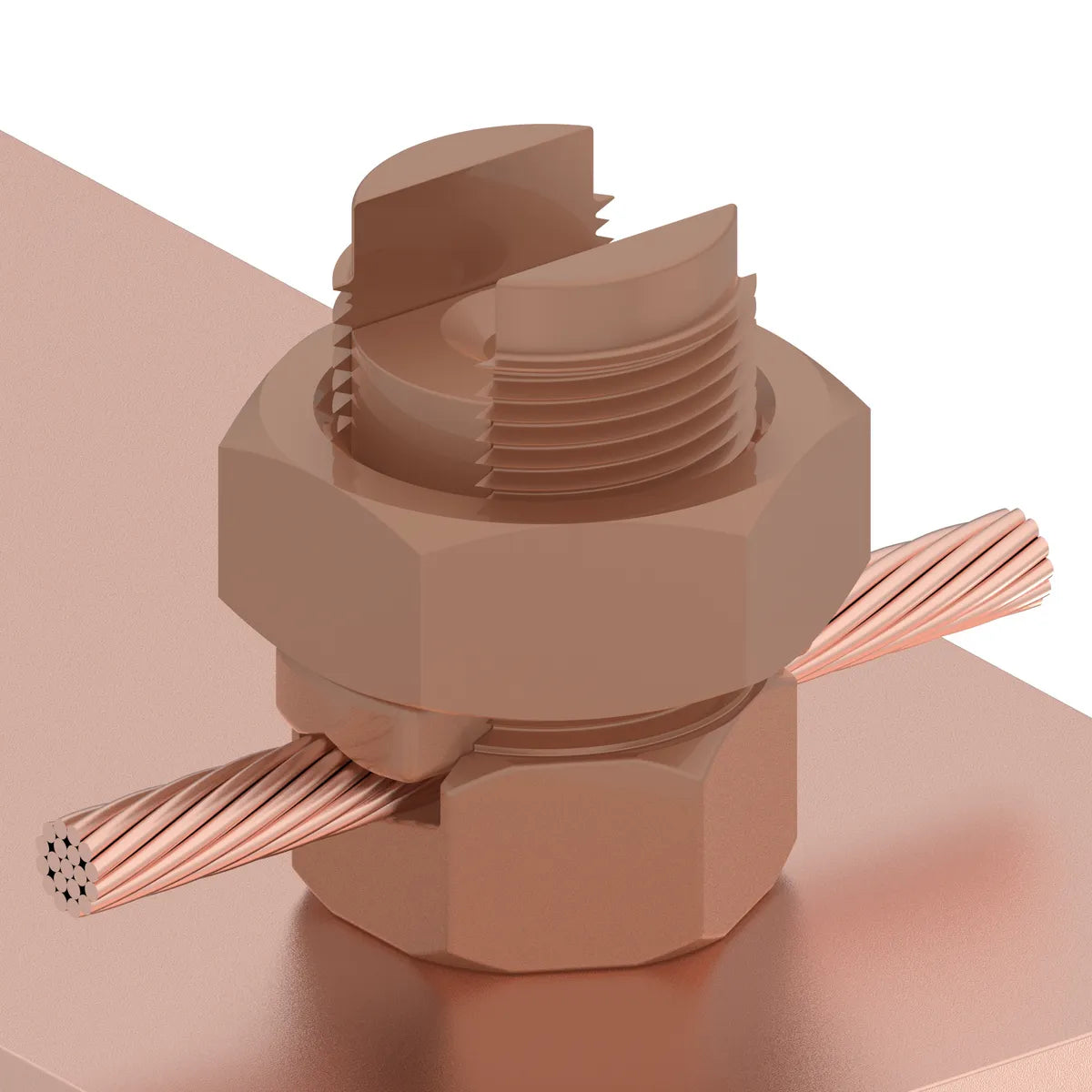

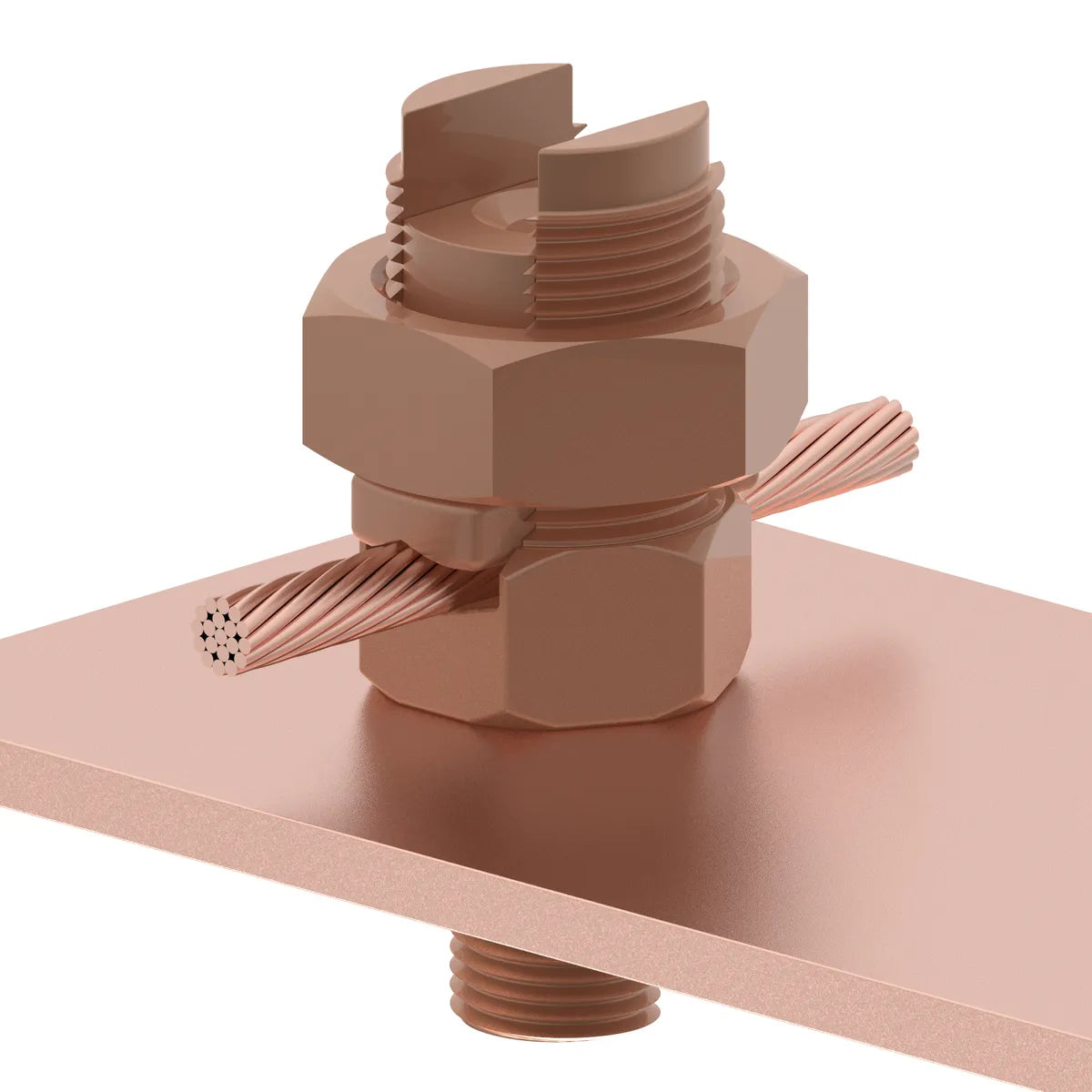

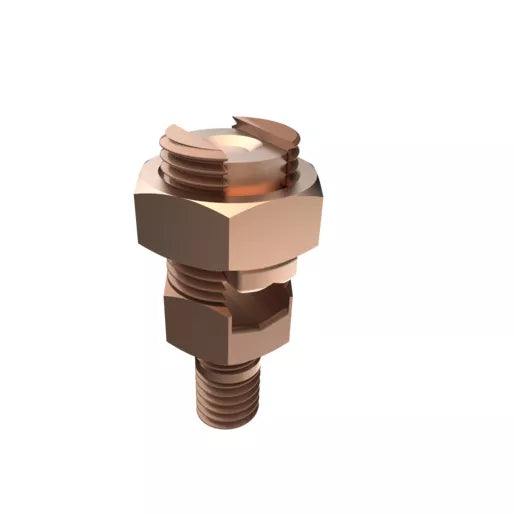

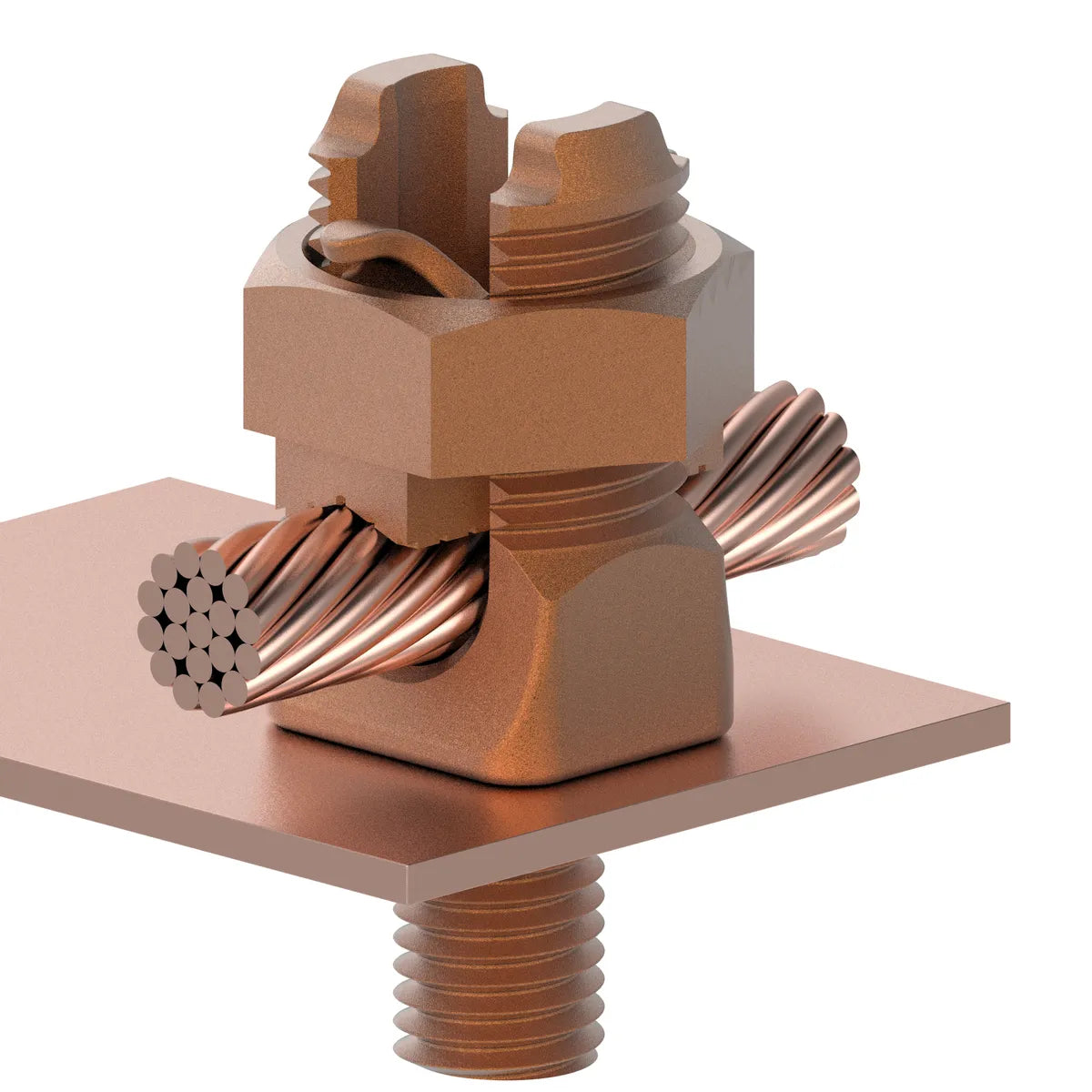

KC20 - Burndy - 5/16" Stud Mechanical Grounding Connector for Cable to Flat
Mechanical Grounding Connector, Cable to Flat, 10-5 AWG (Str) / 10-4 AWG (Sol), 5/16" Stud.
- SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers
- Also used to tap 1 or 2 cables from the bus bar
- 1-Wrench installation
GENERAL SPECIFICATIONS
| Application | For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
| Catalog Number | KC20 |
| EU RoHS Indicator | Yes |
| Material | Bronze, Leaded, Commercial |
| Plated | N |
| Plating Type |
Leaded Bronze Alloy |
| Stud Installation Torque inch pounds | 180 LBS/in |
| Sub Brand | SERVIT POST |
| Trade Name | SERVIT POST™ |
| Type | KC and K2C Series |
| UPC | 781810254608 |
| UPC 14 Digit GTIN | 00781810254608 |
Dimensions
| Dimension - B Length fraction | 13/32 in |
|
Dimension - B Length inch |
0.41 in |
| Dimension - Body Width inch | 0.50 in |
| Dimension - Bolt Size fraction | 5/16 |
| Dimension - D inch | 0.62 in |
| Dimension - Height fraction | 7/8 |
| Dimension - Height inch | 0.86 in |
| Dimension - Height mm | 21.8 mm |
|
Dimension - L Length Overall mm |
36.1 mm |
|
Dimension - Length Overall inch |
1.42 in |
| Dimension - Nut Width inch | 0.69 in |
| Dimension - P inch | 0.22 in |
| Dimension - Threads per inch | 18 |
| Dimension - Width inch | 22 mm |
Conductor Related
| Conductor - Copper Solid Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Conductor - Copper Solid Size Range | 4 AWG-10 AWG |
|
Conductor - Copper Str Size |
10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG |
| Conductor - Copper Str Size Range | 5 AWG-10 AWG |
| Physical Attribute - Number of Conductors Accommodated Total | 1 |
Force Related
|
Stud Installation Torque inch pounds |
180 LBS/in |
Logistics
| Carton Quantity | 50 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 29700 |
