Description

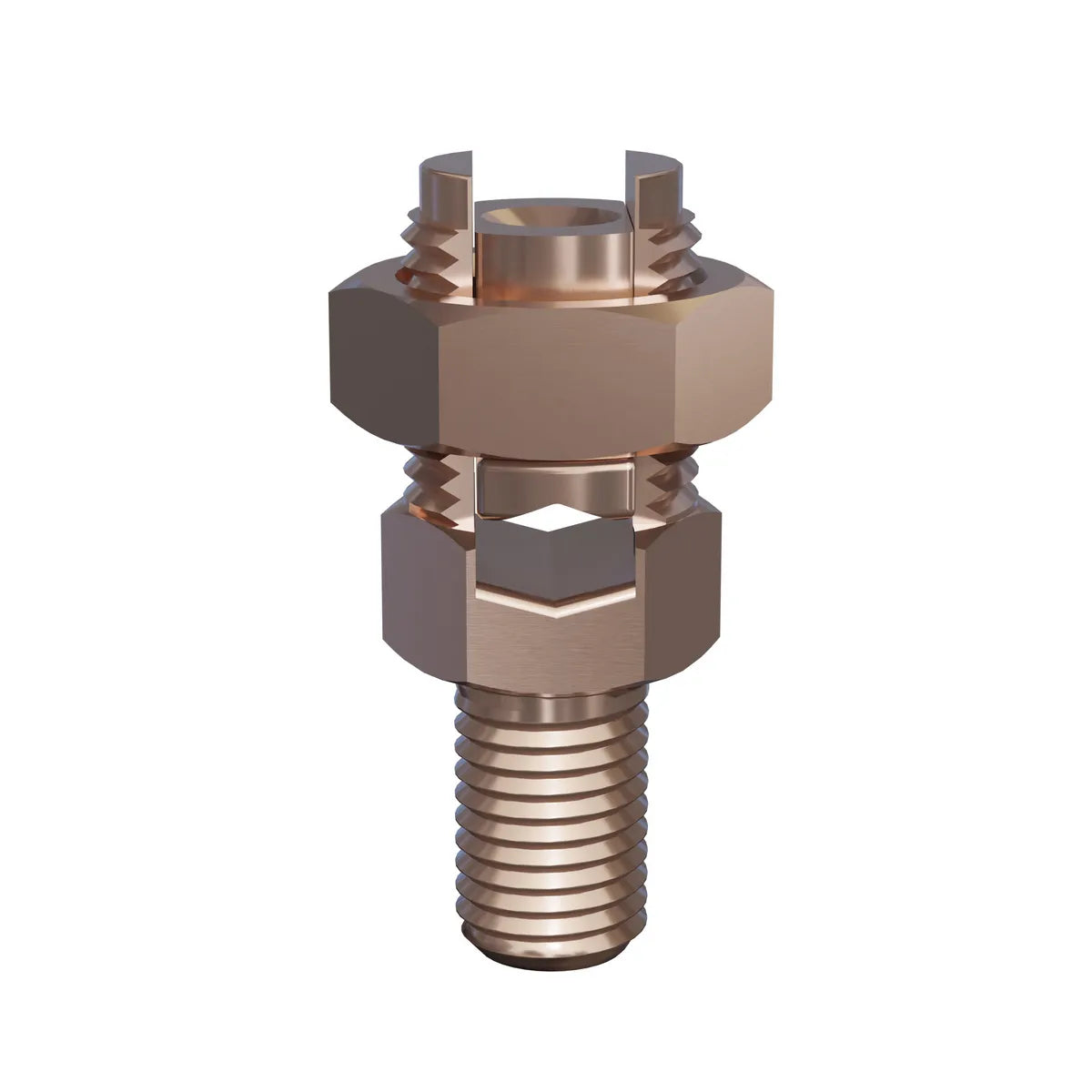

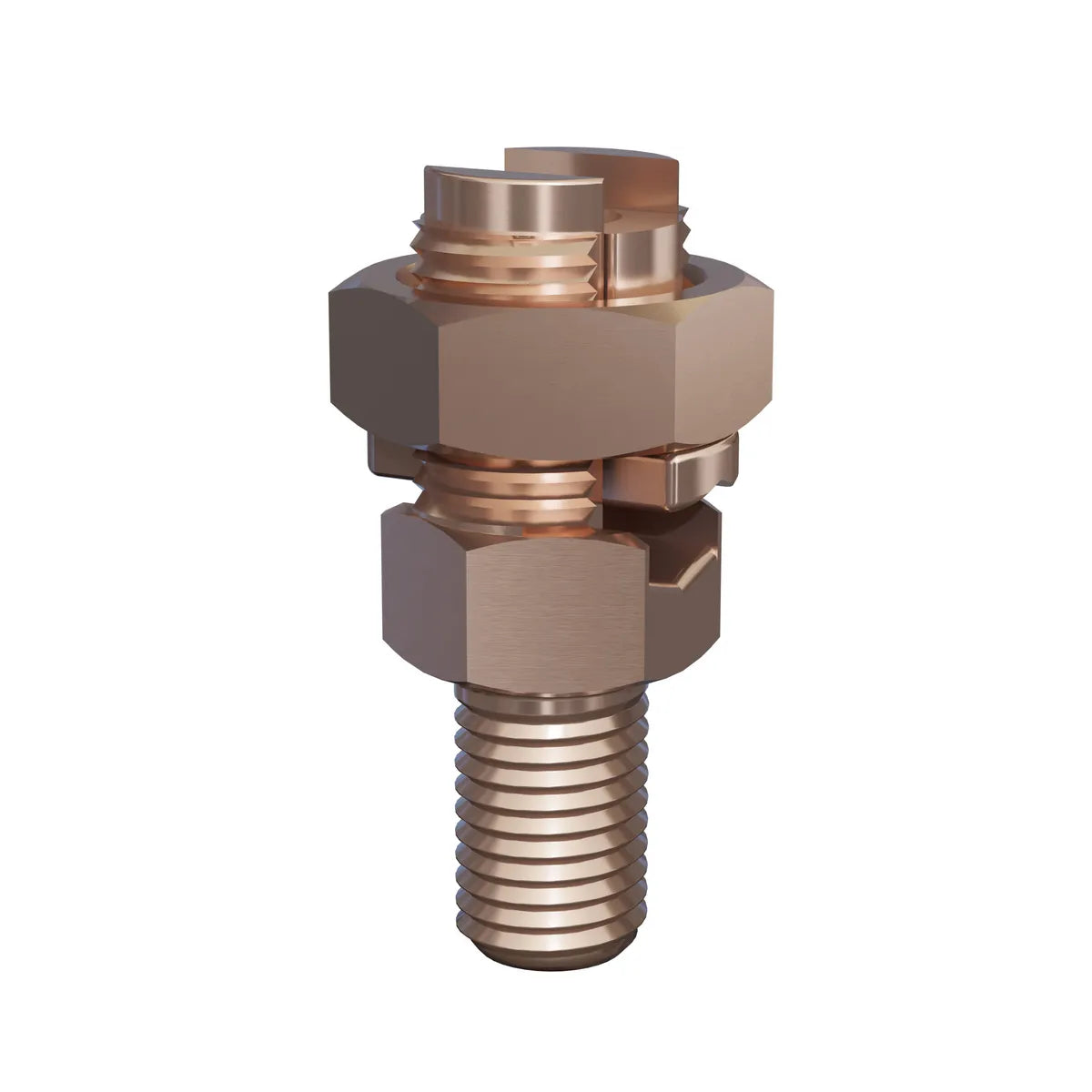

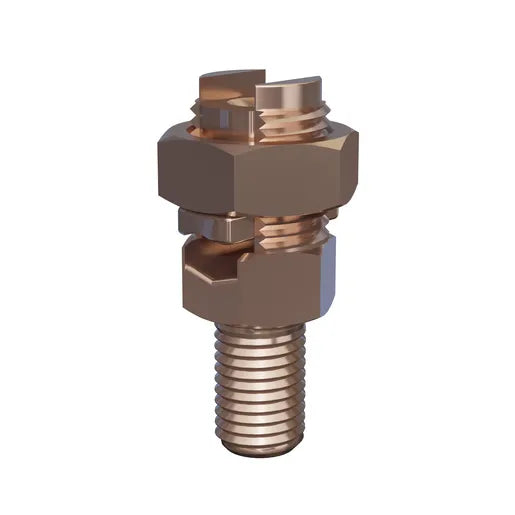

KC23 - Burndy - 3/8" Stud Mechanical SERVIT POST Connector for Cable to Flat
Mechanical SERVIT POST™ Connector; Cable to Flat, 8-2 AWG (Str) / 10-1 AWG (Sol), 3/8" Stud; body height: 1.05"
- SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers
- Also used to tap 1 or 2 cables from the bus bar
- 1-Wrench installation
GENERAL SPECIFICATIONS
| Application | For Direct Burial Applications And Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar |
| Catalog Number | KC23 |
| EU RoHS Indicator | Yes |
| Material | Bronze, Leaded, Commercial |
| Plated | N |
| Plating Type | Unplated |
| Stud Installation Torque inch pounds | 280 LBS/in |
| Sub Brand | SERVIT POST |
| Trade Name | SERVIT POST™ |
| Type | KC and K2C Series |
| UPC | 781810255353 |
| UPC 14 Digit GTIN | 00781810255353 |
Dimensions
| Dimension - B Length fraction | 15/32 in |
| Dimension - Body Width inch | 0.62 in |
| Dimension - Bolt Size fraction | 3/8 |
| Dimension - D inch | 0.63 in |
| Dimension - Height fraction | 1 |
| Dimension - Height mm | 26.7 mm |
|
Dimension - Length Overall inch |
1.67 in |
| Dimension - Nut Width inch | 0.81 in |
| Dimension - P inch | 0.32 in |
| Dimension - Threads per inch | 16 |
Conductor Related
| Conductor - Copper Solid Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG |
| Conductor - Copper Solid Size Range | 10 AWG-1 AWG |
|
Conductor - Copper Str Size |
8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Conductor - Copper Str Size Range | 8 AWG-2 AWG |
| Physical Attribute - Number of Conductors Accommodated Total | 1 |
Force Related
|
Stud Installation Torque inch pounds |
280 LBS/in |
Logistics
| Carton Quantity | 50 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 59400 |
