Description

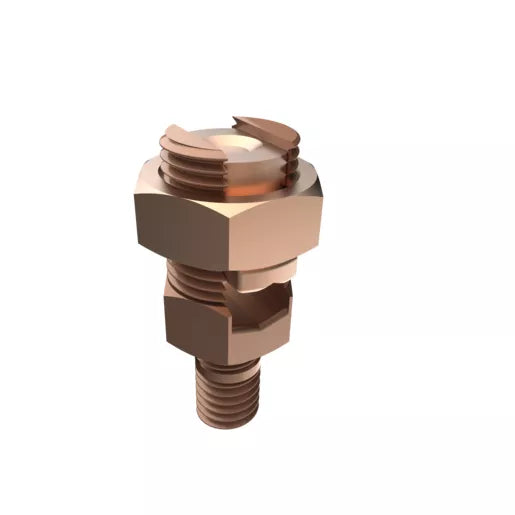

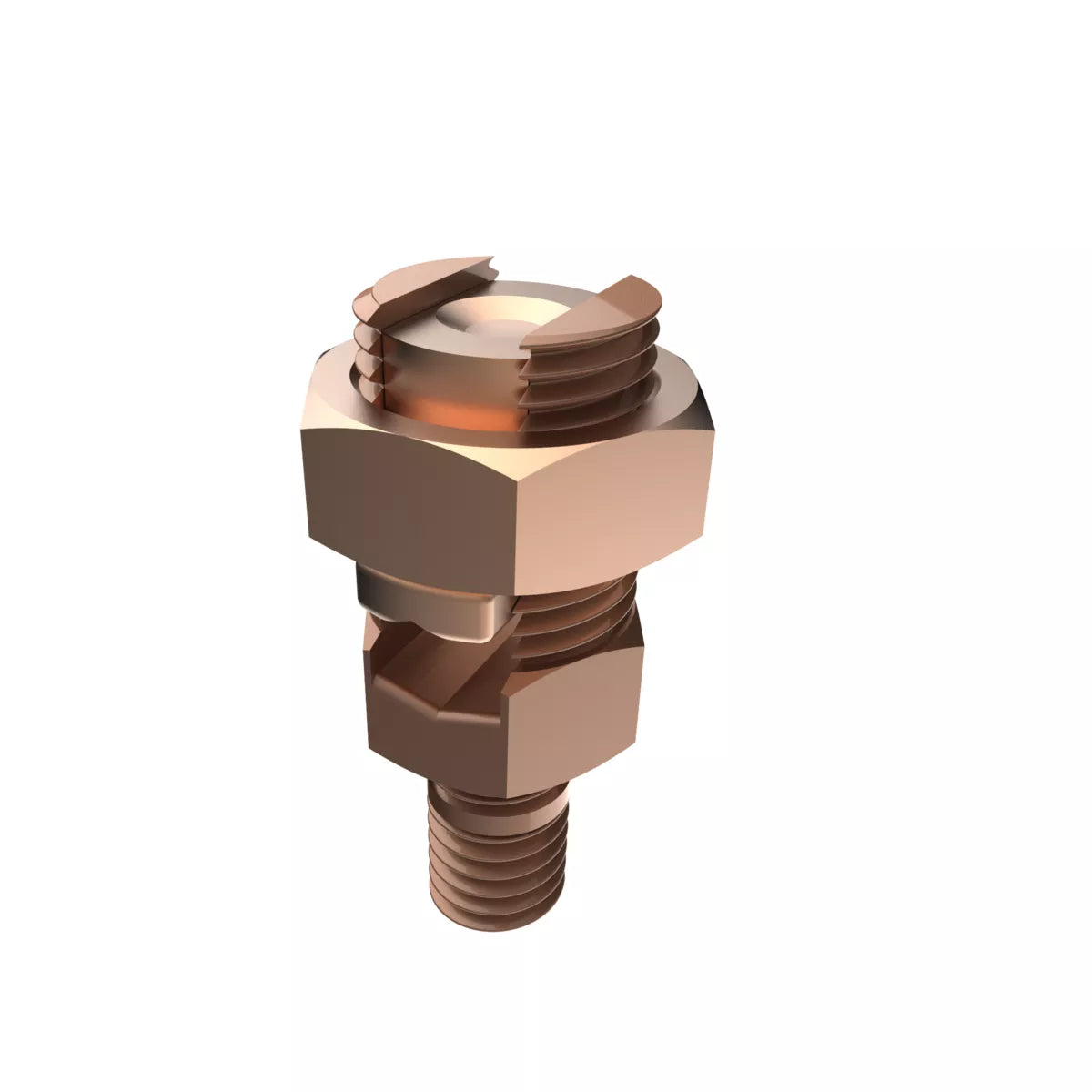

KC25 - Burndy - 1/2" Stud Mechanical Grounding Connector for Cable to Flat
Mechanical Grounding Connector, Cable to Flat, 2-1/0 AWG (Str) / 2-2/0 AWG (Sol), Stud: 1/2"
- SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers
- Also used to tap 1 or 2 cables from the bus bar
- 1-Wrench installation
GENERAL SPECIFICATIONS
| Application | For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
| Catalog Number | KC25 |
| EU RoHS Indicator | Yes |
| Material | Bronze, Leaded, Commercial |
| Plated | N |
| Plating type | Unplated |
| Stud Installation Torque inch pounds | 480 LBS/in |
| Sub Brand | SERVIT POST |
| Trade Name | SERVIT POST™ |
| Type | KC and K2C Series |
| UPC | 781810255650 |
| UPC 14 Digit GTIN | 00781810255650 |
Dimensions
|
Dimension - B Length fraction |
9/16 in |
|
Dimension - Body Width inch |
0.75 in |
|
Dimension - Bolt Size fraction |
1/2 |
|
Dimension - D inch |
0.75 in |
|
Dimension - Height fraction |
1-1/8 |
|
Dimension - Height mm |
30.2 mm |
|
Dimension - Length Overall inch |
1.94 in |
|
Dimension - Nut Width inch |
0.93 in |
|
Dimension - P inch |
0.39 in |
|
Dimension - Threads per inch |
13 |
Conductor Related
| Conductor - Copper Solid Size | 2 AWG;1 AWG;1/0 AWG;2/0 AWG |
| Conductor - Copper Solid Size Range | 2 AWG-2/0 AWG |
|
Conductor - Copper Str Size |
2 AWG;1 AWG;1/0 |
| Conductor - Copper Str Size Range | 2 AWG-1/0 AWG |
| Physical Attribute - Number of Conductors Accommodated Total | 1 |
Force Related
|
Stud Installation Torque inch pounds |
480 LBS/in |
Logistics
| Carton Quantity | 25 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 29700 |
PRODUCT DATASHEET
