Description

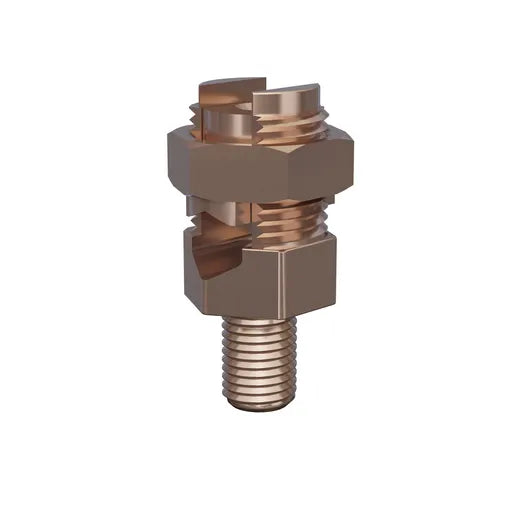

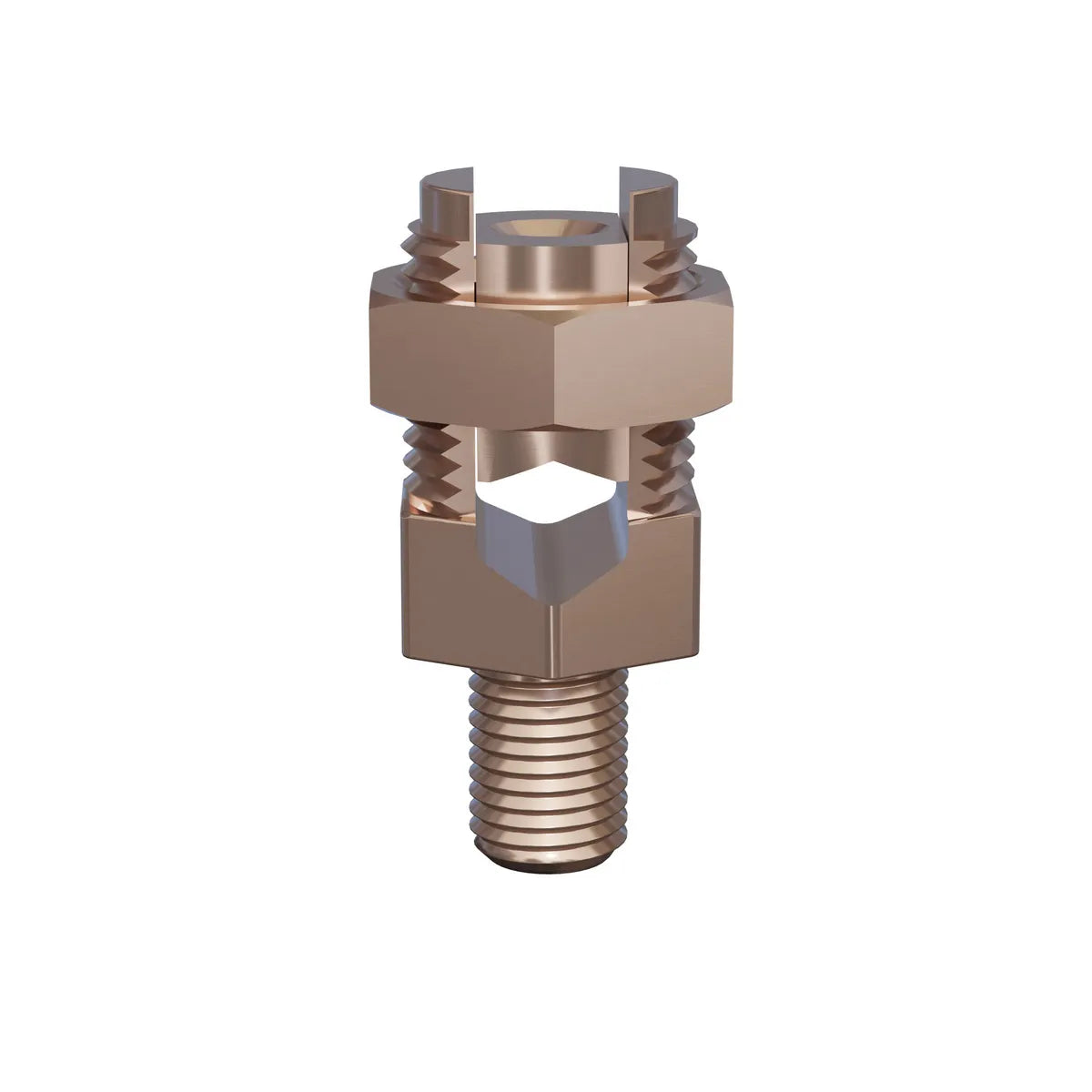

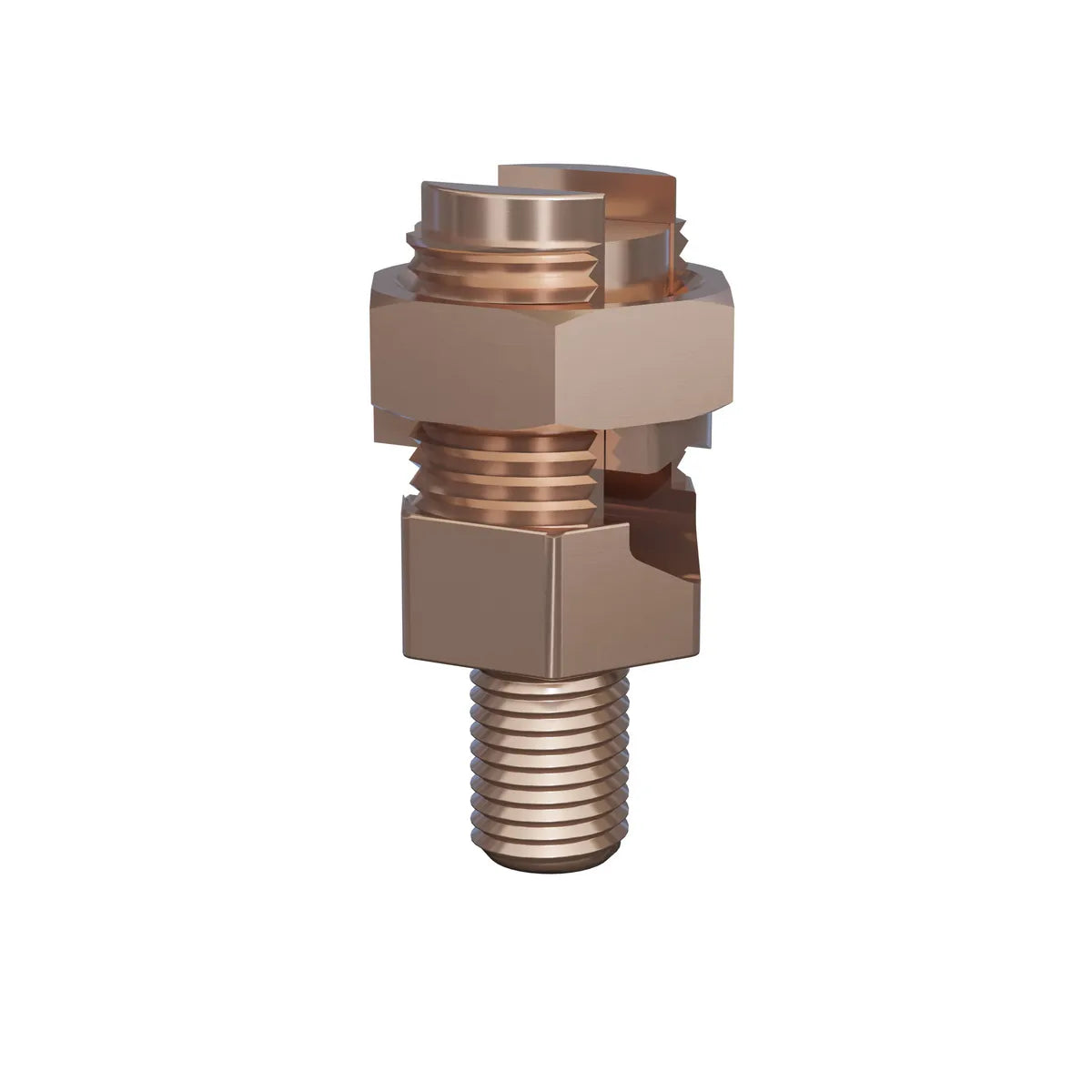

KC26 - Burndy - 1/2" Stud Mechanical Grounding Connector for Cable to Flat
Mechanical Grounding Connector, Cable to Flat, 2-2/0 AWG (Str) / 2-3/0 AWG (Sol), 1/2" Stud; cross base flat: .88"
- SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers
- Also used to tap 1 or 2 cables from bus bar
- 1-Wrench installation
GENERAL SPECIFICATIONS
| Application | For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
| Catalog Number | KC26 |
| EU RoHS Indicator | Yes |
| Installation Torque Recommended in-lb | 480 LBS/in |
| Material | Bronze, Leaded, Commercial |
| Plated | N |
| Plating Type | Unplated |
| Stud Installation Torque inch pounds | 480 LBS/in |
| Sub Brand | SERVIT POST |
| Trade Name | SERVIT POST™ |
| Type | KC and K2C Series |
| UPC | 781810255957 |
| UPC 14 Digit GTIN | 00781810255957 |
Dimensions
| Dimension - B Length fraction | 17/32 in |
| Dimension - Body Width inch | 0.88 in |
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - D inch | 0.75 in |
| Dimension - Height fraction | 1-3/8 |
| Dimension - Height mm | 35.1 mm |
|
Dimension - Length Overall inch |
2.12 in |
| Dimension - Nut Width inch | 1.04 in |
| Dimension - P inch | 0.44 in |
| Dimension - Threads per inch | 13 |
Conductor Related
| Conductor - Copper Solid Size | 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG |
| Conductor - Copper Solid Size Range | 2 AWG-3/0 AWG |
|
Conductor - Copper Str Size |
2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Copper Str Size Range | 2 AWG-2/0 AWG |
| Physical Attribute - Number of Conductors Accommodated Total | 1 |
Force Related
|
Installation Torque Recommended in-lb
|
480 LBS/in
|
|
Stud Installation Torque inch pounds
|
480 LBS/in.
|
Logistics
| Carton Quantity | 25 |
| Minimum Pack Quantity | 1 |
| Pallet Quantity | 7425 |
PRODUCT DATASHEET
