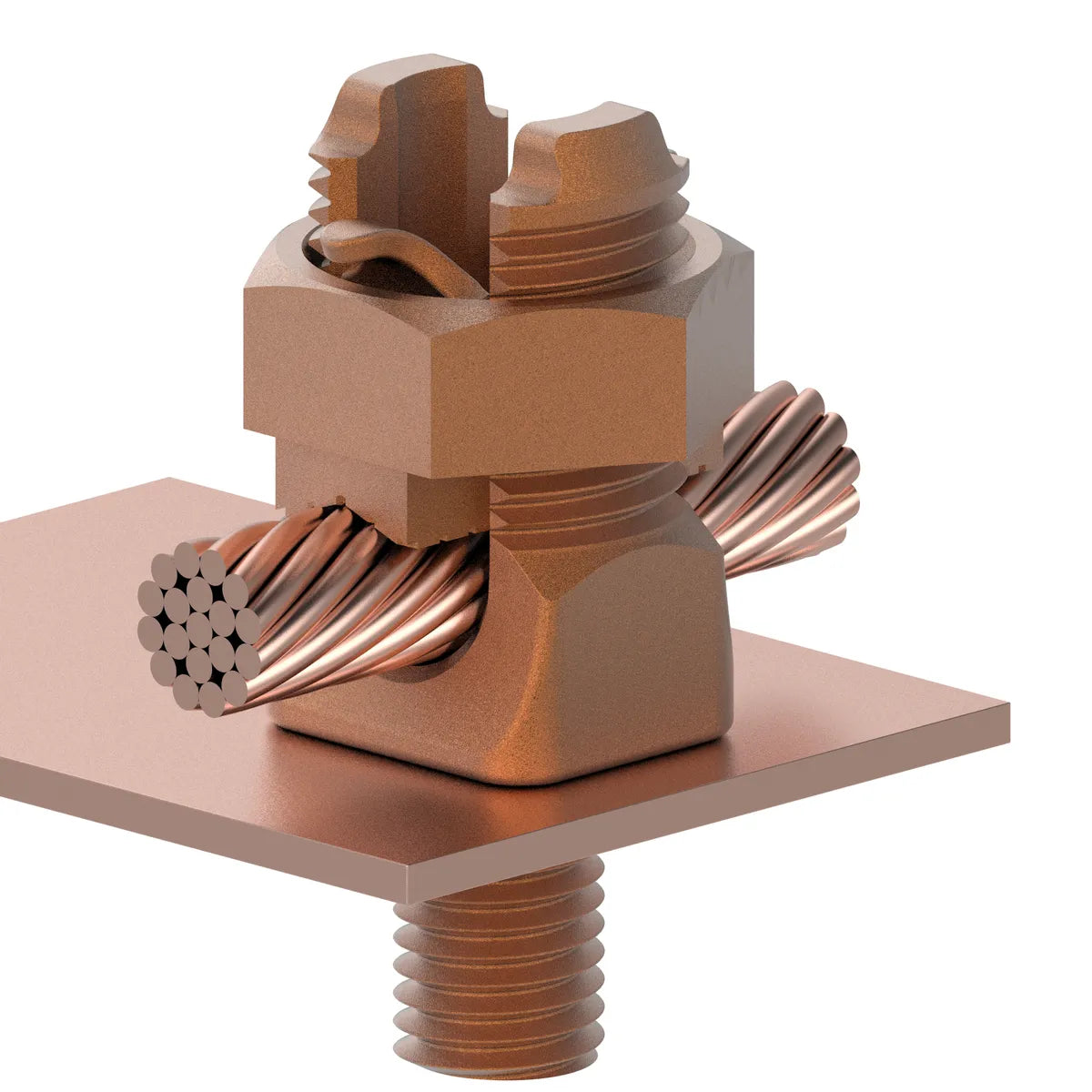

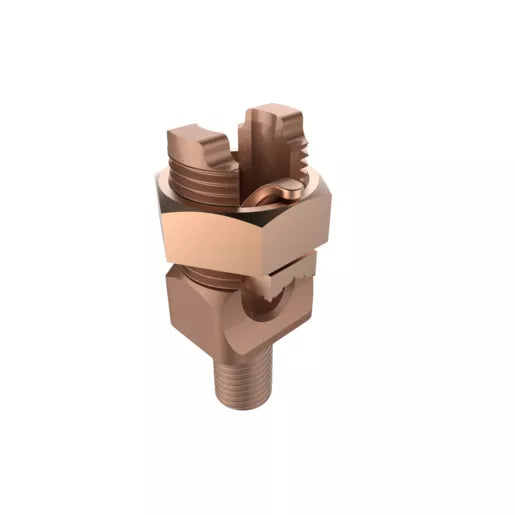

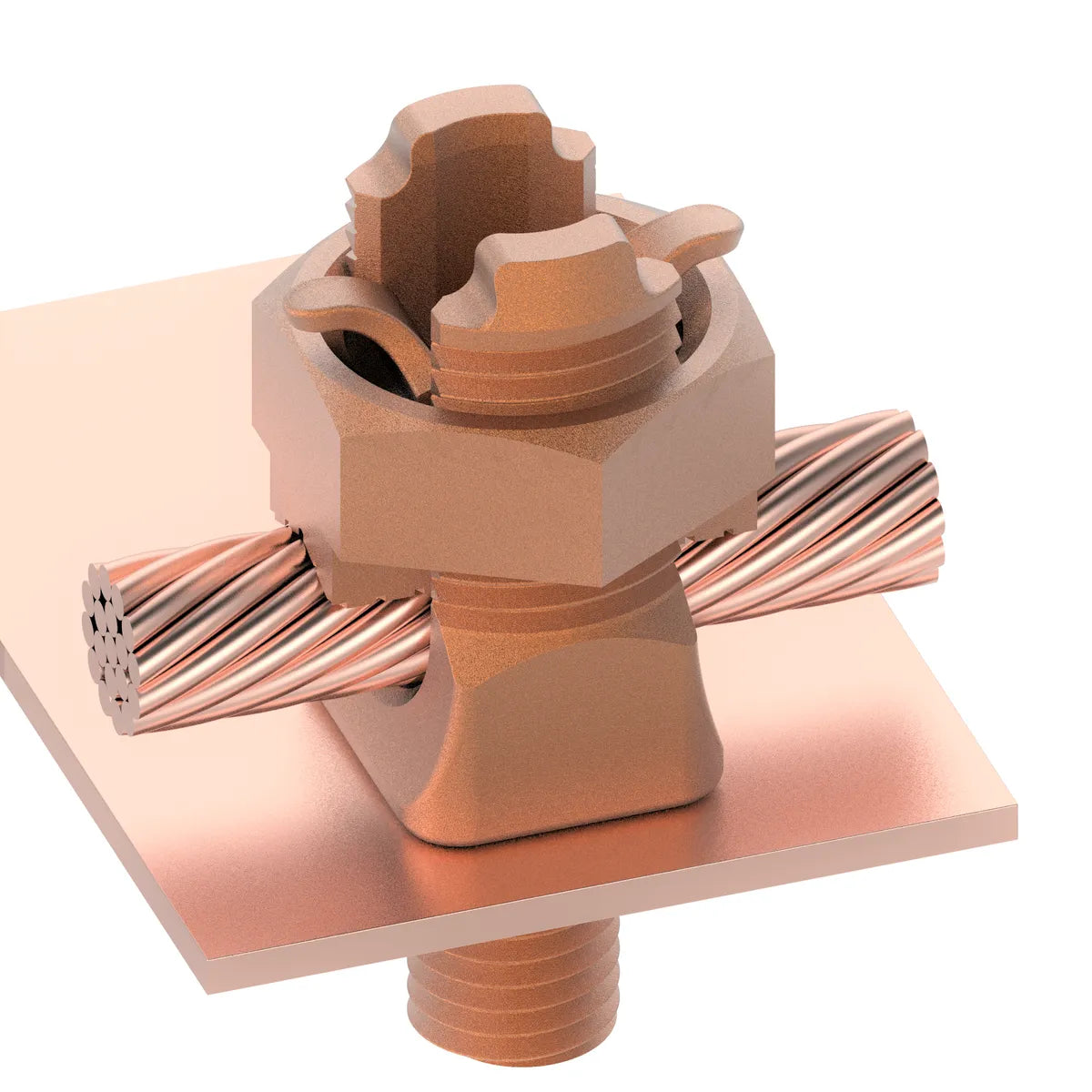

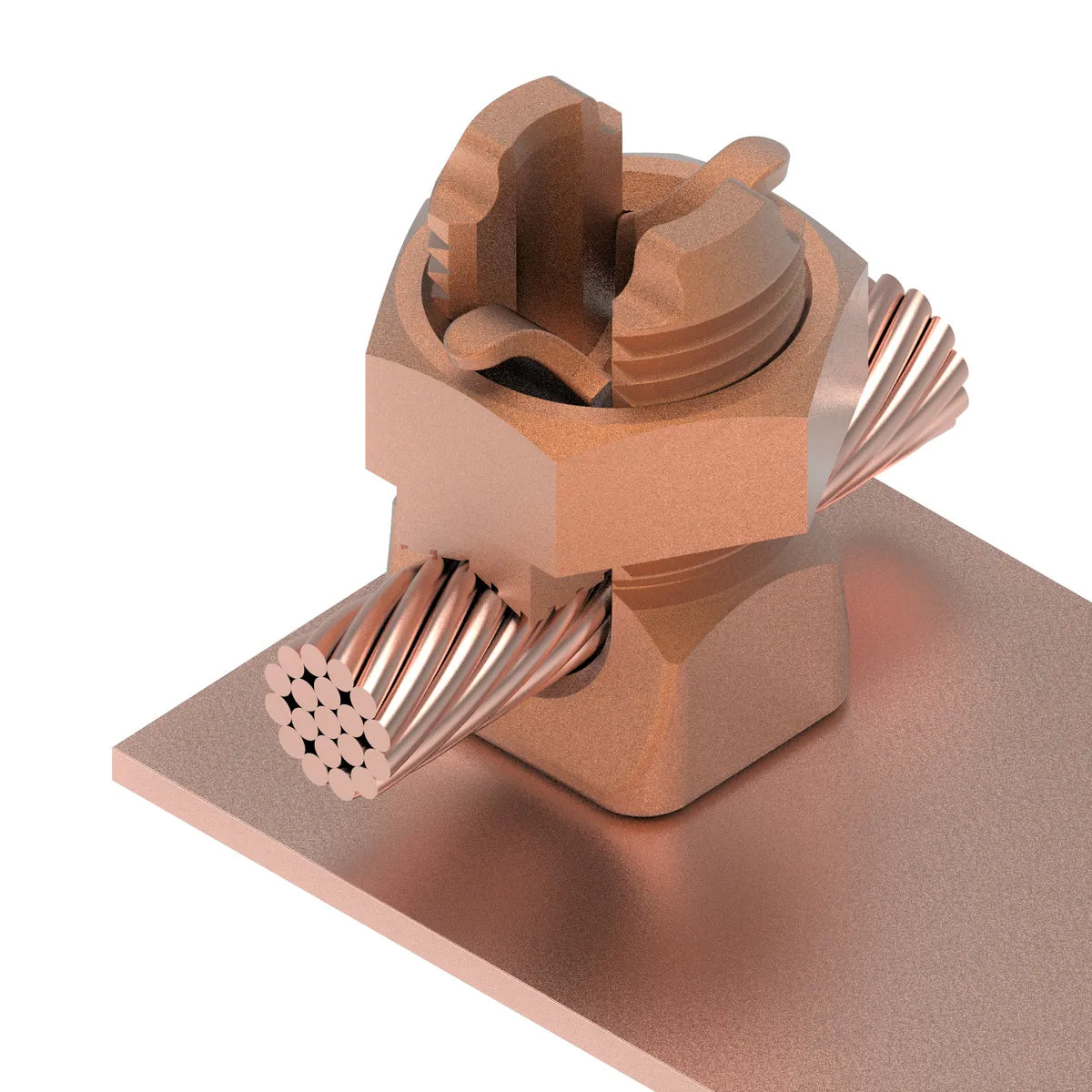

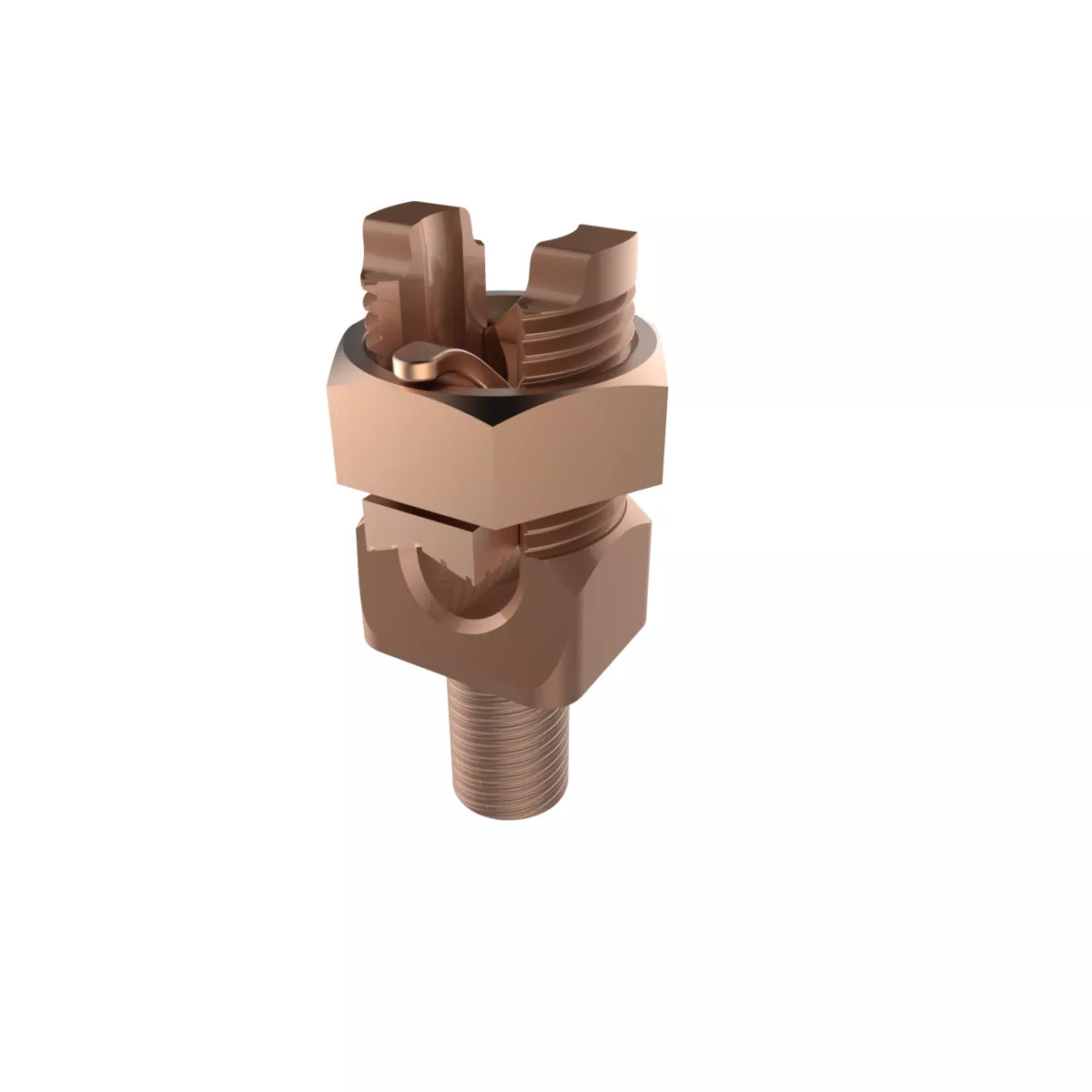

KC28B1 - Burndy - 5/8" Stud Mechanical Grounding Connector for Cable to Flat
Mechanical Grounding Connector, Cable to Flat, 1-4/0 AWG, 5/8" Stud, 1-3/4" Height, B=1-1/4"
- SERVIT POST(TM) mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers
- Also used to tap 1 or 2 cables from the bus bar
- 1-Wrench installation
GENERAL SPECIFICATIONS
| Application |
For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
| Catalog Number |
KC28B1 |
| EU RoHS Indicator |
Yes |
| Material |
Copper Alloy, Cast |
| Plated |
N |
| Plating Type |
Unplated |
| Stud Installation Torque inch pounds |
660 LBS/in |
| Sub Brand |
SERVIT POST |
| Trade Name |
SERVIT POST(TM) |
| Type |
KC and K2C Series |
| UPC |
781810256404 |
| UPC 14 Digit GTIN |
00781810256404 |
Dimensions
| Dimension - B Length fraction |
1-1/4 in |
| Dimension - Body Width inch |
1.18 in |
| Dimension - Bolt Size fraction |
5/8 |
| Dimension - D inch |
1.50 in |
| Dimension - Height fraction |
1-3/4 |
| Dimension - Height inch |
1.94 in |
| Dimension - Height mm |
49.3 mm |
| Dimension - L Length Overall mm |
88 mm |
| Dimension - L Length Overall inch |
3.45 in |
| Dimension - Nut Width inch |
1.35 in |
| Dimension - P inch |
0.55 in |
| Dimension - Threads per inch |
11 |
Conductor Related
| Conductor - Copper Solid Size |
1 AWG; 1/0 AWG; 2/0 AWG; 3/0 AWG; 4/0 AWG |
| Conductor - Copper Solid Size Range |
1 AWG-4/0 AWG |
| Conductor - Copper Str Size |
1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG |
| Conductor - Copper Str Size Range |
1 AWG-4/0 AWG |
| Physical Attribute - Number of Conductors Accommodated Total |
1 |
Force Related
| Stud Installation Torque inch pounds |
660 LBS/in |
Logistics
| Carton Quantity |
25 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
2700 |
PRODUCT DATASHEET
KC28B1
