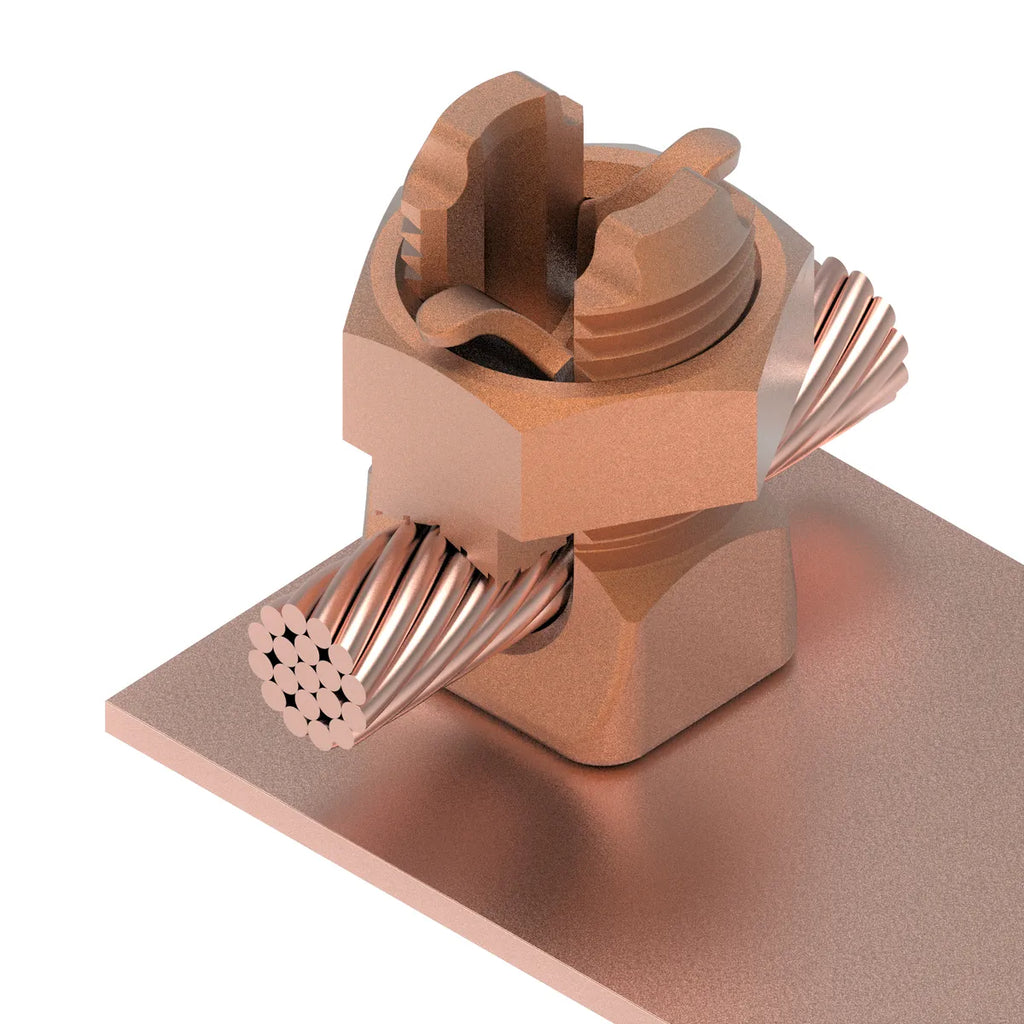

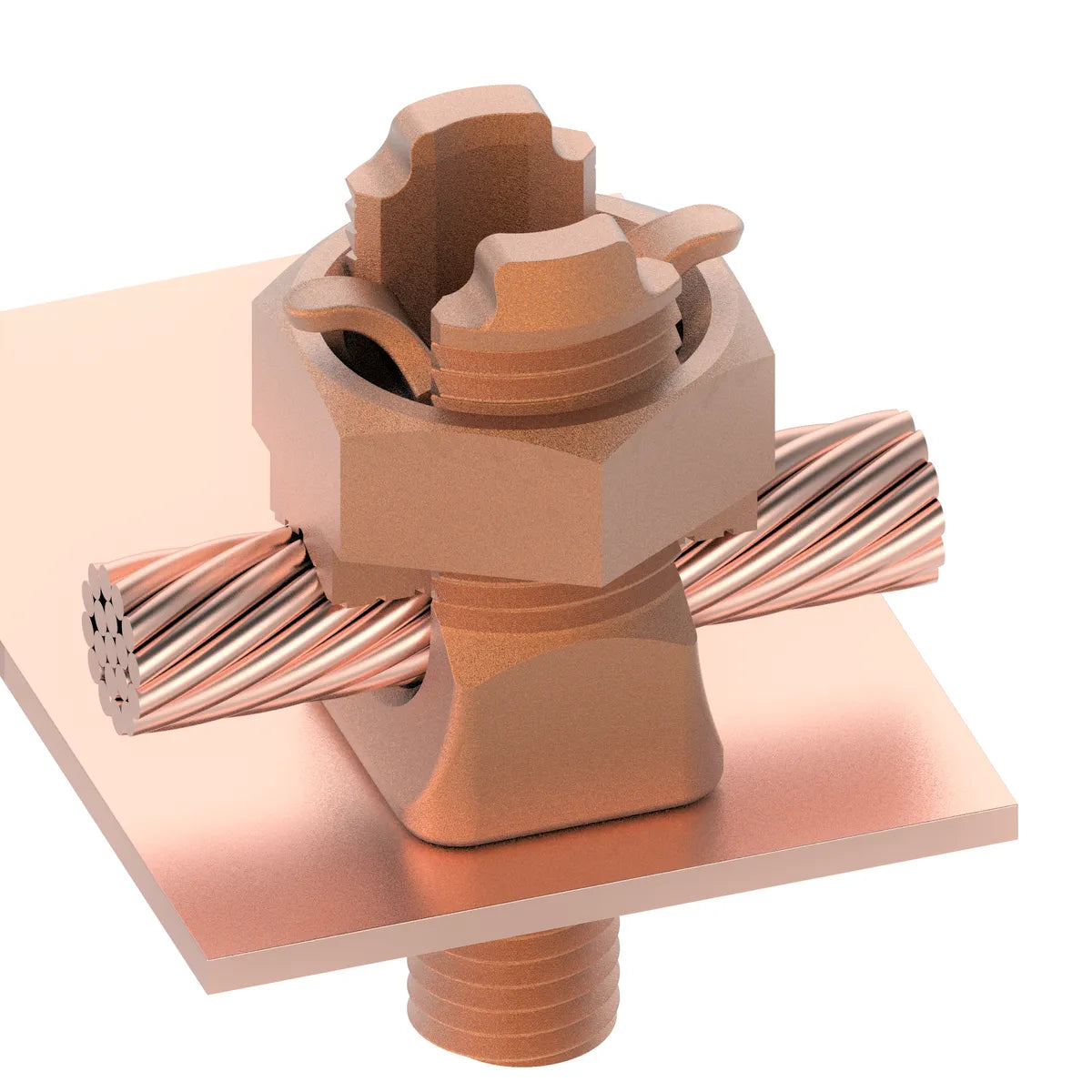

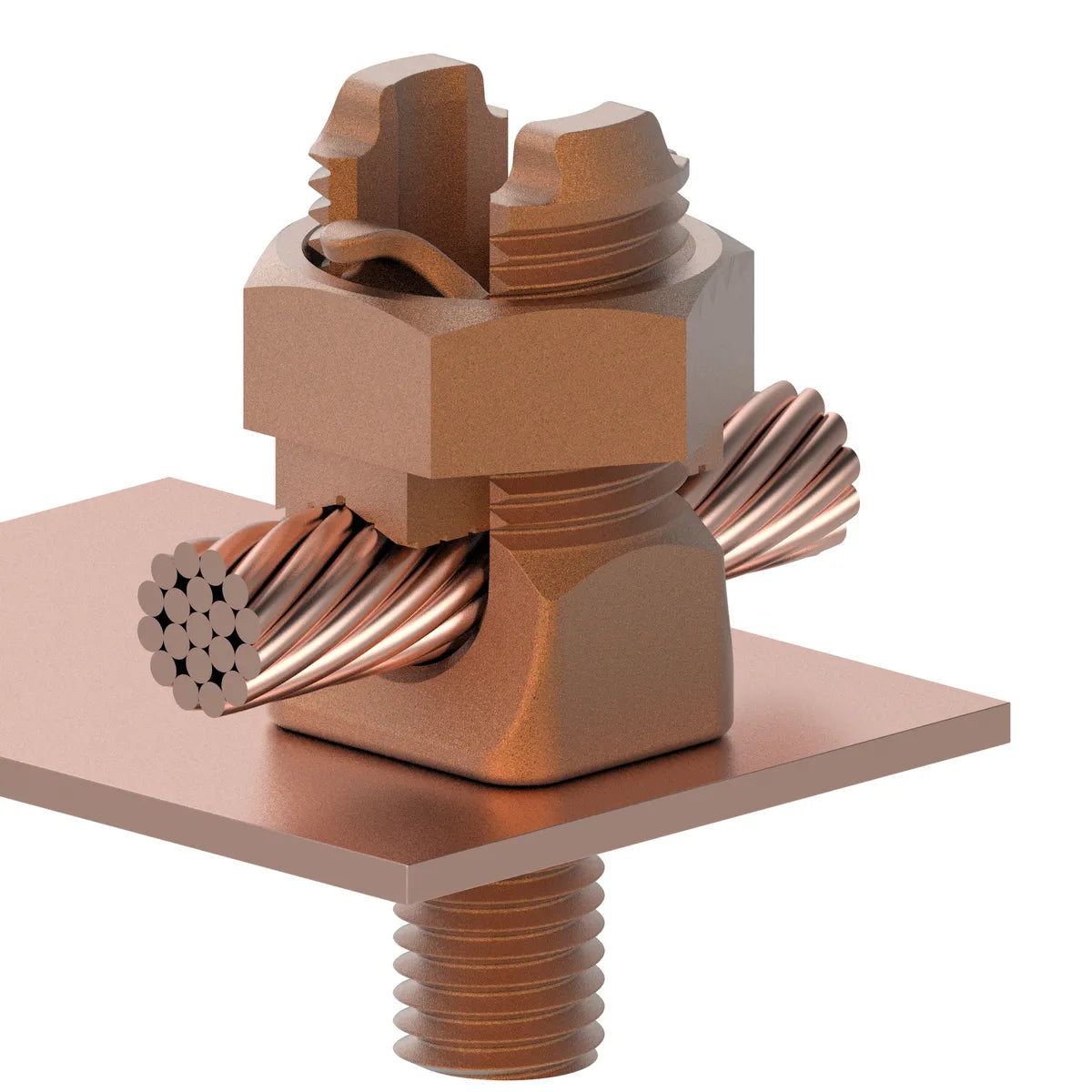

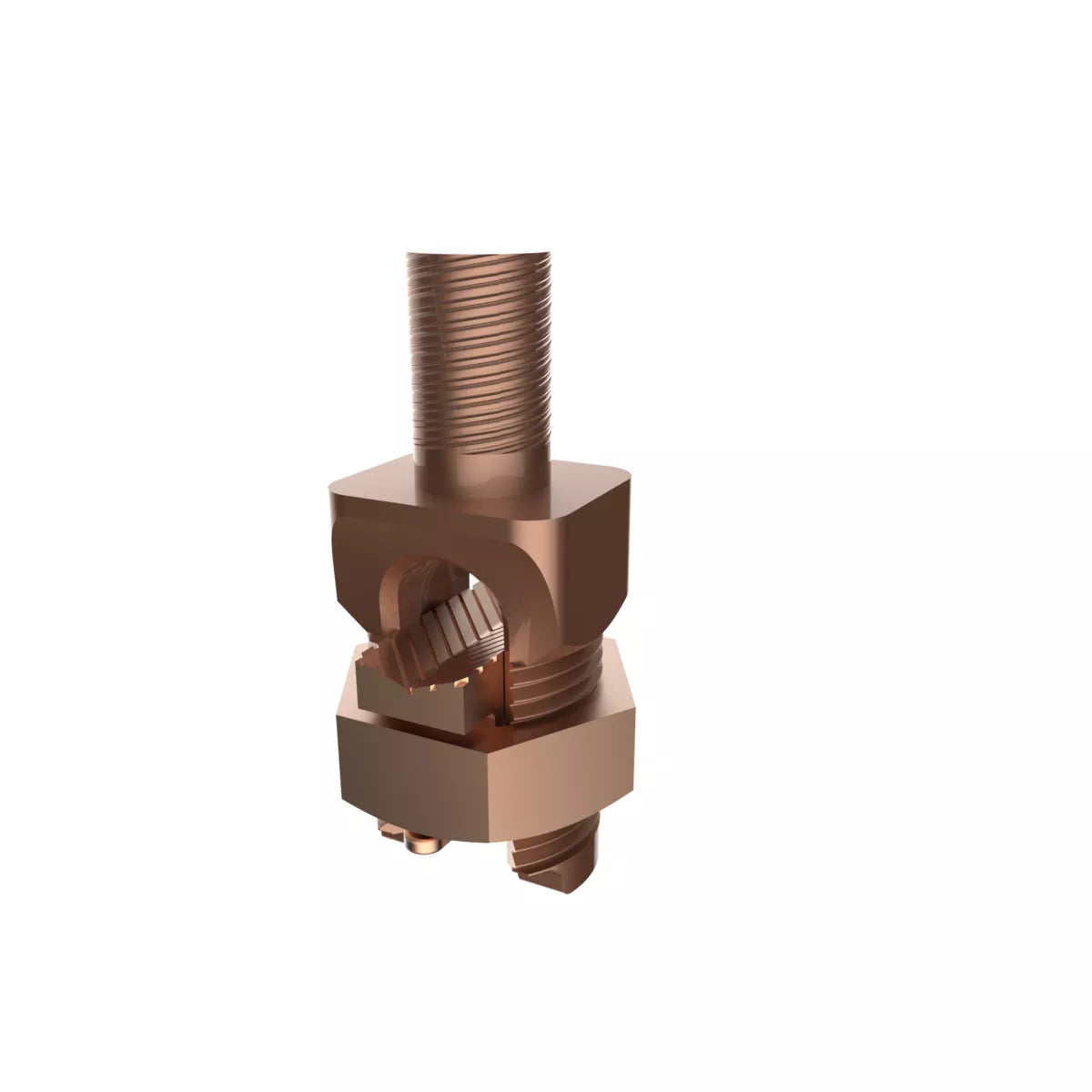

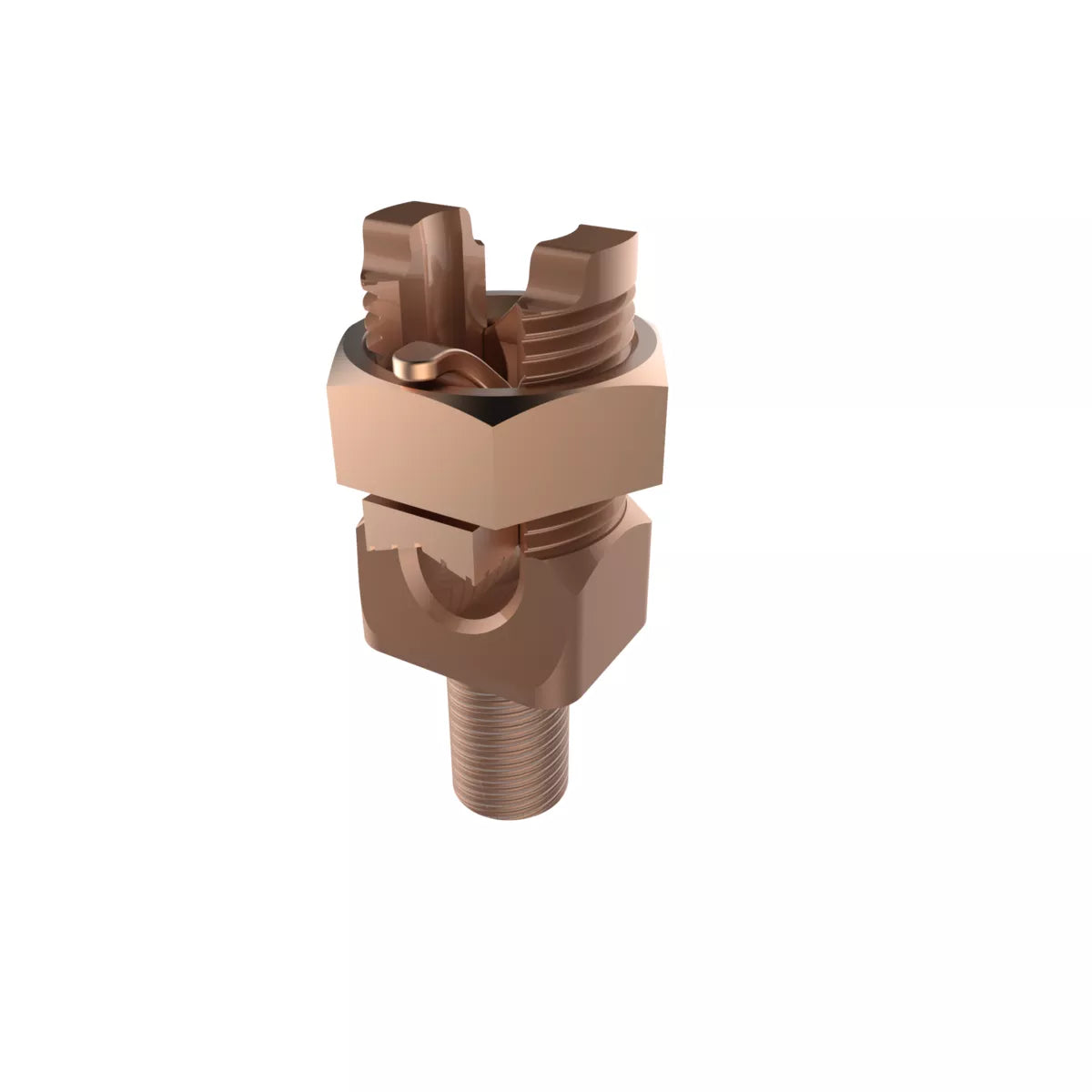

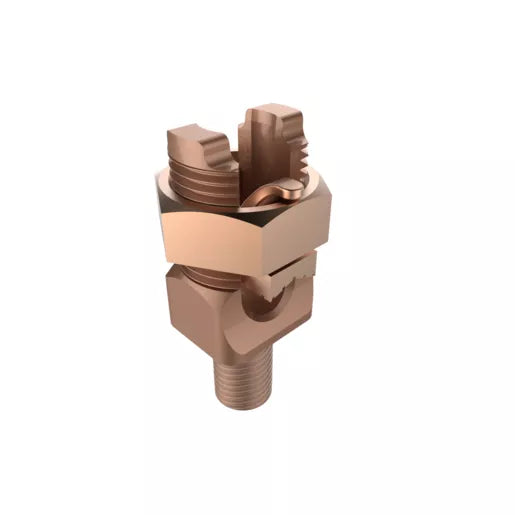

KC31 - Burndy - 5/8" Stud Mechanical Grounding Connector for Cable to Flat
Mechanical Grounding Connector, Cable to Flat, 1 AWG - 350 AWG (Str), 5/8" Stud.
- SERVIT POST™ mechanical connector used to ground 1 or 2 cables to steel structures, fence posts, and transformers
- Also used to tap 1 or 2 cables from the bus bar
- 1-Wrench installation
GENERAL SPECIFICATIONS
| Application |
For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial |
| Catalog Number |
KC31 |
| EU RoHS Indicator |
Yes |
| Material |
Copper Alloy, Cast |
| Plated |
N |
| Plating Type |
Unplated |
| Stud Installation Torque inch pounds |
660 LBS/in |
| Sub Brand |
SERVIT POST |
| Trade Name |
SERVIT POST™ |
| Type |
KC and K2C Series |
| UPC |
781810256503 |
| UPC 14 Digit GTIN |
00781810256503
|
Dimensions
| Dimension - B Length fraction |
3/4 in |
| Dimension - Body Width inch |
1.43 in |
| Dimension - Bolt Size fraction |
5/8 |
| Dimension - D inch |
1.00 in |
| Dimension - Height fraction |
2-1/4 |
| Dimension - Height mm |
55.6 mm |
| Dimension - Length Overall inch |
3.19 in |
| Dimension - Nut Width inch |
1.69 in |
| Dimension - P inch |
0.70 in |
| Dimension - Threads per inch |
11 |
Conductor Related
| Conductor - Copper Str Size |
1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil |
| Conductor - Copper Solid Size Range |
1 AWG-350 kcmil |
| Physical Attribute - Number of Conductors Accommodated Total |
1 |
Force Related
Stud Installation Torque inch pounds
|
660 LBS/in |
Logistics
| Carton Quantity |
12 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
2160 |
PRODUCT DATASHEET
KC31
