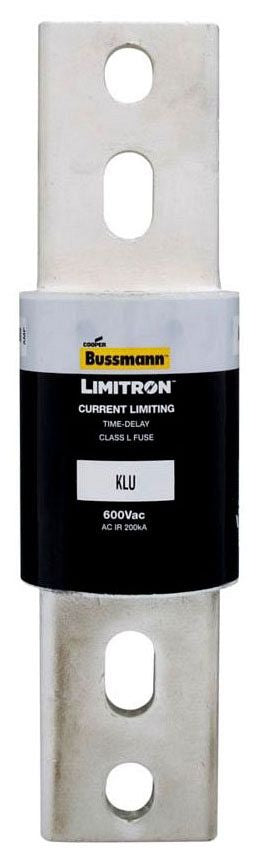

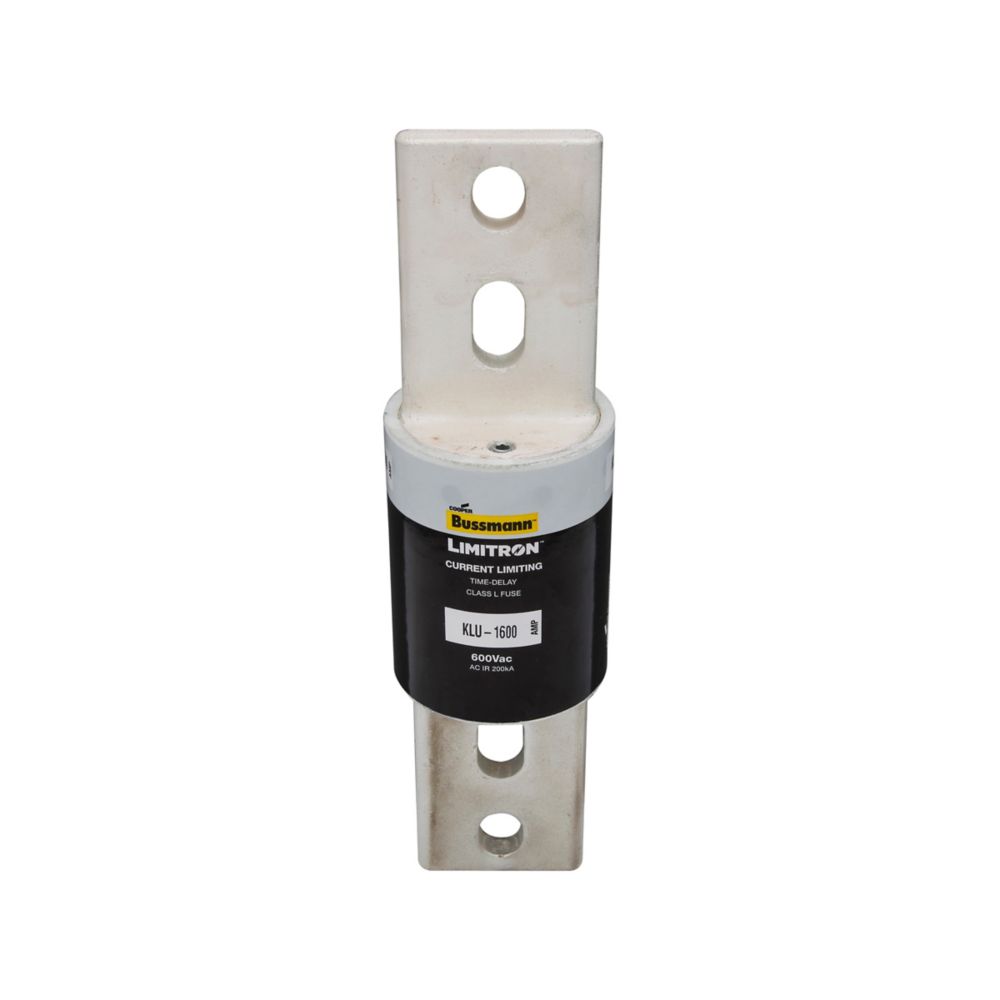

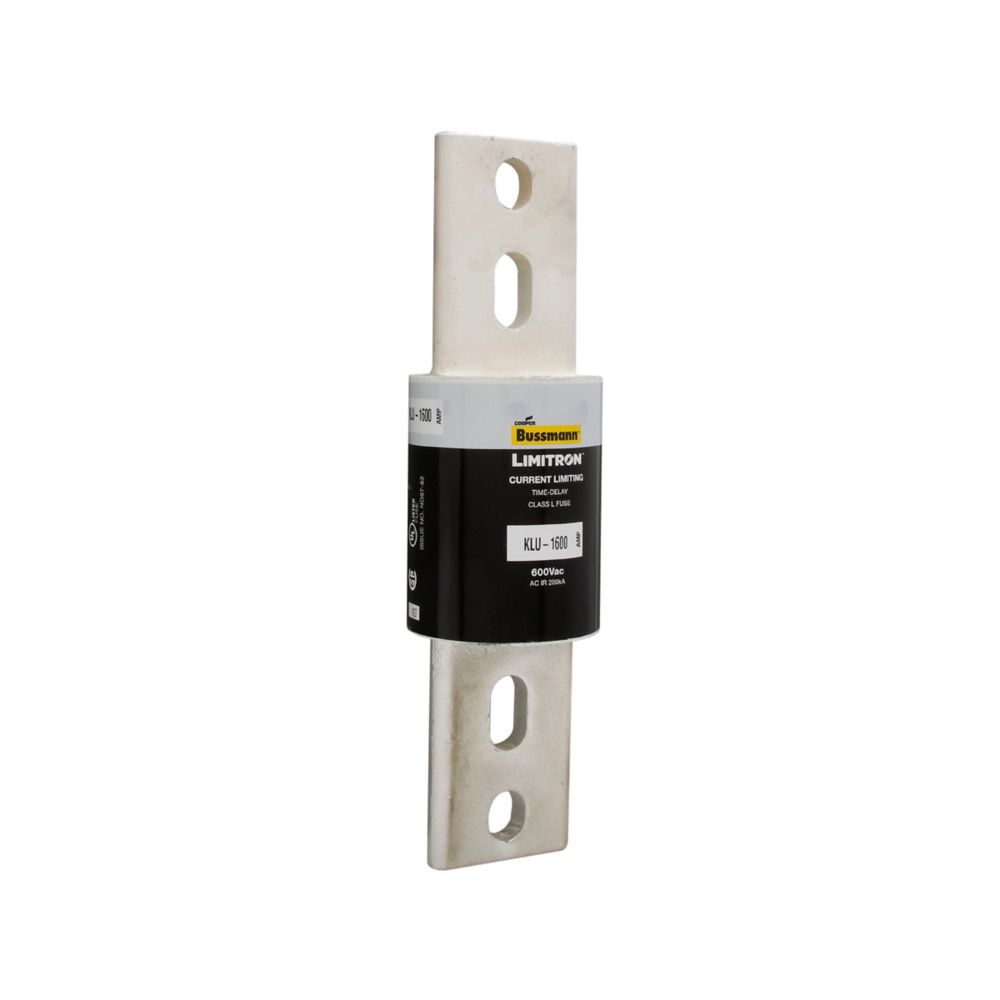

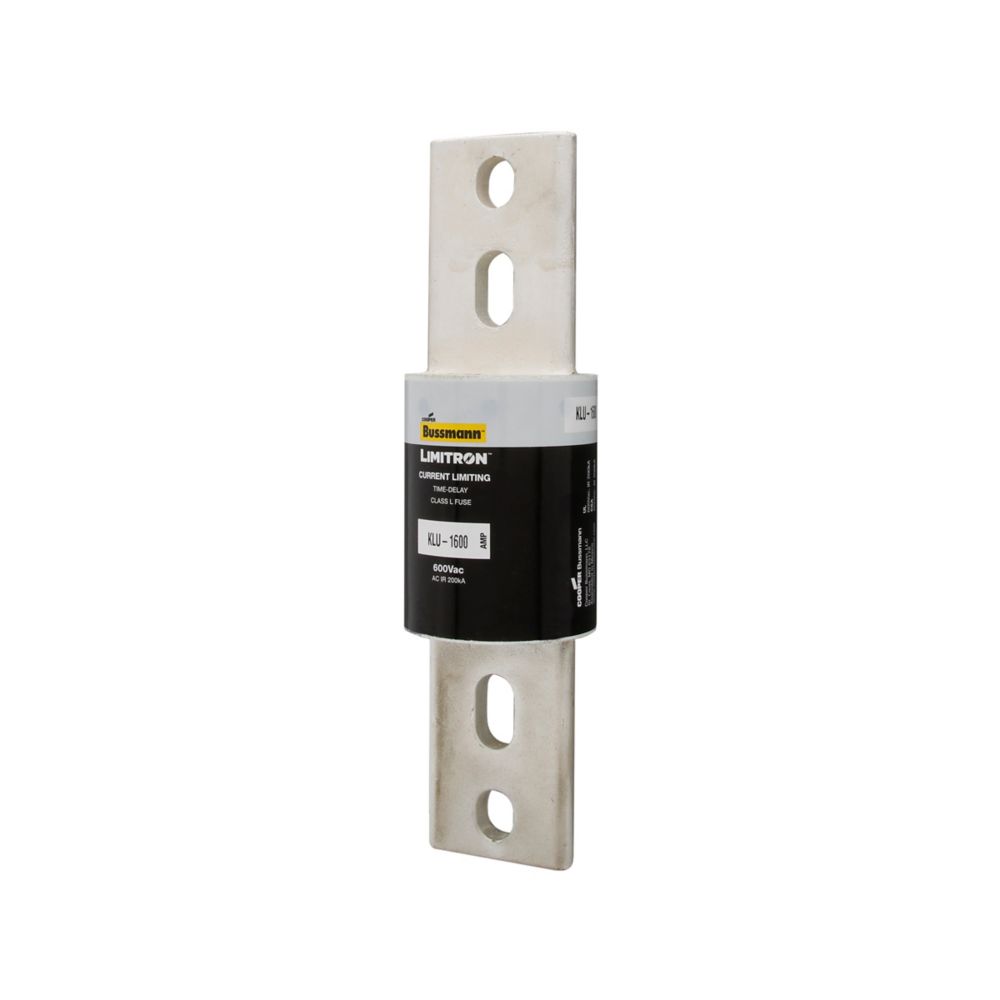

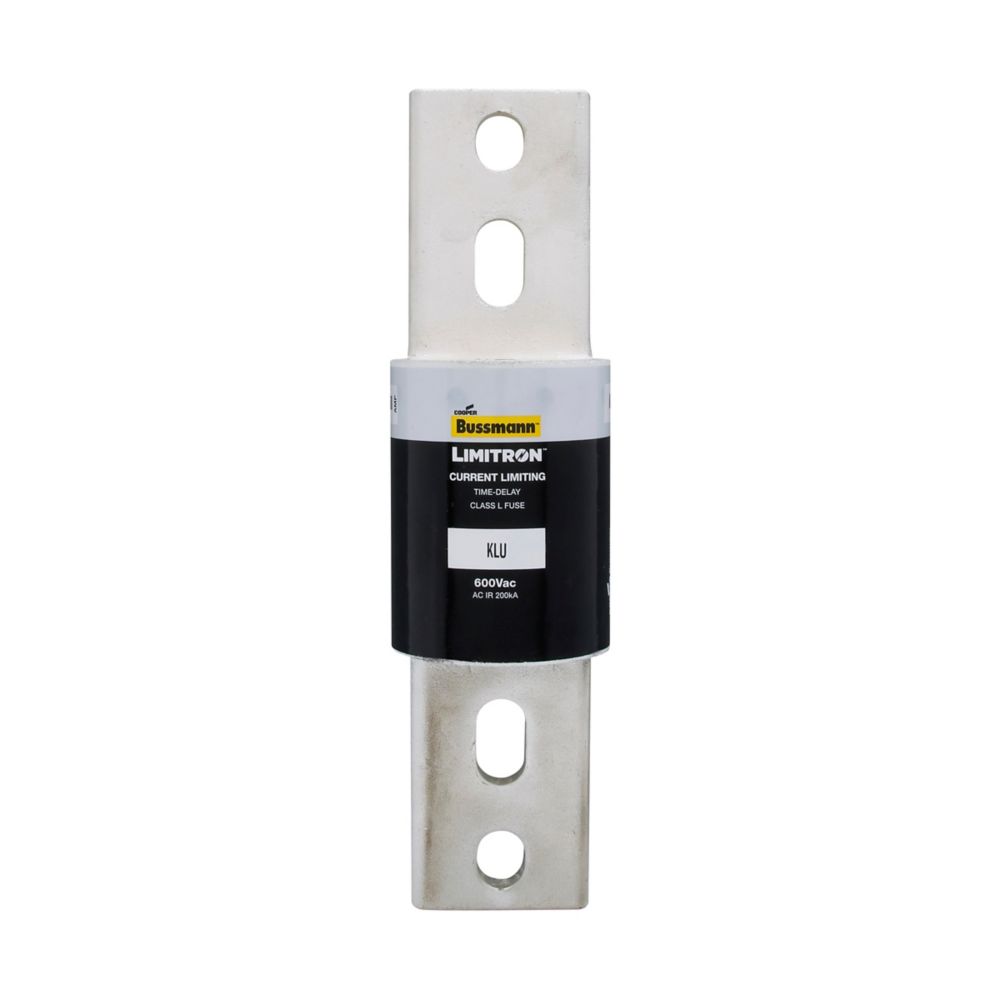

KLU-1600 - Eaton Bussmann Series - Eaton Bussmann series KLU fuse
| SKU | KLU-1600 |
| descriptionLabel | Eaton Bussmann Series Class L fuse, KLU, fast-acting, current limiting fuse, 1600 A, bladable fuse, interrupting rating of 200 kA, 600 Vac |
| Product Name | Eaton Bussmann series KLU fuse |
| Catalog Number | KLU-1600 |
| UPC | 051712135092 |
| Product Length/Depth | 3 in |
| Product Height | 1.75 in |
| Product Width | 3 in |
| Product Weight | 5.95 lb |
| Warranty | Not Applicable |
| Compliances | CE Marked RoHS Compliant |
| Product Type | Fuse |
| Amperage Rating | 1600 A |
| Interrupt rating | 200 kAIC at 600 Vac |
| Response time | 5 sec at 500% |
| Voltage rating | 600 V |
| Packaging type | Standard |
| Class | Class L |
| Connection | Bolted blade end x bolted blade end |
| Fuse indicator | Non-indicating |
| Mounting method | Bolt |
| Quantity | 1 |
| Special features | Indicating |
