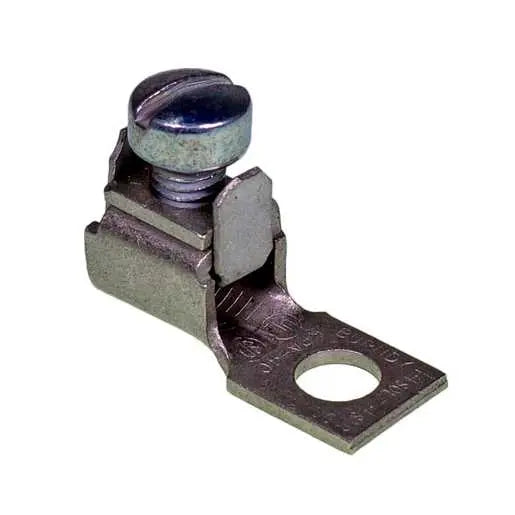

KPA4C - Burndy - 1/4" Stud Tin Plated Copper Terminal
Copper Terminal, 1 Hole, 14 AWG (Sol)-4 AWG (Str), 1/4" Stud, 1 Screw, Tin Plated.
- High copper alloy terminal (tin-plated) for joining a wide range of cables to equipment pads or terminal blocks
- Tongue and body are a 1-piece design, the pressure bar equalizes pressure over the conductor and prevents the screw from cutting into the cable
GENERAL SPECIFICATIONS
| Application |
For Joining A Wide Range Of Cable To Equipment Pads Or Terminal Blocks, Especially Good In Light Industrial Applications |
| Catalog Number |
KPA4C |
| Connector Type |
Pressure Bar |
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
35 LBS/in |
| Material |
Copper |
| Physical Attribute - Number of Holes |
1 |
| Physical Attribute - Number of Screws |
1 |
| Physical Attribute - Screw Type |
Slot |
| Plated |
Y |
| Plating Type |
Tin |
| Sub Brand |
SCRULUG |
| Trade Name |
SCRULUG™ |
| Type |
Bolted Lugs & Terminals |
| UPC |
781810351352 |
| UPC 14 Digit GTIN |
00781810351352
|
Dimensions
| Dimension - Bolt Size fraction |
1/4 |
| Dimension - D inch |
0.59 in |
| Dimension - Height fraction |
47/50 in |
| Dimension - Height inch |
0.94 in |
| Dimension - Height mm |
23.9 mm |
| Dimension - Hole Size inch |
0.27 in |
| Dimension - Hole Size mm |
7 mm |
| Dimension - L Length Overall mm |
31 mm |
| Dimension - Length Overall inch |
1.22 in |
| Dimension - N inch |
0.30 in |
| Dimension - Pad Width inch |
0.50 in |
| Dimension - Stud Size inch |
1/4 |
Conductor Related
| Conductor - Copper Solid Size |
14 AWG;13 AWG;12 AWG;11 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Conductor - Copper Solid Size Range |
14 AWG-4 AWG |
| Conductor - Copper Str Navy Size |
23 (7) Navy;30 (19) Navy;40 (19) Navy |
| Conductor - Copper Str Navy Size Range |
23 (7) Navy-40 (19) Navy |
| Conductor - Copper Str Size |
14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG |
| Conductor - Copper Str Size Range |
14 AWG-4 AWG |
| Conductor Size |
14-4 AWG |
| Conductor Type |
- CU C Str-Size
- CU C Solid-Size
|
Force Related
| Installation Torque Recommended in-lb
|
35 LBS/in |
Configuration
|
|
Pressure Bar |
| Physical Attribute - Number of Holes |
1 |
| Physical Attribute - Number of Screws |
1 |
Logistics
| Carton Quantity |
100 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
59400 |
PRODUCT DATASHEET
KPA4C
