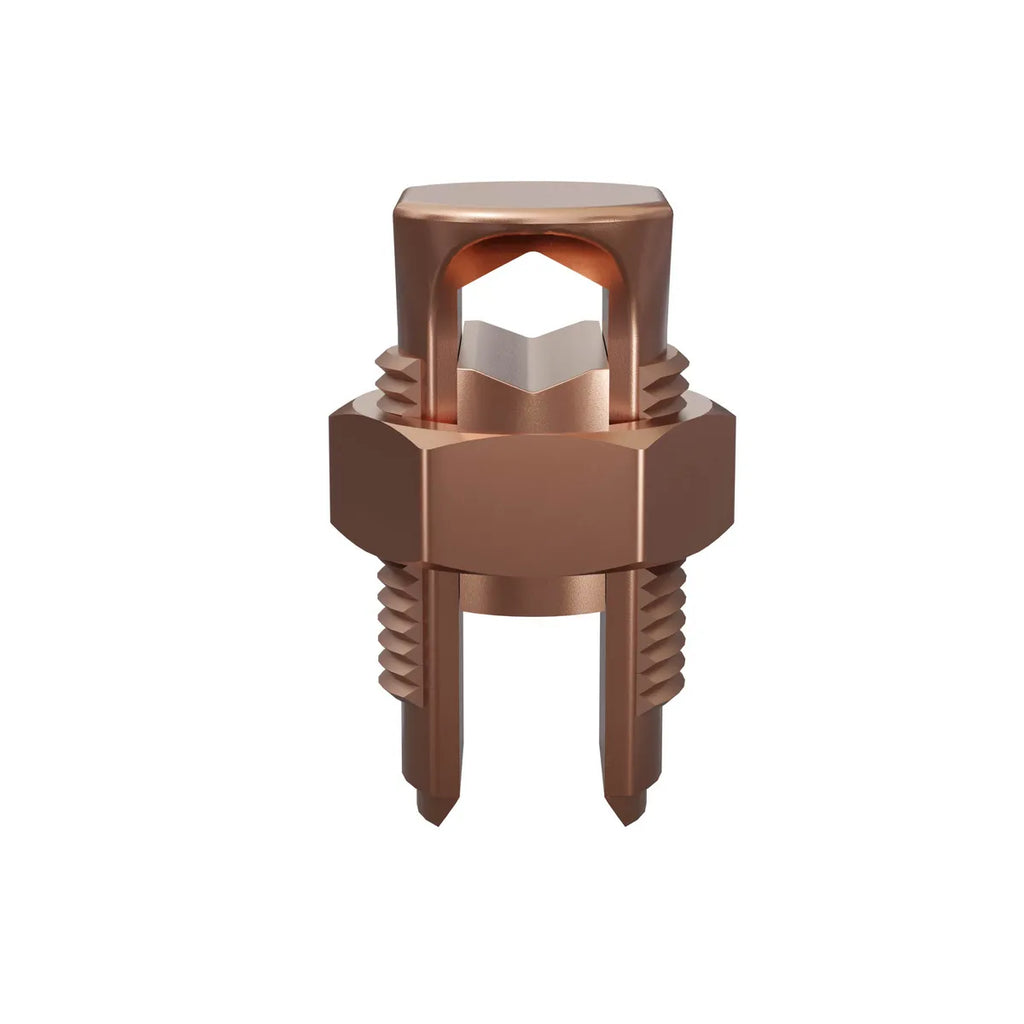

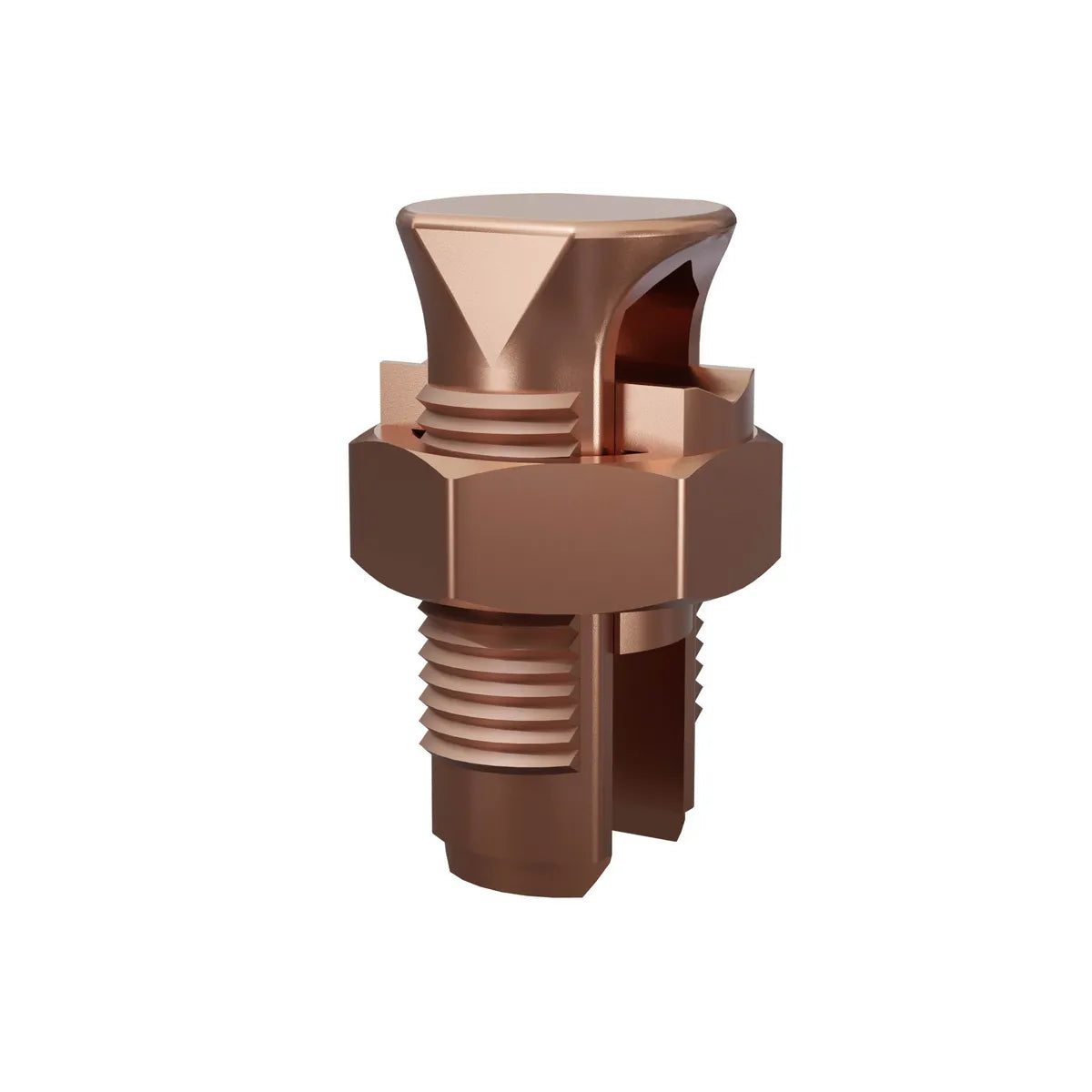

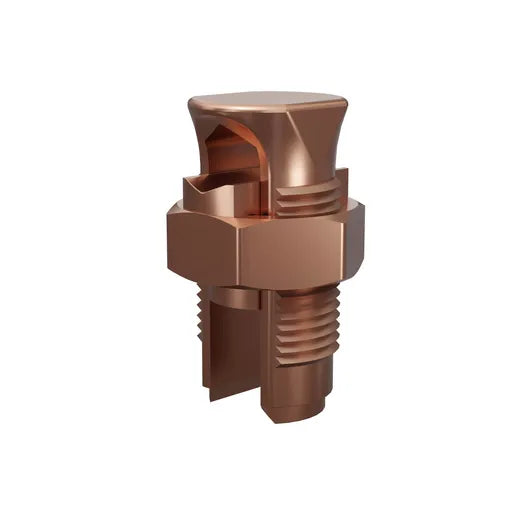

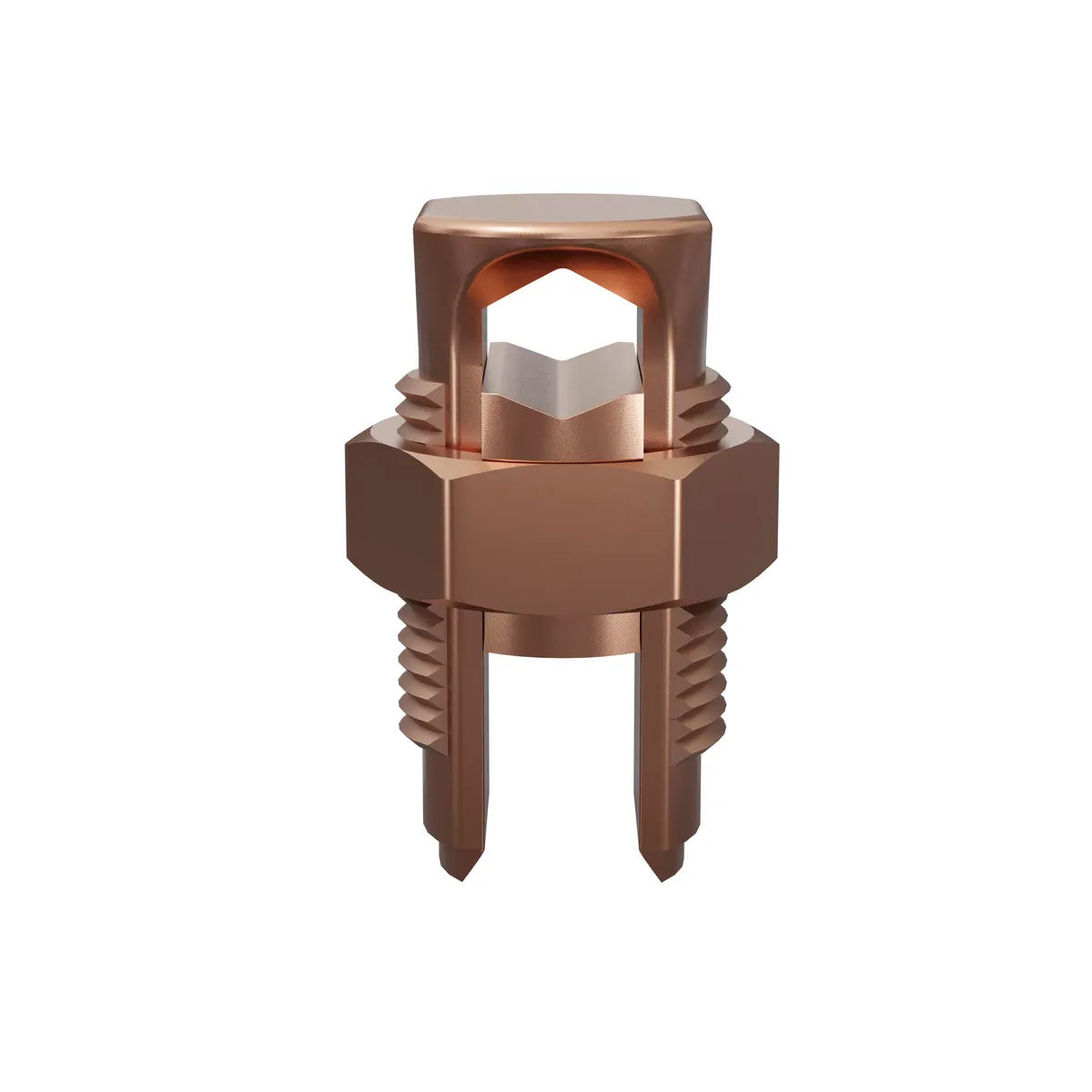

KS23 - Burndy - Run/Tap: #6 AWG-#2 AWG Str Split Bolt Connector
Copper Split Bolt, Cu: 6 AWG-2 AWG (Str) (Run & Tap).
- UL467 Listed for Direct Burial applications in earth or concrete
- Compact, high-strength, copper alloy with free-running threads and easy-to-grip wrench flats
- Highly resistant to cracking and corrosion
GENERAL SPECIFICATIONS
| Application |
For Direct Burial Applications In Earth Or Concrete, Copper |
| Catalog Number |
KS23 |
|
|
|
| EU RoHS Indicator |
Yes |
| Installation Torque Recommended in-lb |
275 in |
| Material |
Copper |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
SERVIT |
| Trade Name |
SERVIT® |
| Type |
KS, Compact |
| UPC |
781810012758 |
| UPC 14 Digit GTIN |
00781810012758
|
Dimensions
| Dimension - B Length fraction |
18/25 in |
| Dimension - B Length inch |
.72 in |
| Dimension - Cross Flats inch |
0.82 in |
| Dimension - L Length Overall mm |
39 mm |
| Dimension - Length Overall inch |
1.54 |
| Dimension - Width fraction |
31/50 in |
| Dimension - Width inch |
0.62 in |
| Dimension - Width mm |
16 mm |
| Width |
0.62 in |
Conductor Related
| Conductor - Copper Solid Run |
1 AWG |
| Conductor - Copper Solid Run Range |
6 AWG-1 AWG |
| Conductor - Copper Solid Tap |
1 AWG |
| Conductor - Copper Solid Tap Range |
14 AWG-1 AWG |
| Conductor - Copper Str Run |
6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG |
| Conductor - Copper Str Run Range |
6 STR - 2 STR |
| Conductor - Copper Str Tap |
14 AWG;12 AWG;10 AWG;8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG |
| Conductor - Copper Str Tap Range |
6 STR - 2 STR |
| Conductor - CopperWeld Solid Run |
#1 |
| Conductor - CopperWeld Solid Run Range |
#1 |
| Conductor - CopperWeld Solid Tap |
#1 |
| Conductor - CopperWeld Solid Tap Range |
#1 |
| Conductor - CopperWeld Str Run |
3 #7;3A;5D |
| Conductor - CopperWeld Str Run Range |
3 #7-5D |
| Conductor - CopperWeld Str Tap |
3 #7;3A;5D |
| Conductor - CopperWeld Str Tap Range |
3 #7-5D |
| Conductor Type |
- CU C Solid-Run
- CU C Str-Run
- CU Weld C Solid-Run
- CU Weld C Str-Run
- CU C Str-Tap
- CU Weld C Solid-Tap
- CU Weld C Str-Tap
- CU C Solid-Tap
|
Force Related
| Installation Torque Recommended in-lb |
275 in |
Configuration
| Connector Type
|
Split Bolt |
Logistics
| Carton Quantity |
100 |
| Minimum Pack Quantity |
100 |
| Pallet Quantity |
44000 |
PRODUCT DATASHEET
KS23
