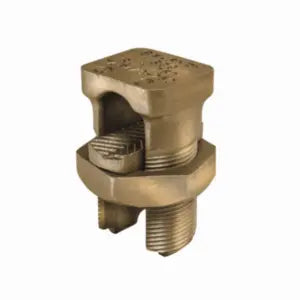

KS28 - Burndy - Run/Tap: #1-4/0 AWG Split Bolt Connector
Copper Split Bolt, Cu: 1-4/0 AWG (Run & Tap).
- UL467 Listed for Direct Burial applications in earth or concrete
- Compact, high-strength, copper alloy with free-running threads and easy-to-grip wrench flats
- Highly resistant to cracking and corrosion
GENERAL SPECIFICATIONS
| Catalog Number |
KS28 |
| Connector Type |
Split Bolt |
| Installation Torque Recommended in-lb |
650 in |
| Material |
Copper |
| Plated |
N |
| Plating Type |
UnPlated |
| Trade Name |
SERVIT(R) |
| UPC |
781810422007 |
| UPC 14 Digit GTIN |
00781810422007
|
Dimensions
| Dimension - L Length Overall mm |
53 mm |
| Dimension - Length Overall inch |
2.46 |
| Dimension - Width inch |
1.17 in |
| Dimension - Width mm |
30 mm |
| Dimensions |
2.46 in x 1.18 in x 1.35 in |
| Height |
1.35 in |
| Length |
2.46 in |
| Width |
1.18 in |
Conductor Related
| Conductor - Copper Solid Run |
1 AWG; 1/0 AWG; 2/0 AWG; 3/0 AWG; 4/0 AWG |
| Conductor - Copper Solid Run Range |
1 AWG - 4/0 AWG |
| Conductor - Copper Solid Tap |
1 AWG; 1/0 AWG; 2/0 AWG; 3/0 AWG; 4/0 AWG |
| Conductor - Copper Solid Tap Range |
1 AWG - 4/0 AWG |
| Conductor - Copper Str Run |
1 AWG; 1/0; 2/0 AWG; 3/0 AWG; 4/0 AWG |
| Conductor - Copper Str Run Range |
1 STR - 4/0 STR |
| Conductor - Copper Str Tap |
1 AWG; 1/0; 2/0 AWG; 3/0 AWG; 4/0 AWG |
| Conductor - Copper Str Tap Range |
1 STR - 4/0 STR |
| Conductor Type |
- CU C Solid-Run
- CU C Str-Run
- CU Weld C Solid-Run
- CU Weld C Str-Run
- CU C Str-Tap
- CU Weld C Solid-Tap
- CU Weld C Str-Tap
- CU C Solid-Tap
|
Force Related
| Installation Torque Recommended |
650 in-lb |
Configuration
| Connector Type |
Split Bolt |
Logistics
| Carton Quantity |
25 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
3600 |
PRODUCT DATASHEET
KS28
