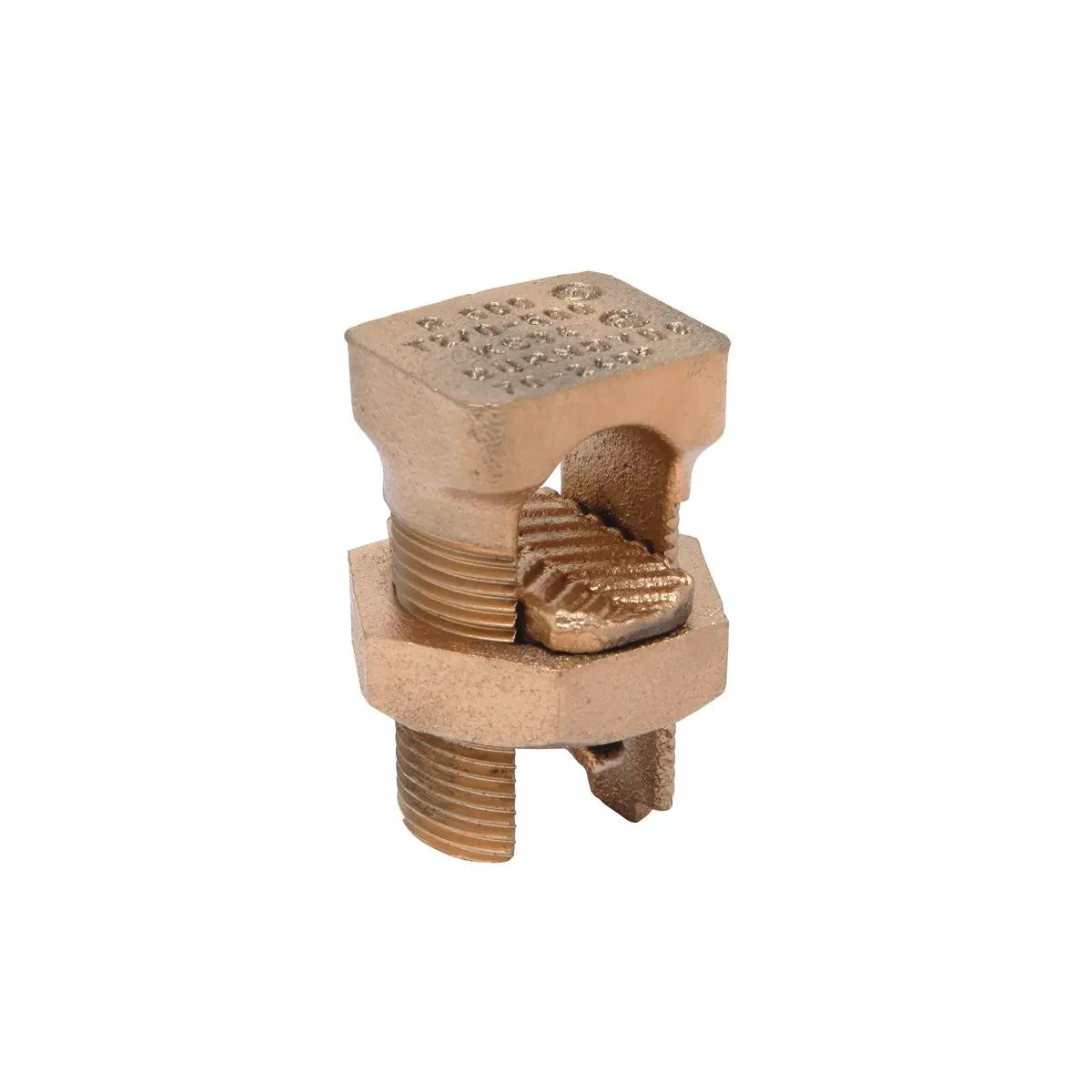

KS34 - Burndy - Run/Tap: 2/0 AWG Str-500 kcmil Split Bolt Connector
Copper Split Bolt, Cu: 2/0 AWG (Str)-500 kcmil (Run & Tap).
- UL467 Listed for Direct Burial applications in earth or concrete
- Compact, high-strength, copper alloy with free-running threads and easy-to-grip wrench flats
- Highly resistant to cracking and corrosion
GENERAL SPECIFICATIONS
| Application |
For Direct Burial Cables |
| Catalog Number |
KS34 |
| EU RoHS Indicator |
Yes |
| Material |
Copper |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
SERVIT |
| Type |
KS |
| UPC |
781810011256 |
Dimensions
| Dimension - B Length fraction |
1-31/100 in |
| Dimension - B Length inch |
1.31 in |
| Dimension - Cross Flats inch |
1.82 in |
| Dimension - L Length Overall mm |
71 mm |
| Dimension - Length Overall inch |
2.79 in |
| Dimension - Width fraction |
1-12/25 in |
| Dimension - Width inch |
1.48 in |
| Dimension - Width mm |
38 mm |
Conductor Related
| Conductor - Copper Solid Run |
2/0 AWG; 3/0 AWG; 4/0 AWG; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil |
| Copper Solid Run Range |
2/0 AWG - 500 kcmil |
| Conductor - Copper Solid Tap |
2/0 AWG; 3/0 AWG; 4/0 AWG; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil |
| Copper Solid Tap Range |
2/0 AWG - 500 kcmil |
| Conductor - Copper Str Run |
2/0 AWG; 3/0 AWG; 4/0 AWG; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil |
| Copper Str Run Range |
2/0 AWG - 500 kcmil |
| Conductor - Copper Str Tap |
2/0 AWG; 3/0 AWG; 4/0 AWG; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 450 kcmil; 500 kcmil |
| Copper Str Tap Range |
2/0 AWG - 500 kcmil |
| CopperWeld Str Run |
19 #6 |
| CopperWeld Str Run Range |
19 #6 |
| CopperWeld Str Tap |
19 #6 |
| CopperWeld Str Tap Range |
19 #6 |
| Rebar Size |
6 |
| Rebar Size Range |
6 |
| Conductor Type |
- CU C Solid-Run
- CU C Str-Run
- CU Weld C Solid-Run
- CU Weld C Str-Run
- CU C Str-Tap
- CU Weld C Solid-Tap
- CU Weld C Str-Tap
- CU C Solid-Tap
|
Logistics
| Carton Quantity |
12 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
1 |
PRODUCT DATASHEET
KS34
