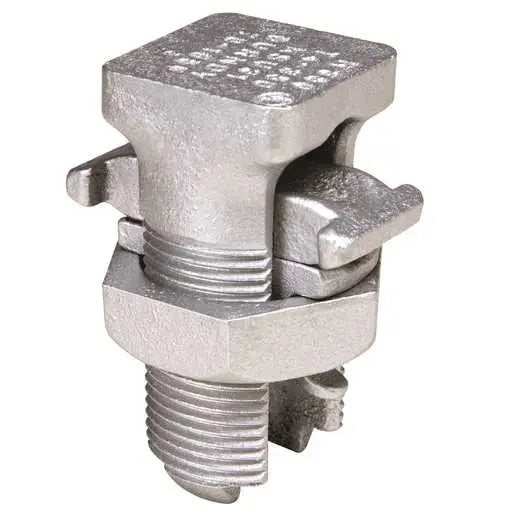

KSU29 - Burndy - 2.50" Tin Plated Split Bolt Connector with Spacer
Tin-plated, high-strength copper alloy SERVIT with spacer. Spacer separates dissimilar conductors and provides a long contact length that prevents high-pressure point contacts between run and tap conductors, 2.50 IN L.
- Tin-plated, high-strength copper alloy with a spacer
- Spacer separates dissimilar conductors and provides long contact length, preventing high-pressure point contacts between run and tap conductors
GENERAL SPECIFICATIONS
| Application |
For All Combinations Of Copper, Aluminum, ACSR, AAAC, 5005, And Steel |
| Catalog Number |
KSU29 |
| EU RoHS Indicator |
Yes |
| Material |
Copper |
| Plated |
N |
| Plating Type |
Unplated |
| Sub Brand |
UNIVERSAL SERVIT |
| Trade Name |
SERVIT® |
| Type |
KSU, Universal |
| UPC |
781810036853 |
Dimensions
| Dimension - Length Overall inch |
2.66 |
| Width |
1.22 in |
Conductor Related
| Conductor - ACSR Str Run Range |
2/0 AWG - 4/0 AWG |
| Conductor - ACSR Str Tap Range |
6 AWG - 4/0 AWG |
| Conductor - AL Str Run Range |
1 AWG - 250 KCMIL |
| Conductor - AL Str Tap Range |
8 AWG - 250 KCMIL |
| Conductor - Copper Str Run Range |
1 AWG - 250 KCMIL |
| Conductor - Copper Str Tap Range |
8 AWG - 250 KCMIL |
Logistics
| Carton Quantity |
25 |
| Minimum Pack Quantity |
1 |
| Pallet Quantity |
1 |
PRODUCT DATASHEET
KSU29
